CleanMax ZM-200 Handle & Bag Parts

Find genuine CleanMax ZM-200 handle and bag replacement parts for Model ZM-200. Can’t find your part? Call us at 763-535-0770.

Click on any numbered part in the diagram below to go directly to that part’s product page.

Hotspot Background3. Screw #8 x 5/8″ Hi-Lo4. Screw #8 x 7/16″ Hi-Lo32. Handle Tube5. Two Speed Main Switch6. Wire Connector7. Handle Back8. Plastic Cord Hook Swivel9. Upper Cord Hook Spring10. Upper Cord Hook Washer11. Upper Cord Hook Screw12. Steel Handle Tube3. Screw #8 x 5/8″ Hi-Lo3. Screw #8 x 5/8″ Hi-Lo13. Screw #10-32 x 1-5/8″3. Screw #8 x 5/8″ Hi-Lo14. Metal Lower Cord Hook13. Screw #10-32 x 1-5/8″14. Metal Lower Cord Hook15. Handle Tube Bracket16. Hex Nut17. Lower Handle Upper Fan Housing18. Bag Holder19. Bag Collar Seal20. Bag Collar Ring21. Bag Holder Assembly22. Lower Bag Clip (Commercial Print)23. Cloth Bag Assembly24. Lower Bag Spring25. Vacuum Bags (Paper / HEPA)29. Screw #5 Hi-Lo Self-Threading30. Handle End Cap31. Handle Grip33. Handle Tube with Grip34. Cord Retainer Hook

These are the genuine CleanMax ZM-200 handle and bag assembly parts for Model ZM-200 — including the steel handle tube, handle grip and end cap, the upper and lower cord hooks and their springs, screws and hardware, the two-speed main switch and wire connector, the bag holder and bag collar, the cloth bag assembly, and replacement vacuum bags. Twin City Vacuum has been selling and servicing CleanMax equipment since 1956. All parts are sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428. Learn more at CleanMax.com.

CleanMax ZM-200 Handle & Bag Parts

#ImagePart DescriptionPart NumberLink
3CleanMax ZM-200 Screw #8 x 5/8Screw #8 x 5/8″ Hi-LoA732-8314View Part
4CleanMax ZM-200 Screw #8 x 7/16Screw #8 x 7/16″ Hi-LoA732-8414View Part
5CleanMax ZM-200 Two Speed Main Switch part number A428-2200Two Speed Main SwitchA428-2200View Part
6CleanMax ZM-200 Wire Connector part number B123-0100Wire ConnectorB123-0100View Part
7Handle BackB431-3314CView Part
8CleanMax ZM-200 Plastic Cord Hook Swivel part number B431-3714Plastic Cord Hook SwivelB431-3714View Part
9CleanMax ZM-200 Upper Cord Hook Spring part number B430-0200Upper Cord Hook SpringB430-0200View Part
10CleanMax ZM-200 Upper Cord Hook Washer part number A430-0405Upper Cord Hook WasherA430-0405View Part
11CleanMax ZM-200 Upper Cord Hook Screw part number A430-0205Upper Cord Hook ScrewA430-0205View Part
12CleanMax ZM-200 Steel Handle Tube part number B431-3504ESteel Handle TubeB431-3504EView Part
13CleanMax ZM-200 Screw #10-32 x 1-5/8Screw #10-32 x 1-5/8″A432-0705View Part
14CleanMax ZM-200 Metal Lower Cord Hook part number B430-1205Metal Lower Cord HookB430-1205View Part
15CleanMax ZM-200 Handle Tube Bracket part number B431-2914EHandle Tube BracketB431-2914EView Part
16CleanMax ZM-200 Hex Nut part number A432-0805Hex NutA432-0805View Part
17CleanMax ZM-200 Lower Handle Upper Fan Housing part number D431-3014Lower Handle Upper Fan HousingD431-3014View Part
18CleanMax ZM-200 Bag Holder part number B211-3614Bag HolderB211-3614View Part
19CleanMax ZM-200 Bag Collar Seal part number B211-6400Bag Collar SealB211-6400View Part
20CleanMax ZM-200 Bag Collar Ring part number B211-2314Bag Collar RingB211-2314View Part

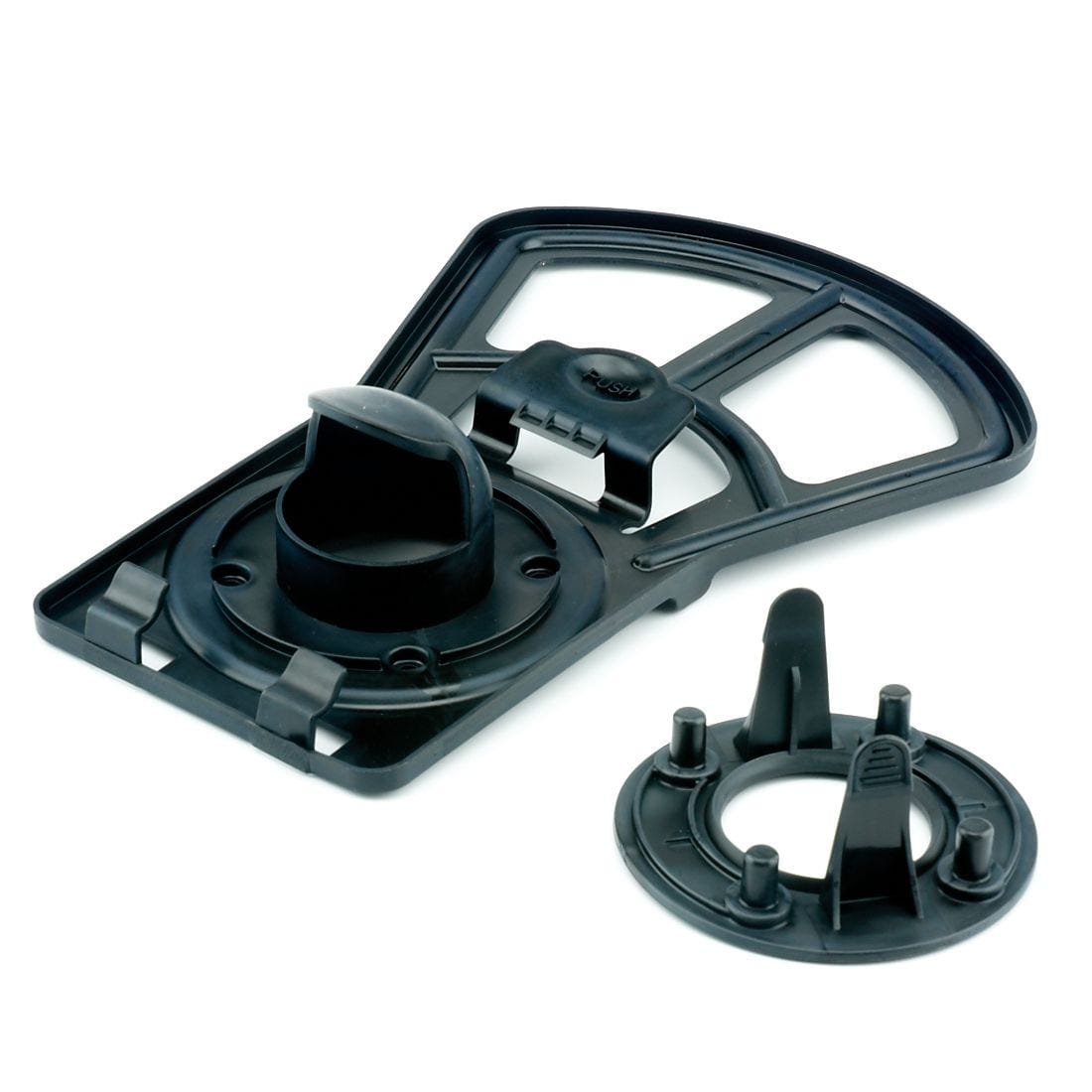

21CleanMax ZM-200 Bag Holder Assembly part number D211-3614Bag Holder AssemblyD211-3614View Part

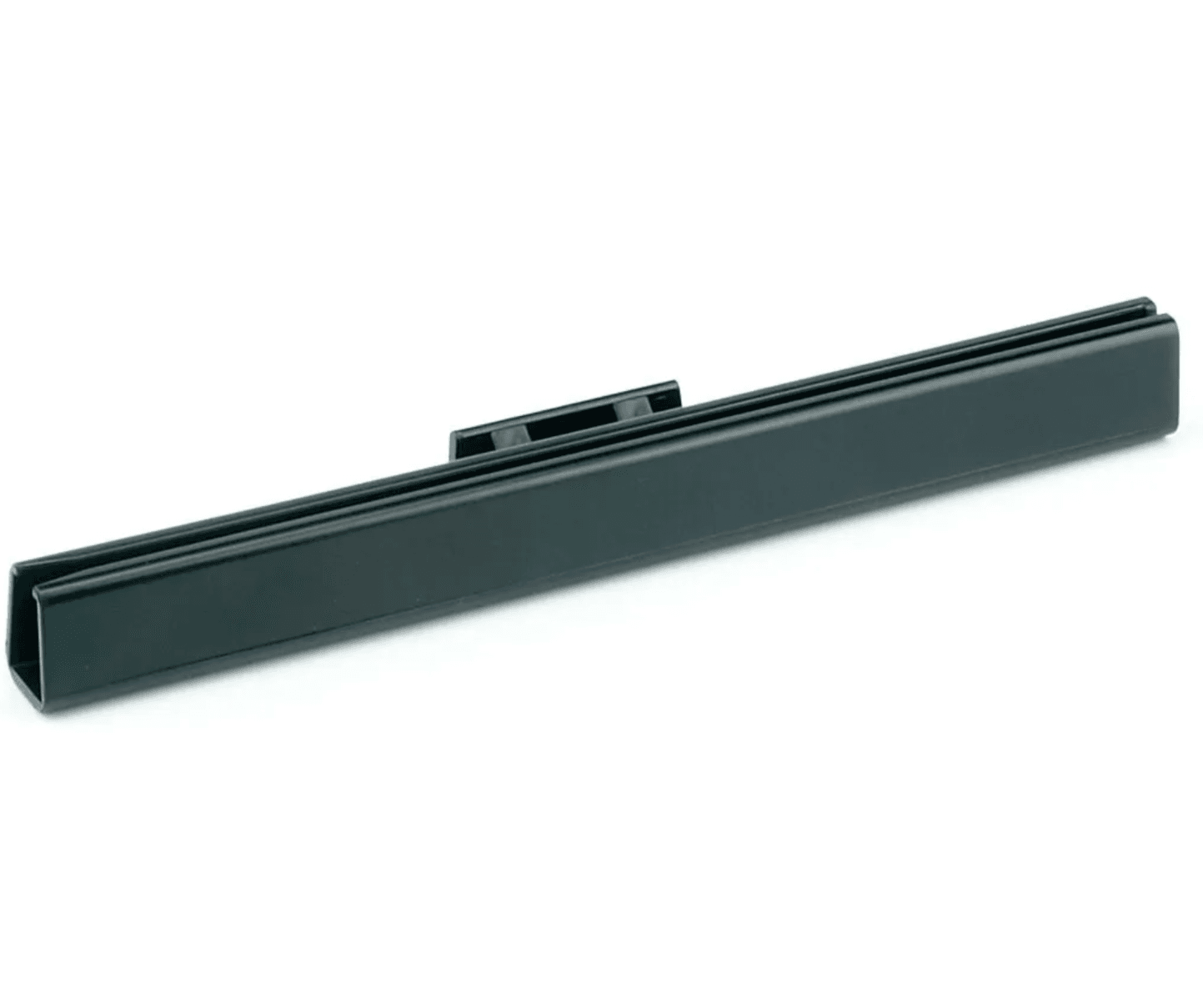

22CleanMax ZM-200 Lower Bag Clip (Commercial Print) part number B211-1914FLower Bag Clip (Commercial Print)B211-1914FView Part
23CleanMax ZM-200 Cloth Bag Assembly part number D211-6500Cloth Bag AssemblyD211-6500View Part
24CleanMax ZM-200 Lower Bag Spring part number B211-1204Lower Bag SpringB211-1204View Part
25CleanMax ZM-200 Vacuum Bags (Paper / HEPA) part number Vacuum Bags (Paper / HEPA)View Part
29CleanMax ZM-200 Screw #5 Hi-Lo Self-Threading part number A732-9206Screw #5 Hi-Lo Self-ThreadingA732-9206View Part
30CleanMax ZM-200 Handle End Cap part number B431-1014Handle End CapB431-1014View Part

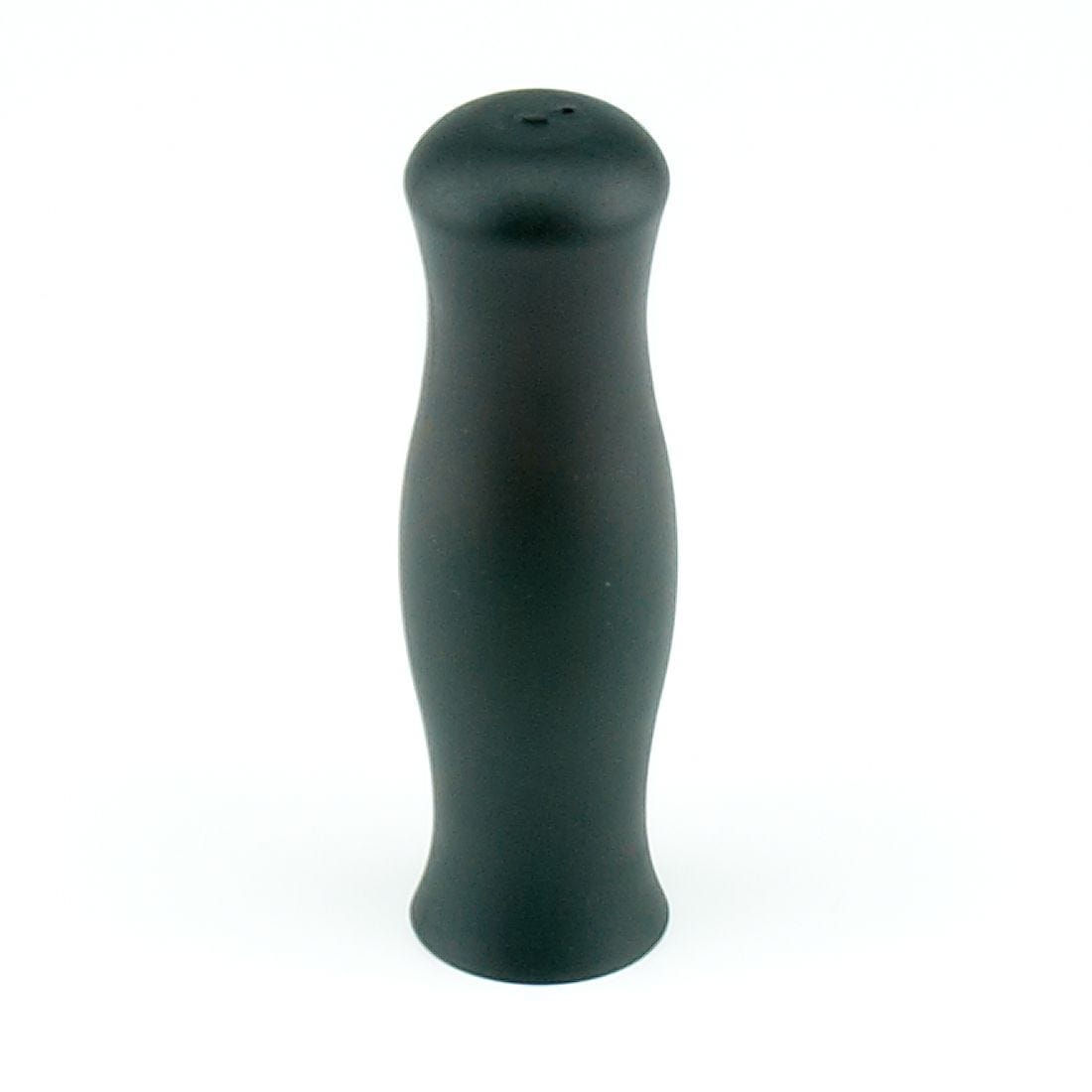

31CleanMax ZM-200 Handle Grip part number B431-2300Handle GripB431-2300View Part
32CleanMax ZM-200 Handle Tube part number B431-2506Handle TubeB431-2506View Part
33CleanMax ZM-200 Handle Tube with Grip part number D431-2406Handle Tube with GripD431-2406View Part
34CleanMax ZM-200 Cord Retainer Hook part number B352-6900Cord Retainer HookB352-6900View Part

Frequently Asked Questions

What parts are in the CleanMax ZM-200 handle and bag assembly?

The CleanMax ZM-200 handle and bag assembly includes the steel handle tube, handle grip and end cap, upper and lower cord hooks with their springs and screws, the handle tube bracket and lower handle upper fan housing, the two-speed main switch and wire connector, the bag holder, bag collar seal and ring, cloth bag assembly, lower bag clip and spring, and the replacement paper and HEPA vacuum bags. Every numbered part on the diagram links to its own product page.

What handle parts fit my CleanMax ZM-200?

Every part in the table above fits the CleanMax ZM-200. The ZM-200 has its own handle tube (B431-2506), handle grip (B431-2300), handle tube with grip (D431-2406) and end cap (B431-1014), while the hardware, cord hooks, two-speed switch, and bag components are shared with the ZM-400 and ZM-600. Tell us your model and we will confirm the exact part you need.

What replacement bags does the CleanMax ZM-200 use?

The CleanMax ZM-200 uses the ZM-series paper and HEPA cloth-bag-style vacuum bags (shown on the diagram above), available in paper and HEPA media and in single, 6-pack, and case quantities. See the vacuum bags listing for the current options.

How do I order CleanMax ZM-200 handle or bag parts or get help?

You can add any part directly to your cart from its product page linked in the table above, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing CleanMax equipment since 1956 and can confirm the right part for your machine.

Looking for other CleanMax ZM-200 parts? Browse the full CleanMax ZM-200 parts page for the nozzle and agitator assemblies, or call 763-535-0770 and our team in Crystal, MN will help you find the right part.
