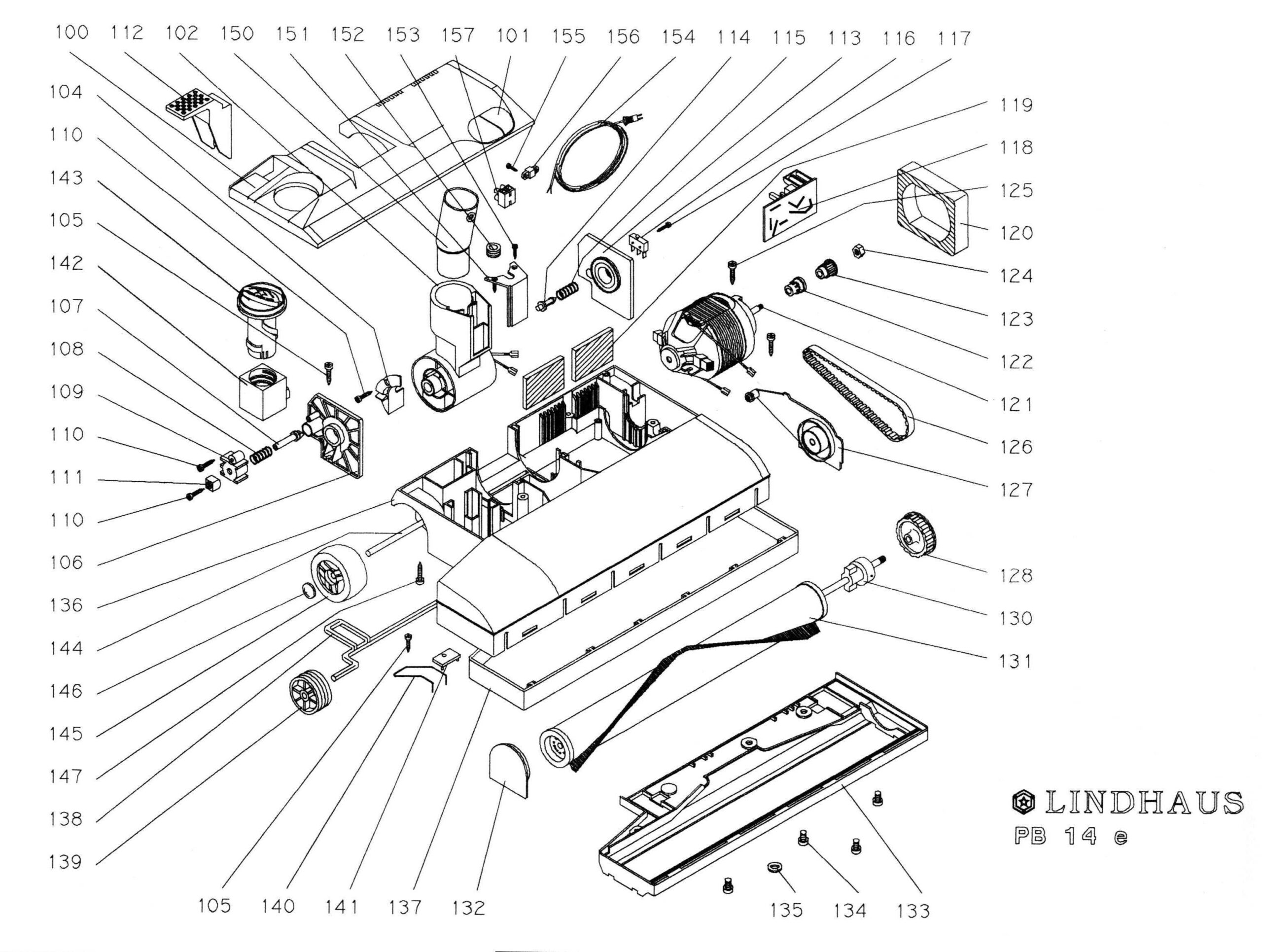

119. Filter, BR Motor HC – 010720316118. Circuit Board M30 V.120 W.160 – 020610000125. Screw 3.9 X 16 PKG/20 – 085560009120. Filter, BR Motor – 010580016121. Brush Motor 100-120V 380 – 050030080126. Belt 7mm 318 RPP37 – 010790300127. Transmission Support W/Bearing – 181570029130. Drive Joint – 088620081128. Pulley With Shaft EF – 060290081131. Brush roll M30 12 1-brist EF – 009590301134. Roller Cover Clip PKG/20 – 087491381135. Screw 3.5 X 9.5 TG PKG/20 – 085540009133. Base Shoe Plate 14 DCS – 005860333137. Bumper 14″ Dark Grey – 000590112141. Spring, Stop Plate – 000680036140. Spring, Axle – 010430009105. Screw 3.9 X 13 PKG/20 – 085590009136. Base Housing 14″ White – 181663681132. Roller support M30 12 EF – 181670029139. Wheel, Front Nylon DCS – 003090004138. Axle, Front – 011320029145. Wheel, Rear Nylon DCS145 – 003100304146. Wheel Retainer Cap – 012840009144. Axle, Rear PB144 – 011380009106. Joint Support, Right – 080430381110. Screw 2.9 X 16 PKG/20 – 085610009111. Slide PB111 – 000970305109. Bushing – 000650036108. Spring, Detente – 010390009107. Plunger PB107 – 000840036142. Brush Height Adjust – 000990305105. Screw 3.9 X 13 PKG/20 – 085590009143. Knob, Adjusting Dark Grey – 003750104104. Joint Pin Slide, Aria – 005920305100. Base Housing Cover QR – 181163681112. Foot Pedal Dark Grey – 001920105102. Joint Complete Qck Con PN, Aria – 087770380151. Screw 3.5 X 13 PKG/20 – 088020009117. Screw 2.2 X 16 PKG/20 – 086950009116. Switch, Brush Motor – 020640000113. Joint Support, Left – 080440381115. Spring, Switch Pin – 010480009114. Switch Activator Pin – 000670036154. Power Cord 11 – Code: 023320320156. Spring, foot pedal – 011070009155. Foot pedal joint – 007180133101. Lens Set LED Light Grey LB3 – 181174681157. Transmission support cmp CH EF – 181590029153. Cord, Aria (For Joint) – 023320320 Filters Sort results
Reset Apply
Image | Name | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | Base housing cover PB12/14 QR – 181163681 | $50.00 | |||
| Lens set LED light grey LB3 – 181174681 | $8.20 | |||
| Joint complete qck con PN, Aria – 087770380 | $93.80 | |||
| Joint pin slide, Aria – 005920305 | $2.80 | |||
| Screw 3.9 x 13 pkg/20 – 085590009 | $9.60 | |||
| Joint support, right – 080430381 | $15.80 | |||
| Plunger PB107 – 000840036 | $2.40 | |||
| Spring, detente – 010390009 | $1.20 | |||
| Bushing – 000650036 | $1.60 | |||
| Screw 2.9 x 16 pkg/20 – 085610009 | $8.60 | |||
| Slide PB111 – 000970305 | $1.00 | |||
| Foot pedal dark grey – 001920105 | $10.40 | |||
| Foot pedal blue CH – 001923805 | $8.80 | |||
| Joint support, left – 080440381 | $15.80 | |||
| Switch activator pin – 000670036 | $1.00 | |||
| Spring, switch pin – 010480009 | $1.00 | |||
| Switch, brush motor – 020640000 | $16.60 | |||
| Screw 2.2 x 16 pkg/20 – 086950009 | $7.60 | |||
| Circuit board M30 V.120 W.160 – 020610000 | $62.00 | |||
| Filter, br motor HC – 010720316 | $4.40 | |||
| Filter, br motor – 010580016 | $8.40 | |||
| Brush motor 100-120v 380 – 050030080 | $148.00 | |||
| Screw 3.9 x 16 pkg/20 – 085560009 | $7.60 | |||
| Belt 7mm 318 RPP37 – 010790300 | $16.00 | |||
| Transmission support w/bearing – 181570029 | $33.60 | |||
| Pulley with shaft EF – 060290081 | $34.80 | |||
| Drive joint – 088620081 | $10.00 | |||
| Brush roll M30 12 1-brist EF – 009590301″ | $38.00 | |||
| Roller support M30 12 EF – 181670029″ | $33.60 | |||

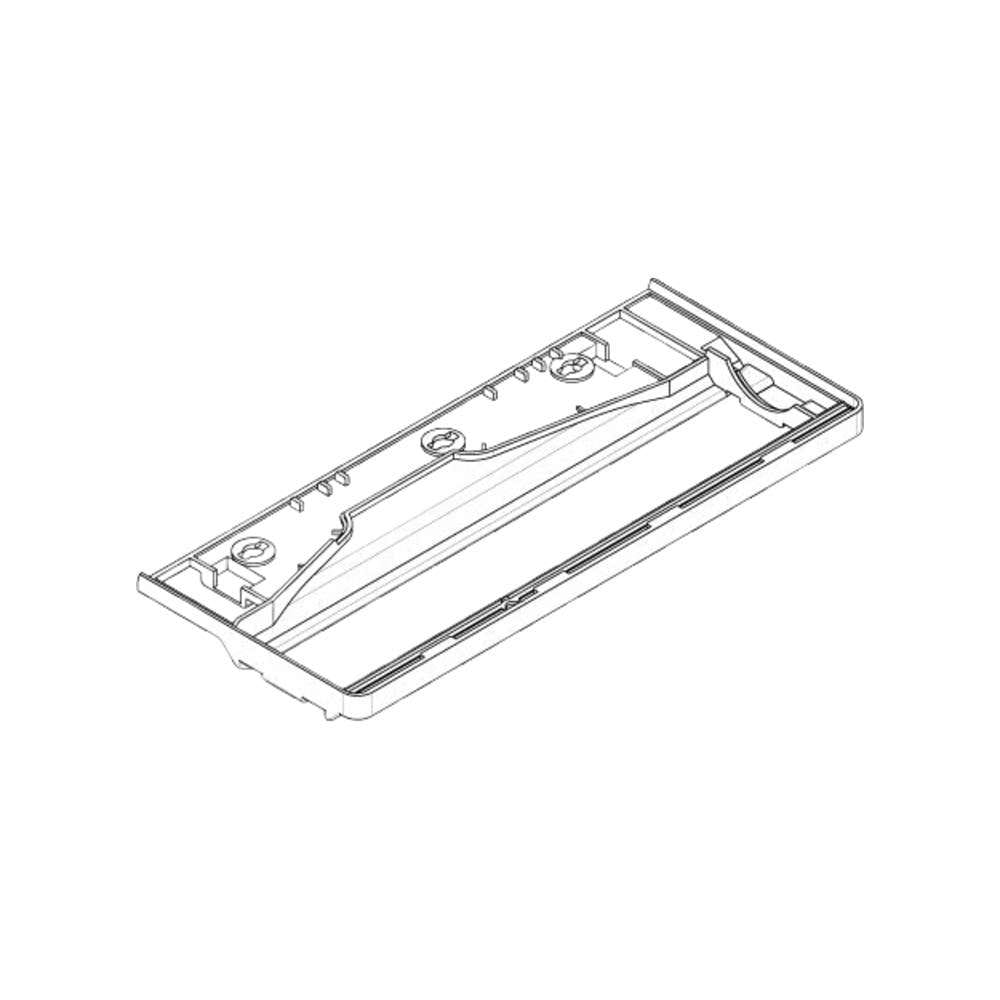

| Base shoe plate 12 DCS – 005860333″ | $37.20 | |||
| Roller cover clip pkg/20 – 087491381 | $14.60 | |||
| Screw 3.5 x 9.5 TG pkg/20 – 085540009 | $8.00 | |||
| Base housing 14 white – 181663681″ | $88.00 | |||
| Base housing CHPro14 EF LB3 – 181664681″ | $88.00 | |||
| Bumper 14 dark grey – 000590112″ | $33.80 | |||
| Bumper 380 blue – 000593812 | $33.80 | |||
| Axle, front – 011320029 | $23.40 | |||
| Wheel, front nylon DCS – 003090004 | $3.40 | |||
| Spring, axle – 010430009 | $1.20 | |||
| Spring, stop plate – 000680036 | $0.40 | |||
| Brush height adjust – 000990305 | $7.40 | |||
| Knob, adjusting dark grey – 003750104 | $10.60 | |||
| Adjusting knob blue CH EF – 003753804 | $10.00 | |||
| Axle, rear PB144 – 011380009 | $13.00 | |||
| Wheel, rear nylon DCS145 – 003100304 | $2.80 | |||
| Wheel retainer cap – 012840009 | $1.00 | |||
| Screw 3.5 x 19 pkg/20 – 086440009 | $7.00 | |||
| Joint cover, Aria – 007160305 | $2.60 | |||
| Blocking joint, Aria – 005930305 | $5.60 | |||
| Screw 3.5 x 13 pkg/20 – 088020009 | $7.40 |
12
