Lindhaus CH Pro – Power Brush 12 inch(300) / 14 inch(380)

Find genuine Lindhaus CH Pro Power Brush replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

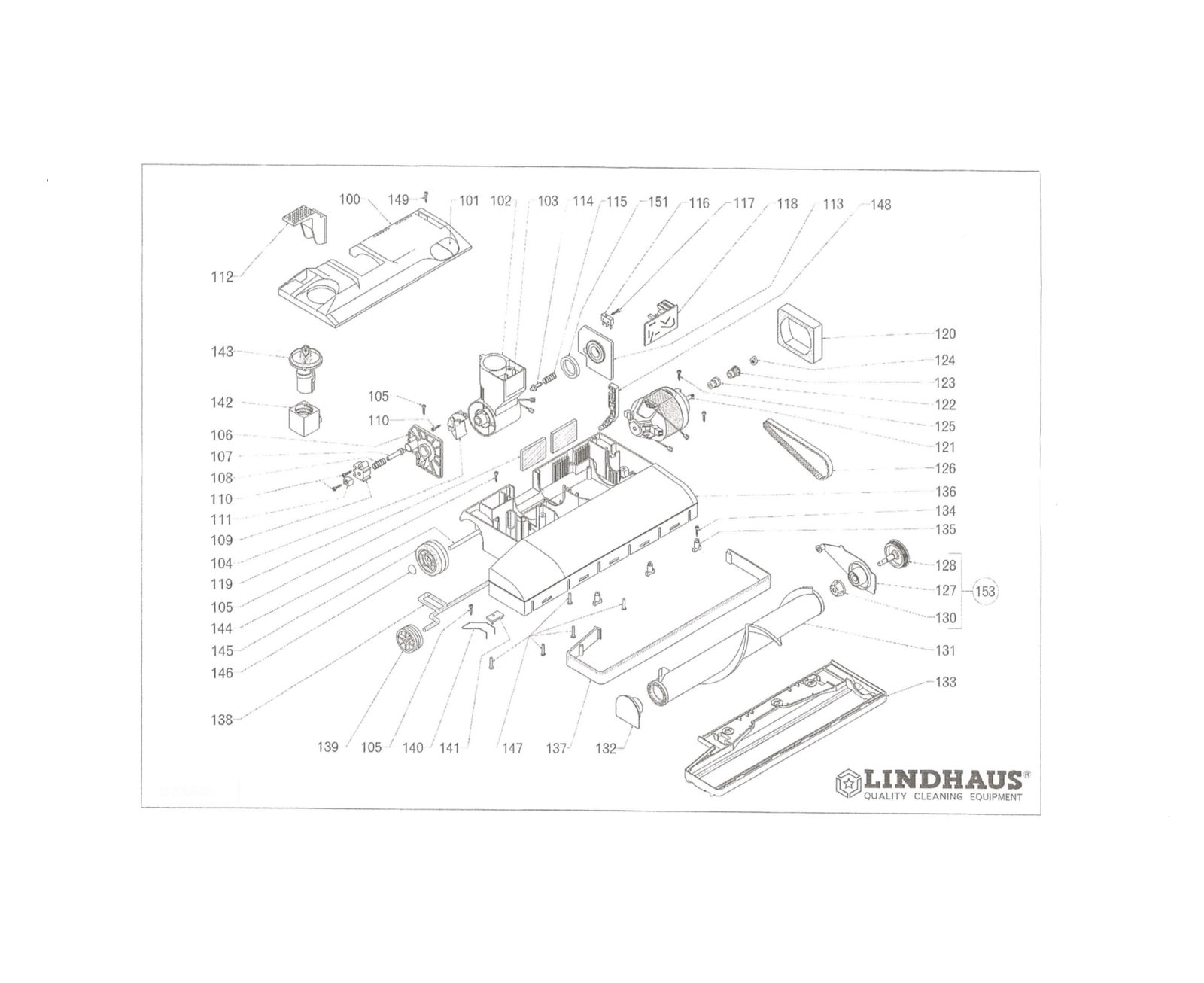

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background100. Base Housing Cover101. Lens Set Red And Green102. Joint Complete103. Male Electrical Connection Set, 3 Prong104. Joint Pin Slide105. Screw 3.9×13 (Single)106. Support Right Joint107. Plunger108. Spring, Détente109. Bushing110. Screw 2.9×16 (Single)111. Slide112. Foot Pedal Dark Gray113. Support Left Joint114. Switch Activator Pin115. Spring Switch Activator Pin116. Microswitch117. Screw 2.2×16 (Single).118. Circuit Board 119. Exhaust Filter120. Filter Brush Motor121. Brush Motor 100/120V (12″-14″) 122. Metal Spacer123. Metal Pulley124. Nut M4 (Single)125. Screw 3.9×16 (Single)126. Timing Belt 7mm127. Transmission Support With Bearings128. Pulley With Shaft130. Drive Joint Base131. Brush Roller132. Roller Support133. Brush Shoe Plate134. Screw 3.5×9.5 TG (Single)135. Roller Cover Clip (Single)136. Base Housing)137. Bumper138. Front Axle139. Front Wheel Rubber140. Spring (Axle)141. Spring Stop Plate142. Brush Height Adjuster143. Adjusting Knob Blue144. Rear Axle145. Rear Big Wheel Rubber146. Wheel Retainer Cap147. Screw 3.5×19 (Single)148. Side Lever151. Felt Ring153. Transmission Support Complete

The parts table below covers the Lindhaus CH Pro power brush (motorized head), numbered to match the schematic diagram above. This power brush is shared by the CH Pro and CH Pro Eco-Force in 12″/300 and 14″/380 widths — match the width when ordering brushroll, base plate or roller cover. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice

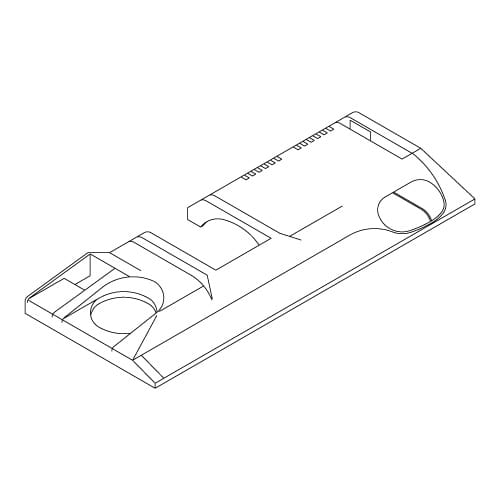

100Base Housing CoverBase Housing Cover084014681$48.00
101Lens Set Red And GreenLens Set Red And Green083950081$8.60

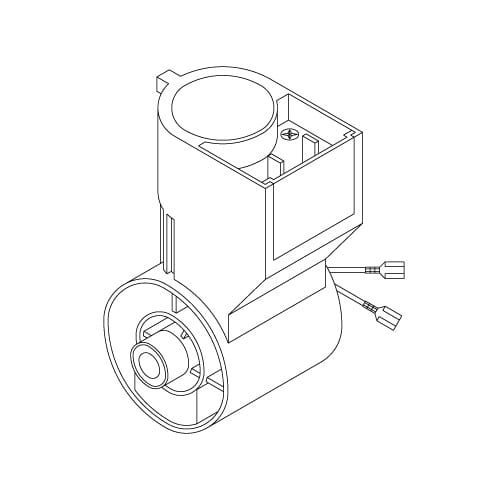

102Joint CompleteJoint Complete084180380$111.54
103Male Electrical Connection Set, 3 ProngMale Electrical Connection Set, 3 Prong082490080$23.00

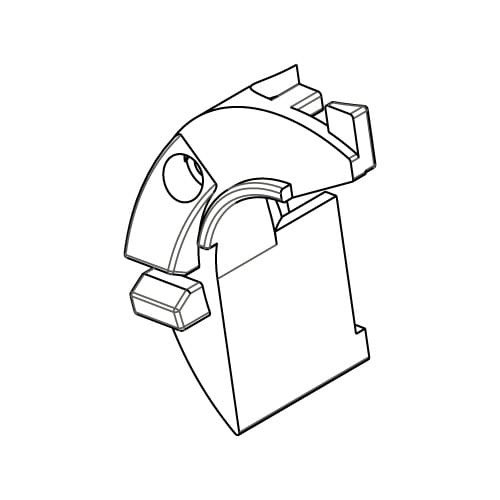

104Joint Pin SlideJoint Pin Slide003820005$2.40
105Screw 3.9x13 (Single)Screw 3.9×13 (Single)085590009A$9.60

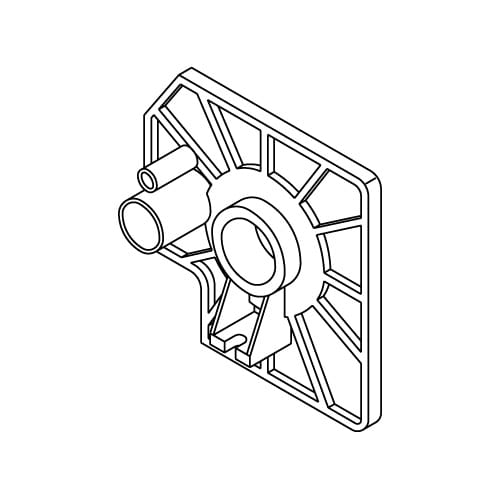

106Support Right JointSupport Right Joint080430381$15.80
107PlungerPlunger000840036$2.40
108Spring, DétenteSpring, Détente010390009$1.20

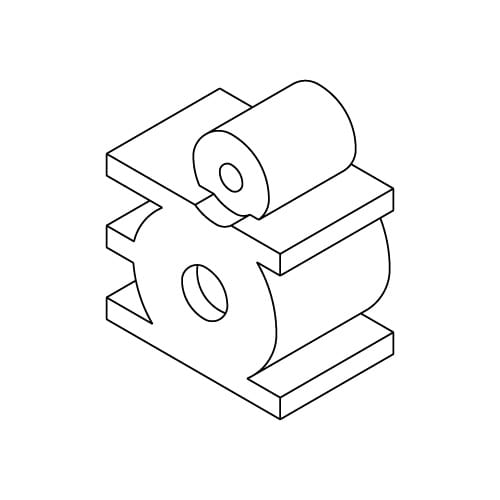

109BushingBushing000650036$1.60
110Screw 2.9x16 (Single)Screw 2.9×16 (Single)085610009$8.60
111SlideSlide000970305$1.06
112Foot Pedal Dark GrayFoot Pedal Dark Gray001920105$10.40
113Support Left JointSupport Left Joint080440381$15.80
114Switch Activator PinSwitch Activator Pin000670036$1.00

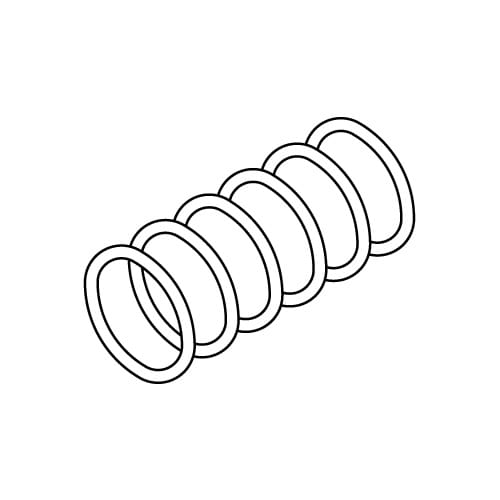

115Spring Switch Activator PinSpring Switch Activator Pin010480009$1.00
116MicroswitchMicroswitch020640000$16.60
117Screw 2.2x16 (Single).Screw 2.2×16 (Single).086950009A$9.60

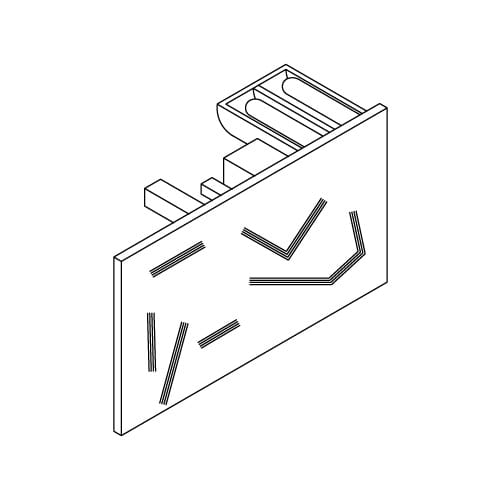

118Circuit BoardCircuit Board020610000$62.00
119Exhaust FilterExhaust Filter010720316$4.40
120Filter Brush MotorFilter Brush Motor010580016$8.40
121Brush Motor 100/120V (12"-14")Brush Motor 100/120V (12"-14")050030080$148.00
122Metal SpacerMetal Spacer002890029$2.40
123Metal PulleyMetal Pulley002880029$4.99
124Nut M4 (Single)Nut M4 (Single)180160009A$3.20
125Screw 3.9x16 (Single)Screw 3.9×16 (Single)085560009A$8.00
126Timing Belt 7mmTiming Belt 7mm010790300$16.00

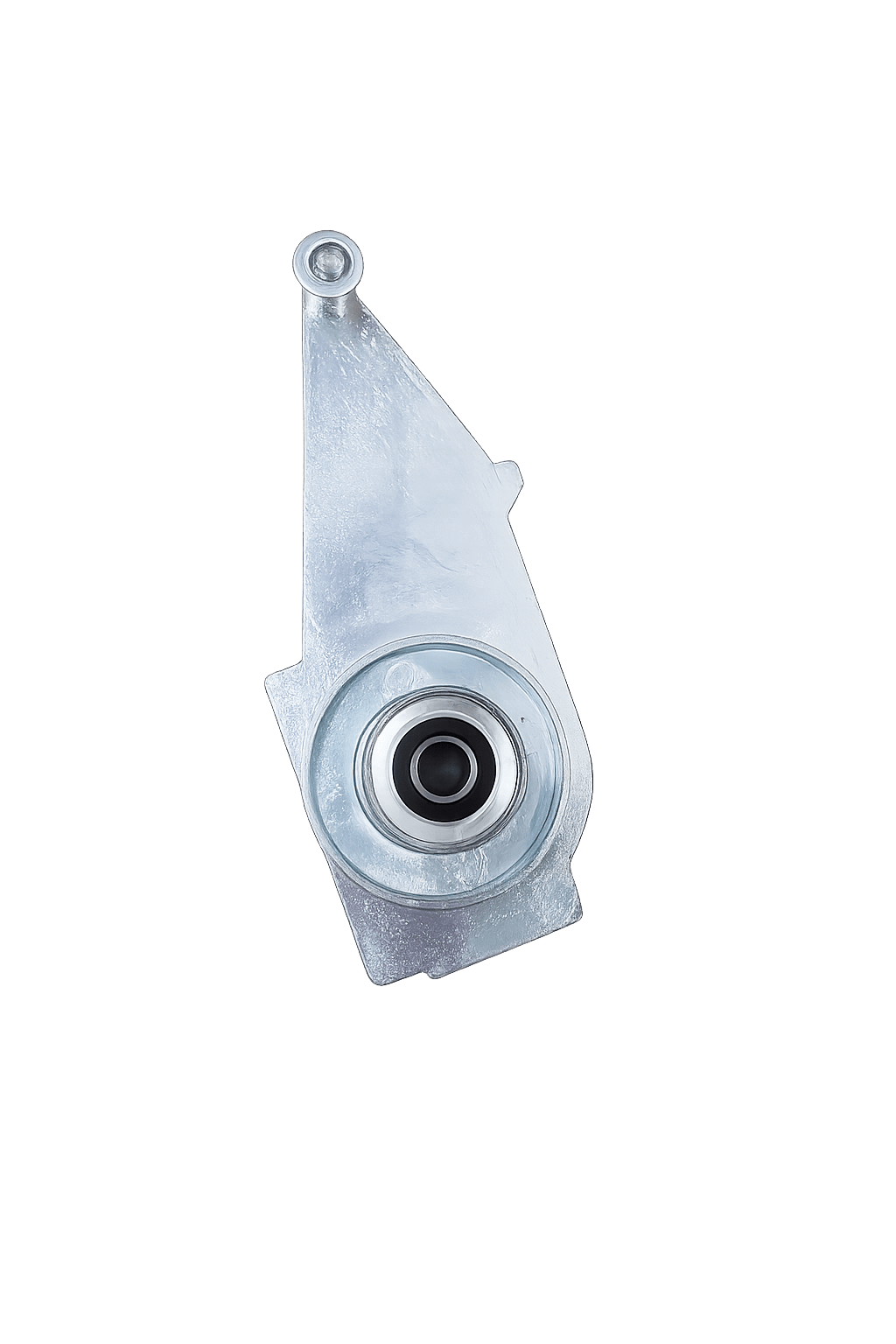

127Transmission Support With BearingsTransmission Support With Bearings181570029$33.60

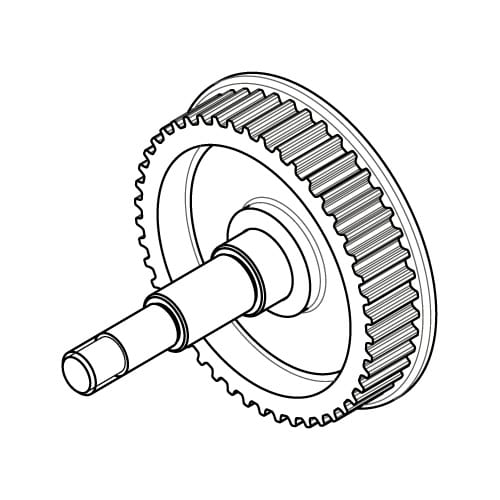

128Pulley With ShaftPulley With Shaft060290081$34.80

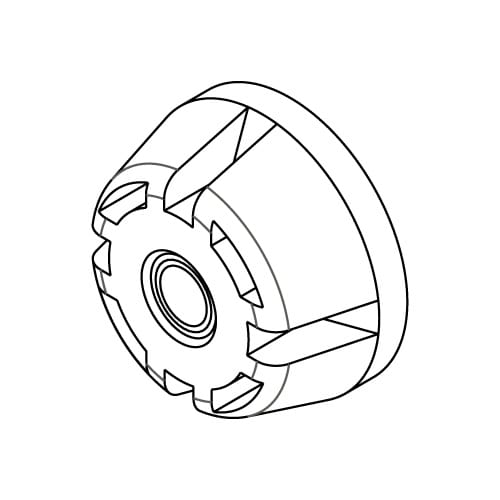

130Drive Joint BaseDrive Joint Base088620081$10.00
131Brush RollerBrush Roller009590301$6.00
132Roller SupportRoller Support181670029$33.60

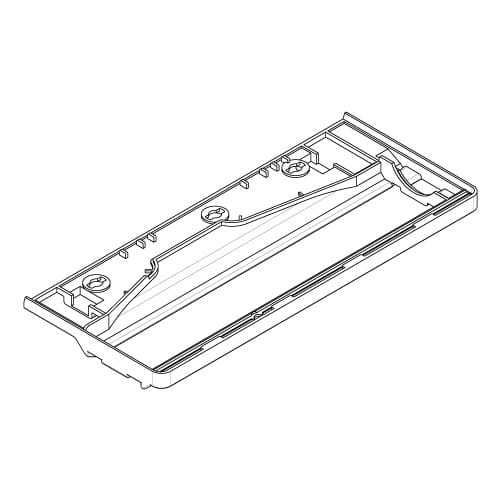

133Brush Shoe PlateBrush Shoe Plate005860333$37.20
134Screw 3.5x9.5 TG (Single)Screw 3.5×9.5 TG (Single)085540009A$0.21
135Roller Cover Clip (Single)Roller Cover Clip (Single)087491381A$0.36

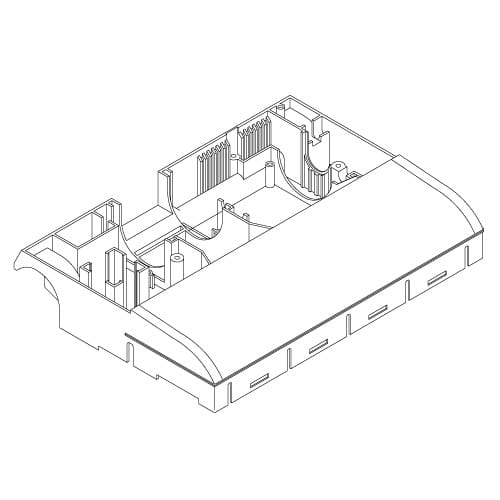

136Base Housing)Base Housing)087564681$78.00
137BumperBumper000603812$29.80
138Front AxleFront Axle011320029$23.40
139Front Wheel RubberFront Wheel Rubber002260000$5.60
140Spring (Axle)Spring (Axle)010430009$1.20
141Spring Stop PlateSpring Stop Plate000680036$0.50
142Brush Height AdjusterBrush Height Adjuster000990305$7.40

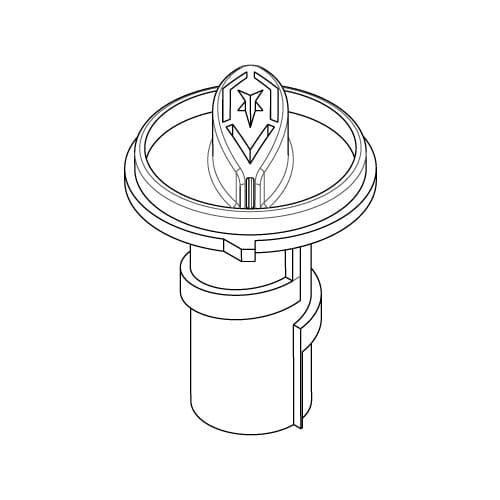

143Adjusting Knob BlueAdjusting Knob Blue003753804$10.06
144Rear AxleRear Axle011380009$13.00
145Rear Big Wheel RubberRear Big Wheel Rubber002270000$7.80
146Wheel Retainer CapWheel Retainer Cap012840009$1.06
147Screw 3.5x19 (Single)Screw 3.5×19 (Single)086440009A$7.00
148Side LeverSide Lever001580304$10.00
151Felt RingFelt Ring—$0.83

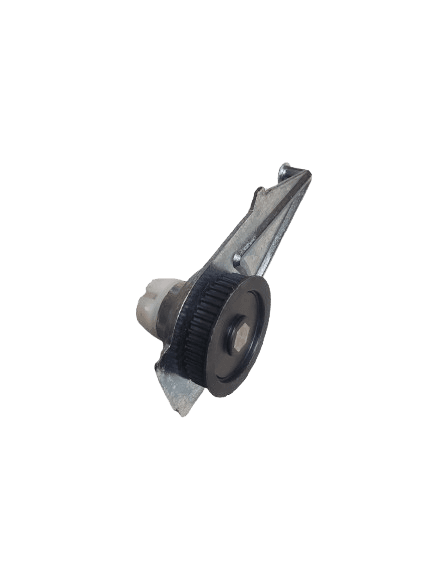

153Transmission Support CompleteTransmission Support Complete181590029$75.60

Lindhaus CH Pro Power Brush Head Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus CH Pro Power Brush Head schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number? Call 763-535-0770 with your model.

What are the most common Lindhaus CH Pro Power Brush Head parts?

The brushroll, brush belt and base plate are the most frequently replaced power-brush parts. All are listed in the table above by schematic number.

Do original CH Pro and CH Pro Eco-Force parts interchange?

Many do — belts, brushrolls, bags and HEPA/exhaust filters generally cross over, and both machines share the same power-brush head. Some housings, base and electrical parts are generation-specific. See the CH Pro body parts. Confirm by part number, or call us.

How do I order a Lindhaus CH Pro Power Brush part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus CH Pro Power Brush.

Browse the CH Pro parts, the CH Pro Eco-Force parts, or all Lindhaus vacuum parts.
