Lindhaus Health Care Pro 12 inch Body Parts

Find genuine Lindhaus HCP 12″ (body) replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

The parts table below covers the body of the Lindhaus Health Care Pro 12″ upright, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#	Image	Part Description	Part Number	Price
1		Lindhaus Hcp 12" Bag Housing Cover	080170181	$88.32
3		Lindhaus Hcp 12" Filter Holder	000160304	$12.96
4		Lindhaus Hcp 12" Bag Door Latch + Spring	082720181	$13.00
5		Lindhaus Hcp 12" Filter, Internal Foam	011410316	$2.20
6		Lindhaus Hcp 12" Bag Entrance With Safety Support	084370081	$55.40
7		Lindhaus Hcp 12" Button+support+spring 2 Position	084520081	$7.40
8		Lindhaus Hcp 12" Uph Tool – Natural Bristle Brush Only	030900300	$7.20
9		Lindhaus Hcp 12" Dust Brush Support	001830205	$4.16
10		Lindhaus Hcp 12" Bag Housing Grey – New Motor	086270181	$124.20
11		Lindhaus Hcp 12" Relief Valve Kit	080790081	$12.20
12		Lindhaus Hcp 12" Valve Filter	011050016	$1.80
13		Lindhaus Hcp 12" O-ring	010260307	$0.80
14		Lindhaus Hcp 12" Handle Grip Kit For Stretch Hose	087530381	$29.80
15		Lindhaus Hcp 12" Wand / Crevice Tool Clip	002730104	$14.80
16		Lindhaus Hcp 12" Upper Hose Hook For Flexible Hose	001950110	$12.20
17		Lindhaus Hcp 12" Handle Grip (Only)	080770181	$22.40
18		Lindhaus Hcp 12" Retainer	002870105	$2.20
19		Lindhaus Hcp 12" Chromate Tube – 2 Position W/ Button Lock	084590081	$31.60
21		Lindhaus Hcp 12" Handle Tube Assembly 2 Pos.	084410181	$75.80
22		Lindhaus Hcp 12" Electric System Assy Hpro Hepa	183513681	Call to order
23		Lindhaus Hcp 12" Cord 2×17 Thin, 2 Prong, 2 Wire	021950320	$53.80
24		Lindhaus Hcp 12" Strain Relief	000460307	$8.00
25		Lindhaus Hcp 12" Cord Clamp	000070305	$1.00
26		Lindhaus Hcp 12" Vacuum Sensor	021340000	$23.80
27		Lindhaus Hcp 12" Safety Support Kit	084580081	$12.00
28		Lindhaus Hcp 12" Main Switch 15a 3 Way	021050300	$12.40
29		Lindhaus Hcp 12" Indicator Light	020020000	$8.00
31		Lindhaus Hcp 12" Lower Cord Hook Light Grey	001880205	$6.22
32		Lindhaus Hcp 12" Handle Cover Grey	086610181	$45.80
34		Lindhaus Hcp 12" Comb Wire Holder	001980306	$1.60
35		Lindhaus Hcp 12" Frame Handle Grey	001900101	$35.38
36		Lindhaus Hcp 12" Filter, Foam Upper	010210016	$4.00
37		Lindhaus Hcp 12" Motor Gasket	000200308	$13.80
38		Lindhaus Hcp 12" Terminal Block 3 Poles	020340400	$3.00
39		Lindhaus Hcp 12" Foam Motor Filter	011790016	$7.20
40		Lindhaus Hcp 12" Motor Gasket	000200308	$13.80
41		Lindhaus Hcp 12" Bottom Cover Kit	084440281	$10.24
42		Lindhaus Hcp 12" Exhaust Grill	003360100	$12.40
43		Lindhaus Hcp 12" Microfilter 12 Pack	085350081	$56.00
44		Lindhaus Hcp 12" Front Grill Grey	083652281	$58.80
45		Lindhaus Hcp 12" Uph Tool W/natural Bristle Brush	031110300	$19.80
46		Lindhaus Hcp 12" Uph Tool – Black Strip Only	030740300	$3.40
47		Lindhaus Hcp 12" Screw 3.5 X 22	010050009	$8.00
48		Lindhaus Hcp 12" Screw 3.5 X 25 Pack Of 20	085550009	$8.00

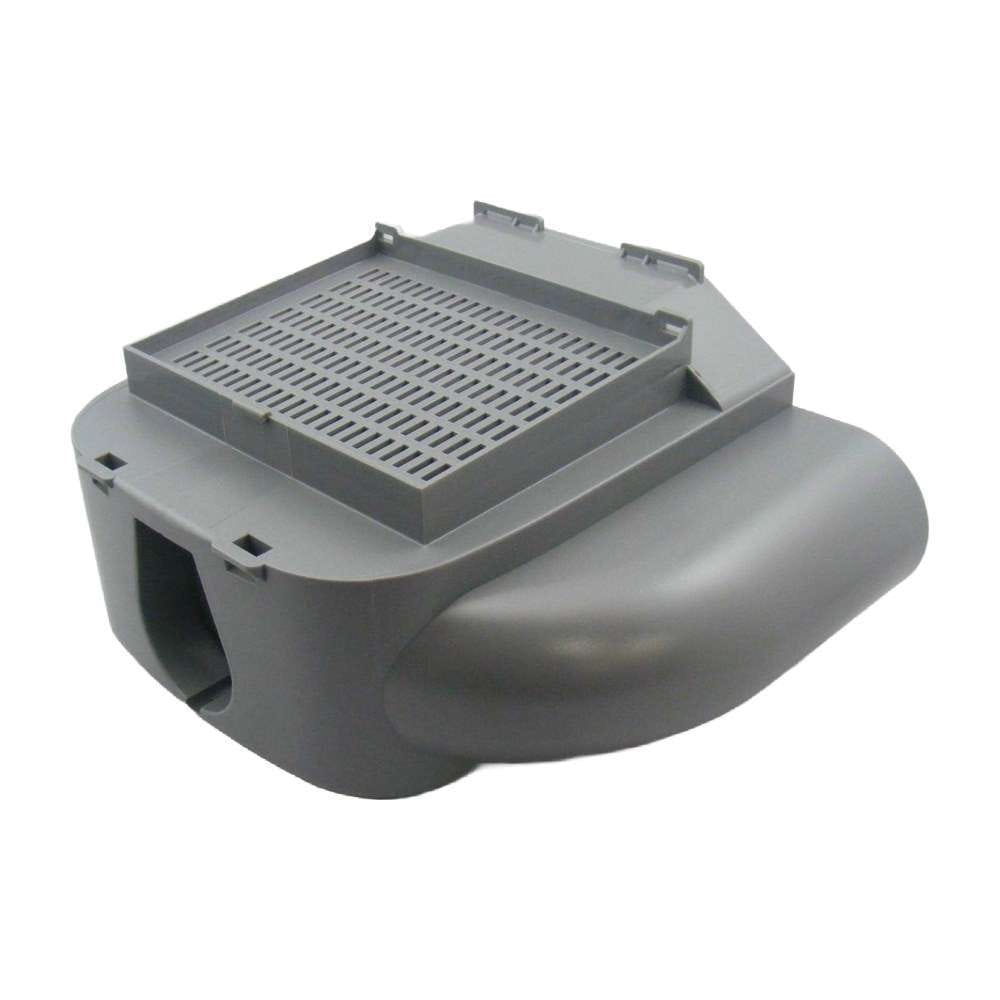

49		Lindhaus Hcp 12" Vacuum Motor Housing Grey	003300133	$89.20
50		Lindhaus Hcp 12" O-ring	011810307	$1.00

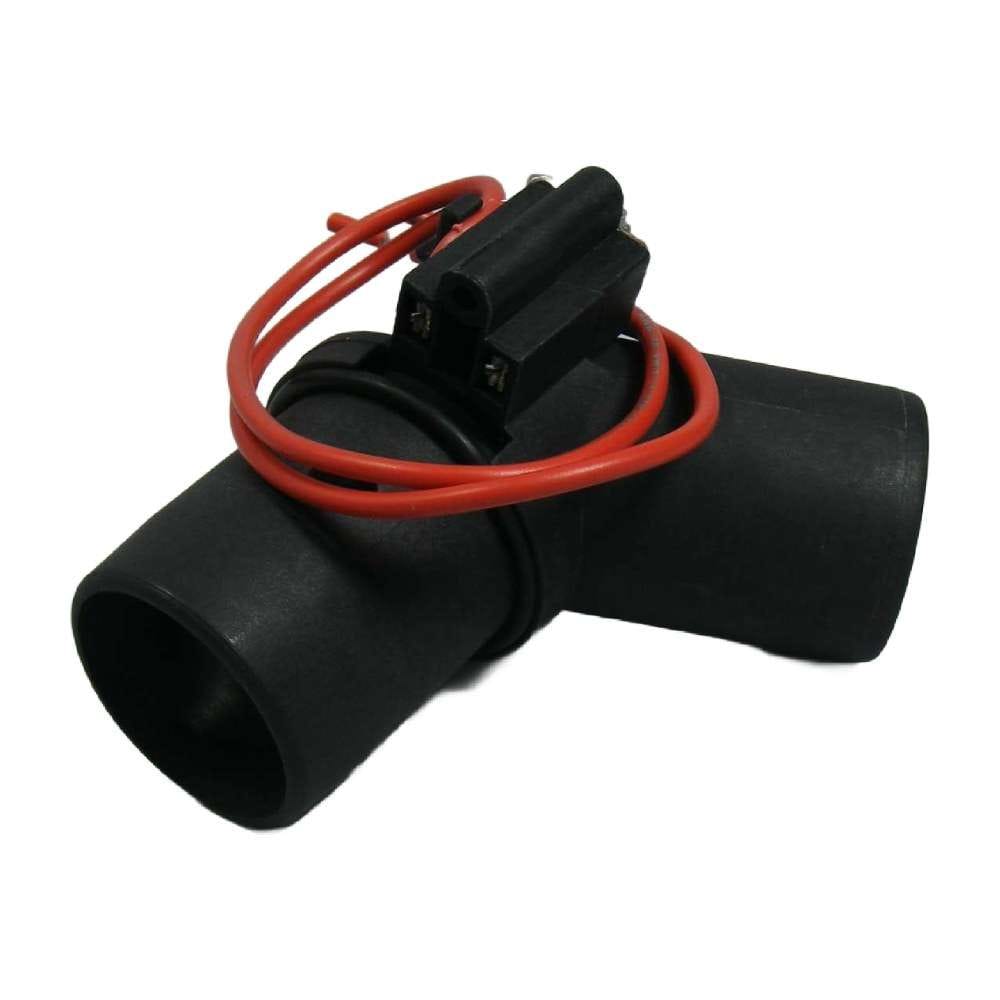

51		Lindhaus Hcp 12" Curve Support	083690080	$47.80
52		Lindhaus Hcp 12" Upper Curve	003410105	$8.20
53		Lindhaus Hcp 12" O-ring	010270307	$0.88
54		Lindhaus Hcp 12" Inner Vac Motor Housing Grey	083680281	$71.80
55		Lindhaus Hcp 12" Hose Inlet	003330133	$17.40
56		Lindhaus Hcp 12" Motor Clamp Hpro Hepa 3 Wires	083480080	$25.92
57		Lindhaus Hcp 12" Vacuum Motor 120/60 W. 750	051350080	$178.00
58		Lindhaus Hcp 12" Filter, Foam Motor	010220016	$3.20
59		Lindhaus Hcp 12" Crevice Tool	030060310	$4.60
61		Lindhaus Hcp 12" 4 Contact Housing Cover	002480003	$2.24
62		Lindhaus Hcp 12" 4 Contact Housing	002400003	$2.24
63		Lindhaus Hcp 12" Vacuum Sensor Adaptor	003230001	$0.60
64		Lindhaus Hcp 12" Screw 3.5 X 19 Pack Of 20	086440009	$7.00
65		Lindhaus Hcp 12" Screw 3.9 X 16 Pack Of 20	085560009	$7.60
66		Lindhaus Hcp 12" Screw 3.5 X 16	010030009	$0.24
67		Lindhaus Hcp 12" Screw 2.9 X 19 Pack Of 20	085530009	$6.80
68		Lindhaus Hcp 12" Button Light Grey	005200201	$1.74
69		Lindhaus Hcp 12" Handle Spring	012980009	$12.00

Lindhaus HCP 12″ Body Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus HCP 12″ body schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number you need? Call 763-535-0770 with your model.

What are the most common Lindhaus HCP 12″ body parts?

The HEPA and exhaust filters, cloth/paper bags and brush belt are the most frequently replaced body parts on the Lindhaus HCP 12″. All are listed in the table above by schematic number.

Do Lindhaus HCP 12″ parts fit the other cleaning width?

Body parts are shared between the 12″ and 14″, but head parts are sized to the cleaning width and do not interchange. See the HCP 14″ body parts for the other width, or the HCP 12″ head parts for this machine’s other section. Confirm by part number, or call us.

How do I order a Lindhaus HCP 12″ part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus HCP 12″.

Browse the HCP 12″ head parts, the HCP 14″ body parts, or the HCP 12″ parts hub.
