Tornado Surge 10 Mid-Size Carpet Extractor

Tornado Surge 10 Mid-Size Carpet Extractor (TE070-G10-U)

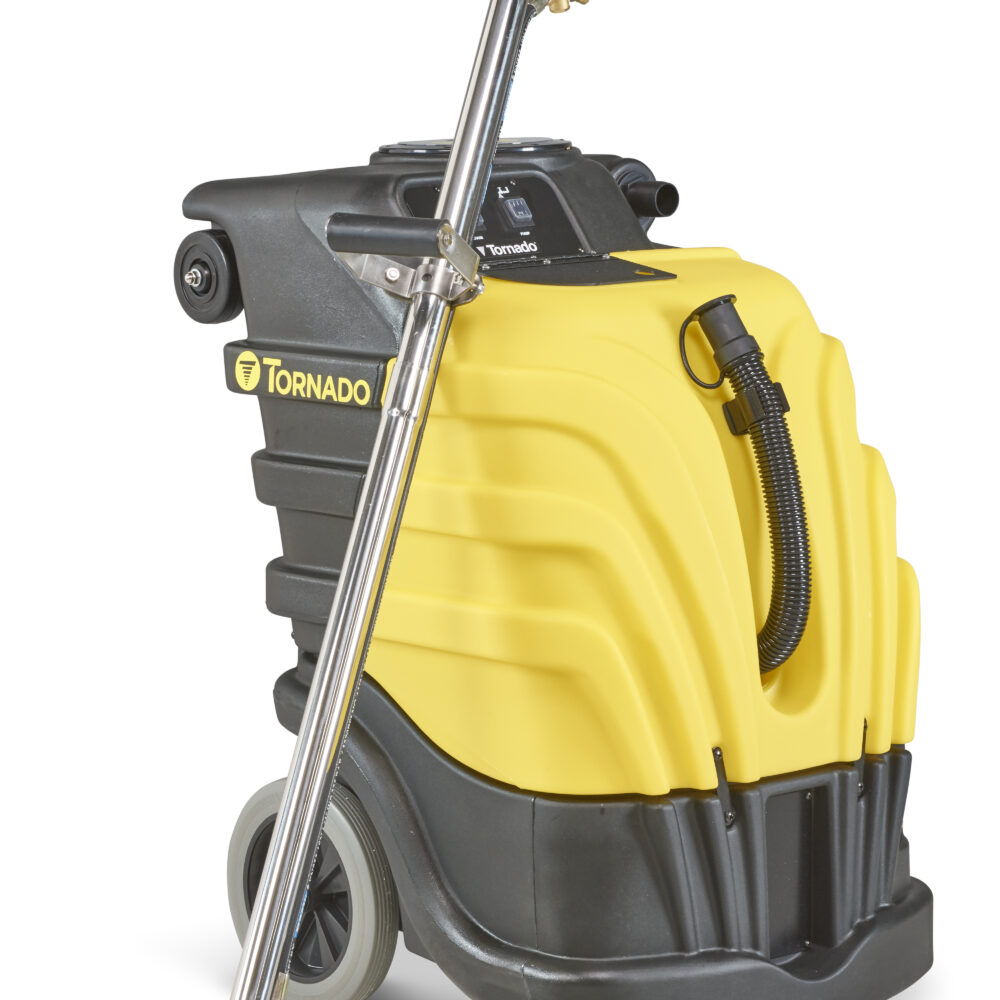

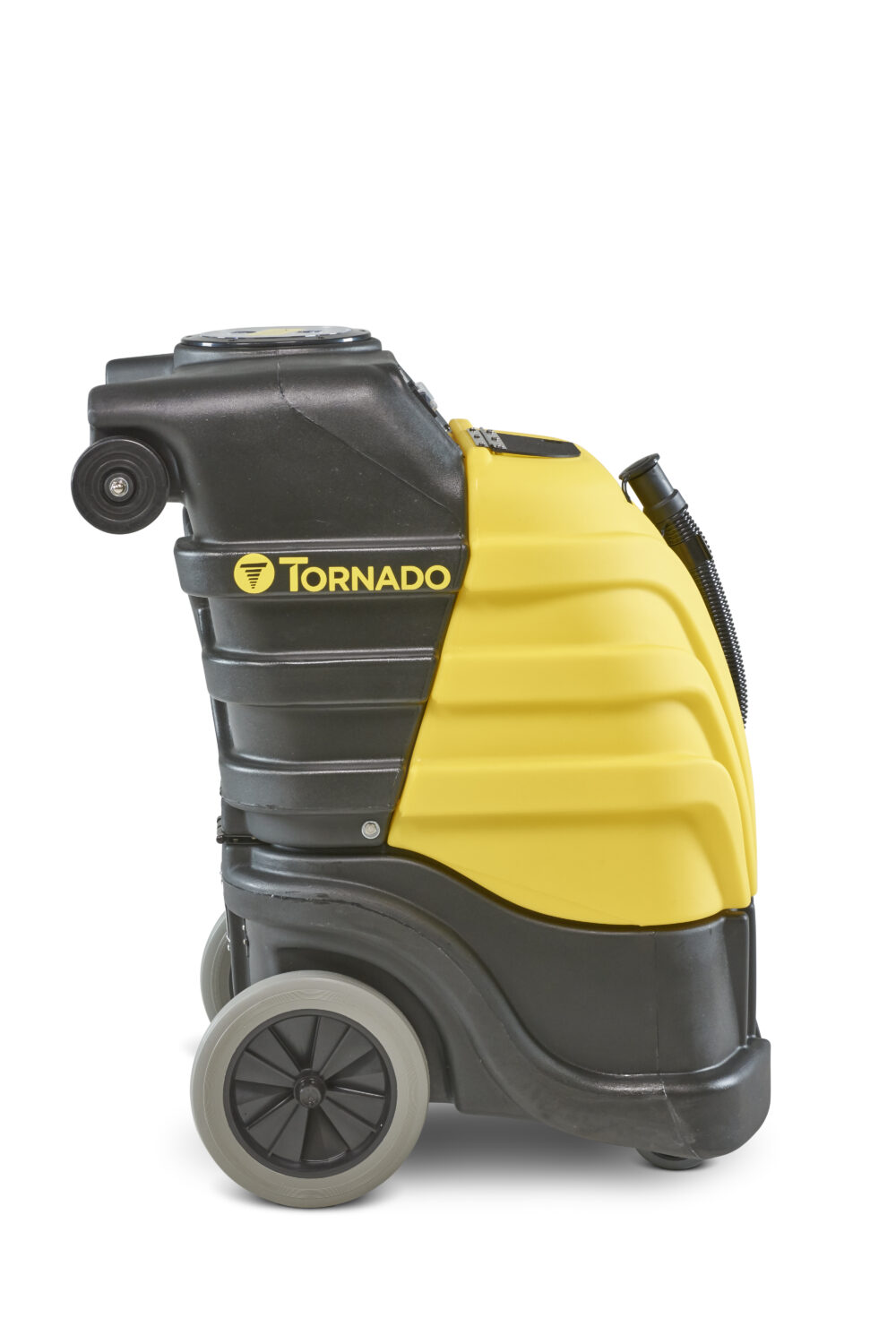

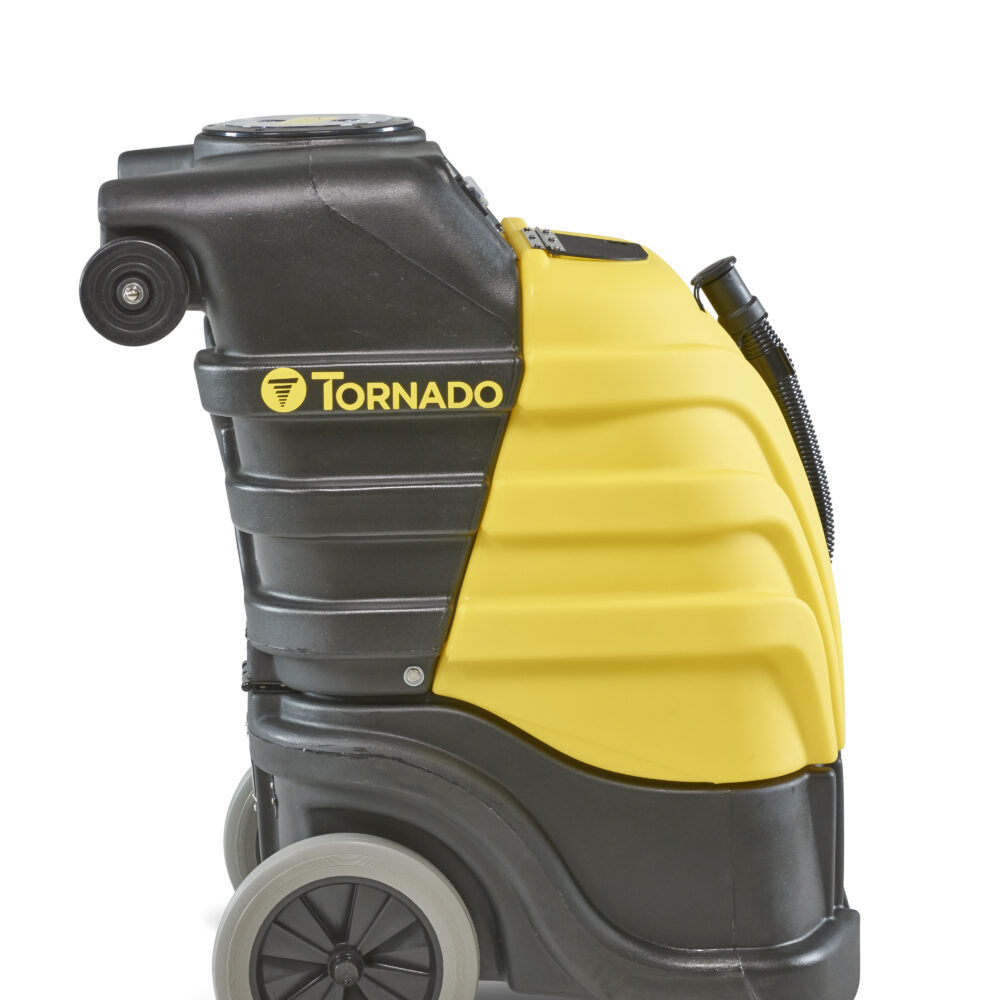

The Tornado Surge 10 (Catalog #TE070-G10-U) is a compact upright box extractor designed for hospitality, multifamily, and commercial settings where a full-size extraction unit would be impractical to maneuver, store, or transport. A 3-stage UL-listed brushed AC motor delivers 97 CFM airflow and 135″ waterlift — strong recovery performance for a unit in the 93-lb, 8/10-gallon class. The 100 PSI solution pump provides consistent spray pressure for thorough solution delivery to carpet pile. The compact footprint navigates tight spaces that larger 150+ lb extractors cannot enter. Roto-molded housing, clamshell component access, and front-mounted controls make daily operation and maintenance straightforward. Includes 20-ft outsider hose and 2-piece stainless-steel wand. Priced at $2,150.00 (was $2,399.00). 2-year parts / 10-year roto / 2-year labor warranty.

Twin City Vacuum in Crystal, Minneapolis, MN is an authorized Tornado dealer. We carry the complete Tornado commercial equipment lineup. Questions? Call us at 763-535-0770. Free shipping on orders over $30 to all 50 states.

Key Features of the Tornado Surge 10

3-Stage UL-Listed Motor — 97 CFM / 135″ Waterlift

The 3-stage single brushed AC motor is UL listed for commercial use, delivering 97 CFM airflow and 135″ waterlift. The 3-stage motor design uses three fan stages in series to generate higher waterlift than a single-stage motor at equivalent power draw — 135″ means the vacuum pulls moisture against carpet fiber resistance that would stall lower-waterlift motors. This is the spec that most directly determines how dry the carpet is after extraction: higher waterlift equals more moisture removed per pass, which translates to faster drying times and less risk of wicking or re-soiling from residual moisture below the pile surface. At 97 CFM, the motor moves recovered solution efficiently through the 20-ft hose to the recovery tank.

100 PSI Solution Pump — Consistent Chemistry Delivery

The 100 PSI pump delivers cleaning solution through the outsider hose at consistent pressure to the 2-piece wand. 100 PSI is the standard commercial extraction pressure for most carpet types — sufficient to drive solution into carpet pile for effective soil suspension without over-wetting medium and low-pile commercial carpet. The pump pressure is applied through the outsider hose configuration where the solution and vacuum hoses run separately, maintaining full solution pressure delivery independent of vacuum hose diameter constraints.

Compact Design — Easy Navigation of Tight Spaces

The Surge 10’s compact footprint is its primary operational advantage over larger 150-lb extractors. In hotel room cleaning, the unit moves between beds, around furniture, and through standard doorways without repositioning the furniture. In multifamily property management, it loads into passenger elevators and moves through apartment corridors where full-size commercial extractors won’t fit. In commercial offices, it navigates workstation rows and conference rooms efficiently. The 10-gallon recovery / 8-gallon solution tanks keep run time per fill reasonable for room-by-room work without carrying more tank capacity than the application requires.

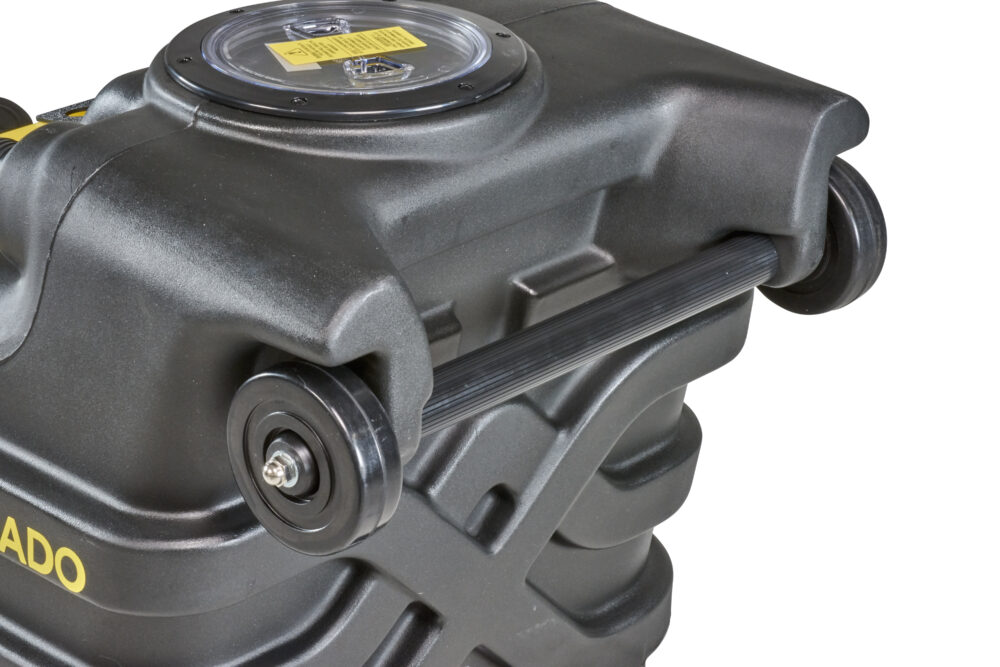

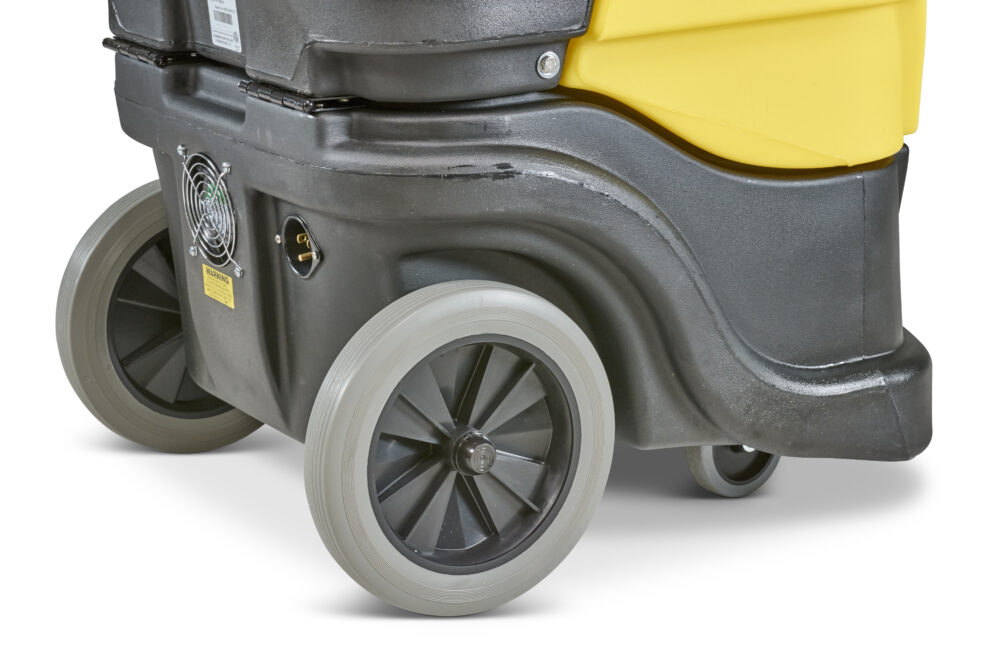

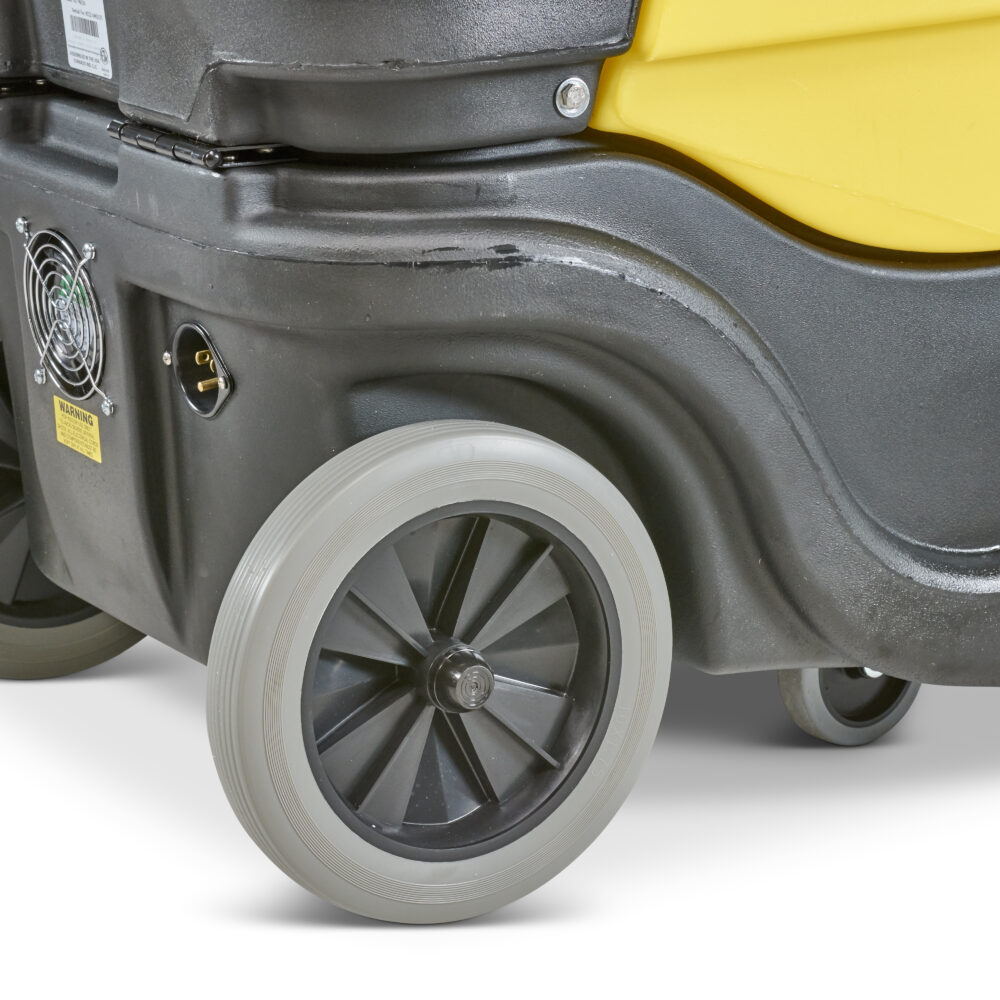

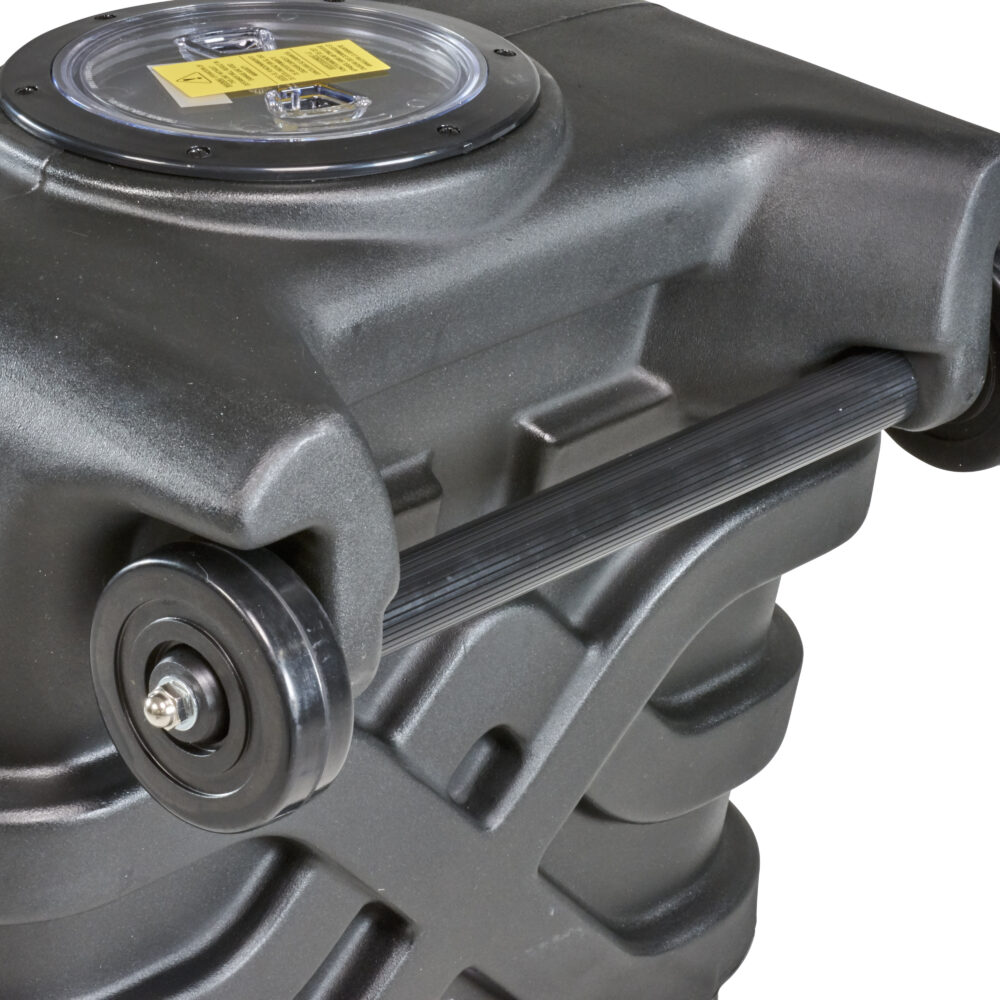

10″ Rear Wheels and Handle-Mounted Transport Wheels

The 10″ rear wheels roll smoothly over carpet, hard floor transitions, door thresholds, and low curbs. The handle-mounted transport wheels allow the operator to tilt the unit back onto the rear wheels and push — or tilt forward onto the transport wheels for loading into vehicles. At 93 lbs, the Surge 10 is manageable by one operator with proper wheel-based transport; the handle-mounted wheels mean loading the unit into a van or truck bed does not require a full lift.

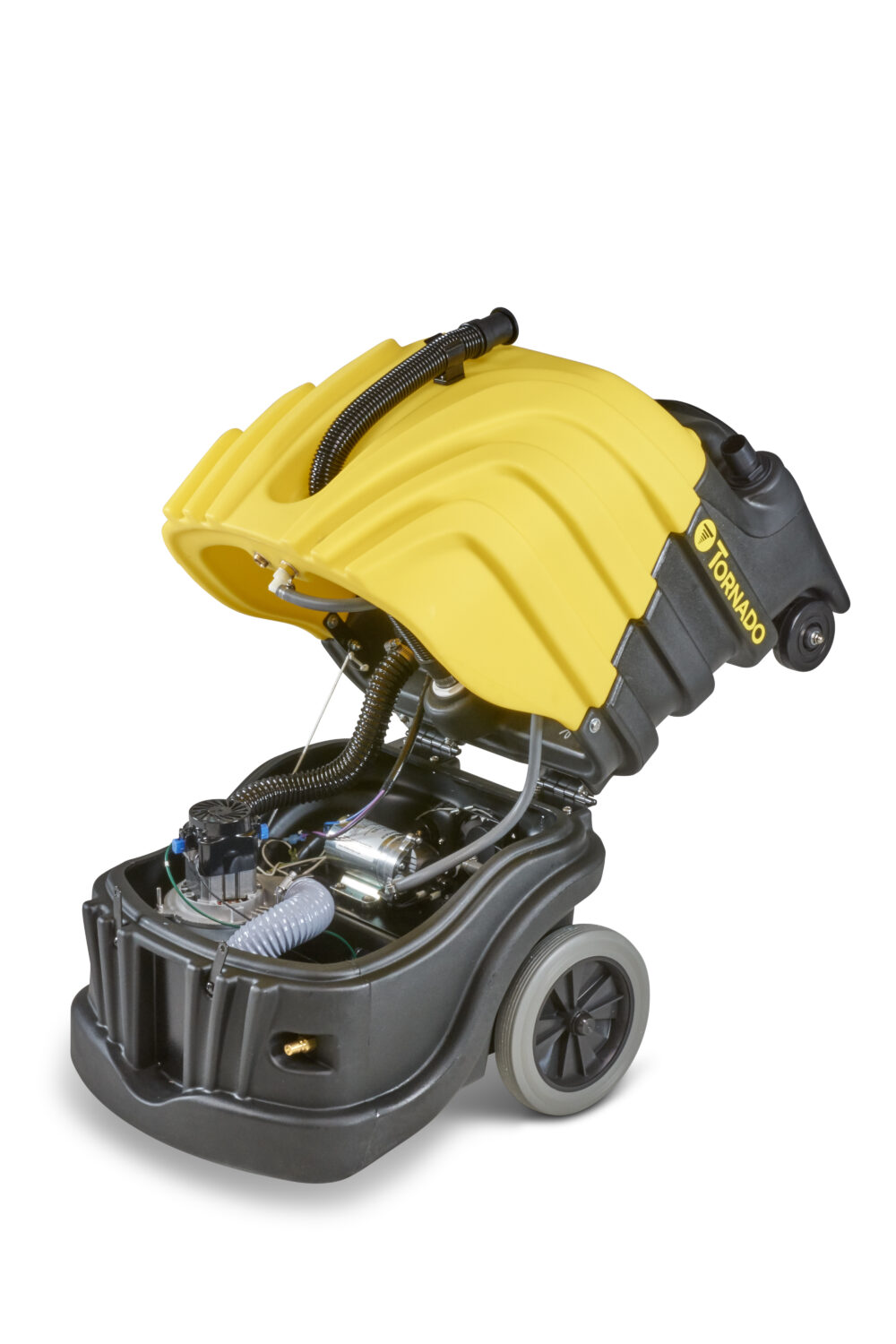

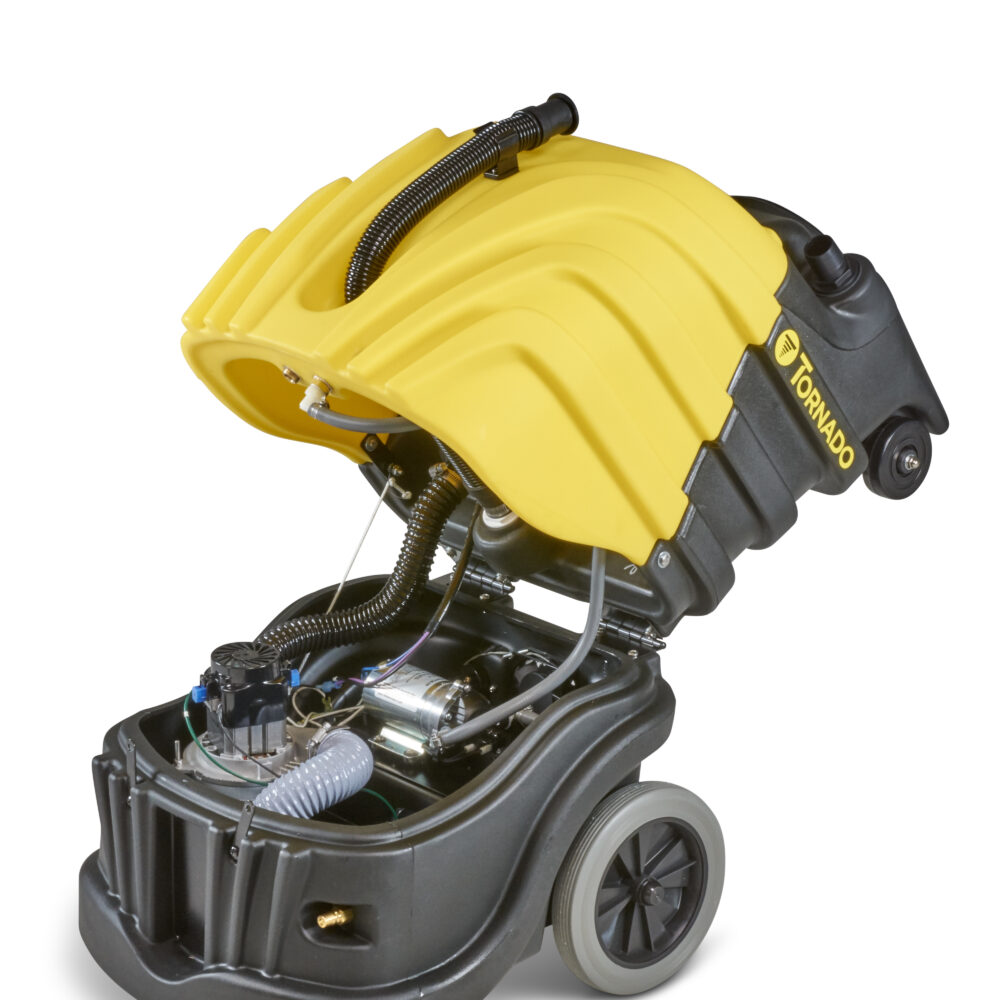

Clamshell Body Design — Reduced Maintenance Downtime

The clamshell design opens the machine body to expose the motor, pump, and internal components without tools for disassembly. When a filter needs cleaning, a hose connection needs inspection, or a component needs replacement, the clamshell provides direct access in minutes rather than requiring service removal of multiple panels. For commercial operations where machine downtime directly affects cleaning program productivity, clamshell access is a meaningful serviceability advantage over machines that require tool disassembly for routine maintenance access.

Front-Mounted Controls — Operator Convenience

Power switches are front-mounted for easy operator access during use — the operator doesn’t need to reach around or behind the machine to adjust settings during a cleaning pass. On the Surge 220 and 500, controls move to the top of the machine; the Surge 10’s front-mounted configuration suits its compact upright operating position.

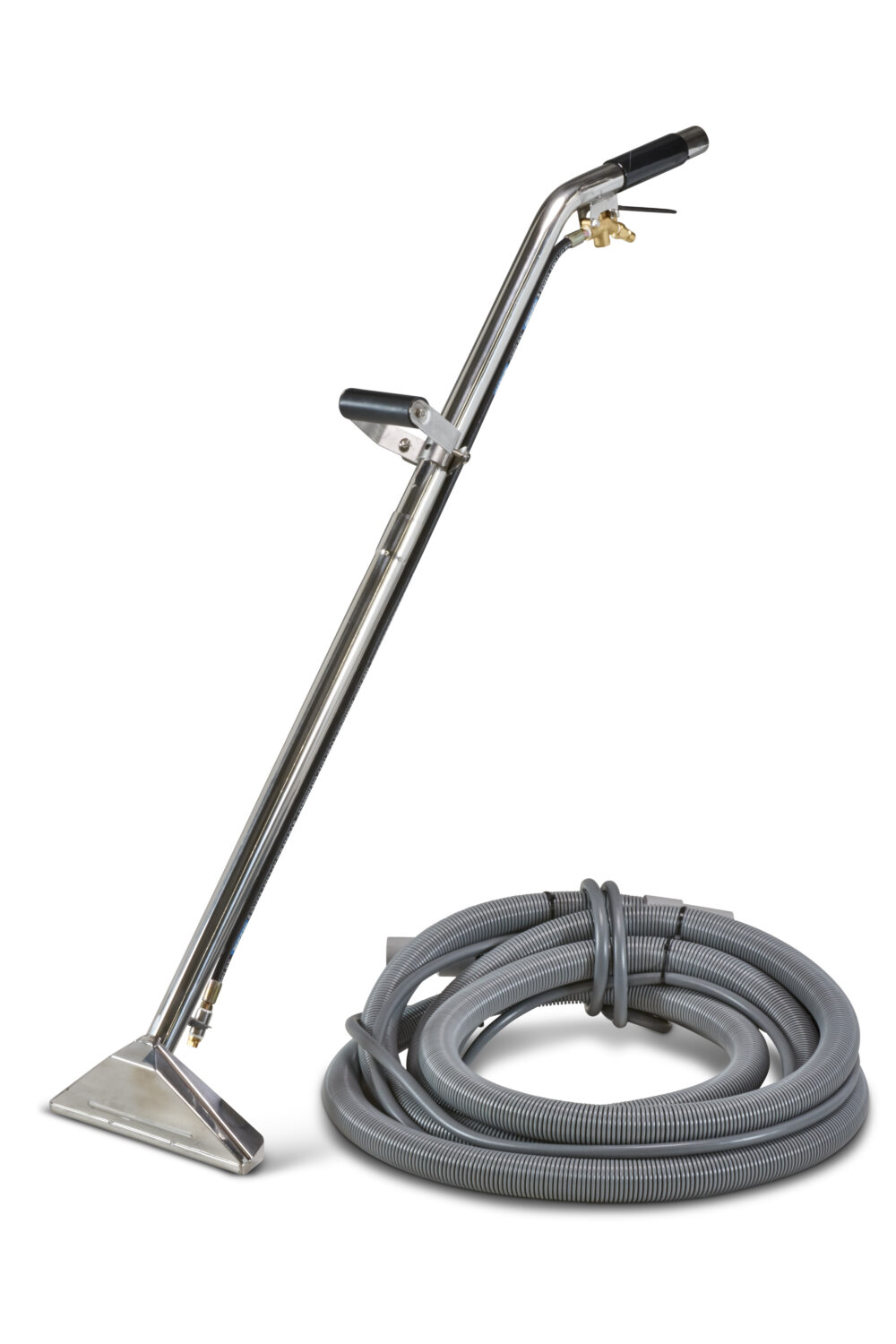

Outsider 20-Ft Hose with 2-Piece Stainless-Steel Wand

The 20-foot outsider hose carries solution and vacuum in separate channels running on the exterior of the hose assembly — allowing each channel to be sized for its specific function. The full 20-foot length gives the operator reach across an average hotel room or office space without repositioning the machine. The included 2-piece stainless-steel wand resists corrosion from cleaning chemistry contact and disassembles for storage on the machine between uses.

Roto-Molded Housing — 10-Year Roto Warranty

The heavy-duty roto-molded housing resists the impact, moisture exposure, and chemical contact of sustained commercial extraction use. The body is backed by a 10-year roto warranty — covering structural failure of the housing for a decade of commercial service. The 2-year parts / 2-year labor warranty covers the motor, pump, and mechanical components.

Pigtail Cord with 75-Ft Extension

The pigtail cord ships with a 75-foot 12-gauge 3-wire SJT safety yellow extension cord — providing the full reach needed to clean across commercial spaces and hotel rooms without outlet-to-outlet transitions during a room cleaning pass. The 12-gauge rating handles the current draw of the 3-stage motor without voltage drop over 75 feet.

Use & Maintenance Video — Tornado Surge Carpet Extractor

Official Tornado Surge use and maintenance guide covering daily operation, tank filling and draining, hose and wand connection, filter maintenance, and storage.

Surge 10 vs Surge 220 vs Surge 500 — Choosing the Right Tornado Surge Extractor

The Surge 10 is the right choice when compactness and portability matter more than tank capacity, heat, or high pump pressure — hotel rooms, apartments, smaller offices, and operations where the machine travels in a vehicle between jobs. The Surge 220 and 500 are the right choice when you need 15-gallon capacity, hot water extraction, and higher pump pressure for heavier commercial and restoration work.

Need the Surge 220? Shop the Tornado Surge 220 →

Need the Surge 500? Shop the Tornado Surge 500 →

Tornado Surge 10 — Verified Facts at a Glance

The Tornado Surge 10 (model TE070-G10-U) is a 10-gallon mid-size upright box extractor with a 100 PSI pump, shipped with its carpet wand. It is the entry point to the Surge box-extractor line — wand-and-hose extraction for crews that clean carpet in sections rather than walking a self-contained machine.

Fit: contract cleaners and facilities doing sectional wand work; step up to the Surge 220 for 15-gallon capacity with heat, or the Surge 500 for maximum pressure.

Commercial Applications — Tornado Surge 10

• Hotels and hospitality — guest room extraction: the compact body navigates around beds and furniture without moving them; 8-gallon solution tank provides 1–2 full room coverage between refills depending on carpet density and soil level
• Multifamily property management — apartment unit carpet cleaning at turnover; loads into passenger elevators; navigates standard 36″ doorways; fits in a vehicle trunk or cargo van without dedicated equipment storage
• Offices and commercial buildings — private office and conference room carpet extraction; small to medium carpeted areas where full-size commercial extractors are oversized for the space or impractical for the access
• Restaurants — dining room carpet sections, banquet carpet, entry carpet — areas cleaned after service hours where quick setup and teardown matters
• Staircase carpet — the 20-ft hose provides reach to clean staircase carpet from landing positions without moving the machine to each step
• Spot and area extraction — water damage response for smaller affected areas where a full walk-behind unit is excessive for the scope

Technical Specifications — Tornado Surge 10 (TE070-G10-U)

Documentation

• Surge 10 Spec Sheet (PDF)
• Surge 10 Manual (PDF)
• Official Tornado Surge 10 Product Page

Frequently Asked Questions — Tornado Surge 10

What is the difference between the Surge 10 and the Surge 220?

Three major differences: (1) The Surge 10 has 8/10-gallon tanks vs 15/16-gallon on the Surge 220 — the 220 runs significantly longer between refills. (2) The Surge 220 has a 1,700W heater for hot water extraction; the Surge 10 delivers solution at ambient temperature. (3) The Surge 220 uses an Airwatt motor specifically designed for wet pickup with 135 CFM vs the Surge 10’s 97 CFM. The Surge 10 is the compact unit for hotel rooms, apartments, and vehicle-portable commercial cleaning. The Surge 220 is the high-capacity commercial unit for full building extraction programs with heat. See the Tornado Surge 220 or Tornado Surge 500, or call us at 763-535-0770 to discuss which fits your operation.

Does the Surge 10 have a water heater?

No — the Surge 10 delivers solution at ambient temperature. The Surge 220 and Surge 500 both include a 1,700W heater for hot water extraction. If heated extraction is a requirement for your cleaning program, the Surge 220 or 500 is the appropriate unit.

What does “outsider hose” mean?

On the Surge 10 the solution and vacuum channels run in separate hoses side by side on the outside — an “outsider” configuration. The Surge 220 and 500 use an “insider” hose where one channel runs inside the other. Both deliver solution and vacuum recovery; the insider configuration is generally more flexible for maneuvering in tight spaces, while the outsider allows each channel to be sized independently.

What warranty does the Surge 10 carry?

2 years parts / 10 years roto body / 2 years labor. The 10-year roto warranty covers the housing; the 2-year parts warranty covers the motor, pump, and components. Note the Surge 220 and 500 carry a 4-year parts warranty — longer parts coverage for the higher-duty-cycle machines.

Is Twin City Vacuum an authorized Tornado dealer?

Yes. Twin City Vacuum in Crystal, Minneapolis, MN is an authorized Tornado dealer. All units are genuine Tornado equipment backed by the full manufacturer warranty. Our in-house technicians service Tornado commercial equipment at our Crystal, MN location. Call us at 763-535-0770.

Buy the Tornado Surge 10 from Twin City Vacuum — Authorized Tornado Dealer

Twin City Vacuum ships the Tornado Surge 10 (TE070-G10-U) to all 50 states.

• ✔ Authorized Tornado dealer — genuine equipment, full manufacturer warranty
• ✔ 3-stage UL-listed motor — 97 CFM / 135″ waterlift
• ✔ 100 PSI solution pump — consistent spray pressure
• ✔ 8-gallon solution / 10-gallon recovery tanks
• ✔ Compact footprint — hotel rooms, apartments, tight commercial spaces
• ✔ Clamshell access — fast routine maintenance
• ✔ 10″ rear wheels + handle-mounted transport wheels — vehicle-portable at 93 lbs
• ✔ 20-ft outsider hose + 2-piece stainless-steel wand included
• ✔ Pigtail cord + 75-ft extension included
• ✔ Roto-molded housing — 2-yr parts / 10-yr roto / 2-yr labor warranty
• ✔ Free shipping on orders over $30 to all 50 states
• ✔ In-house Tornado service and repair in Crystal, MN
