Riccar R40P Dust Cover Parts
The dust cover is the lid that closes over the bag compartment on your Riccar R40P upright. It keeps the bag and filters sealed inside the body while you vacuum, so a cover that no longer latches properly can leave the compartment open and let dust escape. This page lists every dust cover part for the Riccar R40P.4, R40P.6 and R40P.8, with part numbers, prices and a direct link to each part.
Most dust cover problems come down to a handful of small parts: the latch, the latch body and its assembly, and the lever. These are inexpensive and sold individually, so you can usually replace only the piece that failed instead of the whole cover. The upper crevice tool clip and the mounting screw are listed here too.
Riccar R40P Dust Cover Parts List
| Pos # | Image | Part Name | Part No# | Price | View Link |
|---|---|---|---|---|---|
 | Dust Cover Assembly | D380-0341 | $43.98 | View Part | |

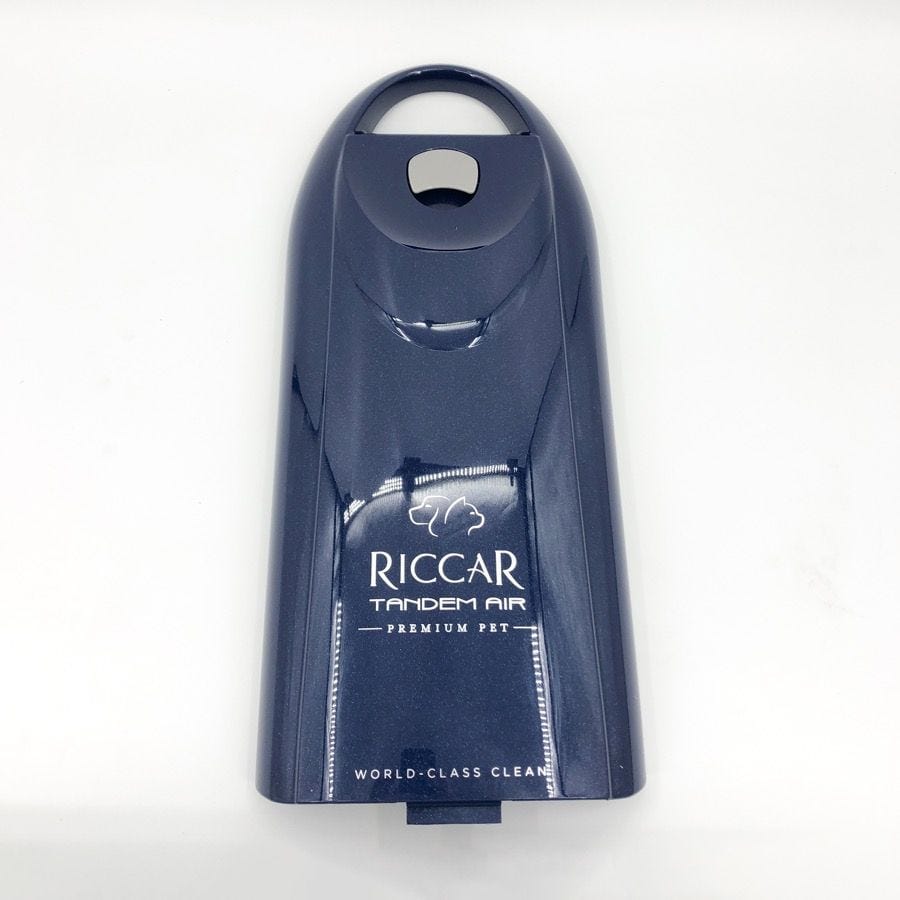

| 1 |  | Dust Cover Assembly | D380-0341.2 | $92.38 | View Part |

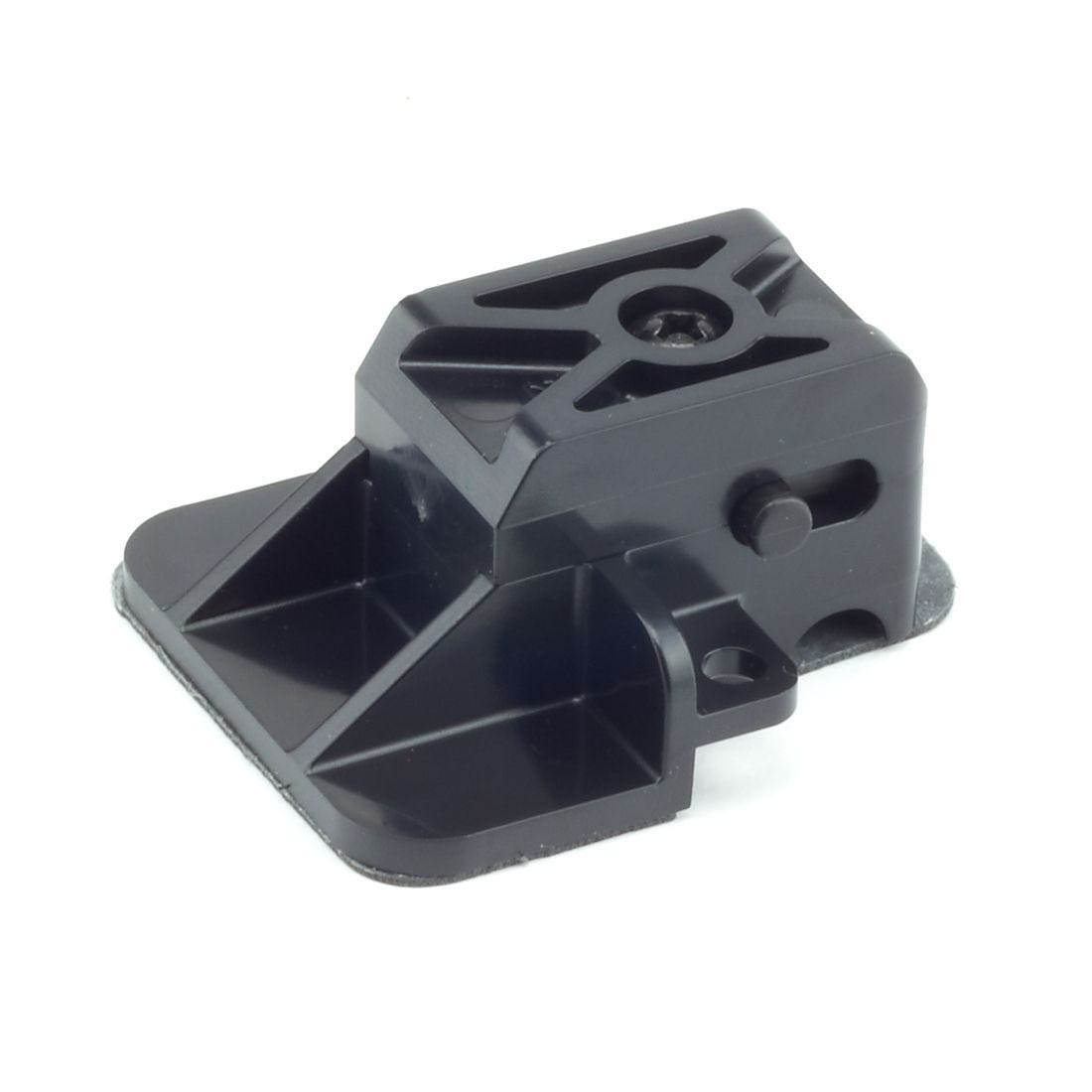

| 2 |  | Dust Cover Latch Body Assembly | D380-4000 | $14.28 | View Part |
| 3 |  | Dust Cover Latch Body | B380-0514B | $3.28 | View Part |
| 4 |  | Dust Cover Latch | B380-0914B | $3.28 | View Part |

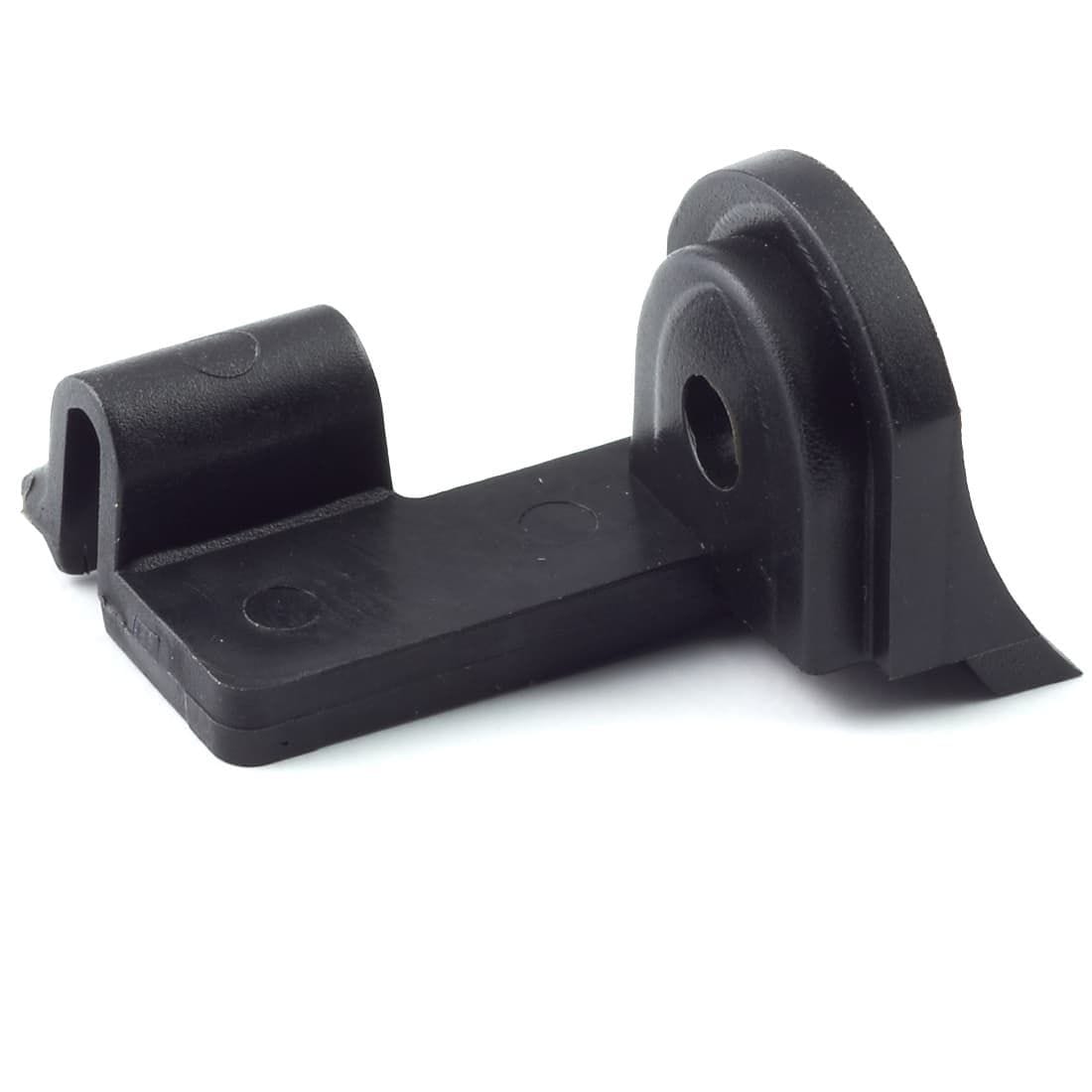

| 5 |  | Upper Crevice Tool Clip | B480-2114B | $3.28 | View Part |
| 6 |  | Screw #8-18 x 5/8" | A732-8314 | $3.28 | View Part |
| 7 |  | Dust Cover Lever | B380-0834 | $5.98 | View Part |
Which dust cover assembly fits your model
The dust cover assembly changed between models. The R40P.4 uses D380-0341, while the R40P.6 and R40P.8 use D380-0341.2. The latch body assembly, latch body, latch, lever, crevice tool clip and screw are the same part numbers on all three models. Check the model number on your vacuum before you order the assembly.
The matching dust cover catch (B380-2200) is listed with the Main Body parts, not on this page.
How to use this parts list
Use the Pos # column to match a part to the numbered callout in the parts diagram, then use View Part to open the product page for that part number.
Frequently asked questions
Why won't my Riccar R40P dust cover stay closed?
Start with the small latch parts: the latch, the latch body and the lever. If any of them is cracked, worn or missing, the cover may not hold. Each one is sold separately in the table above, so you can replace only the part that has failed.
Is the dust cover the same on the R40P.4, R40P.6 and R40P.8?
Not quite. The R40P.4 lists dust cover assembly D380-0341, and the R40P.6 and R40P.8 list D380-0341.2. Every other dust cover part number is shared by all three models.
Can I buy the latch parts without the whole cover?
Yes. The latch body assembly (D380-4000), latch body (B380-0514B), latch (B380-0914B) and lever (B380-0834) are each listed as separate parts.
