The main body of the Riccar R40P holds the vacuum bag, the filters, the motor, the main circuit board and the wiring. It is the largest parts group for this vacuum, with 49 parts listed here for the Riccar R40P.4, R40P.6 and R40P.8. Each row shows the part number, price and a link to the product page.
Bags and filters are the parts most owners need to replace regularly. The R40P also has full bag and replace filter indicator lights, so the vacuum tells you when one of them needs attention.
Riccar R40P Main Body Parts List
| Pos # | Image | Part Name | Part No# | Price | View Link |
|---|---|---|---|---|---|
| 1 |  | Carrying Handle | B380-1314 | $4.38 | View Part |
| 2 |  | Screw #8-18 x 5/8″ | A732-8314 | $3.28 | View Part |
| 3 |  | Dust Cover Catch | B380-2200 | $4.38 | View Part |
| 4 | | HEPA Bag (Bulk Single) | C380-7097 | Contact us | View Part |

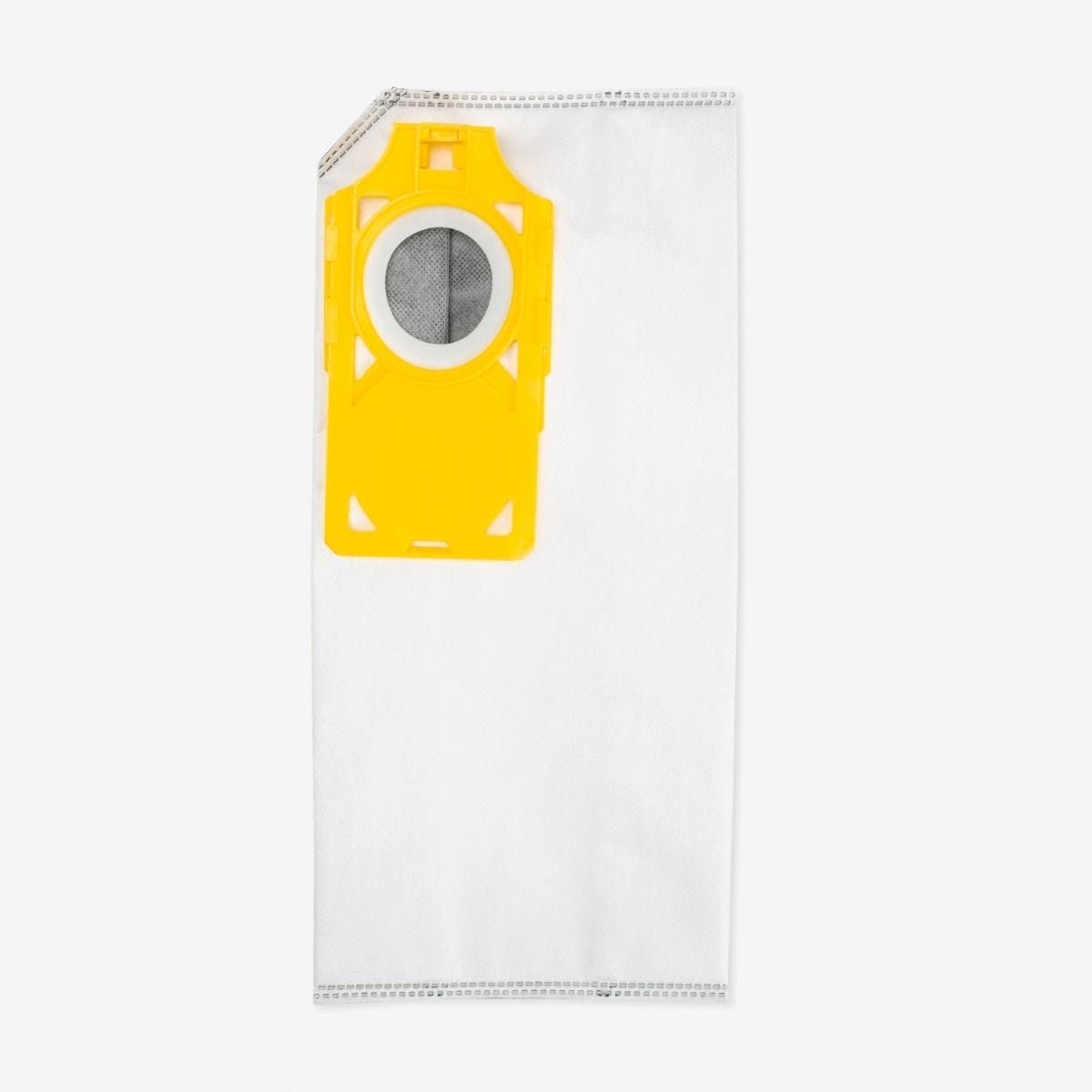

| 4a |  | Charcoal-Lined HEPA Bag (Bulk Single) | C380-7097B | $5.98 | View Part |
| 4b | | HEPA Bag (6 Pack) | RPH-6 | Contact us | View Part |

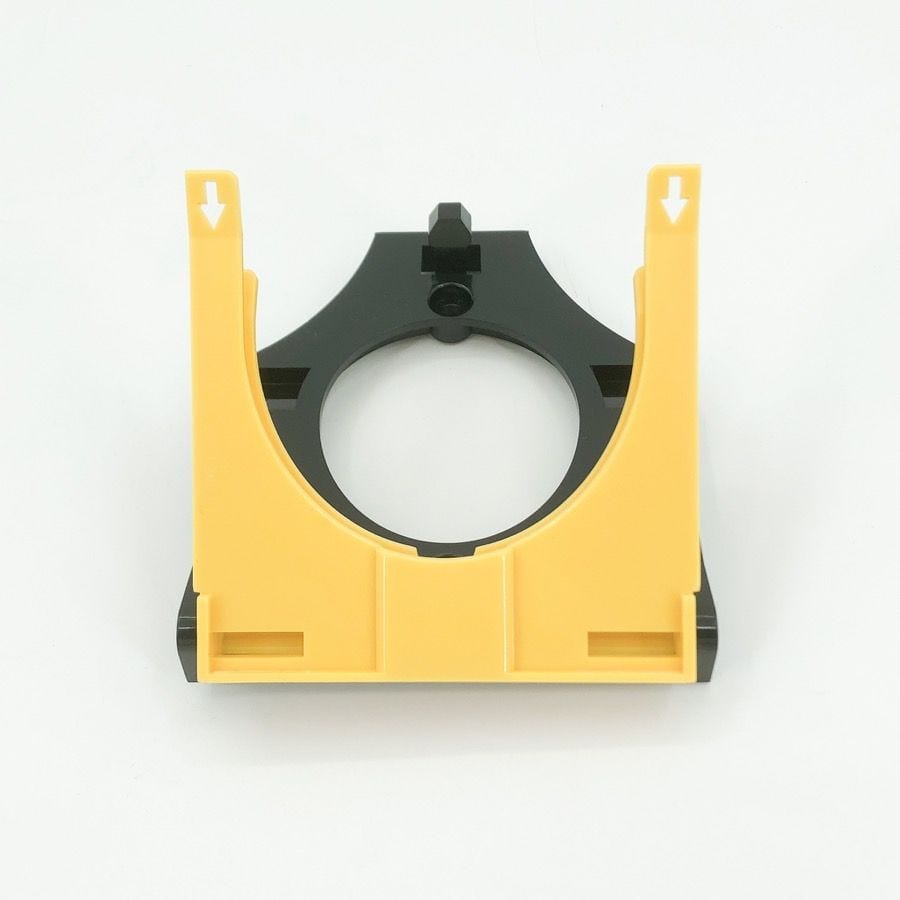

| 5 |  | Bag Mount Assembly | D380-6100 | $14.28 | View Part |

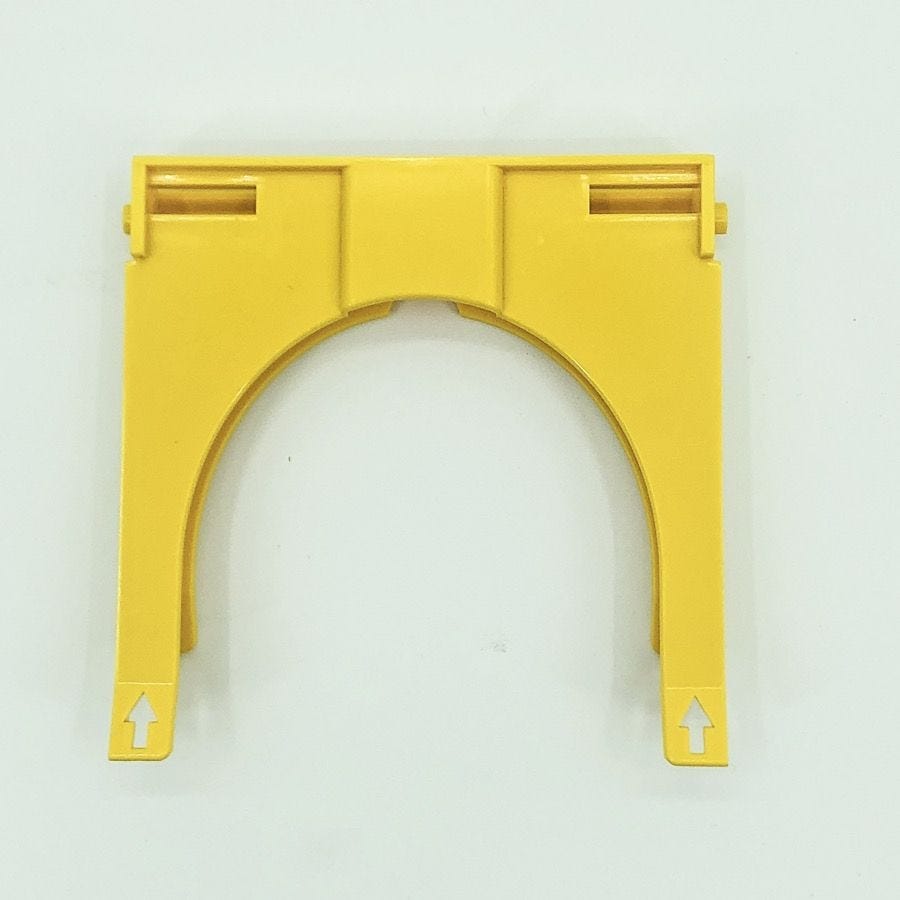

| 6 |  | Bag Collar Hinge | B380-6297 | $4.38 | View Part |

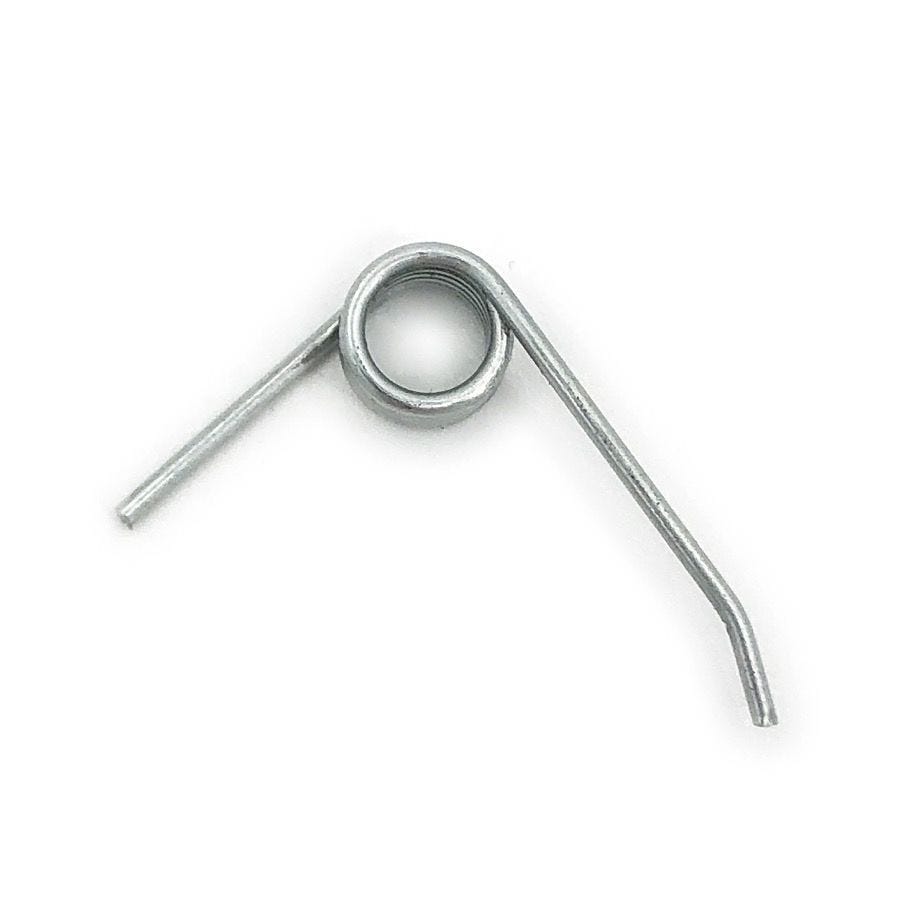

| 7 |  | Bag Mount Spring | B480-9600 | $3.28 | View Part |
| 8 | | Bag Collar Mount | B380-6114 | $4.38 | View Part |

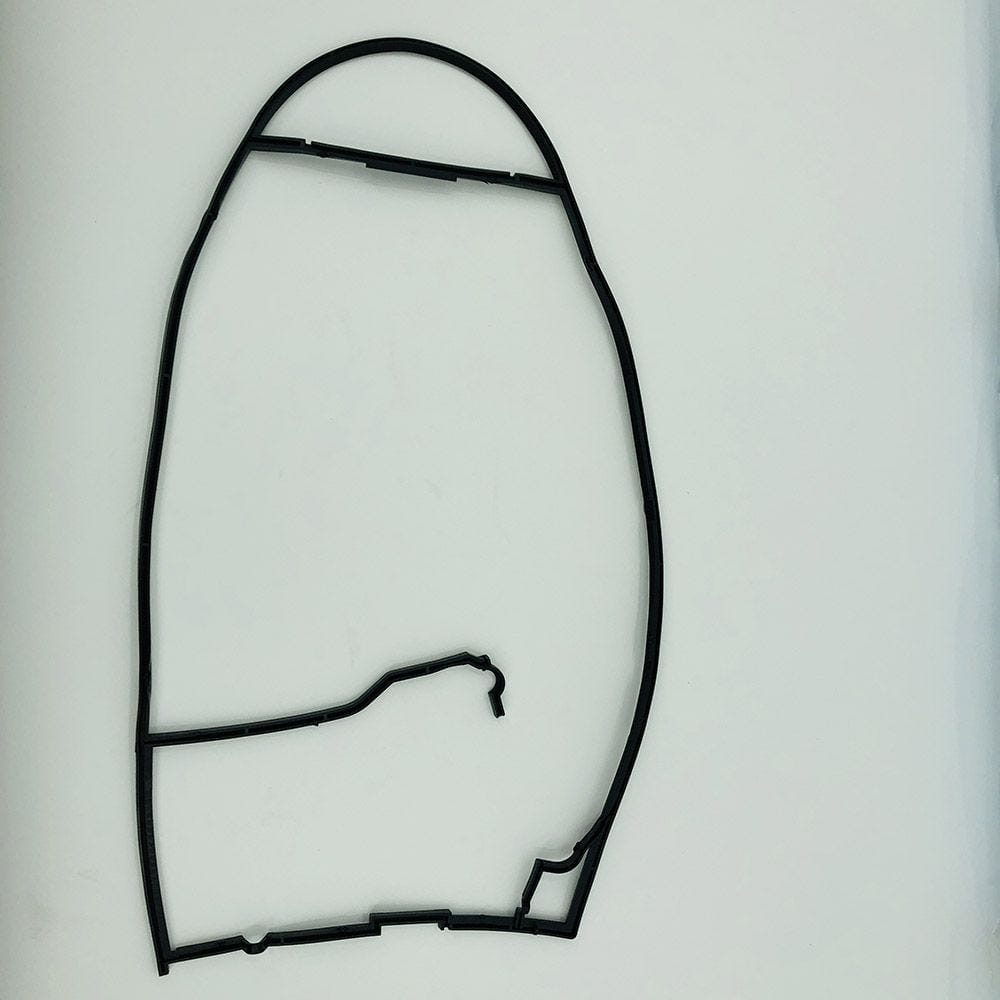

| 9 |  | Dust Compartment Seal | B380-6000 | $18.68 | View Part |

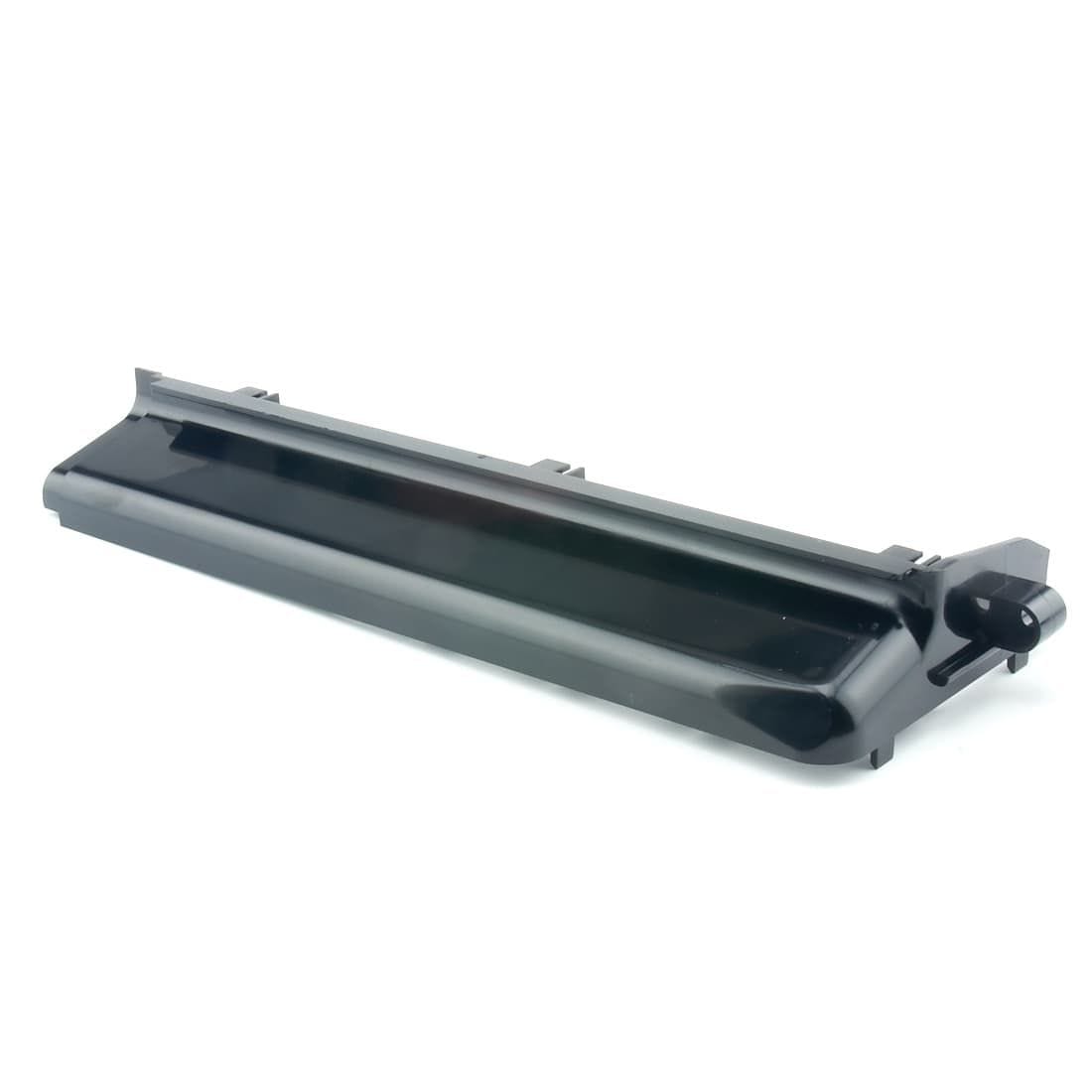

| 10 |  | Internal Air Path | B380-1014 | $4.38 | View Part |

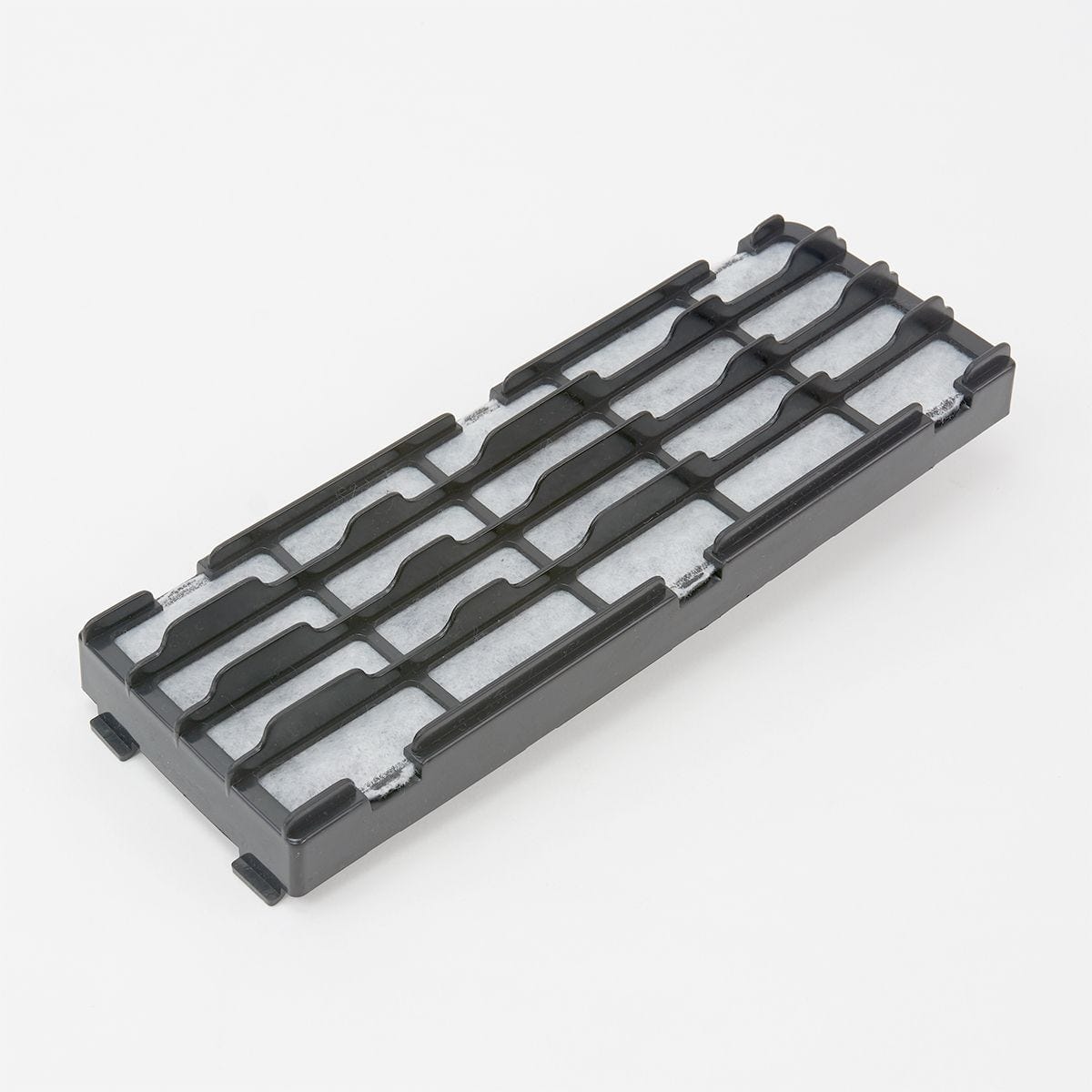

| 11 |  | Granulated Charcoal Secondary Filter | C388-4800 | $12.08 | View Part |

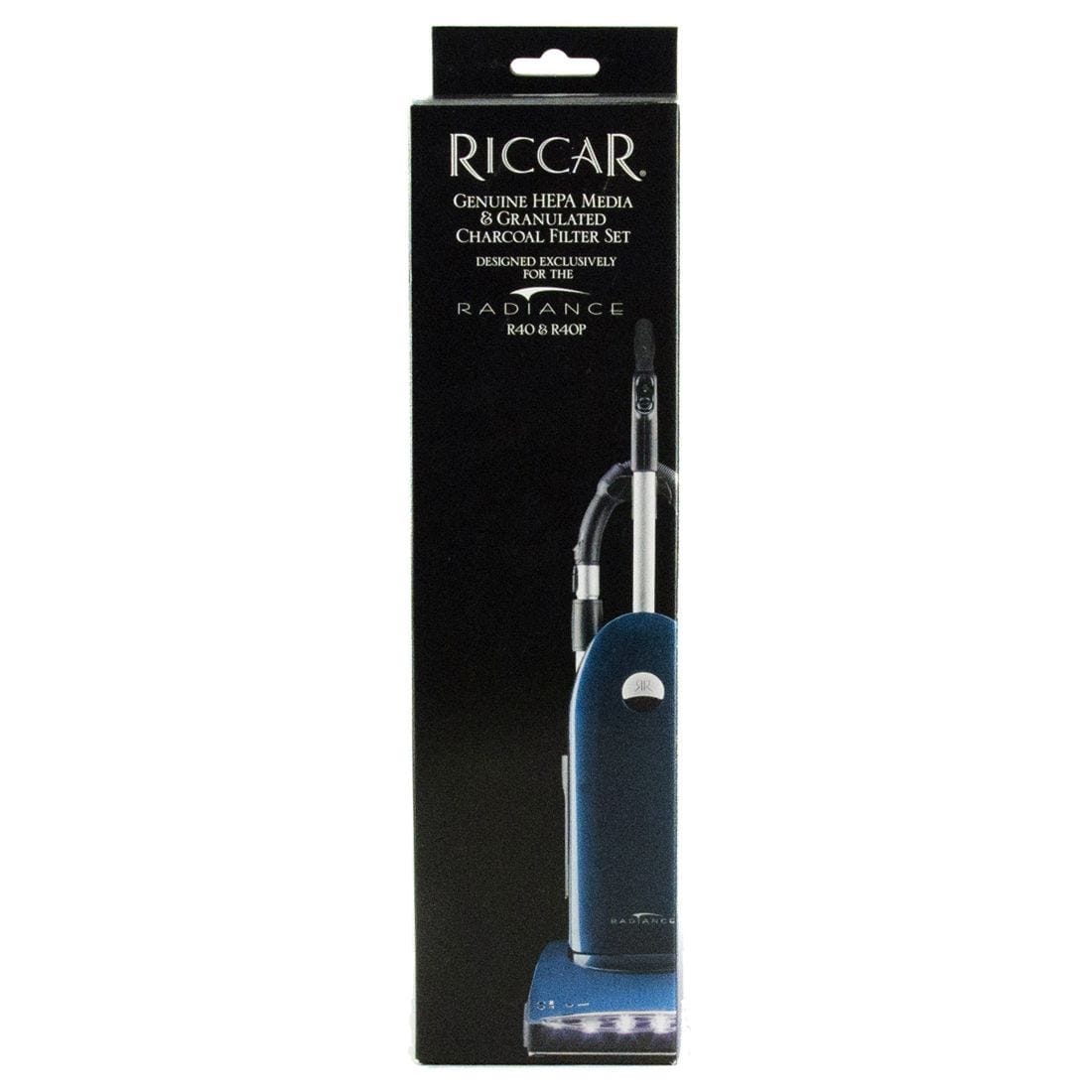

| 11a, 18a, 28a |  | Filter Set (Includes #11, #18, and #28) | RF40G | $41.98 | View Part |

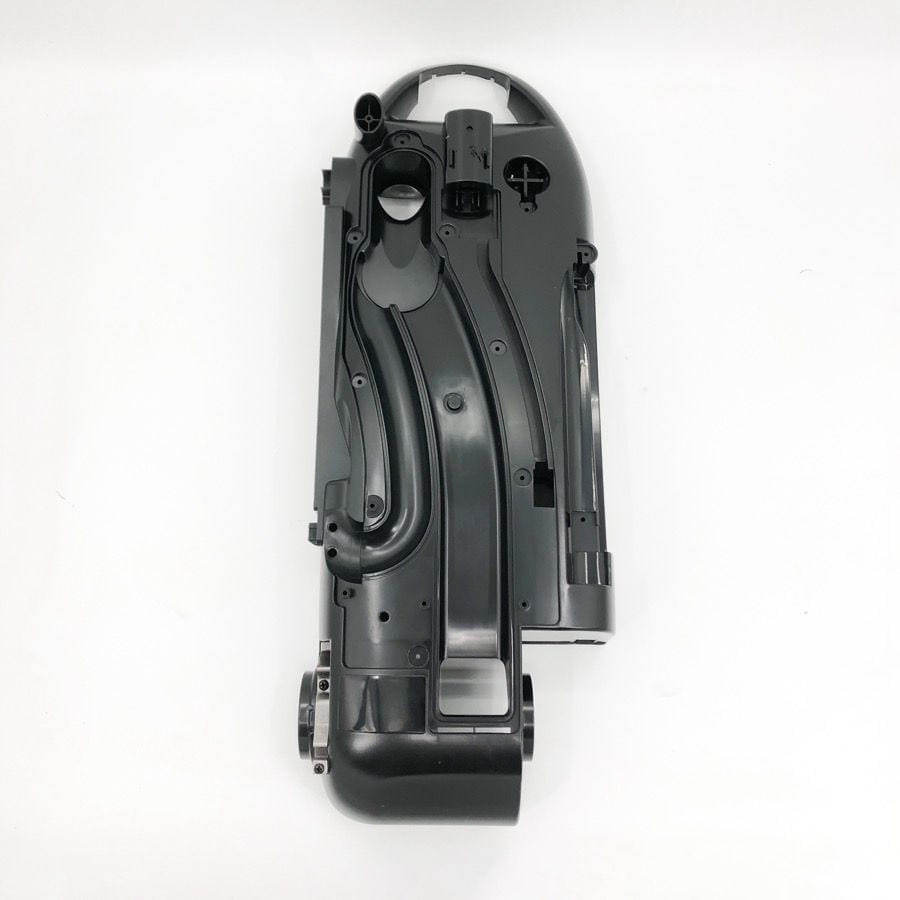

| 12 |  | Dust Compartment Assembly | D380-5014 | $67.08 | View Part |
| 13 | | Airpath Back Cover Seal Kit | D480-0100 | $15.38 | View Part |
| 14 | | Wire Inlet Seal | B380-8200 | $3.28 | View Part |

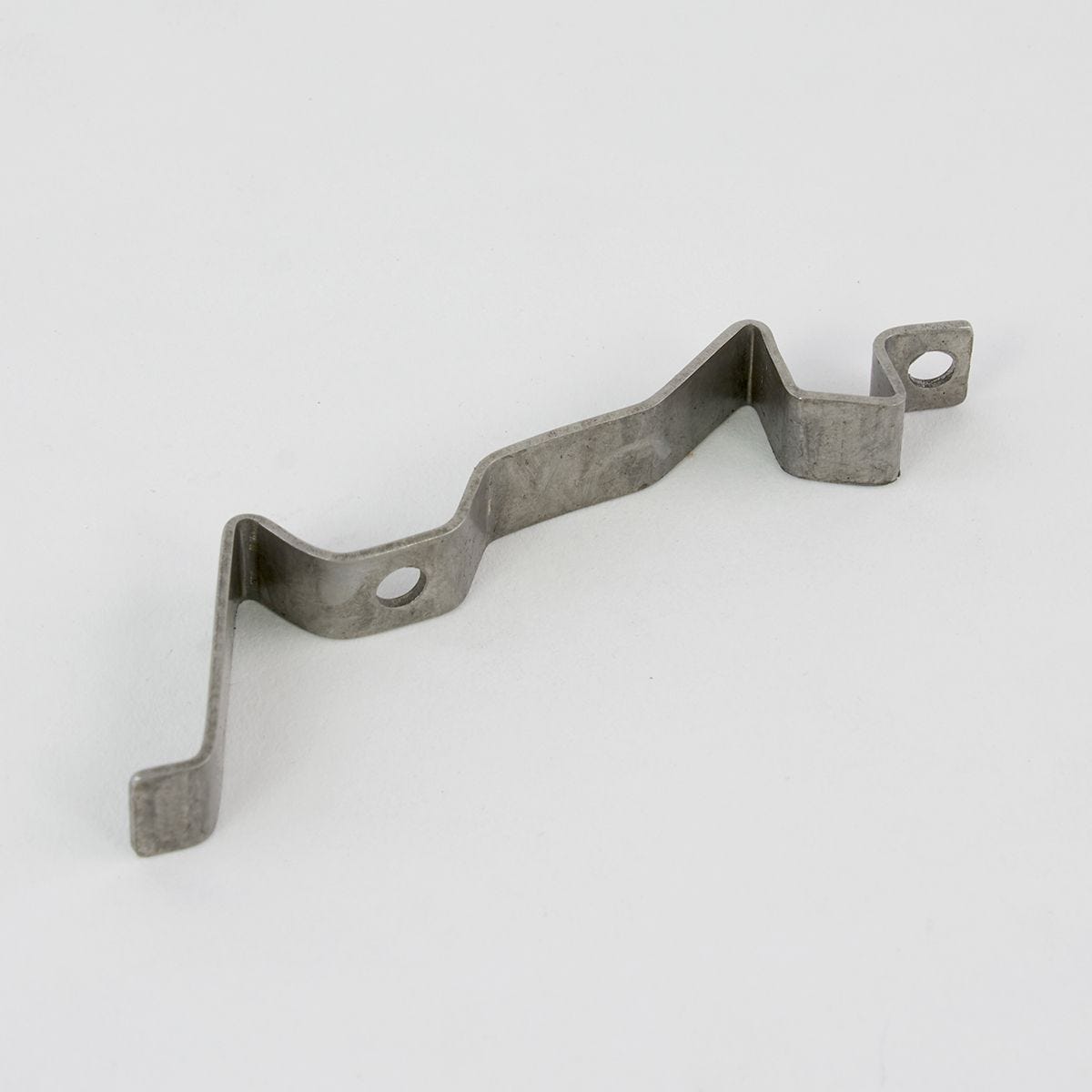

| 15 |  | Tilt Lock Body Plate | B380-2400 | $5.48 | View Part |
| 16 | | Dust Compartment | B380-5014 | $43.98 | View Part |

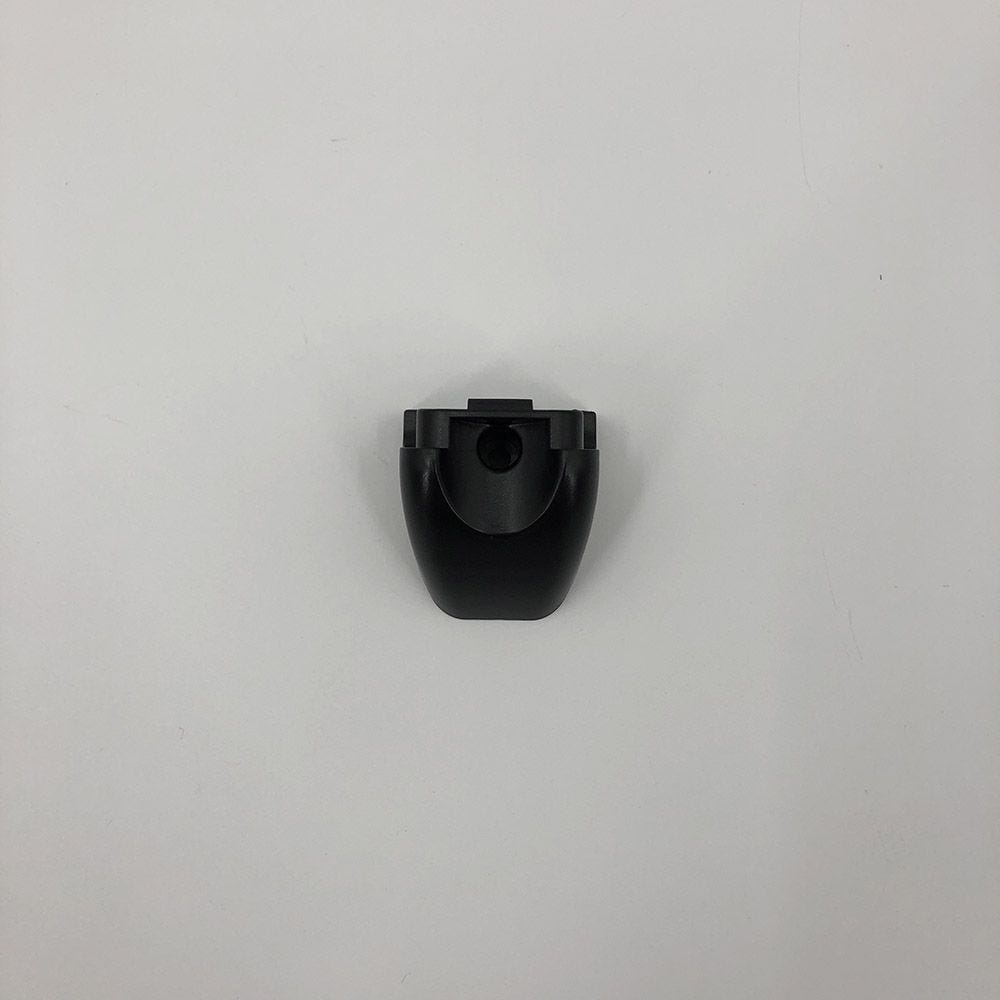

| 17 |  | Post Filter Catch | B380-6514 | $3.28 | View Part |
| 18 |  | HEPA Filter (Single Bulk) | B380-6314 | $16.48 | View Part |

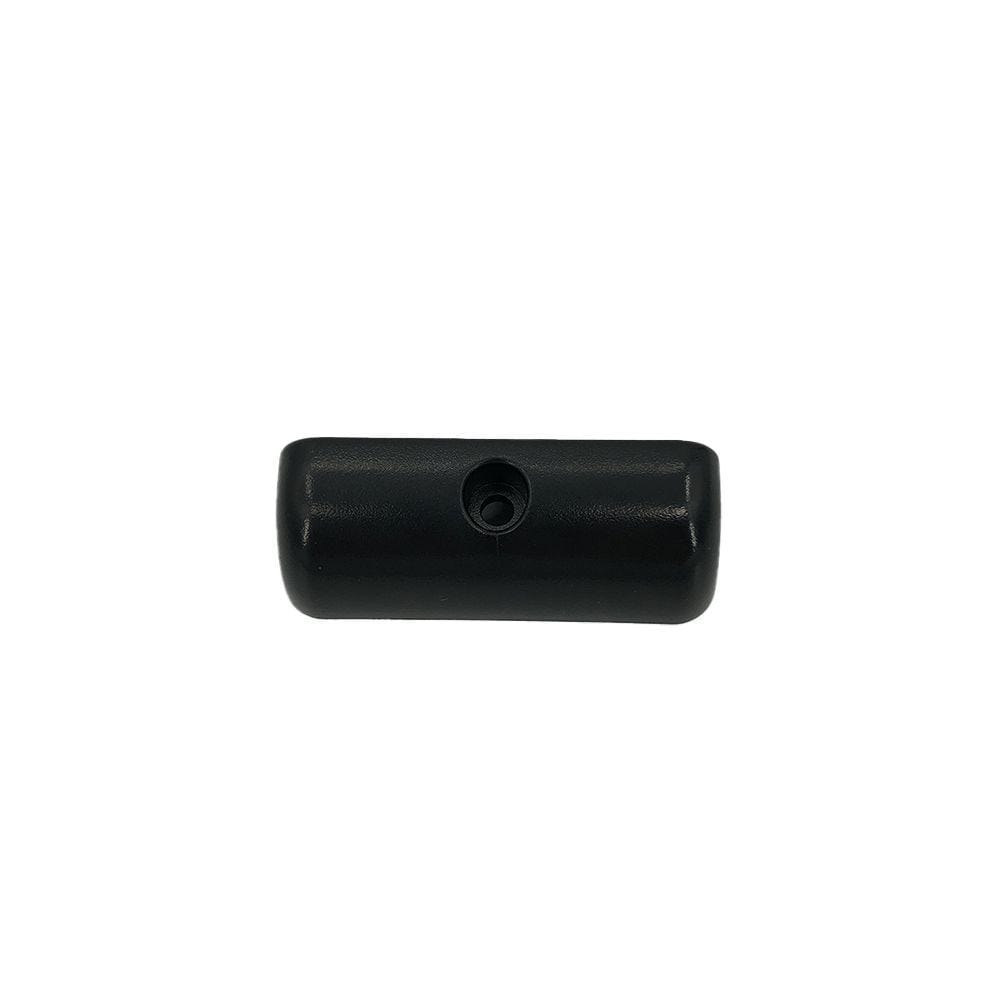

| 19 |  | Post Filter Base | B380-6414 | $3.28 | View Part |

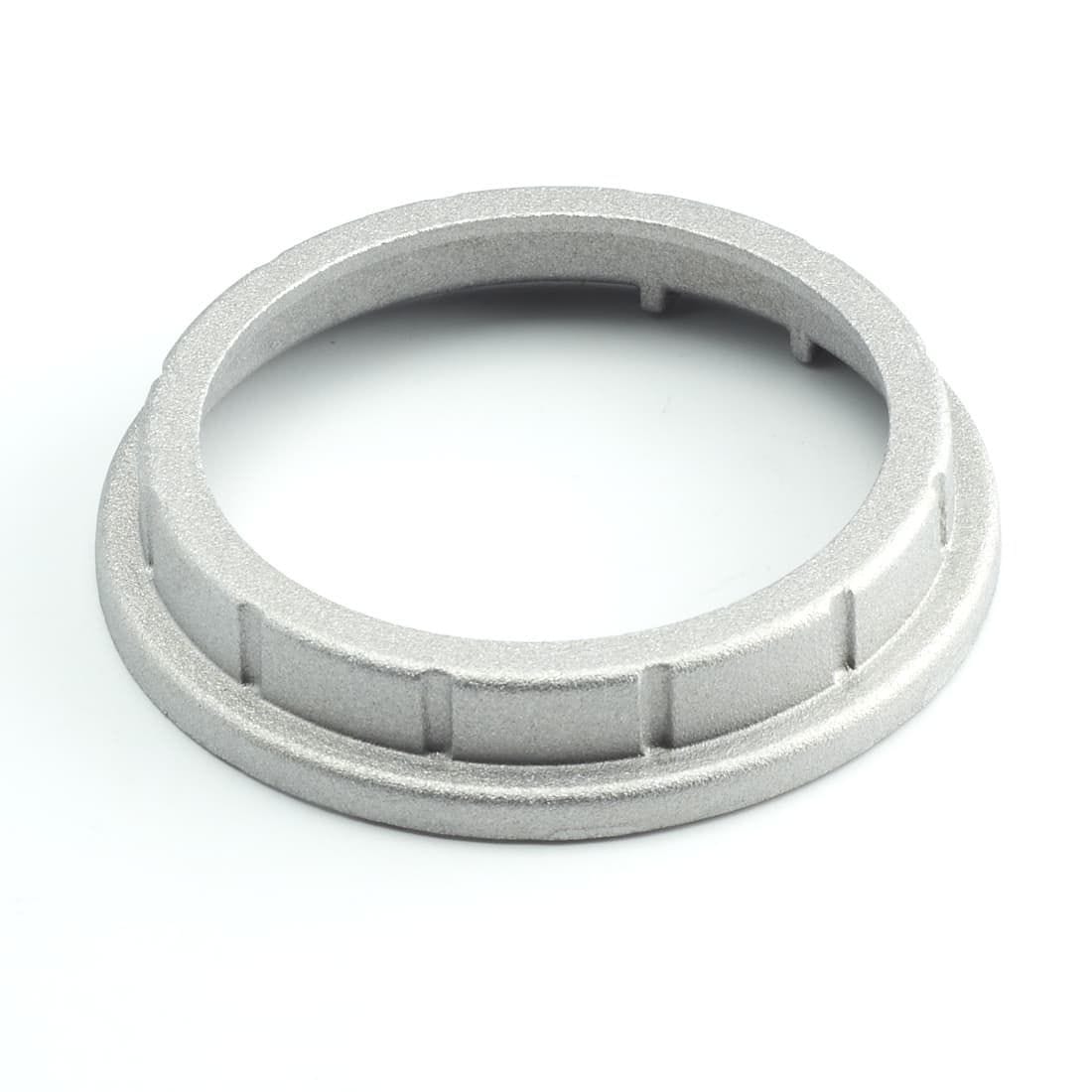

| 20 |  | Pivot Bushing | B370-3100 | $5.48 | View Part |
| 21 | | Inner Wire Guide | B370-3414 | $3.28 | View Part |

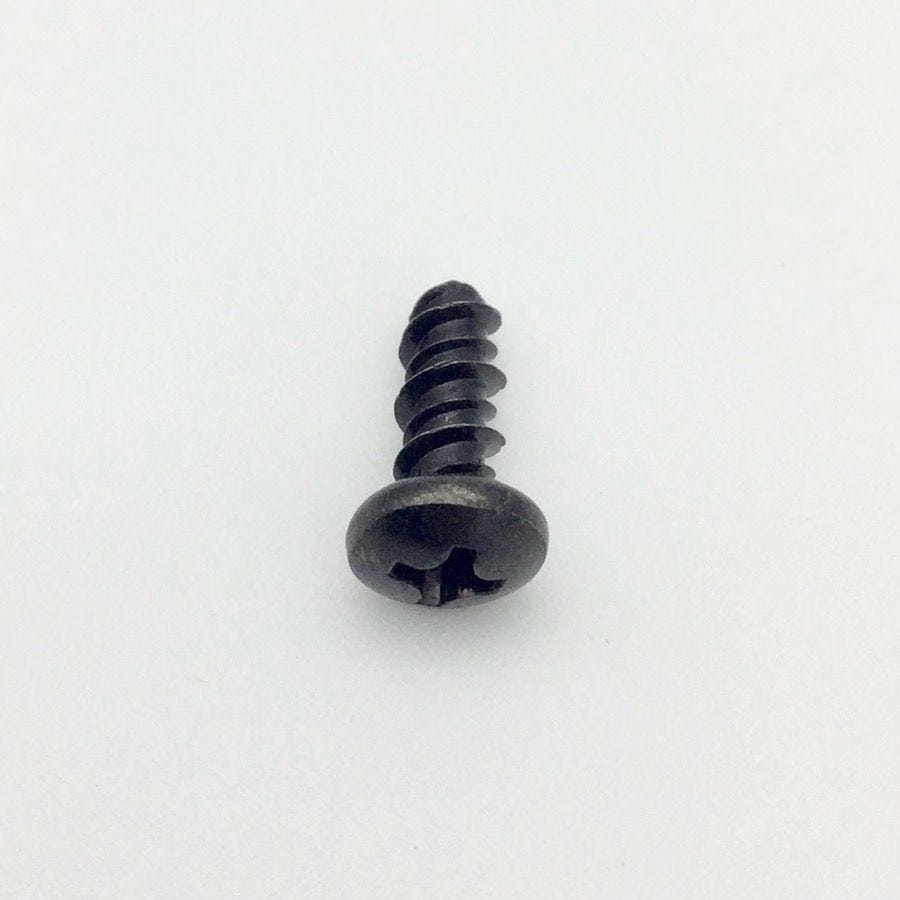

| 22 |  | Screw #8 x 7/16″ | A732-8414 | $3.28 | View Part |

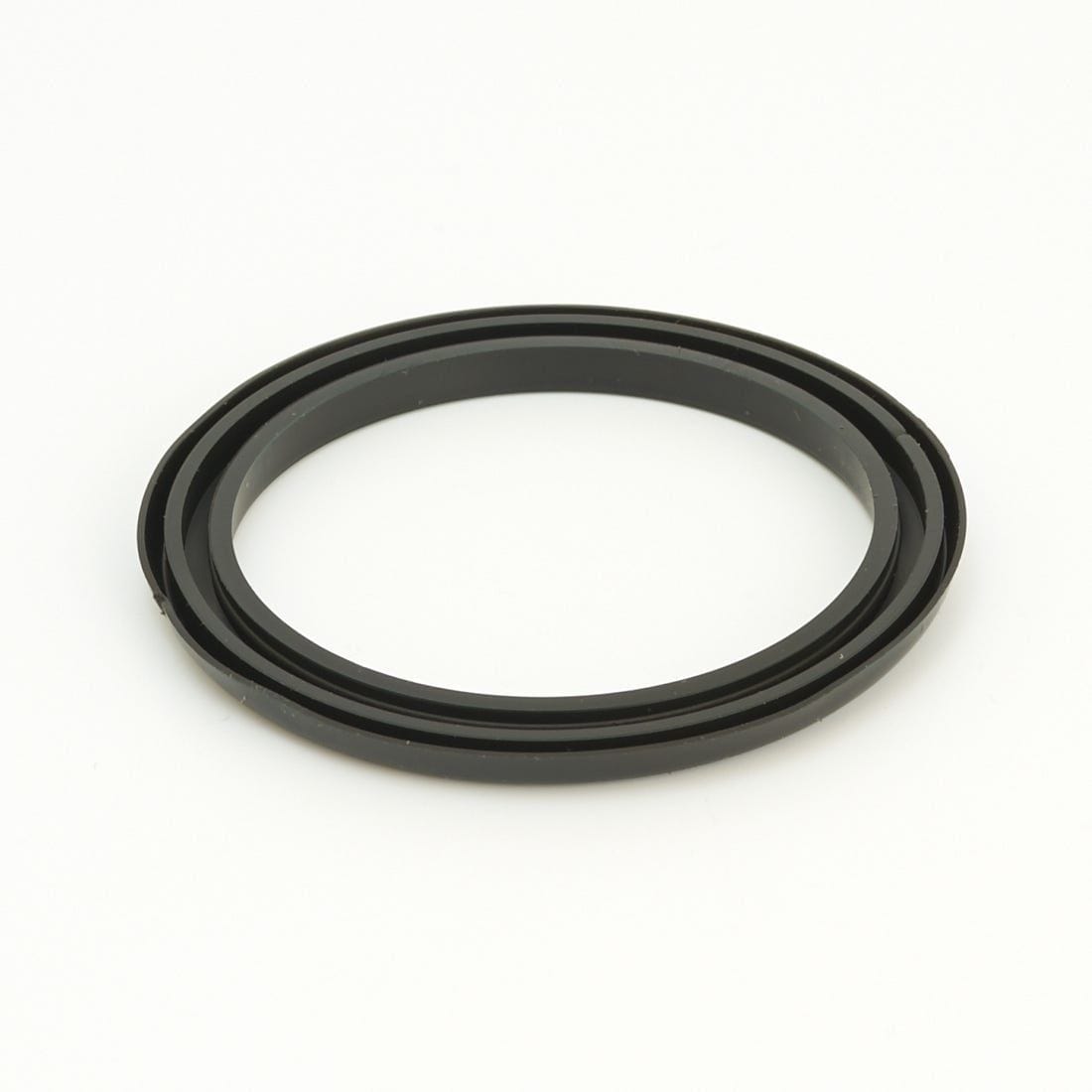

| 23 |  | Direct Air Motor Inlet Seal | B388-1014B | $3.28 | View Part |

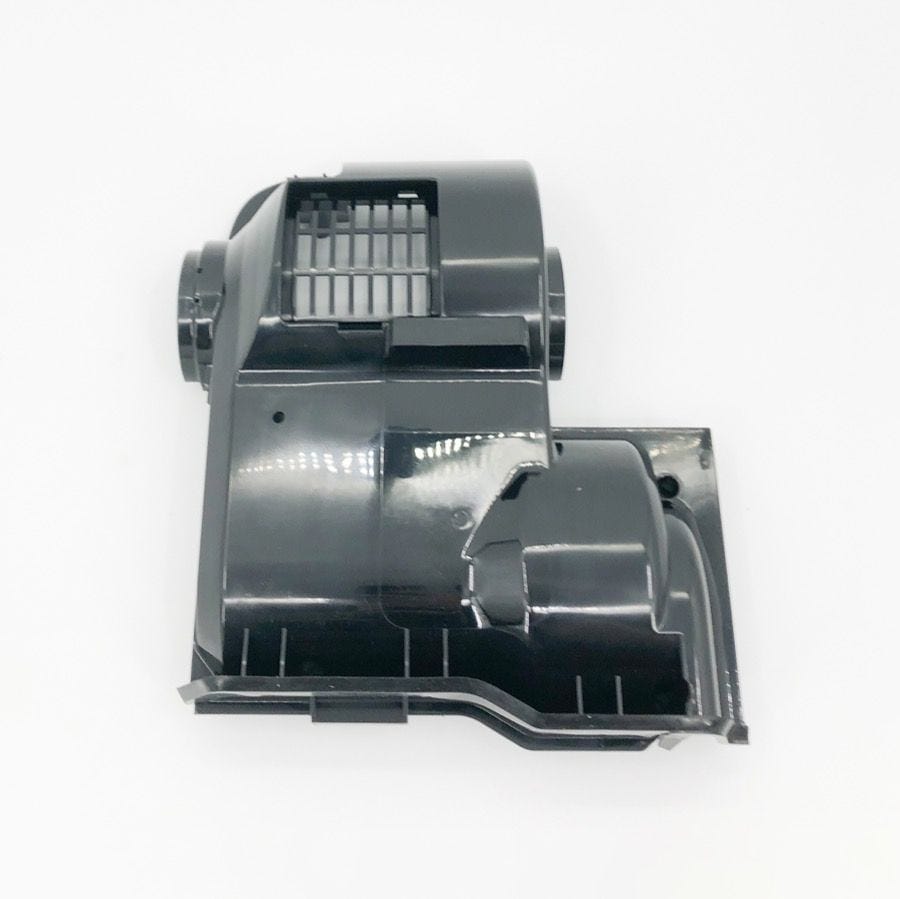

| 24 |  | Motor Cover Assembly | D380-5714 | $28.58 | View Part |

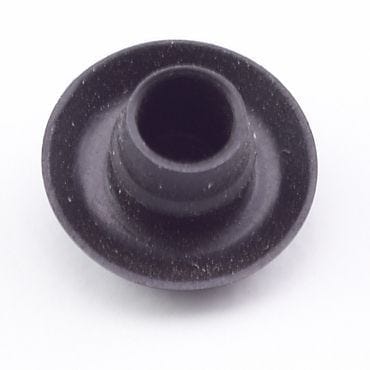

| 25 |  | Motor Cover Plug for Filter Button | A123-0114 | $3.28 | View Part |
| 26 | | Motor Cover Seal | B380-6600 | $5.48 | View Part |

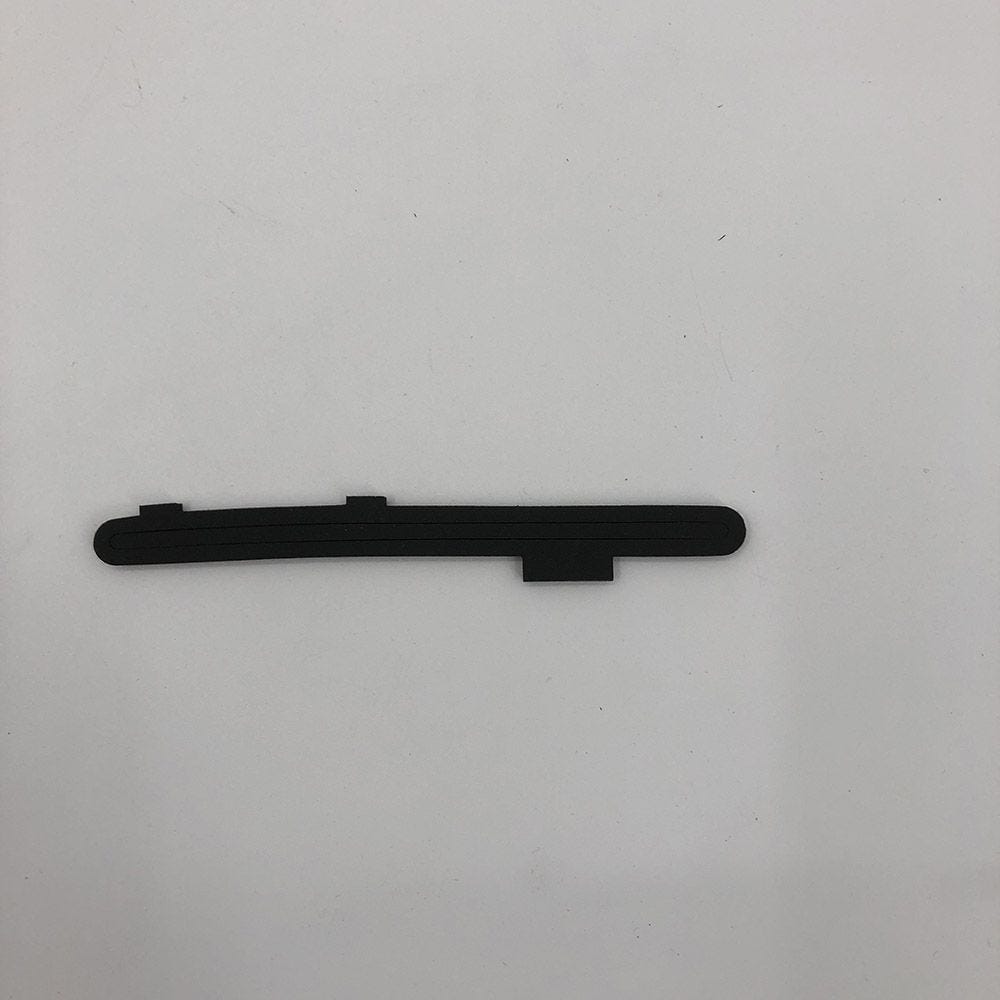

| 27 |  | Direct Air Motor Filter Seal | B380-5900 | $3.28 | View Part |
| 28 |  | Direct Air Motor Filter w/Cover | B380-5814 | $3.28 | View Part |

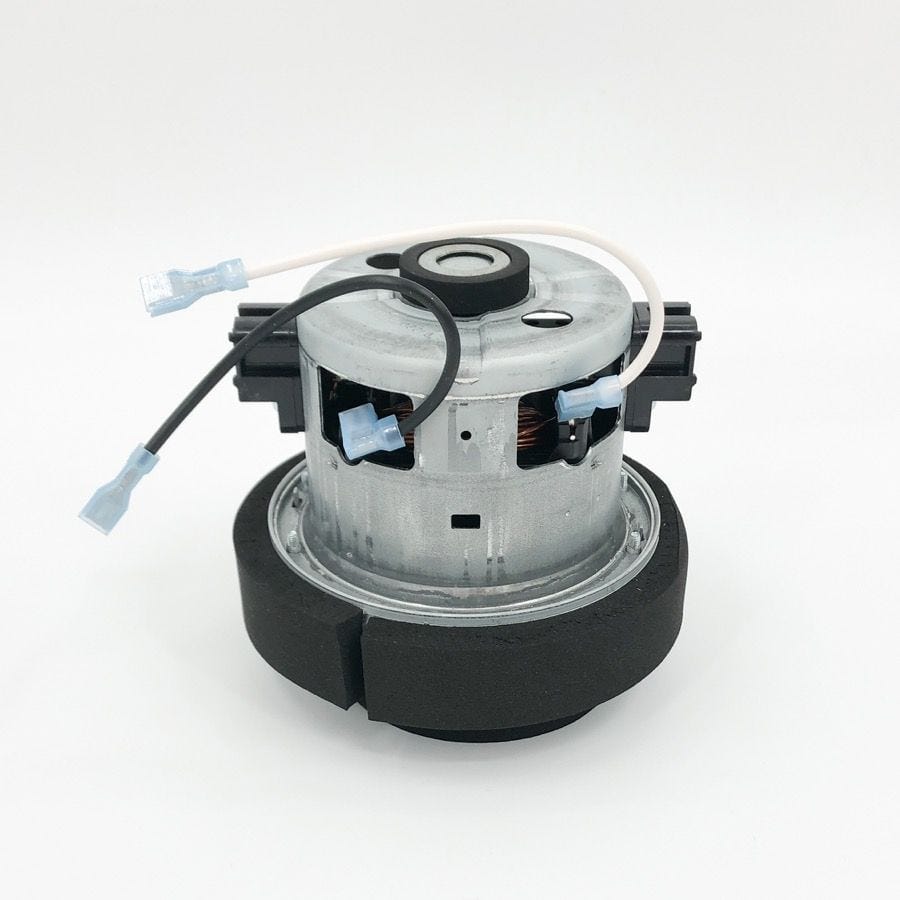

| 29 |  | Clean Air Motor (See Bulletin) | D386-2700 | $124.28 | View Part |

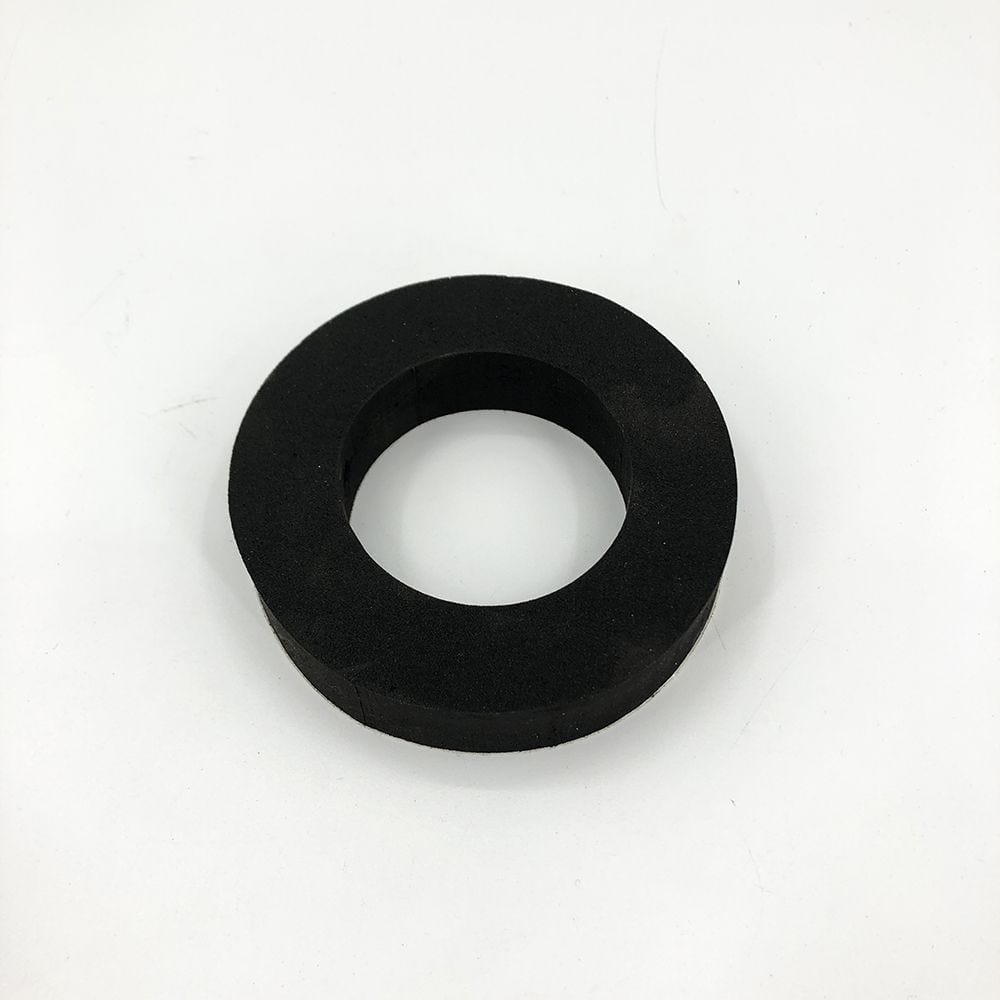

| 30 |  | Rear Motor Seal | B388-5800 | $4.38 | View Part |
| 31 | | Gasket | 80632 | $3.28 | View Part |
| 32 | | White Motor Lead Wire | B333-5400 | $4.38 | View Part |
| 33 | | Black Motor Lead Wire | B333-5300 | $4.38 | View Part |

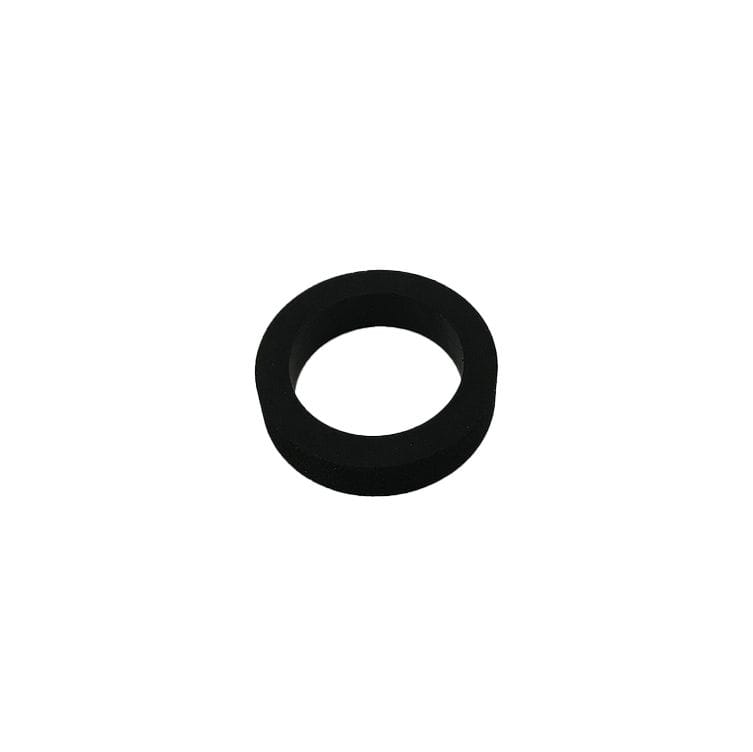

| 34 |  | Ametek Front Motor Mount | B486-0600 | $3.28 | View Part |
| 35 |  | Ground Spring | 18547 | Contact us | — |
| 36 | | Ground Screw #4 x 1/4″ | A732-9905 | Contact us | — |

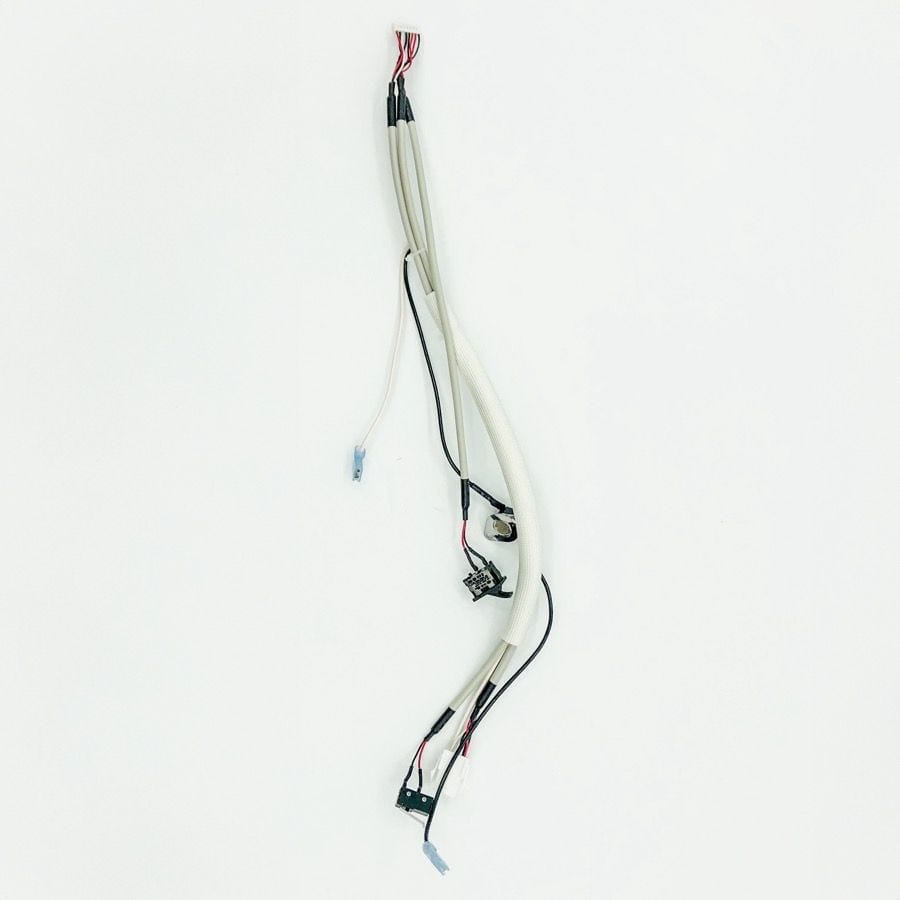

| 37 |  | Body Wire Harness (Includes Roto-Valve Micro Switch) | B333-5000 | $46.18 | View Part |

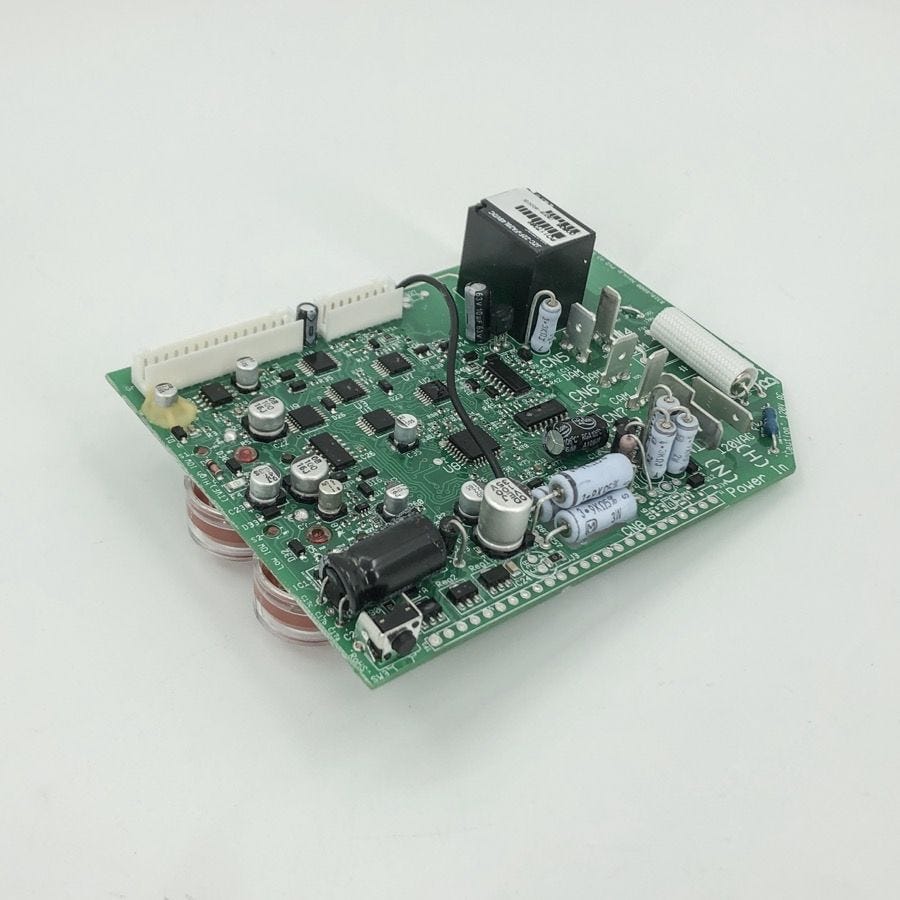

| 38 |  | Main PC Board | B318-6000K | $145.18 | View Part |

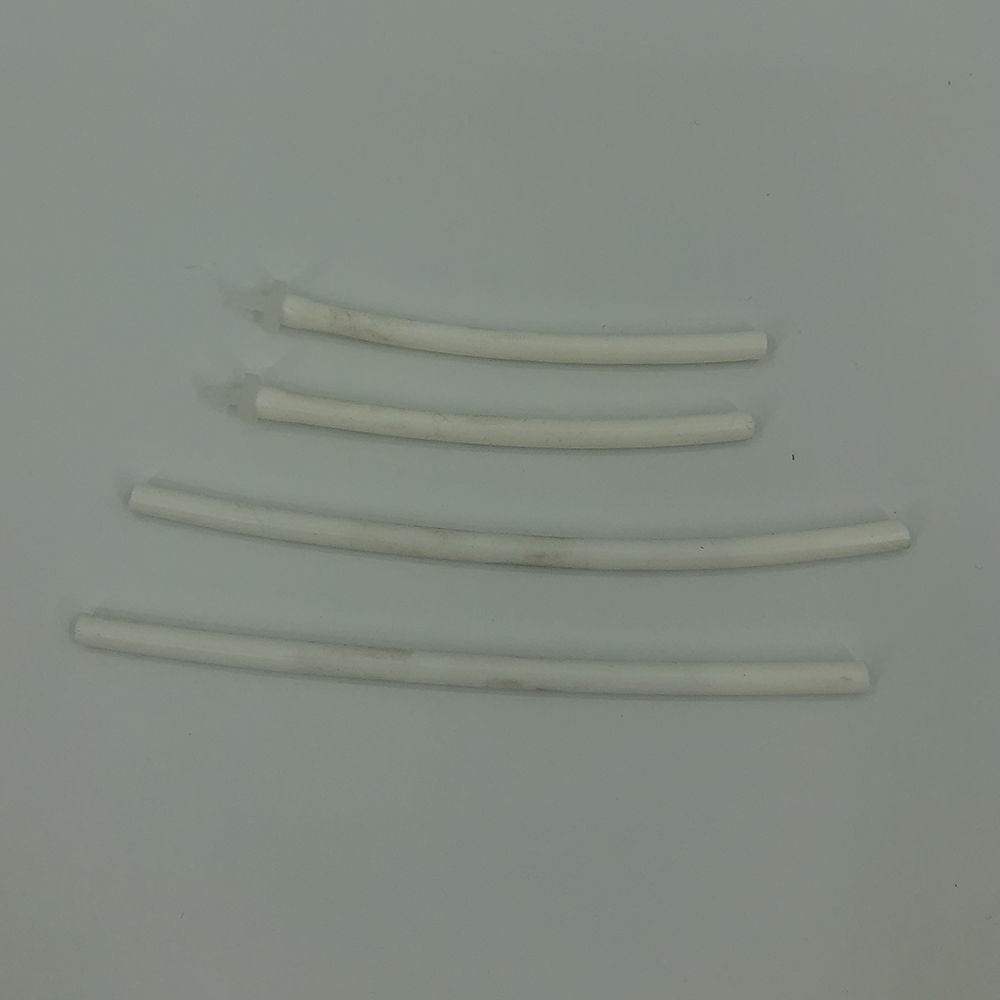

| 39 |  | Pressure Switch Hose Assembly | D480-5000 | $20.88 | View Part |

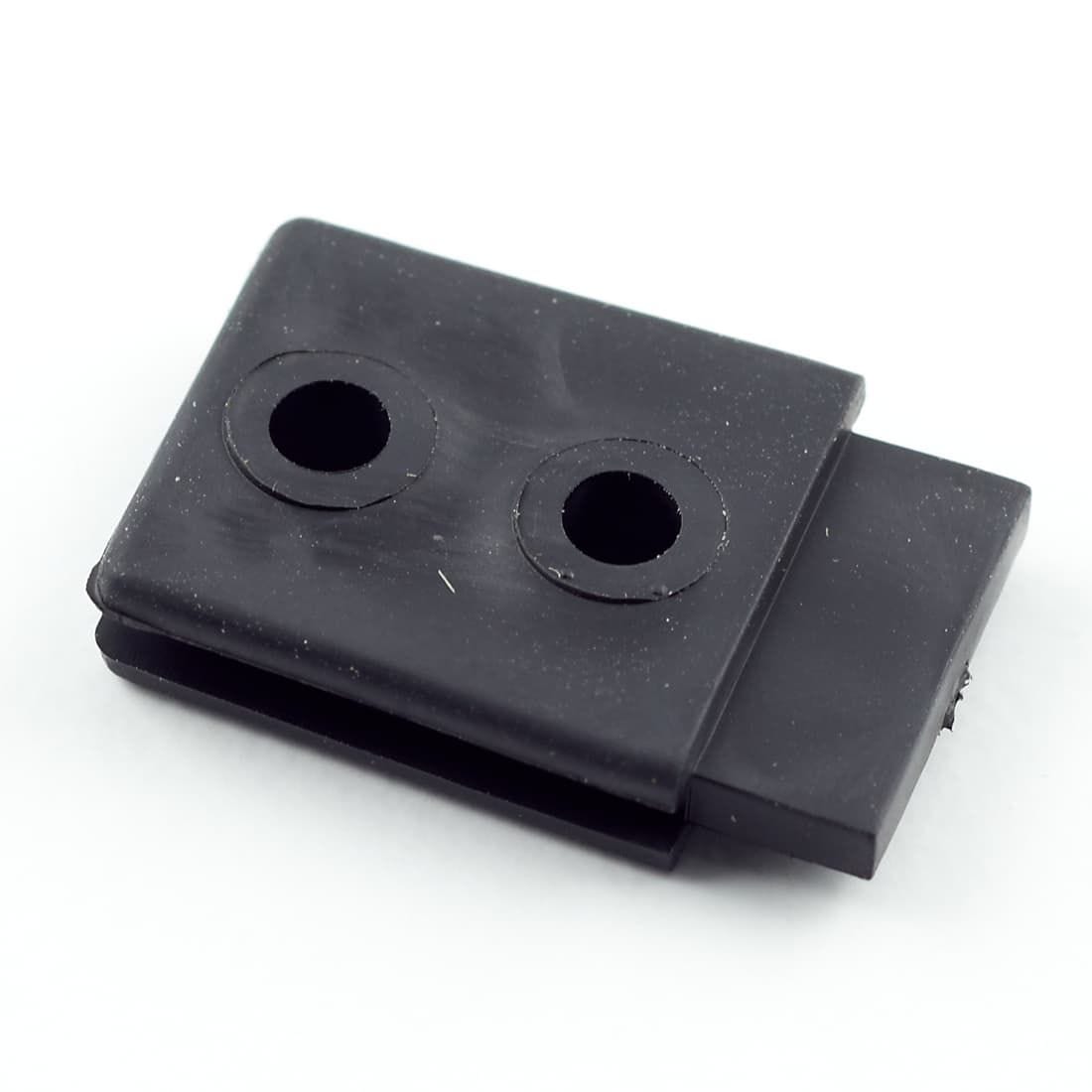

| 40 |  | Pressure Switch Insert | B480-5014 | $3.28 | View Part |

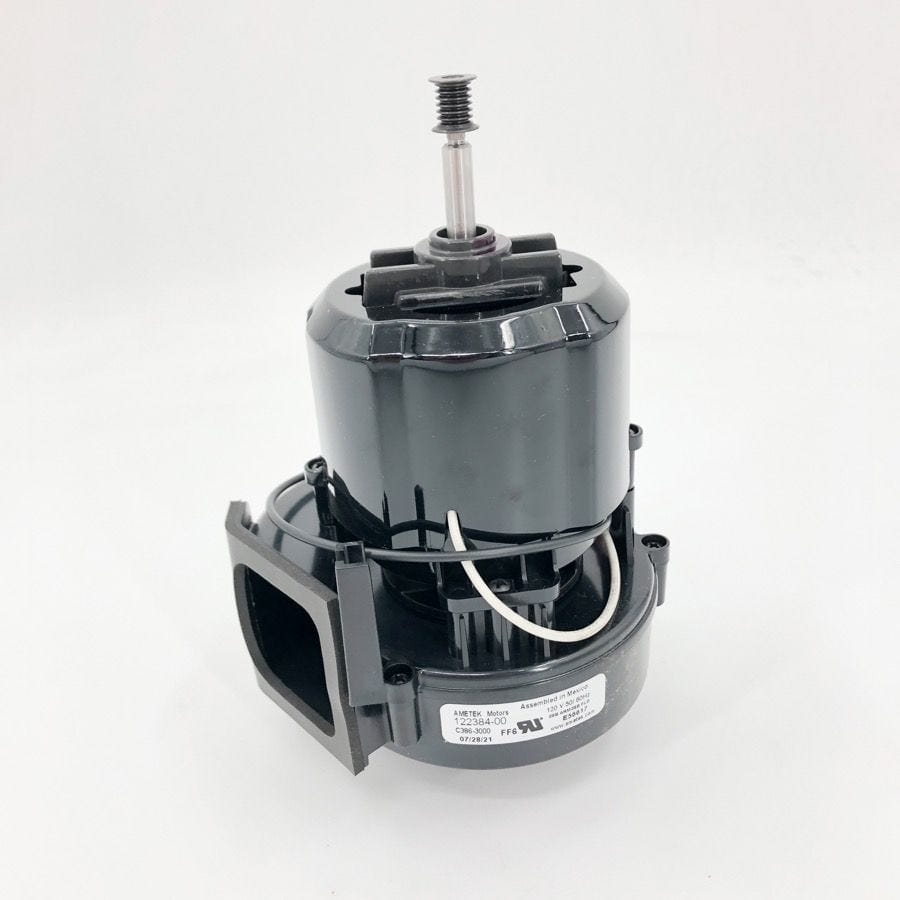

| 41 |  | Direct Air Motor Assembly | D386-3000 | $243.08 | View Part |

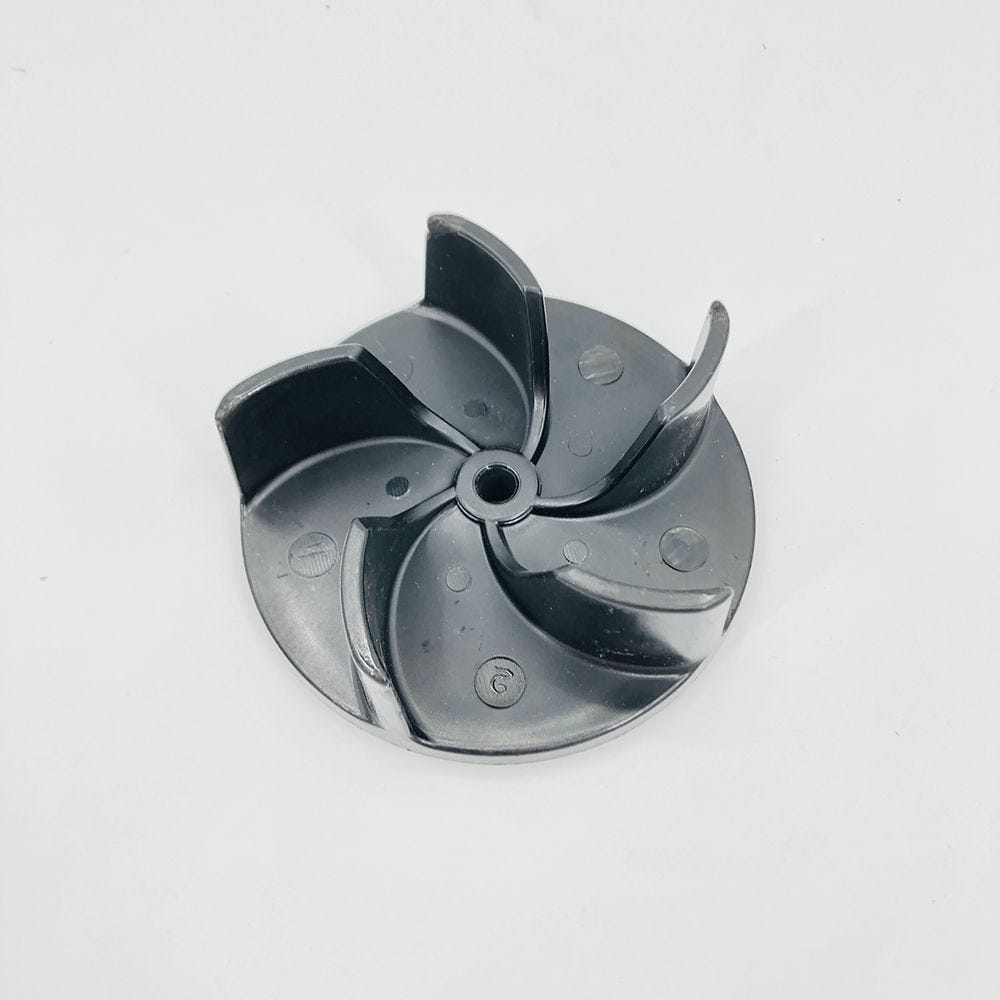

| 43 |  | Direct Air Motor Fan | B386-3314 | $16.48 | View Part |
| 44 | | Fan Washer | B386-1000 | Contact us | View Part |
| 45 |  | Direct Air Motor Outlet Seal | B380-6700 | $3.28 | View Part |

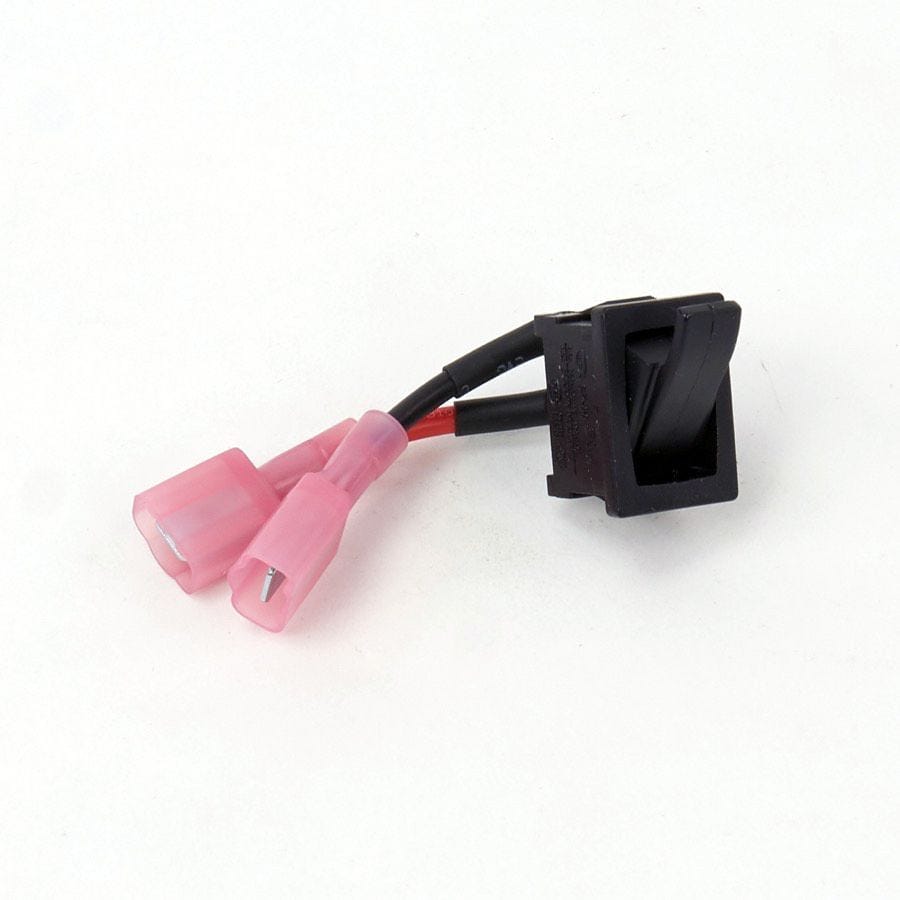

| 46 |  | Winged Rocker Switch | A328-1000 | $7.68 | View Part |

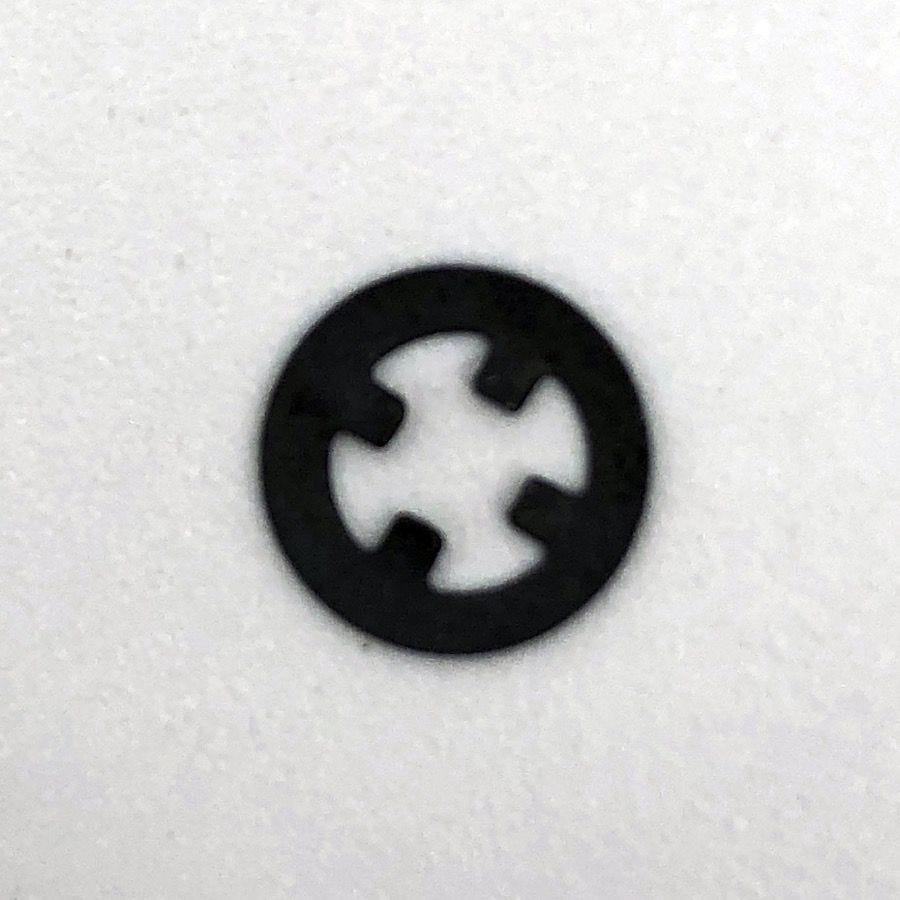

| 47 |  | Retaining Ring | A732-2700 | $3.28 | View Part |
Bags and filters
Three bag options are listed: the HEPA bag (C380-7097), the charcoal-lined HEPA bag (C380-7097B) and a 6 pack of HEPA bags (RPH-6). The filter parts are the HEPA filter (B380-6314), the granulated charcoal secondary filter (C388-4800), the Direct Air Motor filter with cover (B380-5814) and their seals. Filter Set RF40G is listed as a set that includes diagram items 11, 18 and 28.
Motor, airflow and electrical parts
The Clean Air Motor (D386-2700) is listed with the note ‘See Bulletin’, so check the bulletin referenced in the parts list before you order. The Direct Air Motor assembly (D386-3000), its fan (B386-3314), fan washer and seals are listed separately. The main PC board (B318-6000K), body wire harness (B333-5000), motor lead wires and pressure switch parts cover the electrical side.
Shared part numbers
All part numbers on this page are the same for the R40P.4, R40P.6 and R40P.8. Screw A732-8314 and retaining ring A732-2700 also appear in other sections of the R40P parts list. They are single products, not separate ones.
Frequently asked questions
Which vacuum bag does the Riccar R40P use?
The list shows a HEPA bag (C380-7097), a charcoal-lined HEPA bag (C380-7097B) and a 6 pack of HEPA bags (RPH-6).
What is in the RF40G filter set?
RF40G is listed as a filter set that includes diagram items 11, 18 and 28. Compare those items with the individual filters in the table to see what the set replaces.
Is the main PC board the same on all R40P models?
Yes. Main PC board B318-6000K is listed for the R40P.4, R40P.6 and R40P.8.
