Riccar R40P Nozzle Housing Parts
The nozzle housing is the cover and lighting on the front of the Riccar R40P floor nozzle. It holds the headlight and lenses, carries the Riccar badge, and includes the furniture guard that cushions the nozzle when you vacuum around table legs and other furniture. This page lists every nozzle housing part for the Riccar R40P.4, R40P.6 and R40P.8.
If a light has stopped working, a lens has cracked or the nozzle cover has broken, you do not need a new nozzle. Each piece is available on its own: the light, the filter light lens, the right and left lenses, the cover assembly, the badge, the retaining ring and the furniture guard.
Riccar R40P Nozzle Housing Parts List
| Pos # | Image | Part Name | Part No# | Price | View Link |
|---|---|---|---|---|---|
 | Nozzle Cover Assembly | D370-0241 | Contact us | View Part | |

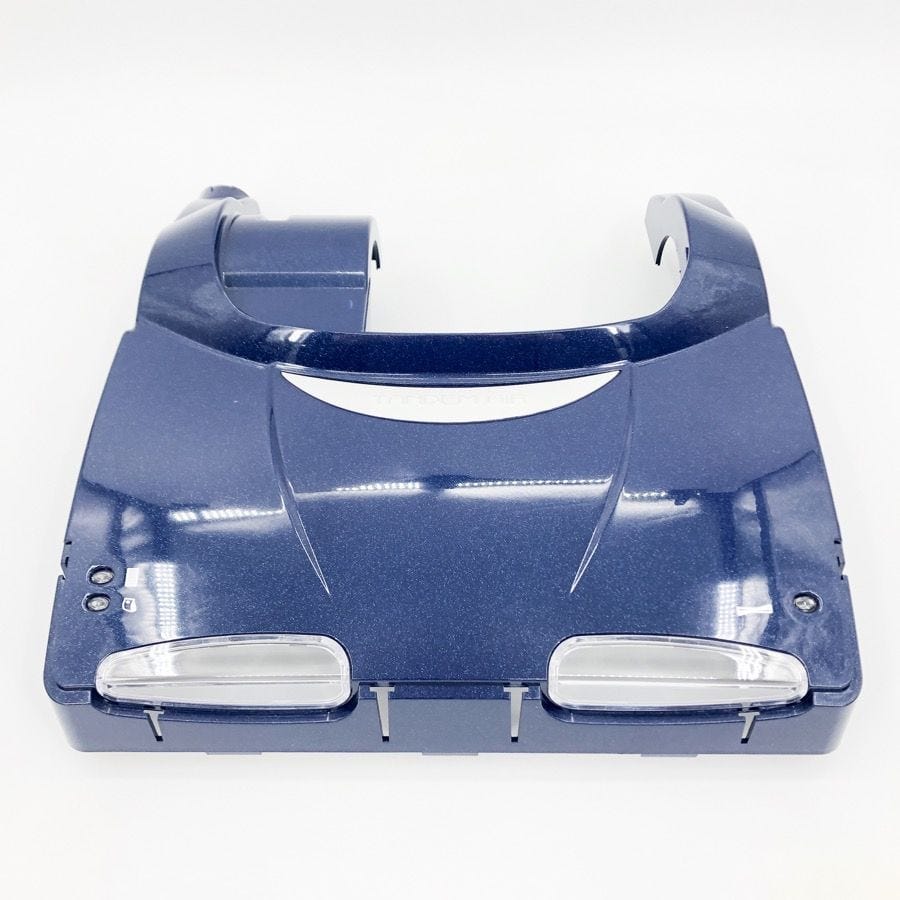

| 1 |  | Nozzle Cover Assembly | D370-0241.2 | $36.28 | View Part |
| 2 | | Nozzle Cover Badge | B470-6900 | $6.58 | View Part |
| 3 |  | Retaining Ring | A732-2700 | $3.28 | View Part |

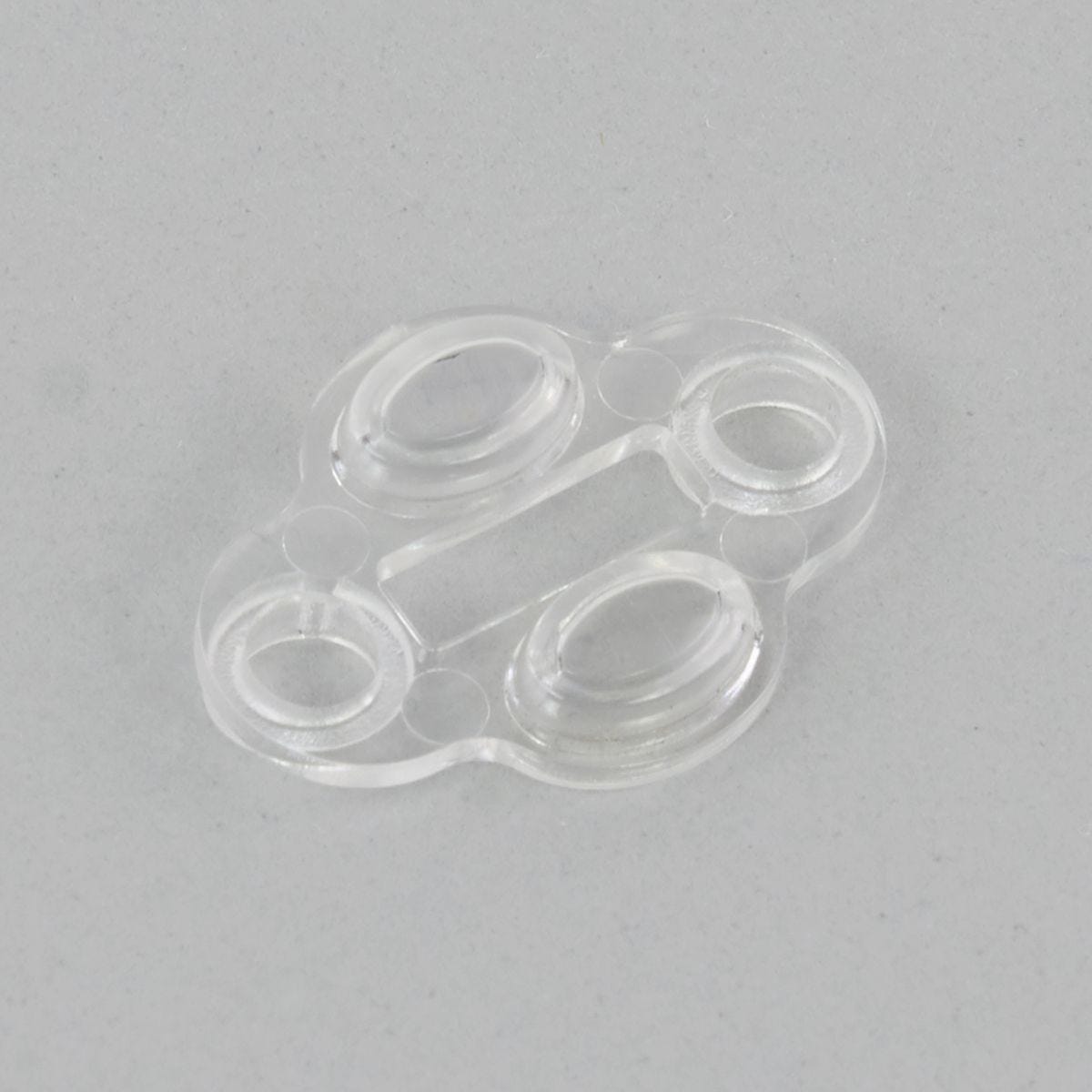

| 4 |  | Light | B370-0615 | $3.28 | View Part |

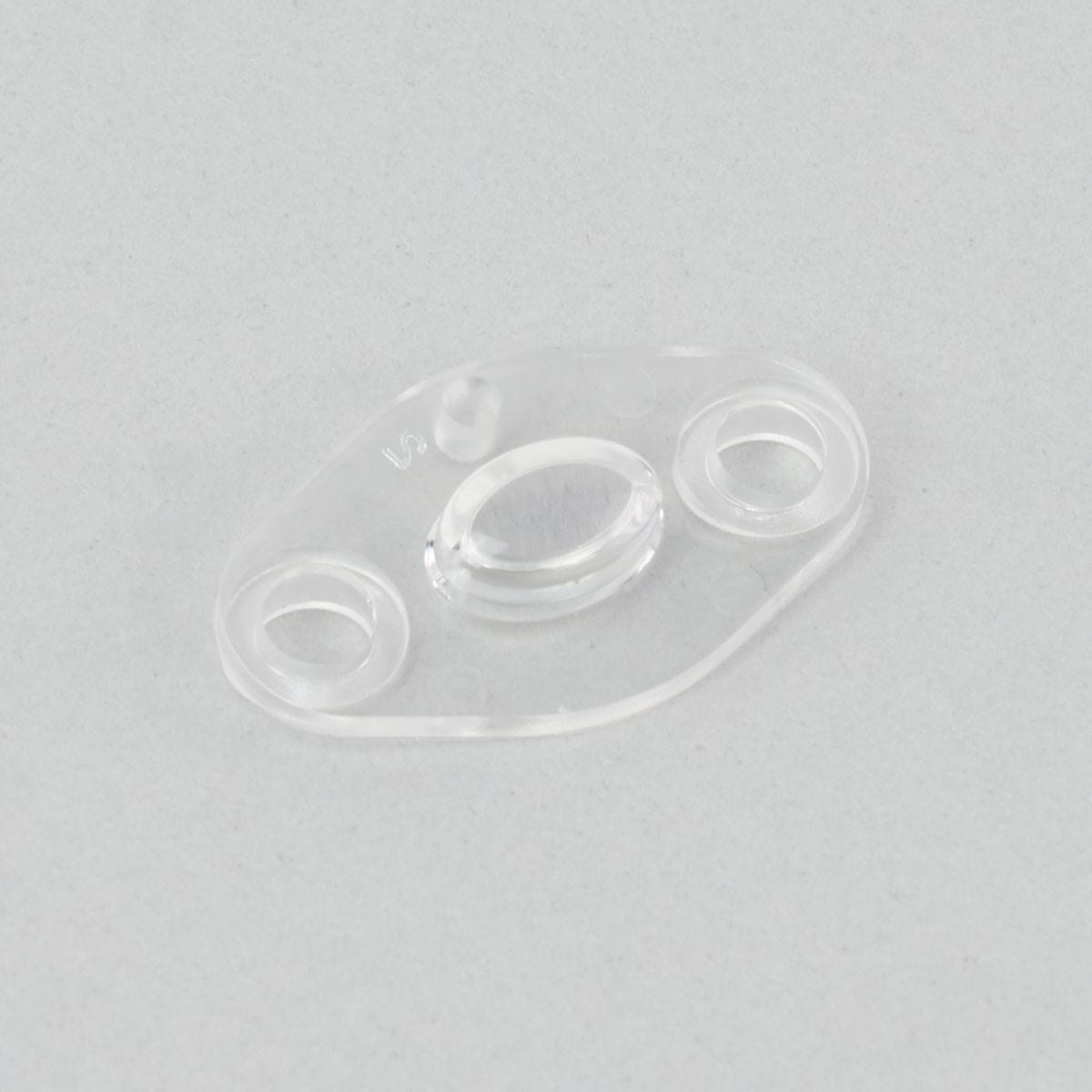

| 5 |  | Filter Light Lens | B370-4715 | $3.28 | View Part |
| 6 |  | Right Lens | B370-0315 | $4.38 | View Part |

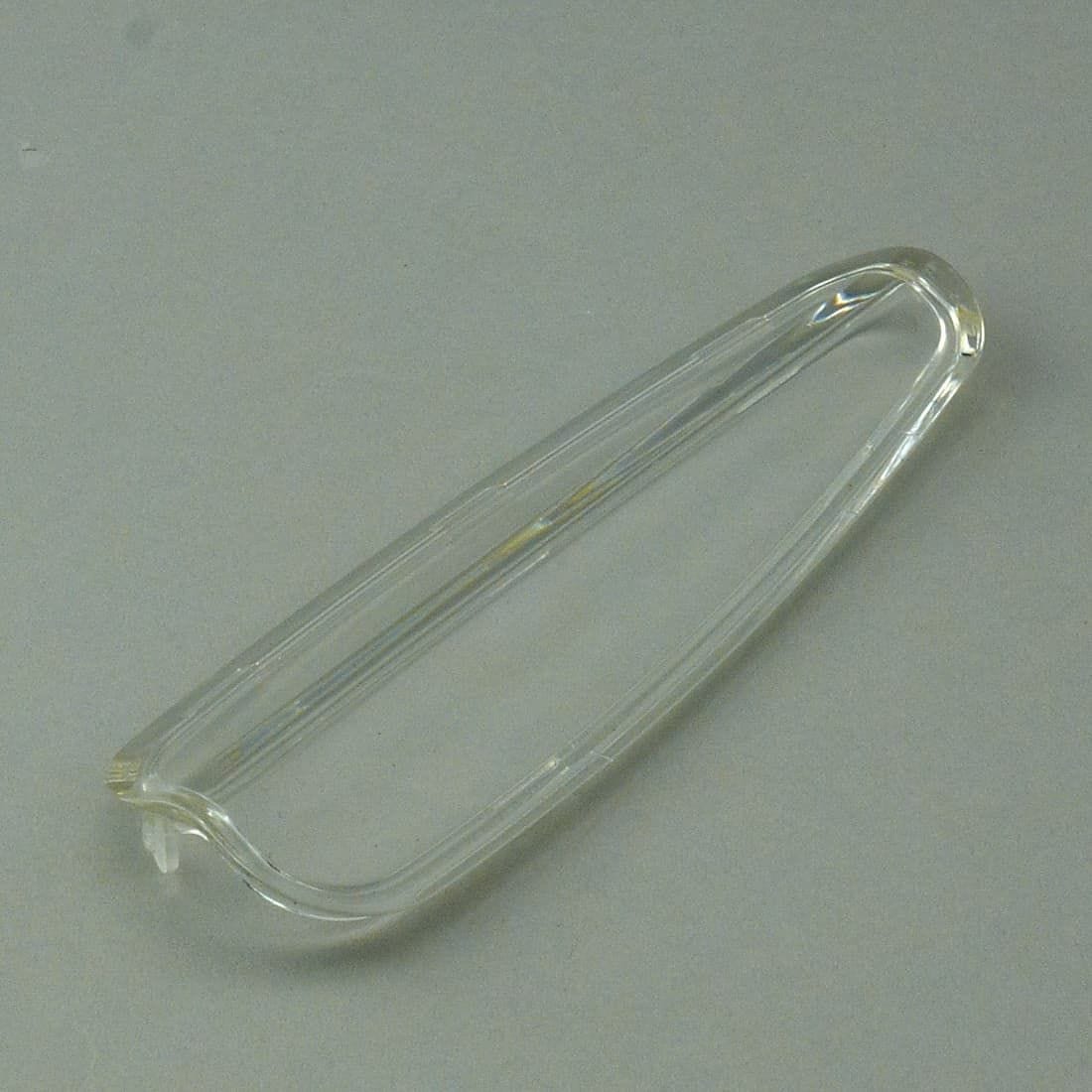

| 7 |  | Left Lens | B370-0415 | $3.28 | View Part |

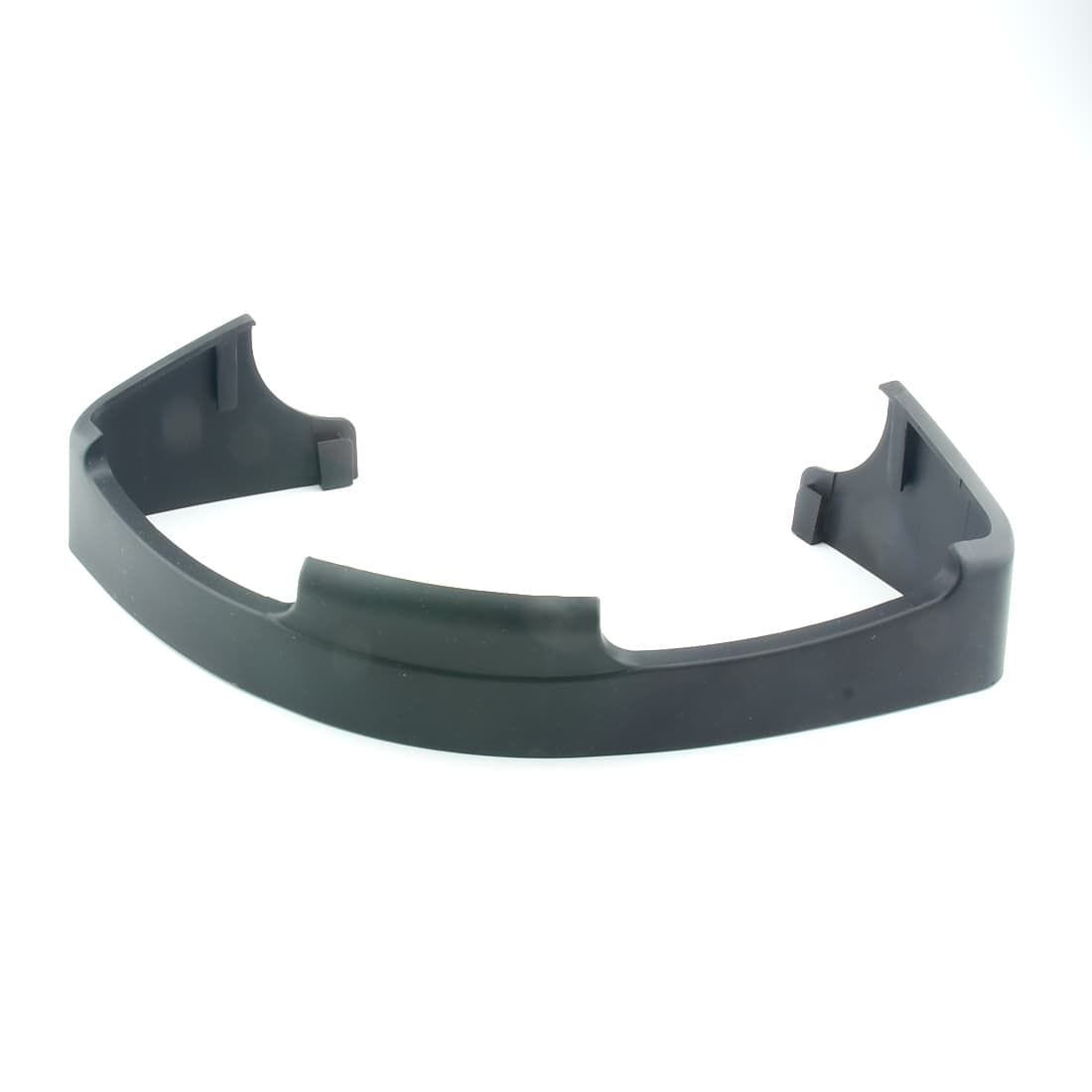

| 8 |  | Furniture Guard | B370-0543 | $12.08 | View Part |
Which nozzle cover fits your model
The nozzle cover assembly is the one part here that differs by model. The R40P.4 uses D370-0241, and the R40P.6 and R40P.8 use D370-0241.2. The badge, retaining ring, light, lenses and furniture guard are the same part numbers on all three models.
Retaining ring A732-2700 is also listed in the Main Body parts for some models. It is the same part number, so one product covers both.
Lights and lenses
The light (B370-0615) is the part that lights the floor ahead of the nozzle. The right lens (B370-0315), left lens (B370-0415) and filter light lens (B370-4715) are listed separately, so a cracked or cloudy lens can be replaced without touching the light.
Frequently asked questions
What do I replace if my Riccar R40P headlight is not working?
The light itself is B370-0615. If the light works but the cover over it is cracked or cloudy, the lenses are sold separately: right lens B370-0315, left lens B370-0415 and filter light lens B370-4715.
Which nozzle cover does my R40P need?
Check your model number. The R40P.4 lists nozzle cover assembly D370-0241, and the R40P.6 and R40P.8 list D370-0241.2.
Can I replace the furniture guard on its own?
Yes. The furniture guard (B370-0543) is sold as a separate part.
Need help finding the right part? Call Twin City Vacuum at 763-535-0770 or visit us at 5415 W Broadway, Crystal, MN. Have your vacuum’s model number ready.
