Tornado 98169 Marathon 1200 control panel replacement parts for Model 98169. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
1. Screw #10-24 x 7/16" – 036602. Rocker Switch – 106703. Nylon Nut – 178834. Cable Clamp – 187175. Pushbutton Momentary Switch 10A – 191216. Nylon Screw #6-32 x 3/4" – 191247. Nut – 191458. Rectifier 35A – X11939. Cord Hook – B352-690010. Circuit Breaker 2.5A – X119211. Control Module – 1931512. Strain Relief – 1946113. Screw #10-32 x 5/8" – 3043614. Power Cord Assembly 230V EU Plug – 3109415. Main Wiring Harness (Marathon 800/1200) – 32221Find genuine Tornado 98169 Marathon 1200 control panel replacement parts for Model 98169. The panel is the operator’s interface and the first place to look when a function will not switch on. This sheet covers the rocker and pushbutton switches that run vacuum, brush and solution, the control module behind them, the rectifier and circuit breaker, the main wiring harness, the strain relief where cable passes through, the cord hook, and the 230-volt power cord assembly. On a machine of this type there is very little between a switch and the component it controls, which makes fault-finding straightforward. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 1 |  | Screw #10-24 x 7/16" | 03660 | $2.99 |
| 2 |  | Rocker Switch | 10670 | $3.99 |
| 3 | Nylon Nut | 17883 | $2.99 | |
| 4 | Cable Clamp | 18717 | $1.99 | |
| 5 |  | Pushbutton Momentary Switch 10A | 19121 | $19.99 |
| 6 | Nylon Screw #6-32 x 3/4" | 19124 | $1.99 | |
| 7 | Nut | 19145 | Call for price | |
| 8 |  | Rectifier 35A | X1193 | $14.99 |
| 9 |  | Cord Hook | B352-6900 | $4.99 |
| 10 |  | Circuit Breaker 2.5A | X1192 | $8.99 |
| 11 | Control Module | 19315 | Call for price | |
| 12 | Strain Relief | 19461 | $15.99 | |
| 13 |  | Screw #10-32 x 5/8" | 30436 | $1.99 |
| 14 | Power Cord Assembly 230V EU Plug | 31094 | Call for price | |
| 15 |  | Main Wiring Harness (Marathon 800/1200) | 32221 | $412.99 |

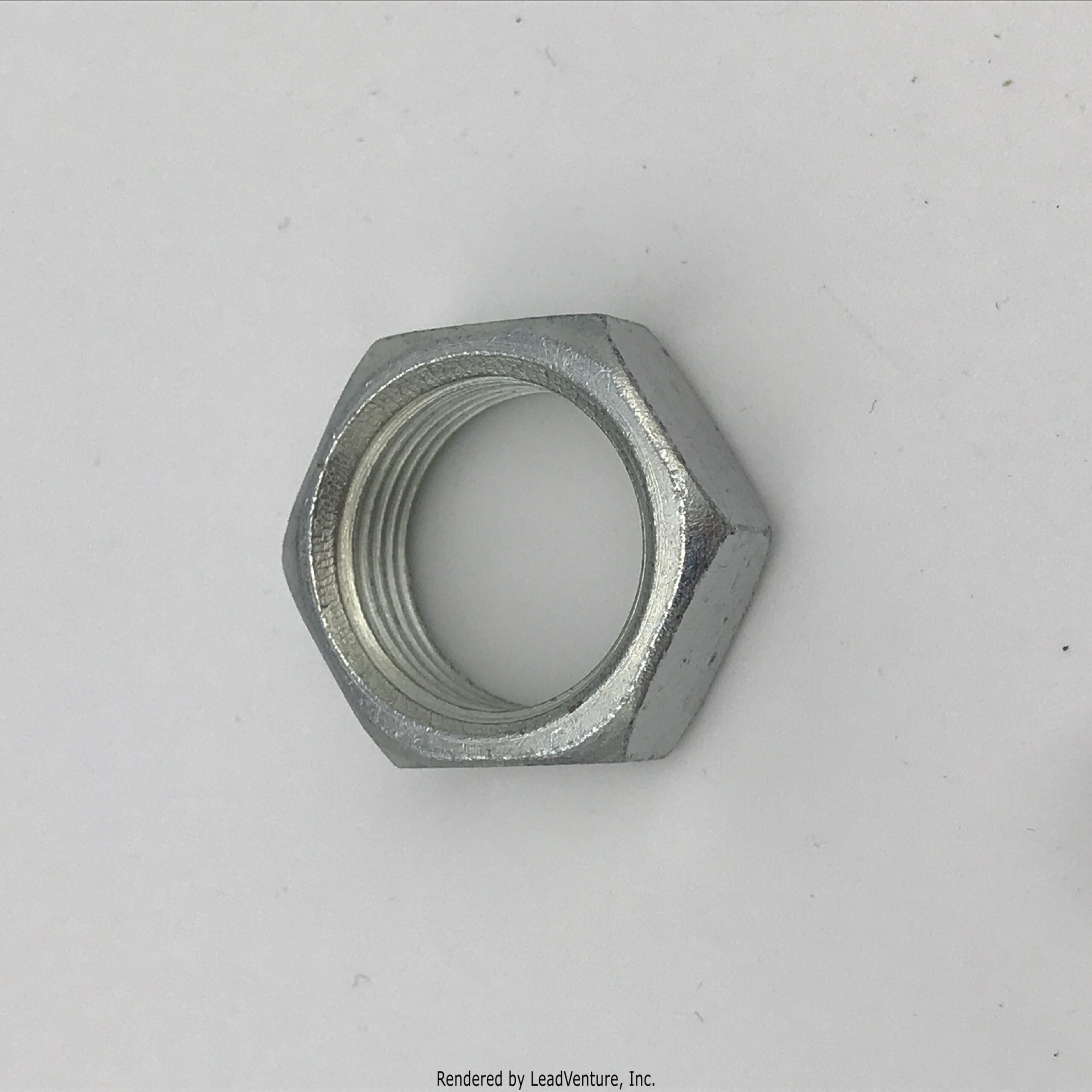

| 16 |  | Nut | 30261 | $10.99 |
Frequently Asked Questions
One function will not switch on. Where do I start?
With that function’s switch and its branch of the harness. If vacuum and brush run normally and only solution is dead, the fault is almost certainly the solution switch or its wiring rather than the machine’s supply. Disconnect the machine before opening the panel.
Why does a function cut out intermittently?
That pattern points at a connector or a chafed conductor rather than a switch, especially when it happens as the machine is moved or the handle flexed. Trace the circuit before replacing the switch.
Is the main wiring harness the same as the 98168?
The main wiring harness is catalogued for the Marathon 800 and 1200 machines together, so it is shared. The voltage-specific items on the 98169 are the pump, solenoid valve, brush motor and power cord.
Is the power cord on this page the right one for a 115V machine?
No. The cord listed here is the 230-volt assembly with a European plug, for the export-market machine. Confirm what your machine is wired for before ordering, and call us if you are unsure.
How do I order Tornado 98169 control panel parts or get help?
Add the part to your cart from its product page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing Tornado equipment since 1956 and can talk you through identifying which switch has failed.
