Tornado Tempest replacement parts for Model TV400-W26-U. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
Battery and Charger Parts
Find genuine Tornado Tempest battery and charger replacement parts for Model TV400-W26-U. This sheet covers the 36V 7.5Ah lithium-ion battery pack (part# K24450750) and the 36V quick-charger (part# K24450530) — the two items that between them account for most of the service calls on a cordless machine. Both are shared with the Tornado Strike, and the pack is also used on the Zephyr. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 90 |  | 36V 7.5Ah Lithium-Ion Battery | K24450750 | $502.99 |
| 100 |  | 36V Quick-Charger | K24450530 | $226.99 |
A note on the battery and charger: lithium-ion packs of this capacity are regulated for shipping and cannot travel by air. Call us at 763-535-0770 before ordering so we can confirm how it will reach you.
Electronics Parts

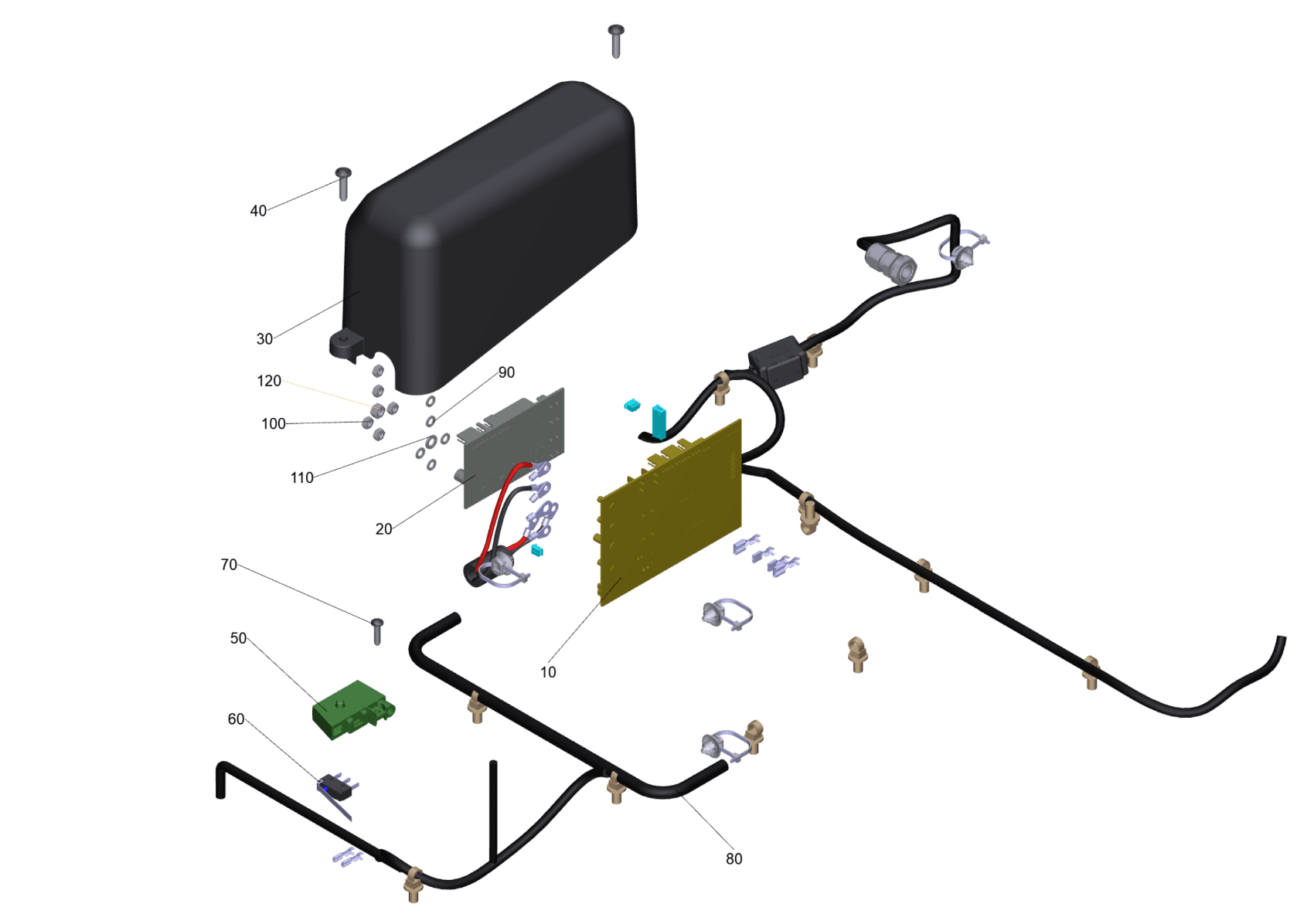

40. Screw M5 x 20 – K7303108090. Spring Washer (five fitted) – K73130170120. Hex Nut M5 (one fitted) – K73110020100. Hex Nut M4 (five fitted) – K73110010110. Spring Washer (one fitted) – K7313016020. Motor Control Board – K4683321070. Microswitch Screw M4 x 16 – K7303205050. Microswitch Housing – K5060998010. System Control Board – K4683320060. Microswitch – K66303310Find genuine Tornado Tempest electronics replacement parts for Model TV400-W26-U. This sheet covers the system control board (part# K46833200) and motor control board (part# K46833210), the power microswitch (part# K66303310) and its housing (part# K50609980), and the fasteners that hold the assembly together. The two boards do different jobs: the system board powers the machine up and reads the controls, while the motor board drives the brushroll, blower and side broom — which is why a dead machine and a machine that runs but will not drive a motor point at different parts. Call 763-535-0770.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 10 |  | System Control Board | K46833200 | $401.99 |
| 20 |  | Motor Control Board | K46833210 | $310.99 |
| 30 | | Not individually catalogued by Tornado — call to order | Call 763-535-0770 | |
| 40 |  | Screw M5 x 20 | K73031080 | $0.99 |
| 50 | | Microswitch Housing | K50609980 | $5.99 |
| 60 | | Microswitch | K66303310 | $27.13 |
| 70 | | Microswitch Screw M4 x 16 | K73032050 | $0.99 |
| 80 | | Not individually catalogued by Tornado — call to order | Call 763-535-0770 | |
| 90 | | Spring Washer (five fitted) | K73130170 | Call 763-535-0770 |
| 100 | | Hex Nut M4 (five fitted) | K73110010 | Call 763-535-0770 |
| 110 | | Spring Washer (one fitted) | K73130160 | Call 763-535-0770 |
| 120 | | Hex Nut M5 (one fitted) | K73110020 | Call 763-535-0770 |
Callouts 30 and 80 appear on the factory sheet but Tornado does not catalogue them as separately orderable parts. Their rows are kept on the table so the numbering matches the diagram — call 763-535-0770 and we will help identify what you need.
Frequently Asked Questions
What battery and charger does the Tornado Tempest use?
The Tempest TV400-W26-U runs on the 36V 7.5Ah lithium-ion pack, part# K24450750, charged by the 36V quick-charger, part# K24450530. Both are shared with the Tornado Strike TV190-W10-U, and the battery is also used on the Zephyr TV570-Q03-U — so if you run more than one Tornado cordless machine, the packs interchange.
My Tempest is completely dead — is it the battery or the electronics?
Start with the cheapest checks. A pack that will not hold charge is the most common cause, but a machine that stays dead on a known-good charged pack usually points at the power microswitch (part# K66303310) or the system control board (part# K46833200). A machine that powers up and responds but will not drive a motor points instead at the motor control board (part# K46833210).
Why do callouts 30 and 80 have no part number?
Those two positions on the factory Electronics sheet are not catalogued by Tornado as individually orderable items. We have left the rows on the table rather than hiding them, so the numbering matches the diagram you are looking at. Call us at 763-535-0770 with your machine in front of you and we will work out what you need.
There are two spring washers listed — which one do I need?
Tornado publishes no dimensions for either, so they are identified here by the fastener group they belong to on the factory sheet. Part# K73130170 is the one fitted with the M4 hex nuts (five on the machine); part# K73130160 is fitted with the single M5 hex nut. If you are unsure, call 763-535-0770 with your part number and we will confirm it.
Can I ship a Tempest battery?
Lithium-ion packs of this size are regulated for transport and cannot go by air. Call us at 763-535-0770 before ordering and we will confirm the shipping options to your address.
Browse the rest of the Tornado Tempest parts range, or see the Tornado Tempest TV400-W26-U machine. Manufacturer information for the Tempest is at tornadovac.com. Questions? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.
