Tornado 98168 Marathon 1200 pump assembly view 2 replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.

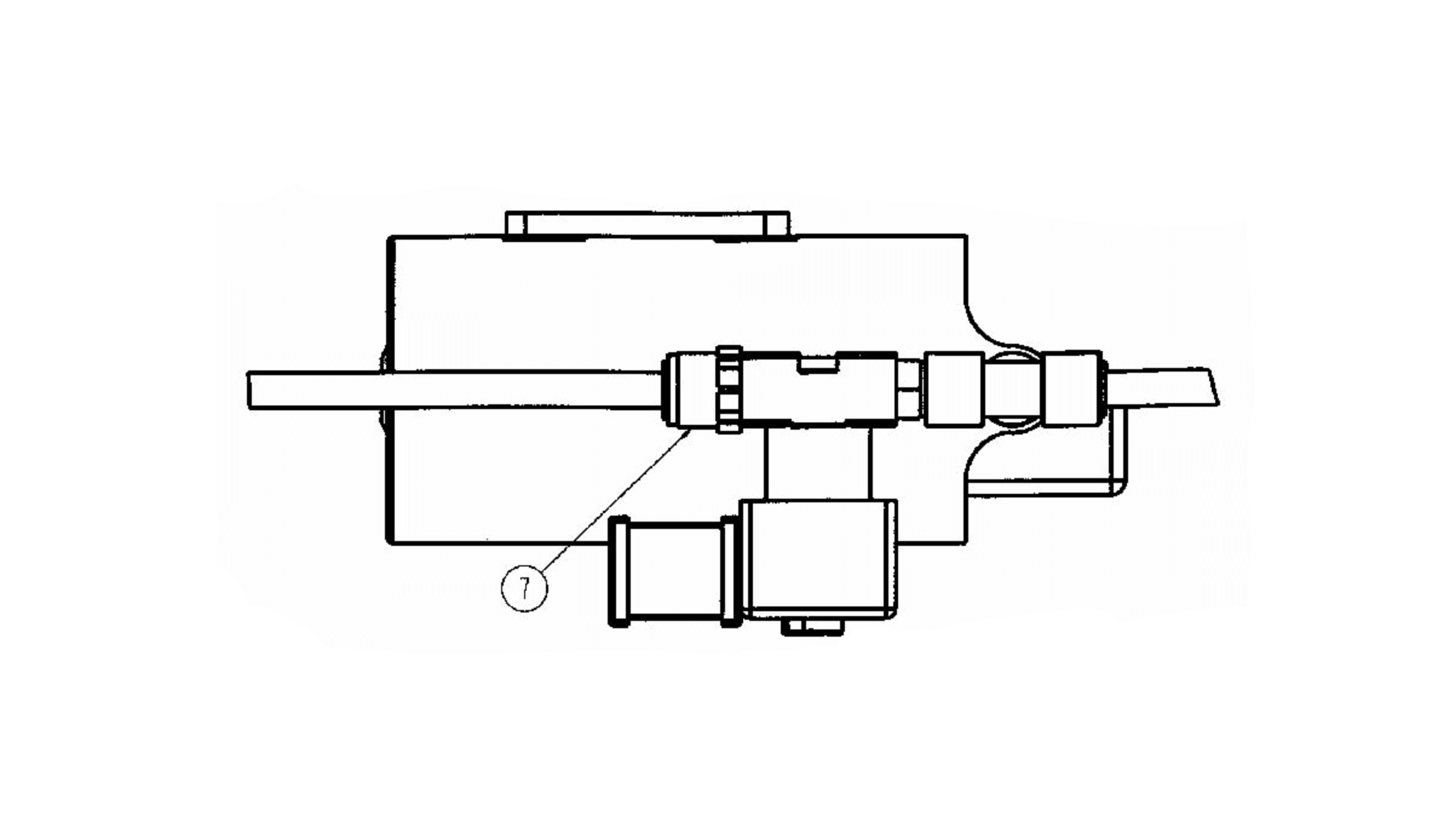

Find genuine Tornado 98168 Marathon 1200 pump assembly replacement parts for Model 98168, view two. This is a detail view of the solution circuit showing the nylon female quick-disconnect connector, 3/8″ tube to 1/4″ thread, where the line meets the pump body. The remainder of the solution circuit — the pump, solenoid valve, tee, elbows and the 3/8″ hoses — is on pump assembly view 1. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 07 | Nylon Connector QD F 3/8 Tube x 1/4” Thread | 32186-98168 | $8.99 |
Frequently Asked Questions
Why is there a second pump diagram with one part on it?
Tacony splits the pump into two views so the fitting at the pump body can be called out clearly without crowding the main drawing. It is a detail view, not a second pump.
My leak is right at the pump body. Is this the part?
If the drip is at the threaded connection into the pump, yes — this nylon quick-disconnect connector is that joint. Replace the connector rather than over-tightening it; nylon threads stretch once and then never seal again.
Where are the rest of the pump parts?
On pump assembly view 1, which carries the 115V 100 PSI pump, the solenoid valve kit, the tee and elbows and all three hose lengths.
Can I use a hardware-store fitting instead?
We would not. This is a nylon fitting sized to a 3/8″ tube and a 1/4″ thread and rated for the pump’s working pressure; a near-miss from a hardware store is the usual reason a repaired machine comes back leaking. Call 763-535-0770 if you are unsure which fitting you have.
Browse every assembly for this machine on the Tornado 98168 parts hub, or call 763-535-0770 and we will identify your part from the serial number. Twin City Vacuum, 5415 West Broadway, Crystal, MN 55428.
