CleanMax CMP-3N Main Body Front Parts

Find genuine CleanMax CMP-3N main body front replacement parts for Model CMP-3N. Can’t find your part? Call us at 763-535-0770.

Use the numbered callouts on the diagram below to match each part in the table, then click View Part to go to that part’s product page.

About the CleanMax CMP-3N Main Body Front Parts

Find genuine CleanMax CMP-3N main body front replacement parts for Model CMP-3N. This section covers the front of the main body — the power cord and strain relief, wiring and motor leads, thermal switches, the secondary and HEPA filters, the dust cover and its latch, the on/off switch, and the rear wheels and axle hardware. Twin City Vacuum has been selling and servicing CleanMax equipment since 1956, and every part is sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.

#	Image	Part Description	Part Number	Link
1		Internal power lead from the cord to the switch and motor	CM011458	View Part
2		Bushing that anchors the power cord at the body entry	X1102	View Part
3		Machine screw used on the main body	A732-7705	View Part
4	Image coming soon	Shroud that shields the internal wiring harness	54.129	View Part
5		Internal lead that powers the motor	B224-0314B	View Part
6	Image coming soon	Grommet protecting wiring at a pass-through	A732-4114	View Part
7		Hi-Lo service screw used at many points	A732-8314	View Part
8		Gasket for the motor thermal cut-out	B333-0600	View Part
9		Manual-reset motor overheat switch	B333-0400B	View Part
10		Pivot sleeve bushing in the motor compartment	B017-0214	View Part
11		Pre-motor filter protecting the motor	CMPS-SF	View Part
12	Image coming soon	Gaskets that seal the motor cover airway	C609-5000	View Part

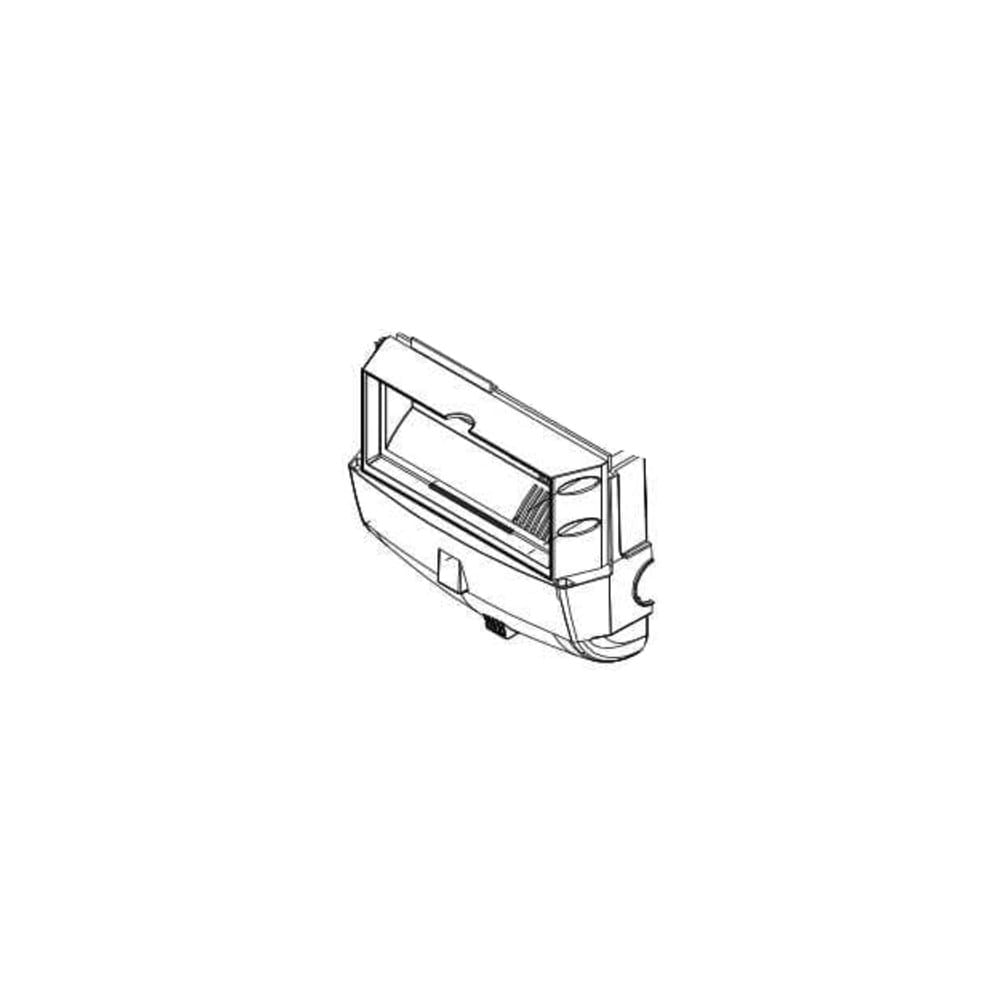

13	Image coming soon	Black cover enclosing the motor compartment	B625-0109	View Part
14		Final post-motor HEPA exhaust filter	CMPS-HEPA	View Part
15		Spring that keeps the dust cover latched	54.123	View Part
16		Combined dust cover latch with spring	B625-0107	View Part
17		Outer black bag-compartment door	C625-0107	View Part
18		Standard paper vacuum bags, 12 per pack	CMP-12	View Part
19		Gasket sealing the dust cover to the compartment	54.134	View Part
20	Image coming soon	Gasket for the on/off switch cover	54.128	View Part
21		Cover housing the on/off switch	54.131	View Part
22		Cable clamp securing internal cabling	B332-0014	View Part
23		Fitting that secures the handle to the body	B431-1700	View Part
24		Rocker switch that powers the motor	25.104	View Part
25		Rear wheel and axle assembly	54.127	View Part

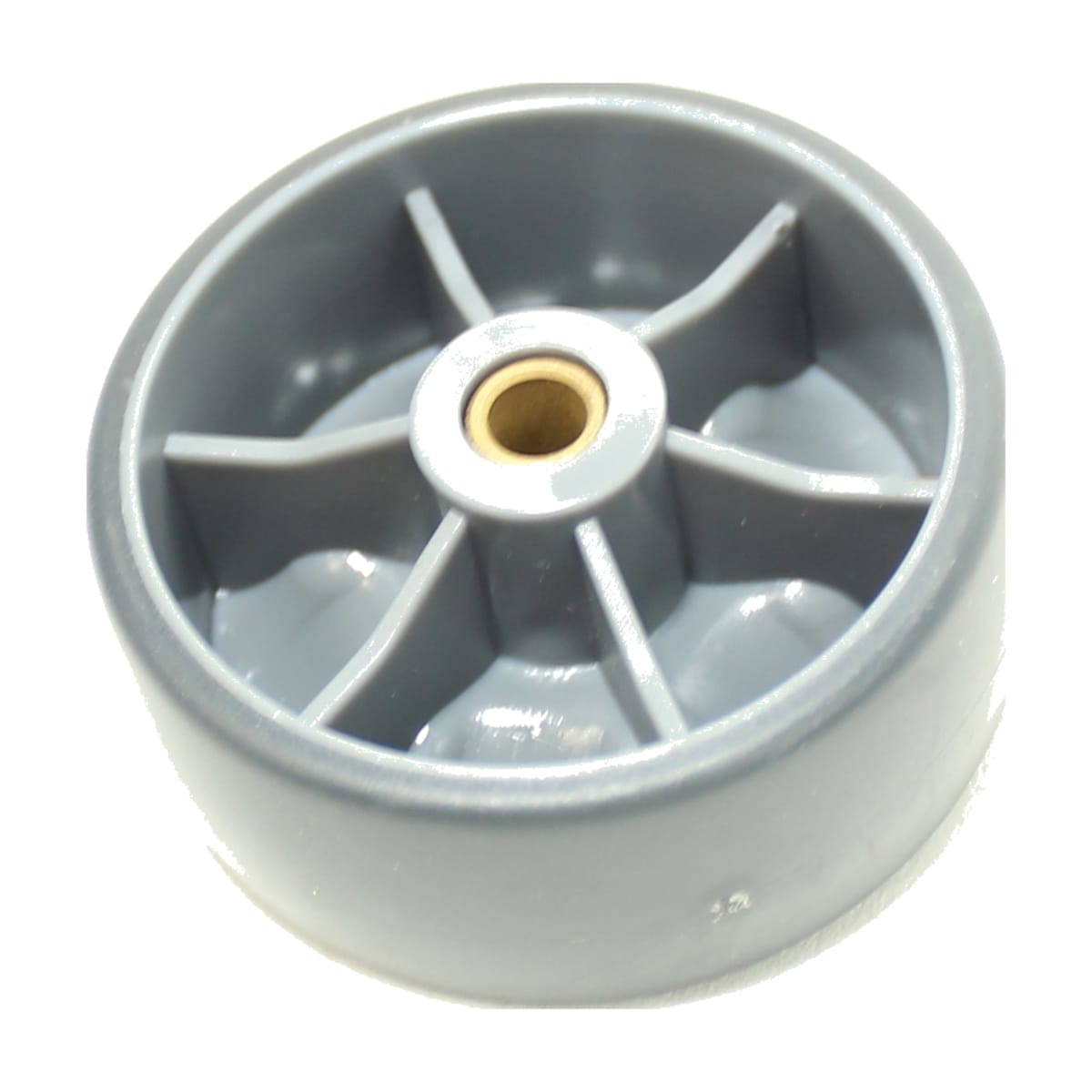

26		59mm rubber rear wheel	B210-0531	View Part
27		25mm nylon washer at the axle/body hardware	A732-6500	View Part
28		5mm E-clip retaining axles and shafts	A732-0300	View Part
29		Steel axle carrying the rear wheels	54.135	View Part
30		Clamp securing the rear wheel axle	54.136	View Part
31		Flat-head screw for the axle clamp	A732-8500	View Part
33		30-foot replacement power cord	CMPS-EXT30	View Part

Frequently Asked Questions

What parts are in the CleanMax CMP-3N main body front section?

This section covers the front of the CMP-3N body: the pigtail and extension cords, strain relief, wire harness and bushings, motor cord, thermal switch and reset, secondary and HEPA filters, dust cover assembly and latch, dust compartment and switch seals, on/off switch, and the rear wheels, axle and clamp hardware.

How do I find the right CleanMax CMP-3N part?

Match the numbered callout on the diagram above to the same number in the table, then click View Part. If you are unsure, call us at 763-535-0770 and we will confirm the correct part number for your machine.

Are these genuine Tacony parts?

Yes. Every part listed for the CleanMax CMP-3N is a genuine Tacony (OEM) component, sourced directly from the manufacturer for a correct factory fit.

Questions about fitment? Call Twin City Vacuum at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428 — serving CleanMax owners since 1956.
