Find genuine CleanMax CMPS-QDZ main body back, hose and handle replacement parts for Model CMPS-QDZ. Can’t find your part? Call us at 763-535-0770.

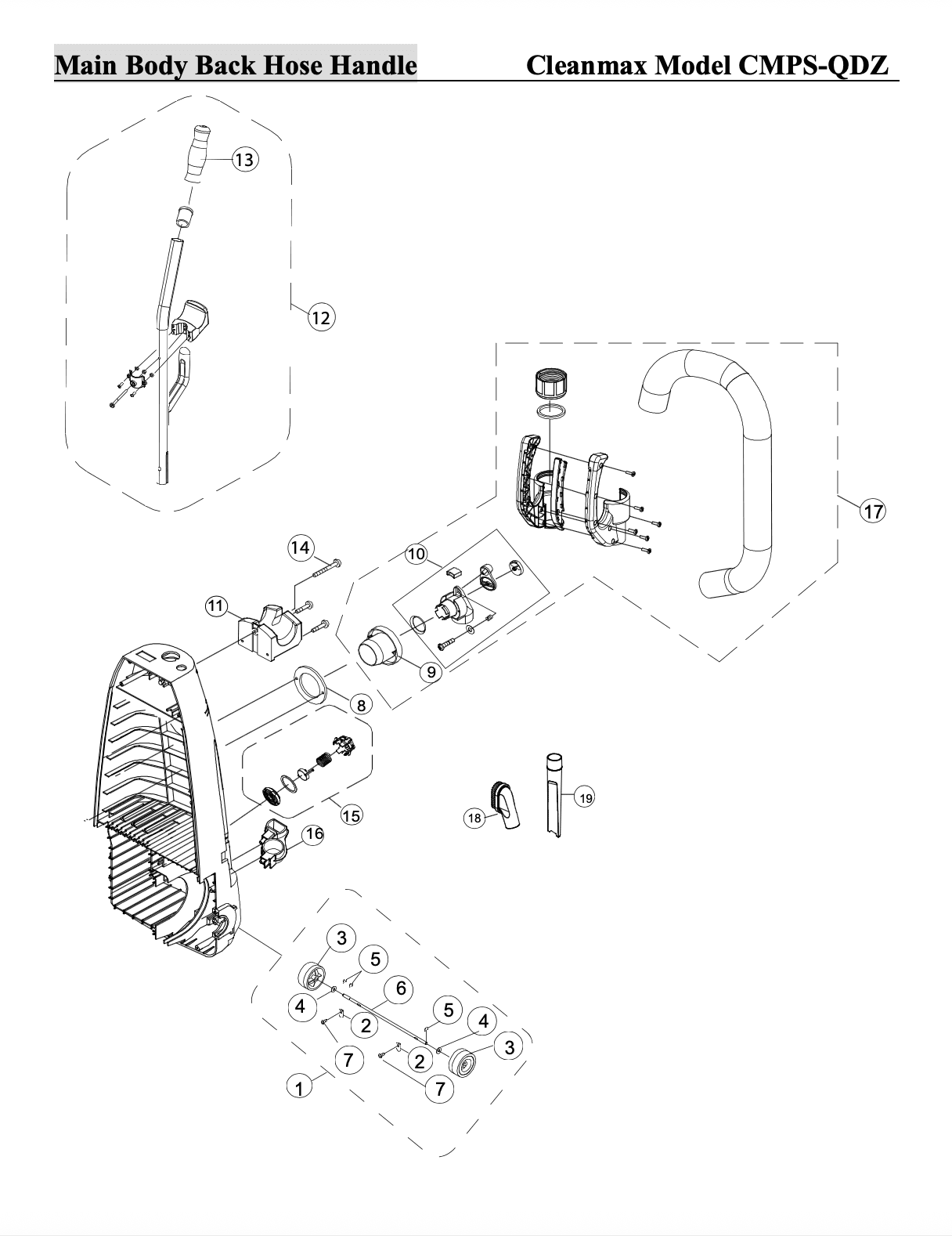

Click on any numbered part in the diagram below to go directly to that part’s product page.
1. Rear Axle Wheel Assembly Kit2. Rear Axle Clamp2. Rear Axle Clamp3. Rear Wheel5. E-Clip 5mm5. E-Clip 5mm4. Nylon Axle Washer3. Rear Wheel4. Nylon Axle Washer6. Rear Wheel Shaft7. Rear Axle Screw7. Rear Axle Screw8. Swivel Inlet Gasket9. Paper Bag Inlet10. Suction Inlet Assembly11. Hose Hanger12. Handle Assembly Complete13. Rubber Handle Grip14 Handle Screw15. Suction Relief Valve Assembly16. On-Board Tool Caddy17. Quick Draw Hose Assembly18. Round Dusting Brush19. Crevice ToolAbout the CleanMax CMPS-QDZ Back, Hose & Handle Parts
Find genuine CleanMax CMPS-QDZ back, hose and handle replacement parts for Model CMPS-QDZ. This section covers the rear of the upright and its above-floor cleaning system: the rear wheels, axle, clamp and shaft that carry and roll the machine; the complete handle assembly and its rubber grip; the paper-bag and suction inlets and the suction relief valve that route airflow; and the Quick Draw hose, on-board tool caddy, crevice tool and dusting brush. Twin City Vacuum has been selling and servicing CleanMax equipment since 1956. All parts are sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
Frequently Asked Questions
What parts are in the CleanMax CMPS-QDZ main body back, hose and handle section?
This section covers the rear of the machine and the above-floor tools: the rear wheels, axle and clamp, the handle assembly and grip, the paper-bag and suction inlets, the suction relief valve, the Quick Draw hose and on-board attachments, and the fasteners that hold them — all numbered in the diagram above.
Why has my CMPS-QDZ lost suction at the floor?
Air leaks are a common cause — check the swivel inlet gasket (Z19), the suction inlet assembly (C625-0131) and the suction relief valve (CM021021). Each part page explains the symptoms so you can find the leak.
Where do the Quick Draw hose and tools store on the CMPS-QDZ?
The Quick Draw hose (CMQD-HOSE) stows on the hose hanger (54.140), and the crevice tool (CM040002) and round dusting brush (CM040003) clip into the on-board tool caddy (CM021007), so the above-floor kit rides with the machine.
How do I order CMPS-QDZ back, hose and handle parts or get help?
Click any part in the table to open its product page and add it to your cart, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing CleanMax equipment since 1956 and can confirm the right part.
Looking for parts from another section? Return to the CleanMax CMPS-QDZ parts overview to browse all assemblies, or call us at 763-535-0770.
