CleanMax ZM-500 Handle & Bag Parts replacement parts for Model ZM-500. Can’t find your part? Call us at 763-535-0770.
Click on any part in the diagram below or in the table to go directly to that part’s product page.
Genuine CleanMax ZM-500 and ZM-700 handle and bag parts — the handle grip and tube, bag and bag housing, power cord, switch, and the upper-body hardware shared across both commercial Zoom uprights. Twin City Vacuum has sold and serviced CleanMax equipment since 1956 and sources every part directly from Tacony. Call 763-535-0770 or visit 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 1 |  | Handle Grip Assembly | C220-3514 | $25.99 |
| 2 |  | Screw #8-18 x 5/8 | A732-8314 | $2.99 |
| 3 |  | Cord Hook | B352-6900 | $4.99 |
| 4 |  | Two Speed Switch | A328-1700 | $3.99 |
| 5 |  | Screw #8 x 7/16 | A732-8414 | $2.99 |
| 6 | Nylon Washer | B017-2500 | $2.99 | |

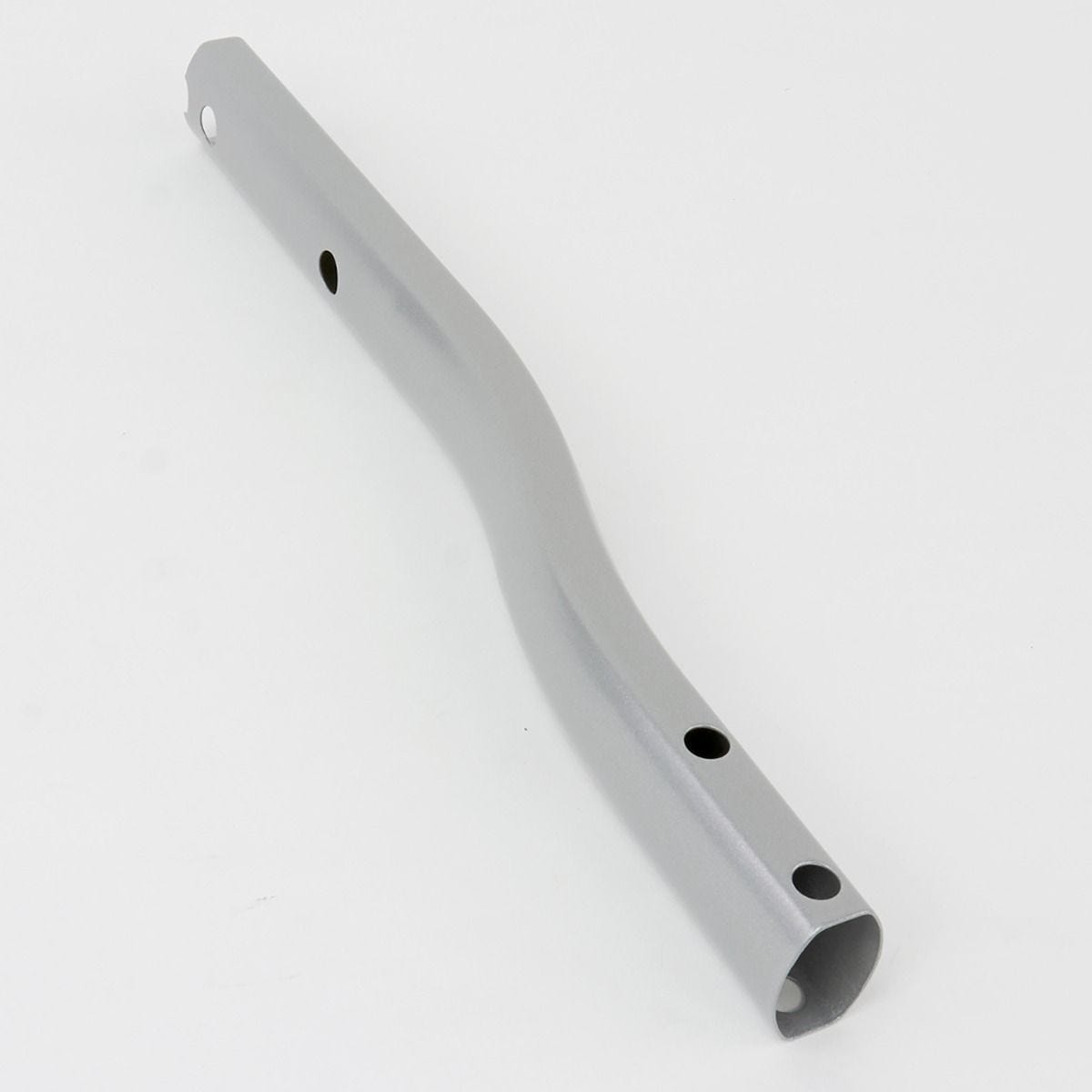

| 7 |  | Handle Tube | B220-3400 | $12.99 |

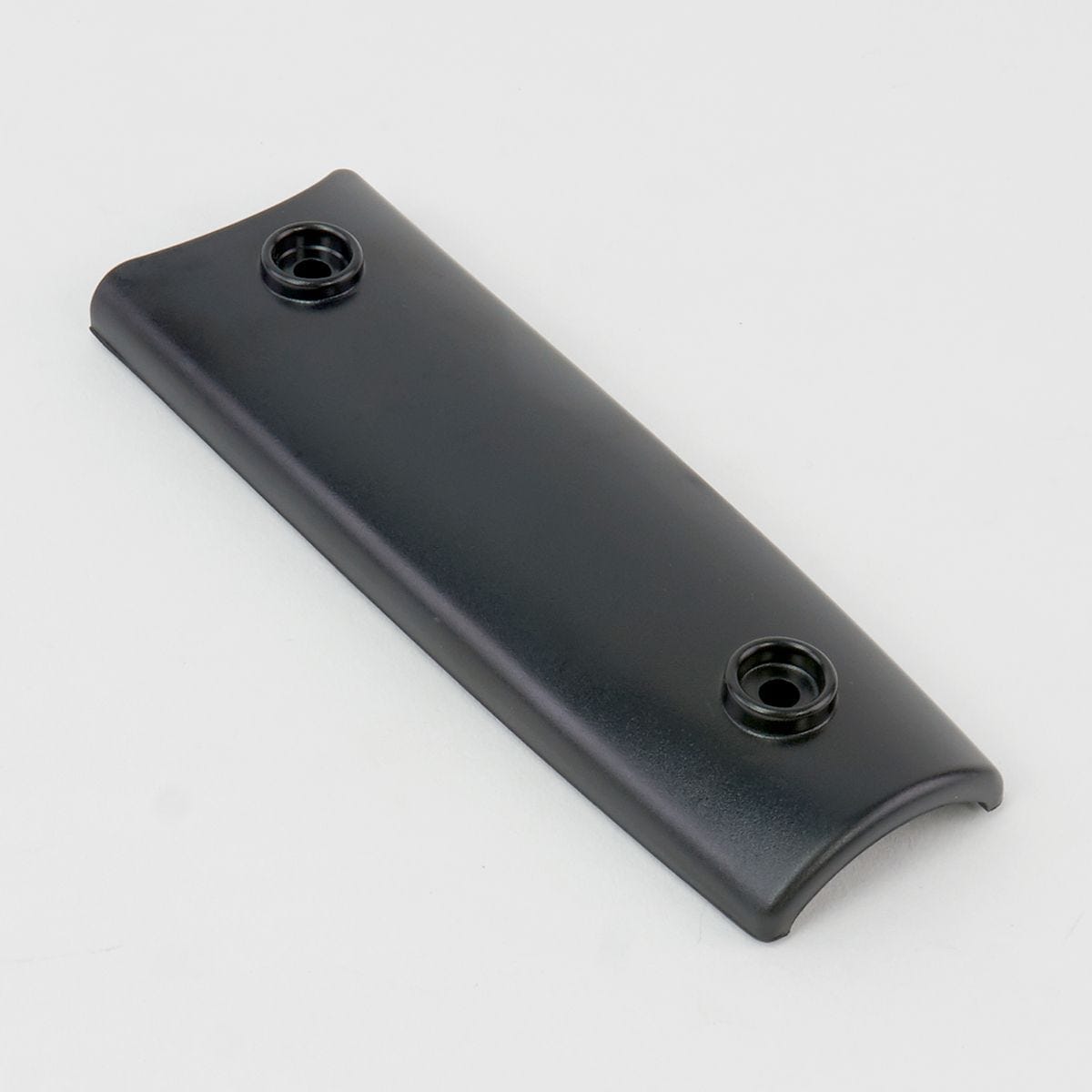

| 8 |  | Handle Back Cover | B220-3114 | $3.99 |

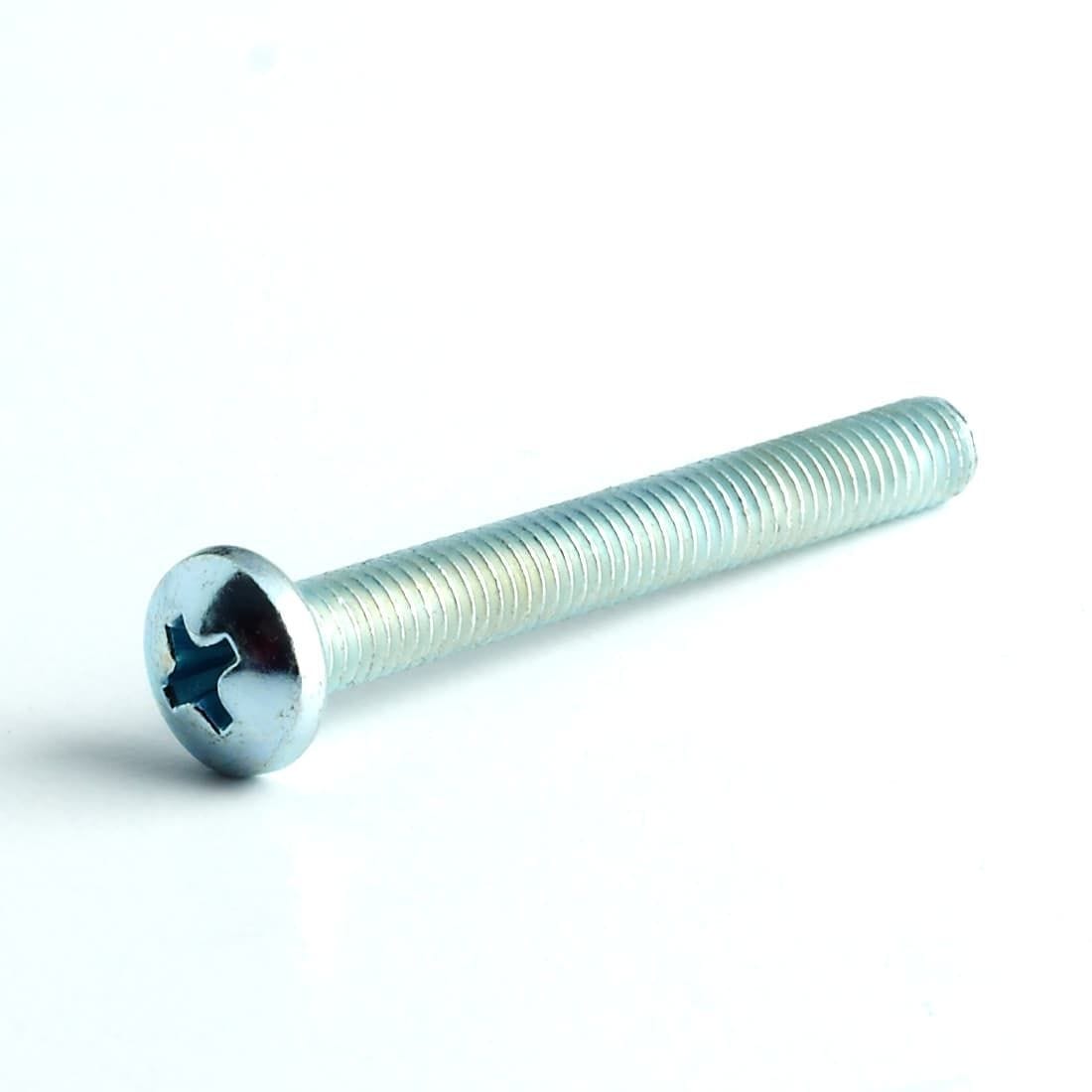

| 9 |  | Screw #10-32 x 1-5/8 | A432-0705 | $2.99 |
| 10 |  | Washer | A430-0405 | $2.99 |

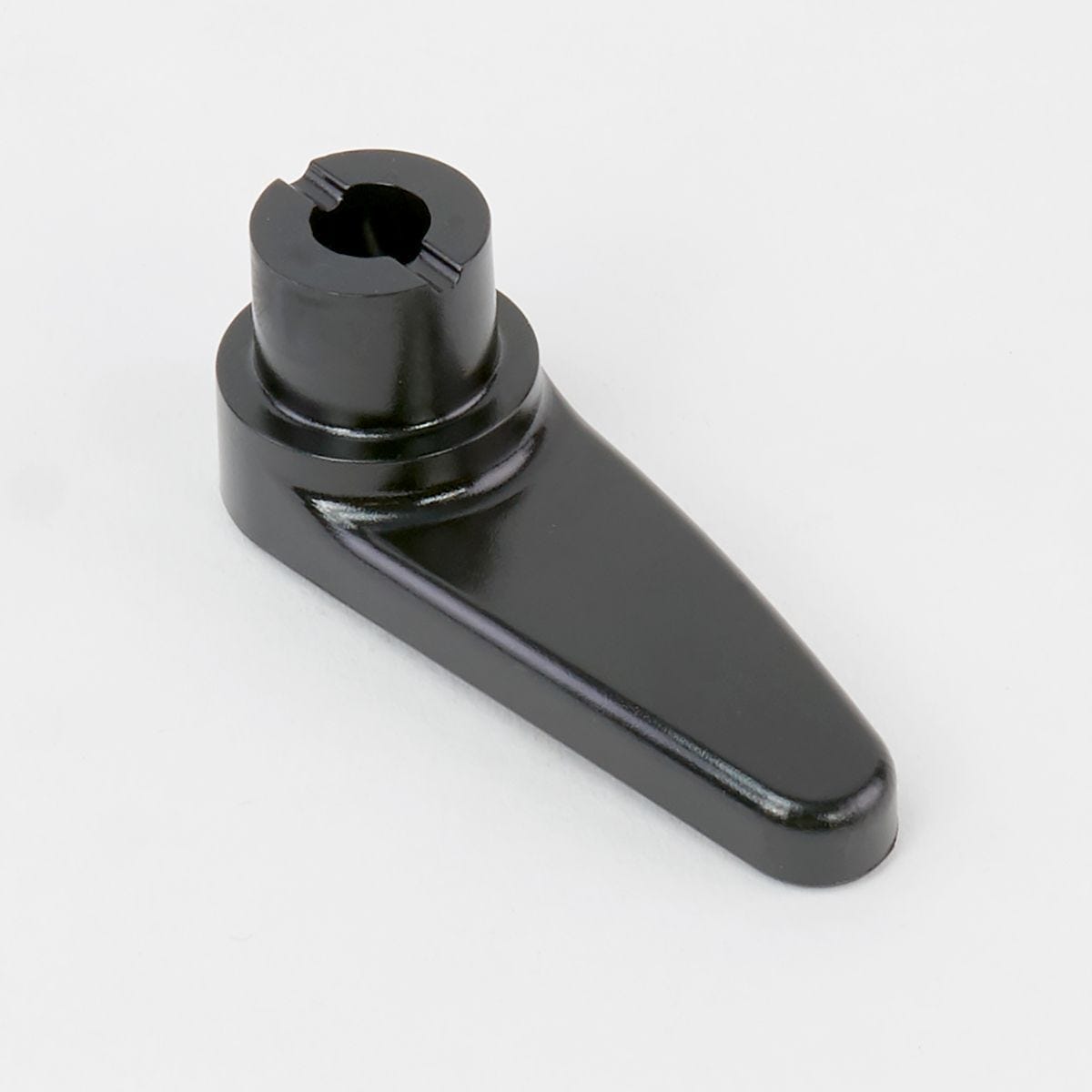

| 11 |  | Swivel Cord Hook | B220-3314 | $2.99 |
| 12 |  | Upper Cord Hook Spring | B430-0200 | $2.99 |

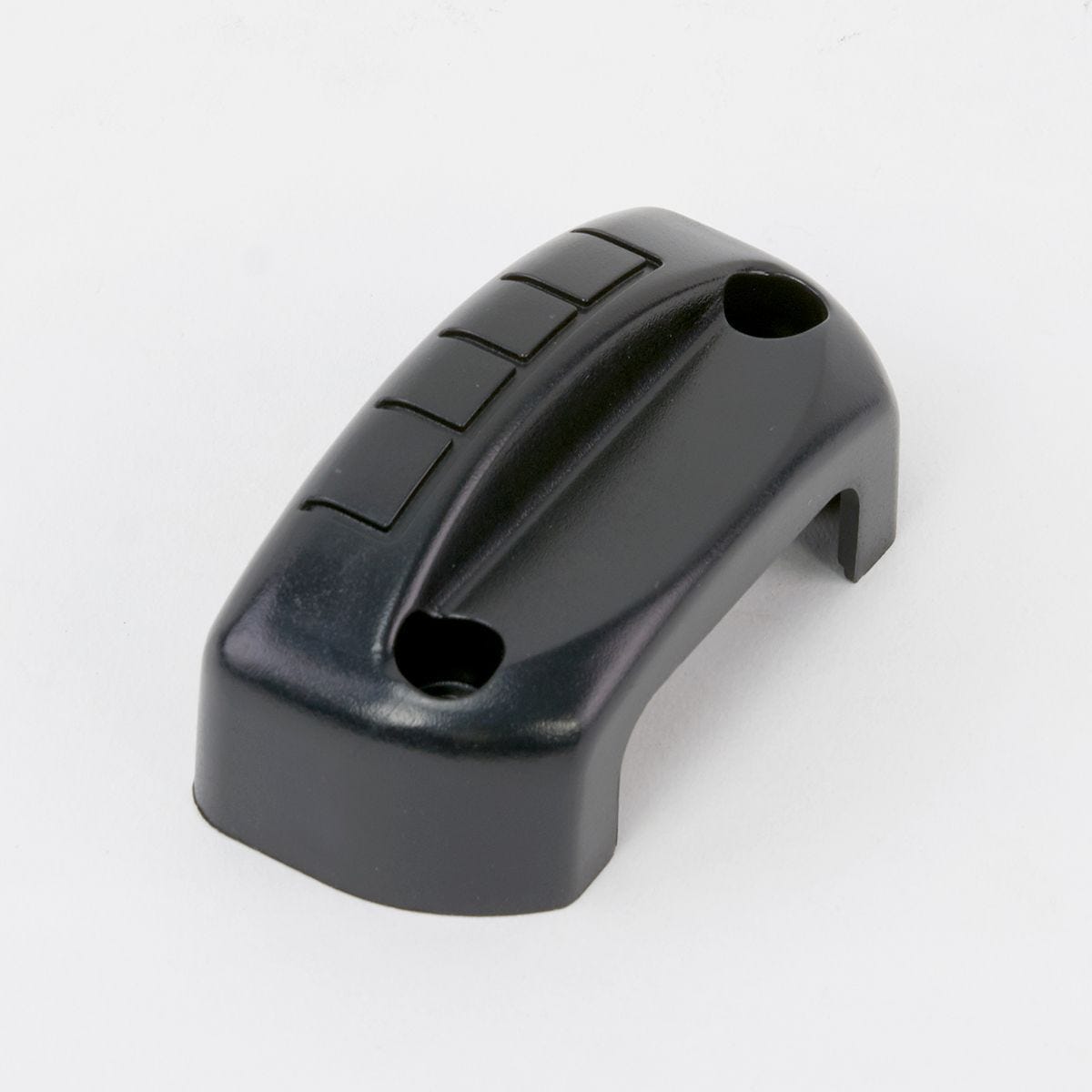

| 13 |  | Back Neck Coupling | B220-1114 | $2.99 |
| 14 |  | Nyloc Nut | 30358 | $2.99 |
| 15 |  | Front Neck Coupling | B220-1014 | $2.99 |

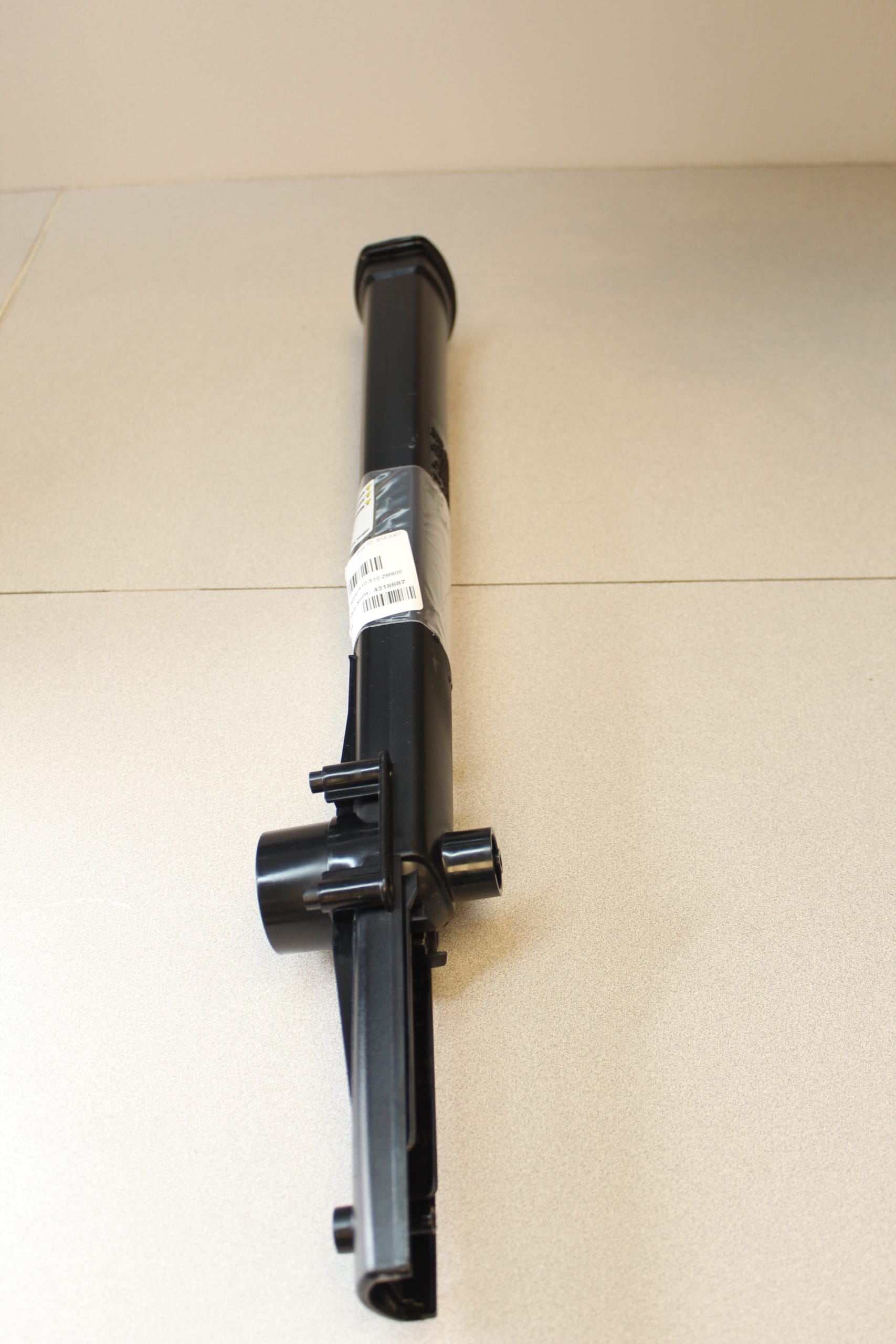

| 16 |  | Handle Duct | B220-3014C | $16.99 |
| 17 |  | Bag Mount Assembly | D484-2282 | $13.99 |
| 18 |  | Bag Mount Seal | B220-3900 | $2.99 |
| 19 |  | Bag Mount | B220-3814 | $2.99 |

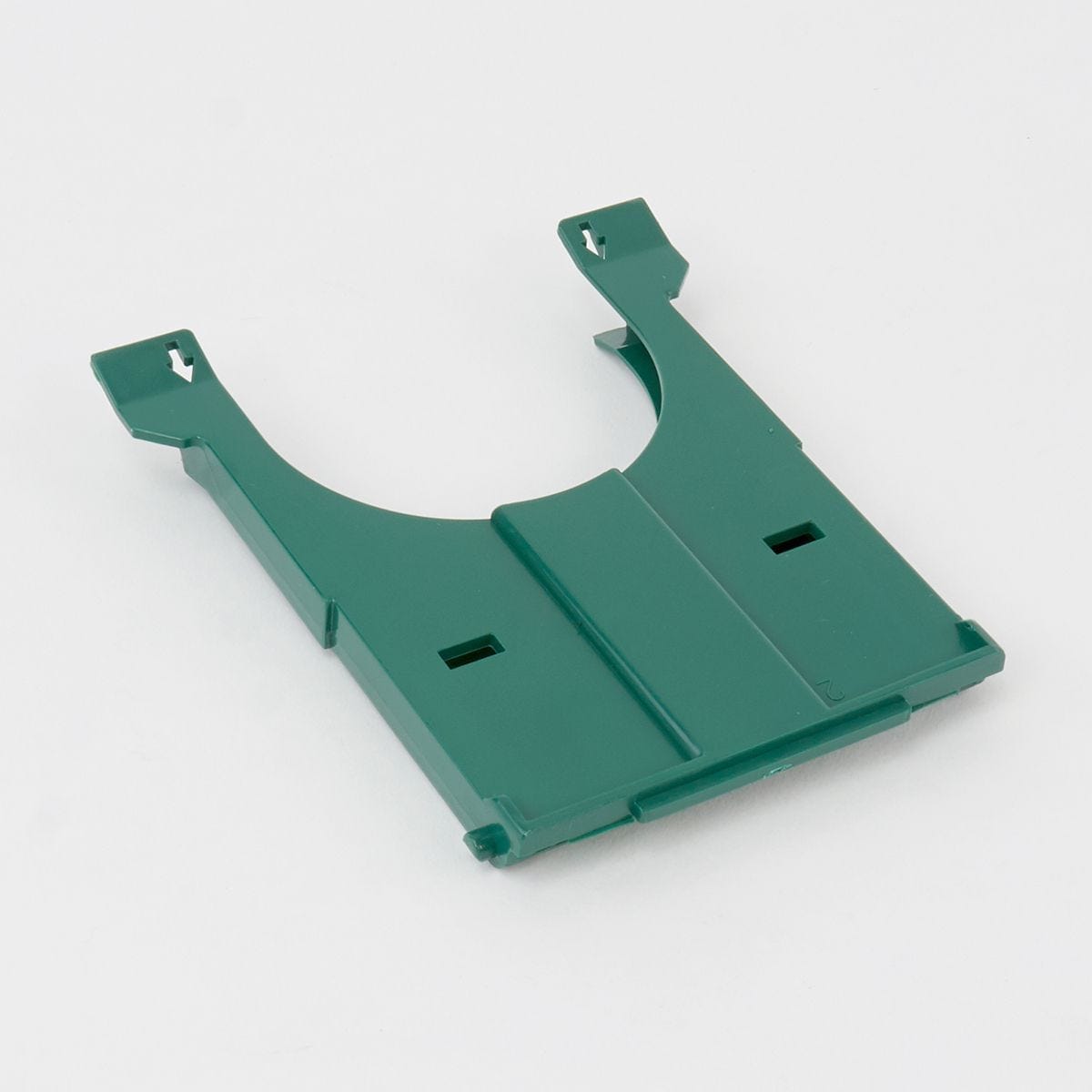

| 20 |  | Bag Mount Hinge | B434-2282 | $3.99 |

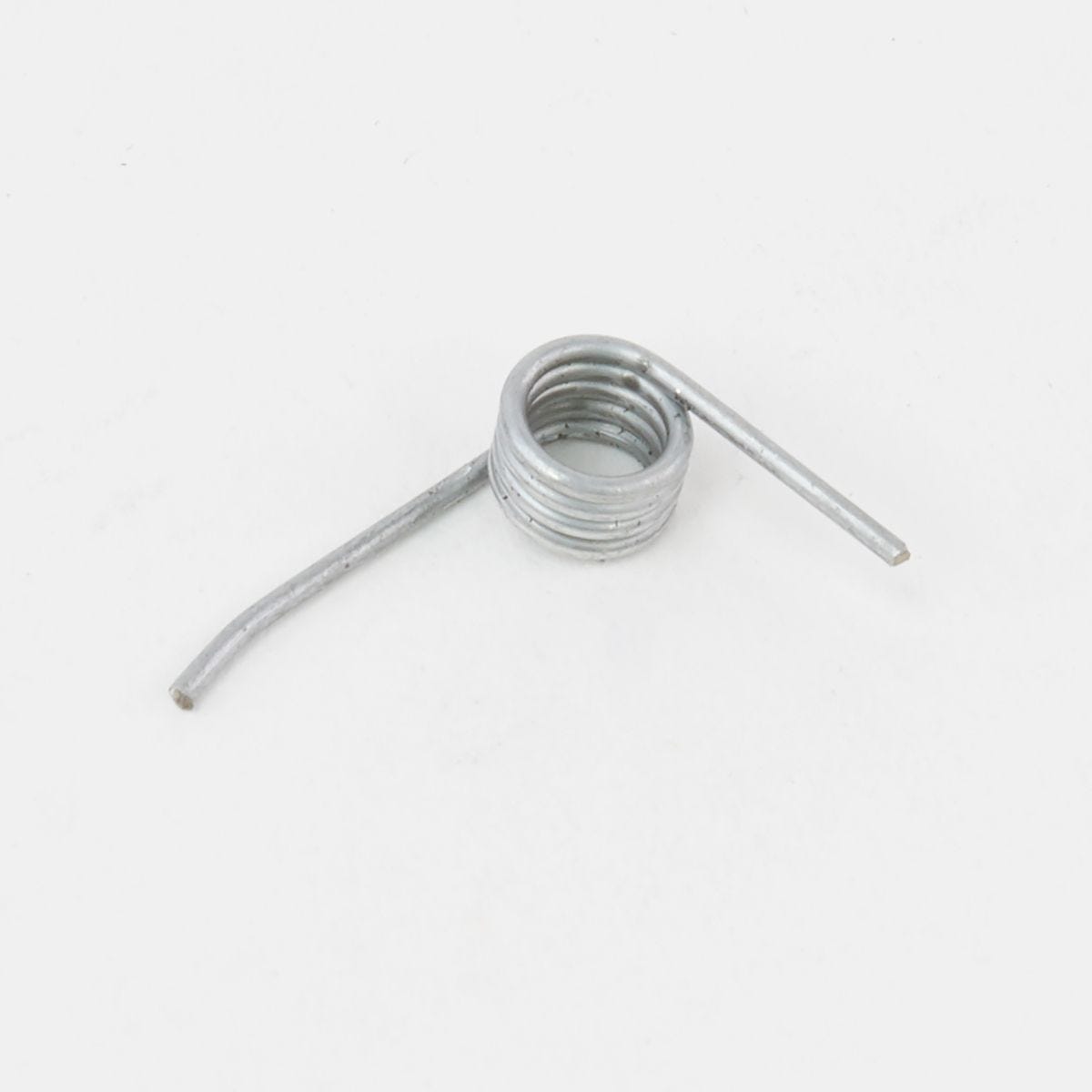

| 21 |  | Bag Collar Spring | B434-3400 | $2.99 |
| 22 | Hard Shell Bag | B220-6800 | $68.99 | |
| 23 |  | HEPA Bag (6 Pack) | CLH-6 | $14.95 |
| 24 | Pigtail and Handle Harness Assembly | D434-3714B | $28.99 | |
| 25 | Handle Spacer | B388-5900 | $2.99 | |
| 26 |  | Carry Handle | B220-6214 | $5.99 |

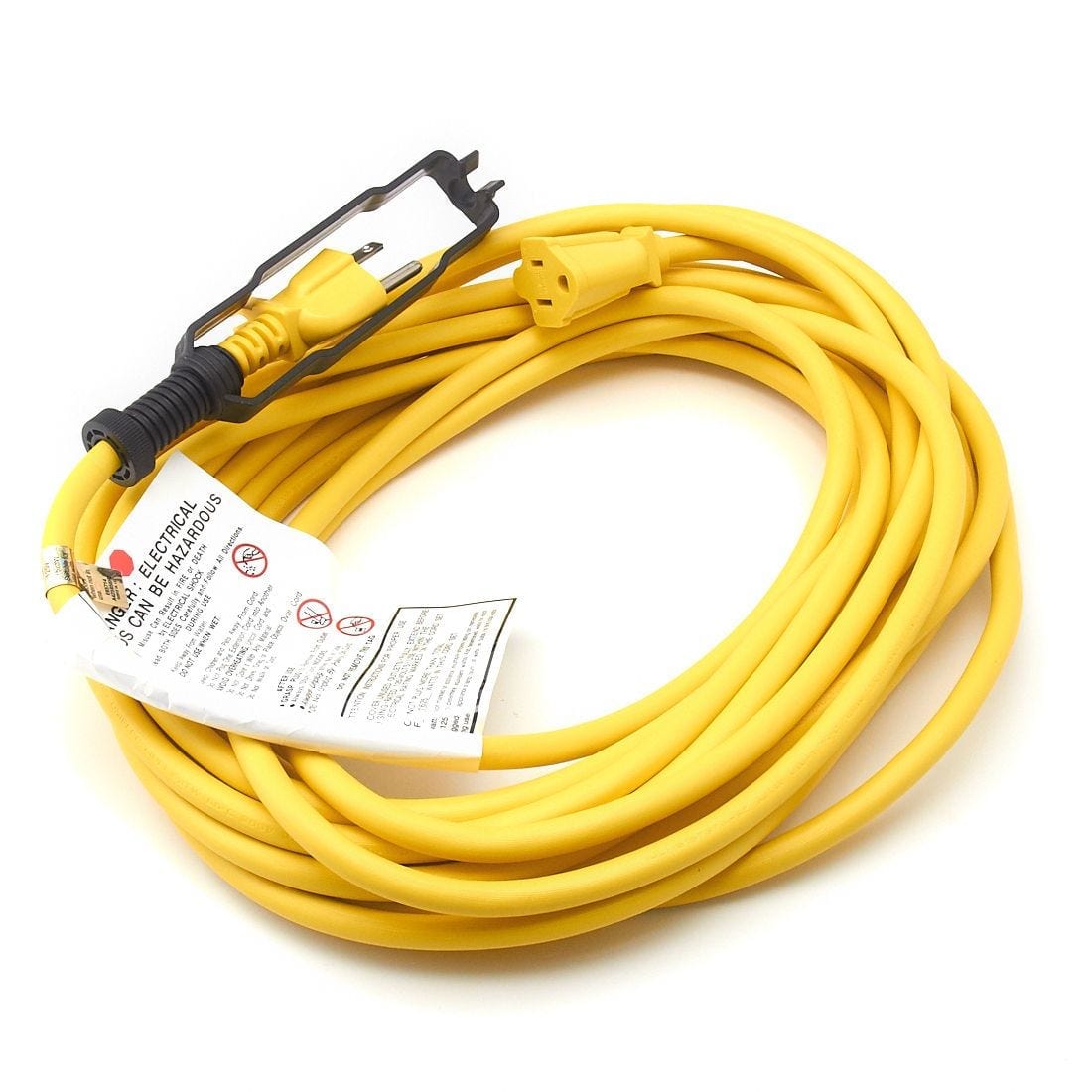

| 27 | Extension Cord 30 ft | CMPS-EXT30 | $75.99 |
Frequently Asked Questions
What handle and bag parts fit the CleanMax ZM-500 and ZM-700?
The ZM-500 and ZM-700 share the same handle and body assembly — the handle grip and tube, bag and bag housing, cord, switch, and the hardware that holds the upper body together. Match each item number on the diagram above to the numbered table below to order the right part.
Do CleanMax ZM-500 and ZM-700 use the same handle and bag parts?
Yes — the ZM-500 and ZM-700 are built on the same commercial Zoom platform and share this handle and body assembly, so the parts listed here fit both models.
How do I know which bag my ZM-500 or ZM-700 takes?
The correct bag is shown in the table above with its Tacony part number. If you are unsure which bag or filter your machine uses, call 763-535-0770 with your model and we will confirm it.
How do I order CleanMax ZM-500 / ZM-700 handle and bag parts or get help?
Add any part directly to your cart from the table on this page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced CleanMax equipment since 1956 and can confirm the right part for your ZM-500 or ZM-700.
Looking for more parts? Browse the complete CleanMax Zoom parts diagrams, or call 763-535-0770. Learn more at CleanMax.
