Lindhaus Health Care Pro 14 inch Body Parts

Find genuine Lindhaus HCP 14″ (body) replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

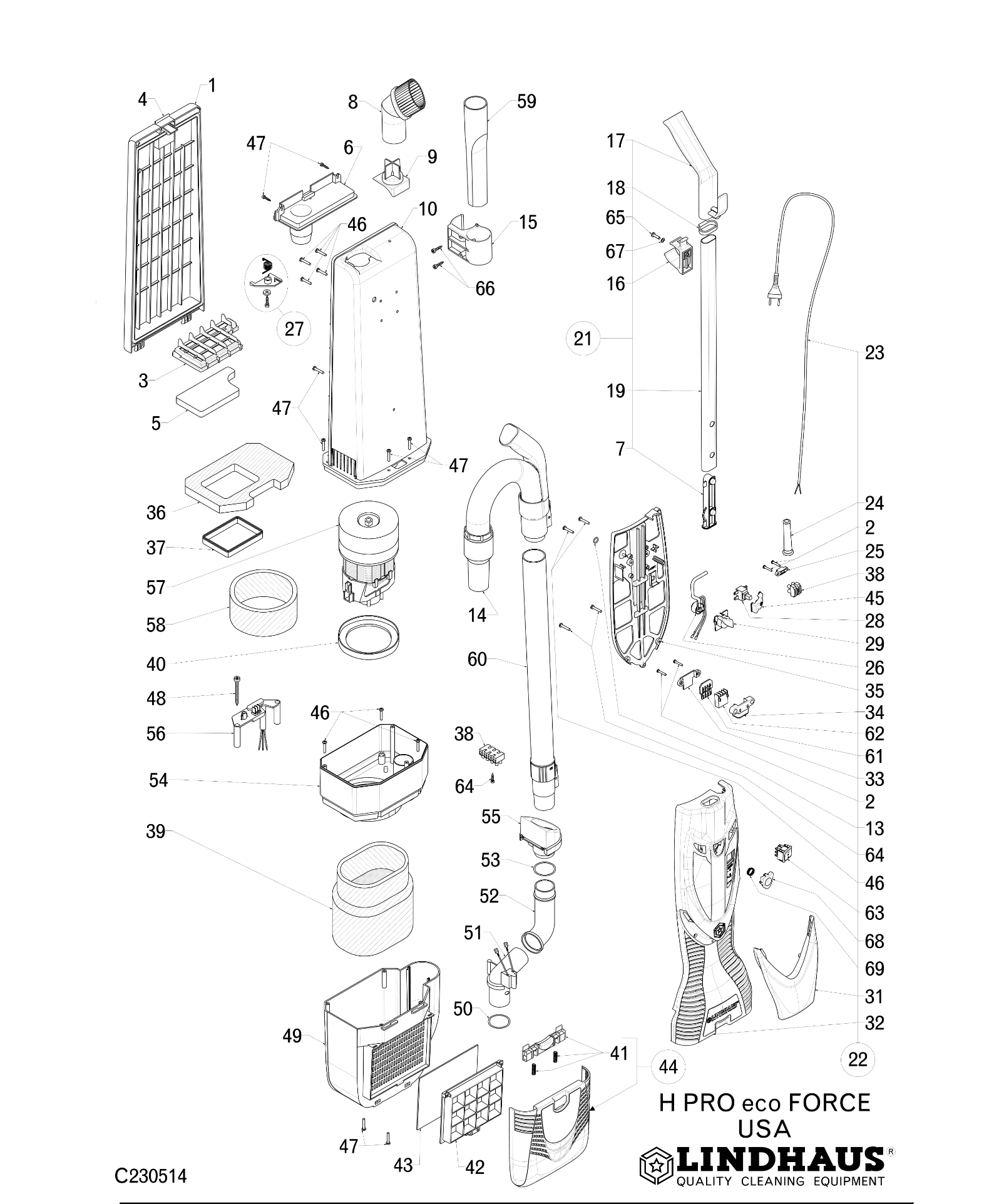

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background1. Lindhaus HCP 14″ Bag Housing Cover3. Lindhaus HCP 14″ Filter Holder 4. Lindhaus HCP 14″ Bag Door Latch + Spring 5. Lindhaus HCP 14″ Filter, Internal Foam 6. Lindhaus HCP 14″ Bag Entrance With Safety Support7. Lindhaus Hcp 14″ Button+support+spring 2 Position – 845200818. Lindhaus HCP 14″ Uph Tool – Natural Bristle Brush Only9. Lindhaus HCP 14″ Dust Brush Support10. Lindhaus HCP 14″ Bag Housing13. Lindhaus HCP 14″ O-ring14. Lindhaus HCP 14″ Handle Grip Kit For Stretch Hose15. Lindhaus HCP 14″ Wand / Crevice Tool Clip16. Lindhaus HCP 14″ Upper Hose Hook For Flexible Hose17. Lindhaus Hcp 14″ Handle Grip (Only)18. Lindhaus HCP 14″ Retainer19. Lindhaus Hcp 14″ Chromate Tube – 2 Position W/ Button Lock21. Lindhaus Hcp 14″ Handle Tube Assembly 2 Pos.22. Lindhaus HCP 14″ Electric System Assembly23. Lindhaus HCP 14″ Cord 2×17 Thin, 2 Prong, 2 Wire24. Lindhaus Hcp 14″ Strain Relief25. Lindhaus HCP 14″ Cord Clamp26. Lindhaus HCP 14″ Vacuum Sensor 27. Lindhaus Hcp 14″ Safety Support Kit – 08458008128. Lindhaus HCP 14″ Main Switch 15A 3 Way 29. Lindhaus HCP 14″ Indicator Light31. Lindhaus HCP 14″ Lower Cord Hook Light Grey32. Lindhaus HCP 14″ Handle Cover Grey33. Lindhaus HCP 14″ Contact Cover – 00917010134. Lindhaus HCP 14″ Comb Wire Holder35. Lindhaus HCP 14″ Frame Handle Grey36. Lindhaus HCP 14″ Filter, Foam Upper37. Lindhaus HCP 14″ Motor Gasket 38. Lindhaus HCP 14″ Terminal Block 3 Poles39. Lindhaus HCP 14″ Foam Motor Filter40. Lindhaus HCP 14″ Motor Gasket 41. Lindhaus HCP 14″ Bottom Cover Kit 42. Lindhaus HCP 14″ Exhaust Grill43. Lindhaus HCP 14″ Microfilter 12 Pack 44 Lindhaus HCP 14″ Front Grill Grey45. Lindhaus HCP 14″ Uph Tool W/natural Bristle Brush46. Lindhaus HCP 14″ Uph Tool – Black Strip Only47. Lindhaus Hcp 14″ Screw 3.5 X 22 48. Lindhaus HCP 14″ Screw 3.5 X 25 Pack Of 2049. Lindhaus HCP 14″ Vacuum Motor Housing Grey50. Lindhaus Hcp 14″ O-ring – 1181030751. Lindhaus HCP 14″ Curve Support52. Lindhaus HCP 14″ Upper Curve53. Lindhaus HCP 14″ O-ring54. Lindhaus HCP 14″ Inner Vac Motor Housing55. Lindhaus HCP 14″ Hose Inlet56. Lindhaus HCP 14″ Motor Clamp H Pro Hepa 3 Wires57. Lindhaus HCP 14″ Vacuum Motor 120/60 W. 75058. Lindhaus HCP 14″ Filter, Foam Motor59. Lindhaus HCP 14″ Crevice Tool61. Lindhaus HCP 14″ 4 Contact Housing Cover62. Lindhaus HCP 14″ 4 Contact Housing 63. Lindhaus HCP 14″ Vacuum Sensor Adaptor 64. Lindhaus HCP 14″ Screw 3.5 X 19 Pack Of 2065. Lindhaus HCP 14″ Screw 3.9 X 16 Pack Of 2066. Lindhaus HCP 14″ Screw 3.5 X 1667. Lindhaus HCP 14″ Screw 2.9 X 19 Pack Of 2068. Lindhaus HCP 14″ Button Light Grey69. Lindhaus HCP 14″ Handle Spring

The parts table below covers the body of the Lindhaus Health Care Pro 14″ upright, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice
1Lindhaus HCP 14" Bag Housing CoverLindhaus HCP 14" Bag Housing Cover080170181$88.32
3Lindhaus RX Hepa Filter Holder part number 000160304Lindhaus HCP 14" Filter Holder000160304$12.96
4Lindhaus HCP 14" Bag Door Latch + SpringLindhaus HCP 14" Bag Door Latch + Spring082720181$13.00
5Lindhaus HCP 14" Filter, Internal FoamLindhaus HCP 14" Filter, Internal Foam011410316$2.20
6Lindhaus HCP 14" Bag Entrance With Safety SupportLindhaus HCP 14" Bag Entrance With Safety Support084370081$55.40
7Lindhaus Hcp 14" Button+support+spring 2 Position - 84520081Lindhaus Hcp 14" Button+support+spring 2 Position – 84520081084520081$7.40
8Lindhaus HCP 14" Uph Tool - Natural Bristle Brush OnlyLindhaus HCP 14" Uph Tool – Natural Bristle Brush Only030900300$7.20
9Lindhaus HCP 14" Dust Brush SupportLindhaus HCP 14" Dust Brush Support001830205$4.16
10Lindhaus HCP 14" Bag HousingLindhaus HCP 14" Bag Housing086270181$124.20
13Lindhaus HCP 14" O-ringLindhaus HCP 14" O-ring010260307$0.80
14Lindhaus HCP 14" Handle Grip Kit For Stretch HoseLindhaus HCP 14" Handle Grip Kit For Stretch Hose087530381$29.80
15Lindhaus HCP 14" Wand / Crevice Tool ClipLindhaus HCP 14" Wand / Crevice Tool Clip002730104$14.80
16Lindhaus HCP 14" Upper Hose Hook For Flexible HoseLindhaus HCP 14" Upper Hose Hook For Flexible Hose001950110$12.20
17Lindhaus Hcp 14" Handle Grip (Only)Lindhaus Hcp 14" Handle Grip (Only)080770181$22.40
18Lindhaus HCP 14" RetainerLindhaus HCP 14" Retainer002870105$2.20
19Lindhaus Hcp 14" Chromate Tube - 2 Position W/ Button LockLindhaus Hcp 14" Chromate Tube – 2 Position W/ Button Lock084590081$31.60
21Lindhaus Hcp 14" Handle Tube Assembly 2 Pos.Lindhaus Hcp 14" Handle Tube Assembly 2 Pos.084410181$75.80
22Lindhaus HCP 14" Electric System AssemblyLindhaus HCP 14" Electric System Assembly083452280$158.00
23Lindhaus Cord 2x17 Thin, 2 Prong, 2 Wire part number 021950320Lindhaus HCP 14" Cord 2×17 Thin, 2 Prong, 2 Wire021950320$53.80
24Lindhaus Strain Relief part number 000460307Lindhaus Hcp 14" Strain Relief000460307$8.00
25Lindhaus HCP 14" Cord ClampLindhaus HCP 14" Cord Clamp000070305$1.00
26Lindhaus HCP 14" Vacuum SensorLindhaus HCP 14" Vacuum Sensor021340000$23.80
27Lindhaus Hcp 14″ Safety Support Kit – 084580081Lindhaus Hcp 14″ Safety Support Kit – 084580081084580081$12.00
28Lindhaus HCP 14" Main Switch 15A 3 WayLindhaus HCP 14" Main Switch 15A 3 Way021050300$12.40
29Lindhaus HCP 14" Indicator LightLindhaus HCP 14" Indicator Light020020000$8.00
31Lindhaus HCP 14" Lower Cord Hook Light GreyLindhaus HCP 14" Lower Cord Hook Light Grey001880205$6.22
32Lindhaus HCP 14" Handle Cover GreyLindhaus HCP 14" Handle Cover Grey086610181$45.80
33Lindhaus HCP 14" Contact Cover - 009170101Lindhaus HCP 14" Contact Cover – 009170101009170101$2.40
34Lindhaus HCP 14" Comb Wire HolderLindhaus HCP 14" Comb Wire Holder001980306$1.60
35Lindhaus HCP 14" Frame Handle GreyLindhaus HCP 14" Frame Handle Grey001900101$35.38
36Lindhaus HCP 14" Filter, Foam UpperLindhaus HCP 14" Filter, Foam Upper010210016$4.00
37Lindhaus HCP 14" Motor GasketLindhaus HCP 14" Motor Gasket000200308$13.80
38Lindhaus HCP 14" Terminal Block 3 PolesLindhaus HCP 14" Terminal Block 3 Poles020340400$3.00

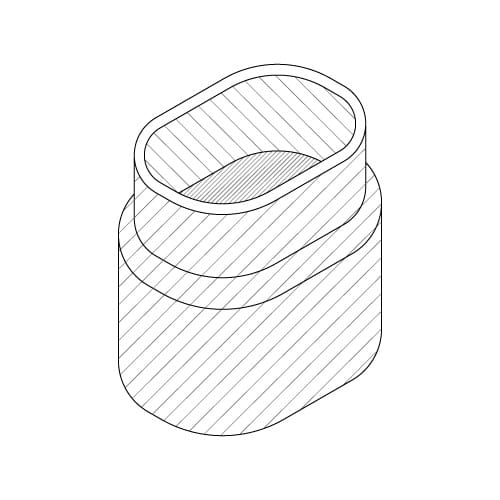

39Lindhaus HCP 14" Foam Motor FilterLindhaus HCP 14" Foam Motor Filter0011790016$7.20
40Lindhaus HCP 14" Motor GasketLindhaus HCP 14" Motor Gasket000200308$13.80
41Lindhaus HCP 14" Bottom Cover KitLindhaus HCP 14" Bottom Cover Kit084440281$10.24
42Lindhaus HCP 14" Exhaust GrillLindhaus HCP 14" Exhaust Grill003360100$12.40
43Lindhaus HCP 14" Microfilter 12 PackLindhaus HCP 14" Microfilter 12 Pack085350081$56.00
44Lindhaus HCP 14" Front Grill GreyLindhaus HCP 14" Front Grill Grey083652281$58.80
45Lindhaus HCP 14" Uph Tool W/natural Bristle BrushLindhaus HCP 14" Uph Tool W/natural Bristle Brush031110300$19.80
46Lindhaus HCP 14" Uph Tool - Black Strip OnlyLindhaus HCP 14" Uph Tool – Black Strip Only030740300$3.40
47Lindhaus Hcp 14" Screw 3.5 X 22Lindhaus Hcp 14" Screw 3.5 X 22010050009$8.00
48Lindhaus HCP 14" Screw 3.5 X 25 Pack Of 20Lindhaus HCP 14" Screw 3.5 X 25 Pack Of 20085550009$8.00
49Lindhaus 14" Vacuum Motor Housing Grey part number 003300133Lindhaus HCP 14" Vacuum Motor Housing Grey003300133$89.20
50Lindhaus Hcp 14" O-ring - 11810307Lindhaus Hcp 14" O-ring – 11810307011810307$1.00
51Lindhaus 14" Curve Support part number 083690080Lindhaus HCP 14" Curve Support083690080$47.80
52Lindhaus HCP 14" Upper CurveLindhaus HCP 14" Upper Curve0003410105$8.20
53Lindhaus HCP 14" O-ringLindhaus HCP 14" O-ring010270307$0.88
54Lindhaus HCP 14" Inner Vac Motor HousingLindhaus HCP 14" Inner Vac Motor Housing081202581$71.80
55Lindhaus HCP 14" Hose InletLindhaus HCP 14" Hose Inlet003330133$17.40
56Lindhaus HCP 14" Motor Clamp H Pro Hepa 3 WiresLindhaus HCP 14" Motor Clamp H Pro Hepa 3 Wires083480080$25.92
57Lindhaus HCP 14" Vacuum Motor 120/60 W. 750Lindhaus HCP 14" Vacuum Motor 120/60 W. 750051350080$178.00
58Lindhaus HCP 14" Filter, Foam MotorLindhaus HCP 14" Filter, Foam Motor010220016$3.20
59Lindhaus HCP 14" Crevice ToolLindhaus HCP 14" Crevice Tool030060310$4.60
61Lindhaus HCP 14" 4 Contact Housing CoverLindhaus HCP 14" 4 Contact Housing Cover002480003$2.24
62Lindhaus HCP 14" 4 Contact HousingLindhaus HCP 14" 4 Contact Housing002400003$2.24
63Lindhaus HCP 14" Vacuum Sensor AdaptorLindhaus HCP 14" Vacuum Sensor Adaptor003230001$0.60
64Lindhaus HCP 14" Screw 3.5 X 19 Pack Of 20Lindhaus HCP 14" Screw 3.5 X 19 Pack Of 20086440009$7.00
65Lindhaus HCP 14" Screw 3.9 X 16 Pack Of 20Lindhaus HCP 14" Screw 3.9 X 16 Pack Of 20085560009$7.60
66Lindhaus HCP 14" Screw 3.5 X 16Lindhaus HCP 14" Screw 3.5 X 16010030009$0.24
67Lindhaus HCP 14" Screw 2.9 X 19 Pack Of 20Lindhaus HCP 14" Screw 2.9 X 19 Pack Of 20085530009$6.80
68Lindhaus HCP 14" Button Light GreyLindhaus HCP 14" Button Light Grey005200201$1.74
69Lindhaus HCP 14" Handle SpringLindhaus HCP 14" Handle Spring012980009$12.00

Lindhaus HCP 14″ Body Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus HCP 14″ body schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number you need? Call 763-535-0770 with your model.

What are the most common Lindhaus HCP 14″ body parts?

The HEPA and exhaust filters, cloth/paper bags and brush belt are the most frequently replaced body parts on the Lindhaus HCP 14″. All are listed in the table above by schematic number.

Do Lindhaus HCP 14″ parts fit the other cleaning width?

Body parts are shared between the 12″ and 14″, but head parts are sized to the cleaning width and do not interchange. See the HCP 12″ body parts for the other width, or the HCP 14″ head parts for this machine’s other section. Confirm by part number, or call us.

How do I order a Lindhaus HCP 14″ part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus HCP 14″.

Browse the HCP 14″ head parts, the HCP 12″ body parts, or the HCP 14″ parts hub.
