Find genuine Lindhaus HCP 14″ (head) replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.
Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

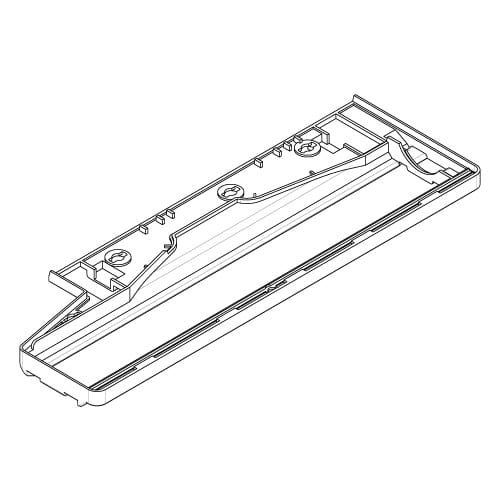

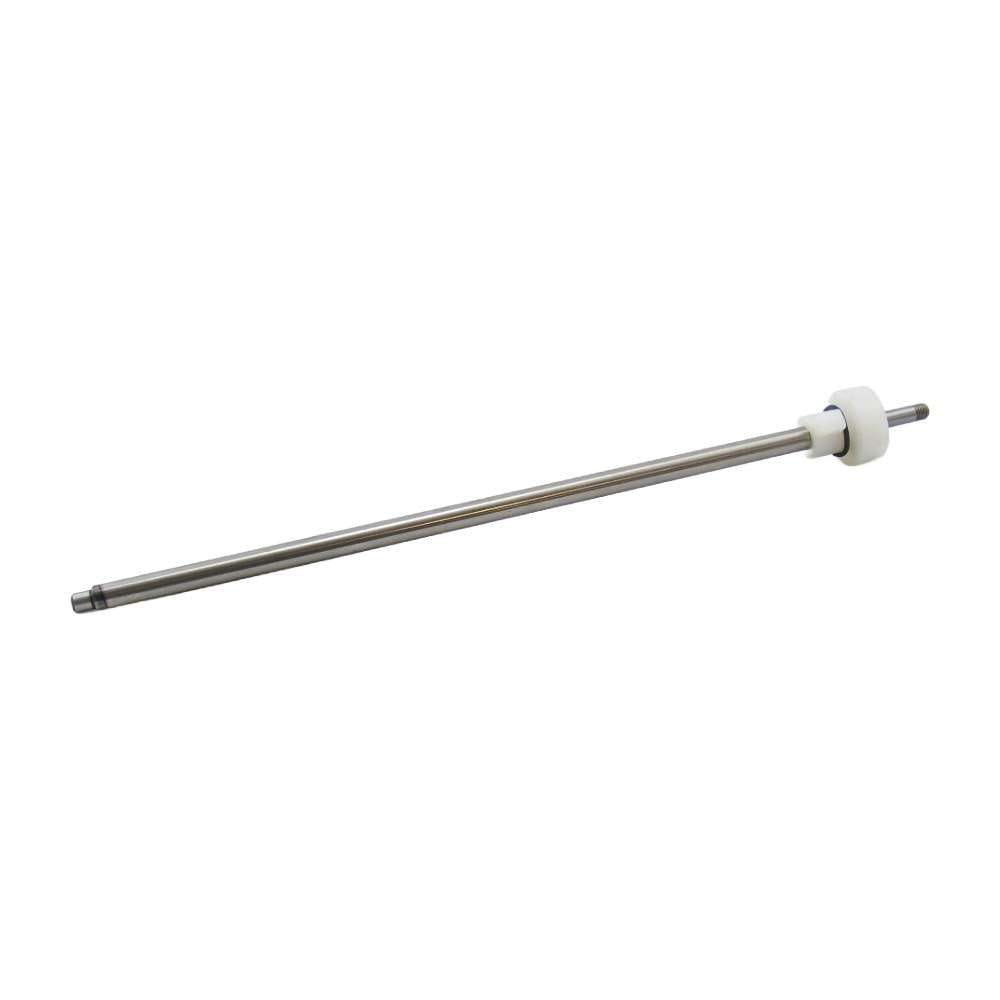

100. Lindhaus 14″ Motor Cover Dk Grey HCP Hepa101. Lindhaus 14″ Lens Set Red And Green102. Lindhaus 14″ Joint Complete Hepa 2-wire103. Lindhaus 14″ Kit, Button, Faston, Guide, Cover104. Lindhaus 14″ Joint Pin Slide105. Lindhaus 14″ Screw 3.9 X 13 Pack Of 20106. Lindhaus 14″ Right Connector Support107. Lindhaus 14″ Plunger108. Lindhaus 14″ Spring, Detente109. Lindhaus 14″ Bushing110. Lindhaus 14″ Screw 2.9 X 16 Pack Of 20 111. Lindhaus 14″ Slide112. Lindhaus 14″ Foot Pedal Dark Grey113. Lindhaus 14″ Left Connector Support114. Lindhaus 14″ Switch Activator Pin115. Lindhaus 14″ Spring Switch Activator Pin 116. Lindhaus 14″ Microswitch117. Lindhaus 14″ Screw 2.2 X 16 Pack Of 20 118. Lindhaus 14″ Circuit Board119. Lindhaus 14″ Exhaust Filter120. Lindhaus 14″ Filter Brush Motor121. Lindhaus 14″ Brush Motor 120v 180w – 50030080122. Lindhaus 14″ Metal Spacer123. Lindhaus 14″ Metal Pulley124. Lindhaus 14″ Nut, Pinion126. Lindhaus 14″ Timing Belt127. Lindhaus 14″ Transmission Left Support W/ Bearing128. Lindhaus 14″ Brush Pulley W/ Metal Insert130. Lindhaus 14″ Brush Shaft 14″131. Lindhaus 14″ Brush 14”132. Lindhaus 14″ Right Brush Support W/ Bearing133. Lindhaus 14″ Brush Shoe Plate 14″134. Lindhaus 14″ Screw M6x9135. Lindhaus 14″ Star Washer136. Lindhaus 14″ Base Housing 14” Dark Grey137. Lindhaus 14″ Bumper 14” Grey138. Lindhaus 14″ Front Axle139. Lindhaus 14″ Front Wheel Rubber140. Lindhaus 14″ Spring141. Lindhaus 14″ Spring Stop Plate142. Lindhaus 14″ Brush Height Adjuster143. Lindhaus 14″ Adjusting Knob Light Grey144. Lindhaus 14″ Rear Axle145. Lindhaus 14″ Rear Wheel Rubber146. Lindhaus 14″ Wheel Retainer Cap147. Lindhaus 14″ Screw 3.5 X 19 Pack Of 20The parts table below covers the cleaning head of the Lindhaus Health Care Pro 14″ upright, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.
Additional Compatible Parts
These genuine parts fit this machine but their exact schematic callout number isn’t confirmed. Call 763-535-0770 for help matching one to your diagram.
| Image | Part Description | Part Number | Price | Note |
|---|---|---|---|---|
 | Lindhaus Hcp 14" Screw 3.9 X 16 Pack Of 20 | 085560009 | $7.60 | On diagram — callout not marked |
Lindhaus HCP 14″ Head Parts — Frequently Asked Questions
How do I find the right part on the Lindhaus HCP 14″ head schematic?
Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number you need? Call 763-535-0770 with your model.
What are the most common Lindhaus HCP 14″ head parts?
The brushroll, brush belt and base plate are the most frequently replaced head parts on the Lindhaus HCP 14″. All are listed in the table above by schematic number.
Do Lindhaus HCP 14″ parts fit the other cleaning width?
Body parts are shared between the 12″ and 14″, but head parts are sized to the cleaning width and do not interchange. See the HCP 12″ head parts for the other width, or the HCP 14″ body parts for this machine’s other section. Confirm by part number, or call us.
How do I order a Lindhaus HCP 14″ part or get help?
Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus HCP 14″.
Browse the HCP 14″ body parts, the HCP 12″ head parts, or the HCP 14″ parts hub.
