Lindhaus RX Hepa Body Parts

Find genuine Lindhaus RX Hepa (body) replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

The parts table below covers the body of the Lindhaus RX Hepa upright vacuum, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#	Image	Part Description	Part Number	Price
1		Lindhaus Rx Hepa Bag Housing Cover	080170281	$88.32
3		Lindhaus Rx Hepa Filter Holder	000160304	$12.96
4		Lindhaus Rx Hepa Safety Support Kit	084580081	$12.00
5		Lindhaus Rx Hepa Filter, Internal Foam	011410316	$2.20
6		Lindhaus Rx Hepa Bag Entrance With Safety Support	084370081	$55.40
7		Lindhaus Rx Hepa Button+support+spring 2 Position – 84520081	084520081	$7.40
8		Lindhaus Rx Hepa Uph Tool/natural Bristle Brush Only	030900300	$7.20
9		Lindhaus Rx Hepa Dust Brush Support	001830205	$4.16
10		Lindhaus Rx Hepa Bag Housing Complete/new Motor	086270281	$118.00
11		Lindhaus Rx Hepa Relief Valve Kit	080790081	$12.20
12		Lindhaus Rx Hepa Valve Filter	011050016	$1.80
13		Lindhaus Rx Hepa O-ring	010260307	$0.80
14		Lindhaus Rx Hepa Hose, With Handle Grip	086670381	$62.60
15		Lindhaus Rx Hepa Wand / Crevice Tool Clip	002730104	$14.80
16		Lindhaus Rx Hepa Upper Hose Hook For Flexible Hose	001950110	$12.20
17		Lindhaus RX Hepa HANDLE GRIP (ONLY)	080770181	$22.40
18		Lindhaus Rx Hepa Retainer	02870105	$2.20
19		Lindhaus Rx Hepa Chrome Tube – 2 Pos W/button Lock	084590081	$31.60
21		Lindhaus RX Hepa HANDLE TUBE ASSEMBLY 2 POS.	084410181	$75.80
22		Lindhaus RX Hepa Elect Sys Assy/non-var Speed, 2-way	082522280	$159.80
23		Lindhaus Rx Hepa Cord 3×18, 3 Prong,	022480020	$81.60
24		Lindhaus Rx Hepa Strain Relief	010830307	$5.00
25		Lindhaus Rx Hepa Cord Clamp	000070305	$1.00
26		Lindhaus Rx Hepa Vacuum Sensor	021340000	$23.80
27		Lindhaus Rx Hepa Cooling Vent	001790006	$1.40
28		Lindhaus Rx Hepa Main Switch 15A	020390300	$11.80
29		Lindhaus Rx Hepa Indicator Light	020020000	$8.00
31		Lindhaus Rx Hepa Lower Cord Hook Medium	001880105	$6.20

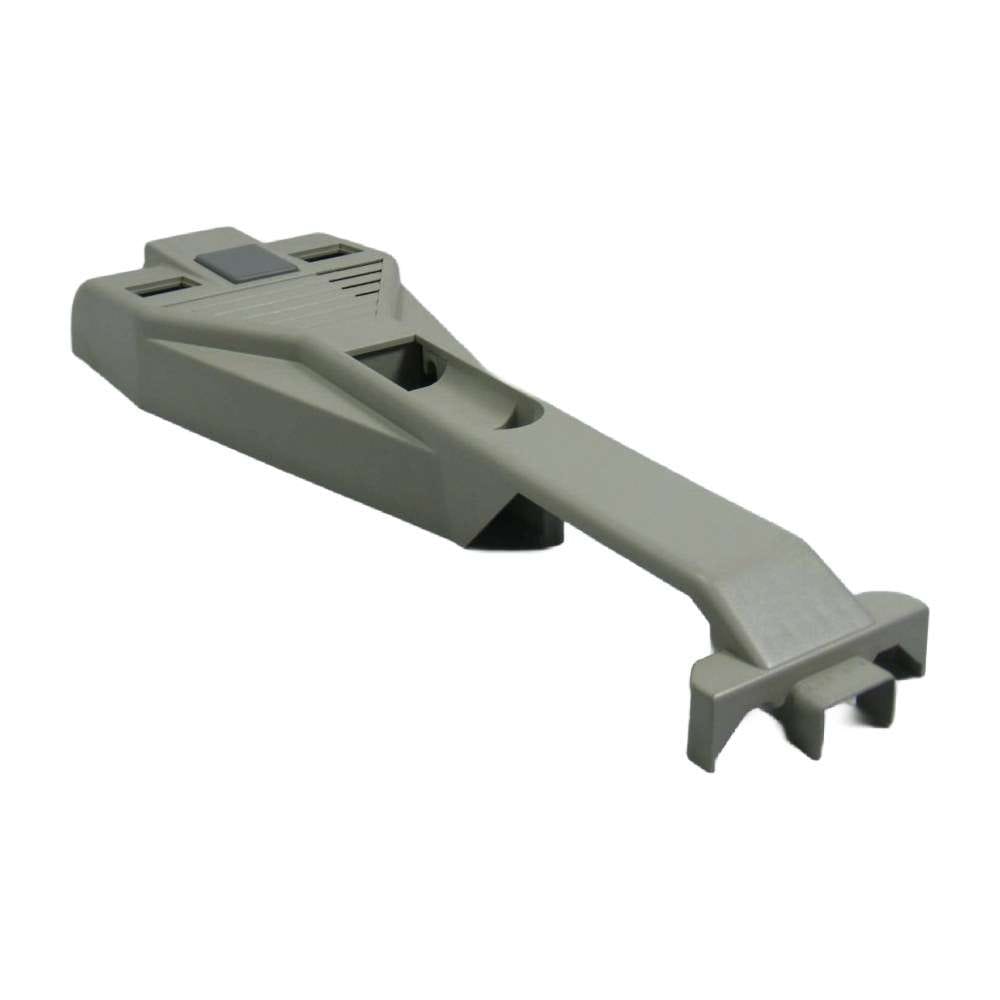

32		Lindhaus Rx Hepa Handle Cover Without Electronic	086610281	$51.82
34		Lindhaus Rx Hepa Comb Wire Holder	001980306	$1.60
35		LIndhaus Rx Hepa Frame Handle	001900201	$35.38
36		Lindhaus Rx Hepa Filter, Foam Upper	010200016	$2.60

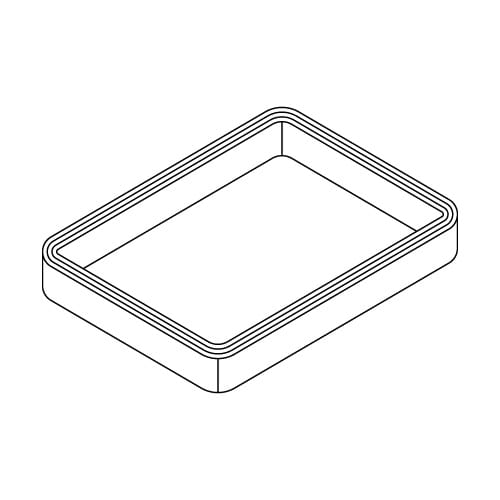

37		Lindhaus Rx Hepa Motor Gasket	00200308	$13.80
38		Lindhaus Rx Hepa Terminal Block 2 Poles	021000400	$2.20
39		Lindhaus Rx Hepa Foam Motor Filter	011790016	$7.20
40		Lindhaus RX Hepa Motor Gasket	000200308	$13.80
41		Lindhaus Rx Hepa Bag Door Latch + Spring	082720281	$14.00
42		Lindhaus Rx Hepa Microfilter 12 Pack	085350081	$56.00
43		Lindhaus Rx Hepa Exhaust Grill	003360100	$12.40

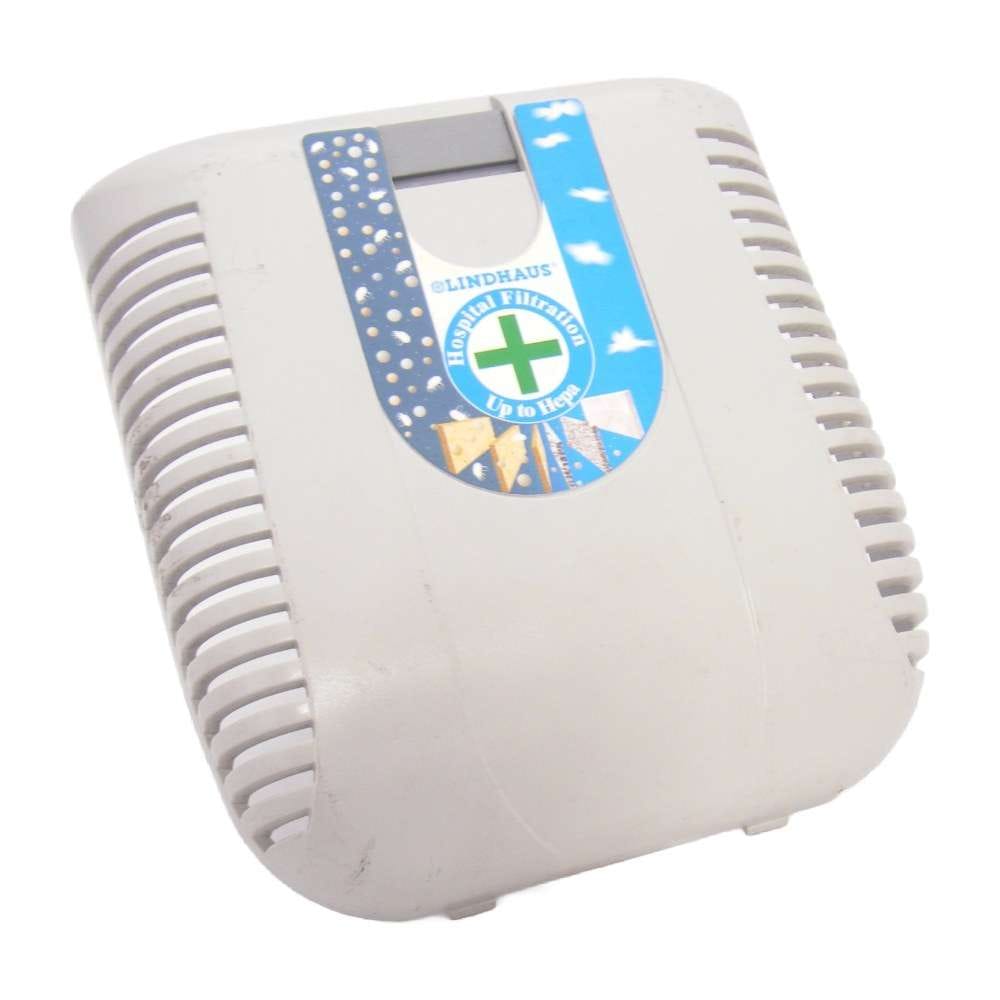

45		Lindhaus Rx Hepa Front Grill	083632281	$58.80
46		Lindhaus Rx Hepa Blocking Joint Pin Support – 3980133	003980133	$7.40
47		Lindhaus Rx Hepa Joint Pin Blocking	010840009	$17.80
48		Lindhaus Rx Hepa Control Pin Slide	001500105	$11.94

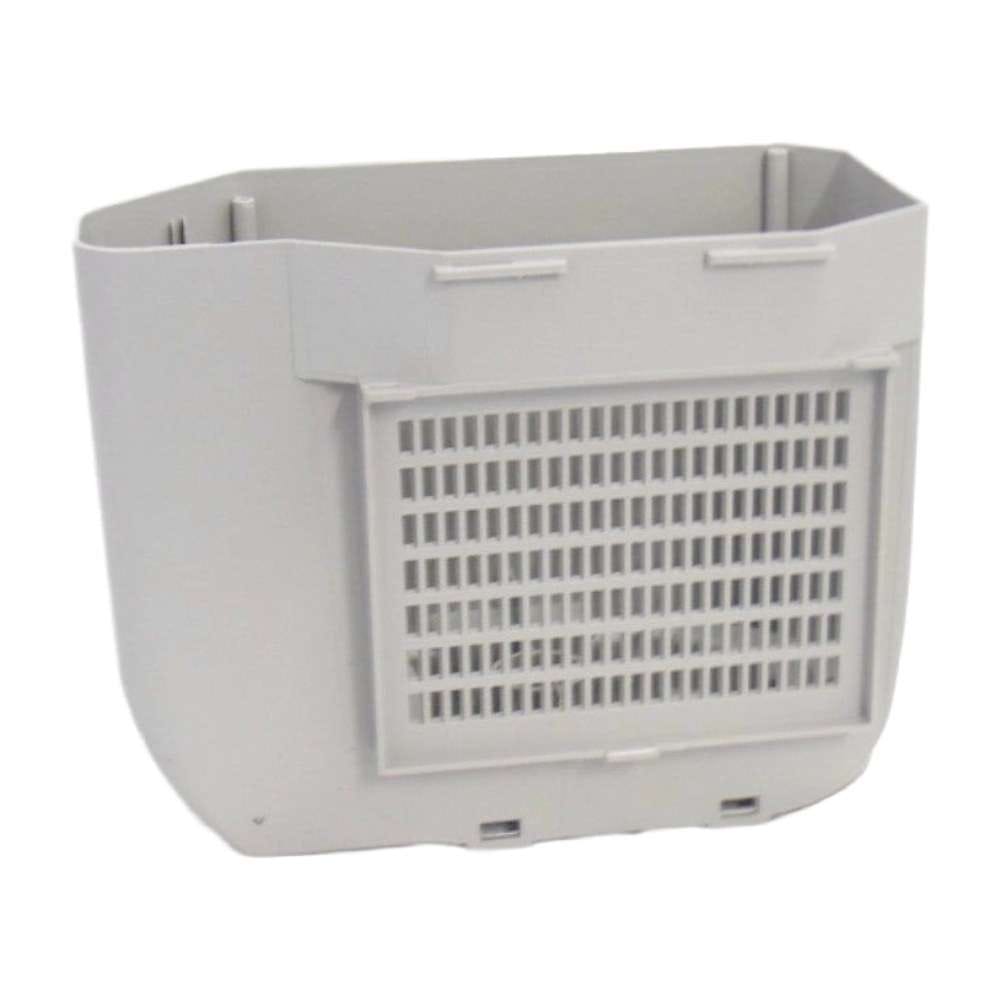

49		Lindhaus Rx Hepa Vacuum Motor Housing	003960233	$93.20
50		Lindhaus Rx Hepa Lower Curve	001760331	$6.60
51		Lindhaus Rx Hepa Curve Support 3-wires	084610080	$20.20
52		Lindhaus Rx Hepa Upper Curve	001750331	$6.60
53		Lindhaus Rx Hepa O-ring	010270307	$0.88
54		Lindhaus Rx Hepa Inner Vacuum Motor Housing	084600281	$71.80
55		Lindhaus Rx Hepa Hose Inlet	003970133	$17.40

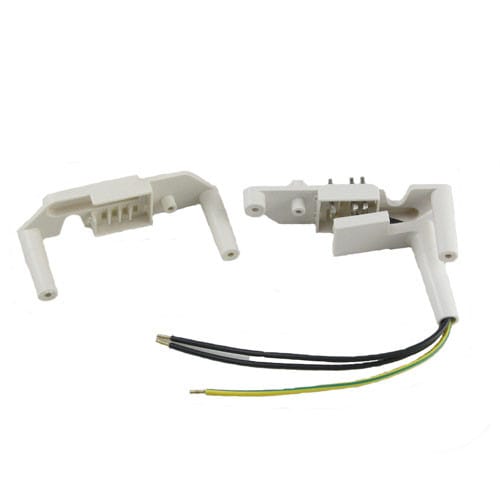

56		Lindhaus Rx Hepa Motor Clamp 3 Wires	082550080	$21.80
57		Lindhaus Rx Hepa Vacuum Motor V. 120/60	051350080	$178.00
58		Lindhaus Rx Hepa Filter, Foam Motor	010220016	$3.20
59		Lindhaus Rx Hepa Crevice Tool	030060310	$4.60
60		Lindhaus Rx Hepa Telescopic Wand	030550300	$27.80
61		Lindhaus Rx Hepa 4 Contact Housing Cover	002480003	$2.24
62		Lindhaus Rx Hepa 4 Contact Housing	002400003	$2.24
63		Lindhaus Rx Hepa Vacuum Sensor Adaptor	003230001	$0.60
64		Lindhaus Rx Hepa Bottom Cover Kit	084440181	$10.24
65		Lindhaus Rx Hepa Uph Tool W/ Natural Bristle Brush	031110300	$19.80
66		Lindhaus Rx Hepa Uph Tool/blk Center Strip Only	030740300	$3.40
67		Lindhaus Rx Hepa Screw 3.5 X 22	0010050009	$8.00
68		Lindhaus Rx Hepa Screw 3.5 X 16	010030009	$0.24
69		Lindhaus Rx Hepa Screw 3.5 X 25 Pack Of 20	085550009	$8.00
70		Lindhaus Rx Hepa Screw 3.5 X 19 Pack Of 20	086440009	$7.00
71		Lindhaus Rx Hepa Screw 3.9 X 13 Pack Of 20	085590009	$9.60
72		Lindhaus Rx Hepa Screw 3.9 X 22 Pack Of 20	087260009	$8.00
73		Lindhaus Rx Hepa Screw 2.9 X 19 Pack Of 20	085530009	$6.80
74		Lindhaus Rx Hepa Screw 3.9 X 16 Pack Of 20	—	Call 763-535-0770 to order
75		Lindhaus RX Hepa HANDLE SPRING	012980009	$12.00
76		Lindhaus RX Hepa BUTTON DARK GREY	005200101	$1.74

Lindhaus RX Hepa Body Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus RX Hepa Body schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number? Call 763-535-0770 with your model.

What are the most common Lindhaus RX Hepa Body parts?

Brushrolls, belts, HEPA and exhaust filters, bags, base plates, roller covers, bumpers and switches are the most frequently replaced parts — all listed above by schematic number.

Do Lindhaus RX Hepa parts fit other Lindhaus RX models?

Many RX Hepa and RX Eco-Force (RX380/RX450/RX500) parts cross over, but some are size- or generation-specific. Confirm by part number before ordering, or call us.

How do I order a Lindhaus RX Hepa part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus RX Hepa.
