Starlock Washer 02-0254-0000

The Starlock Washer (part# 02-0254-0000) is a genuine Tacony OEM push-on retaining washer. It is a genuine Tacony OEM part shared across Powr-Flite and Tornado machines — see the full compatibility list below.

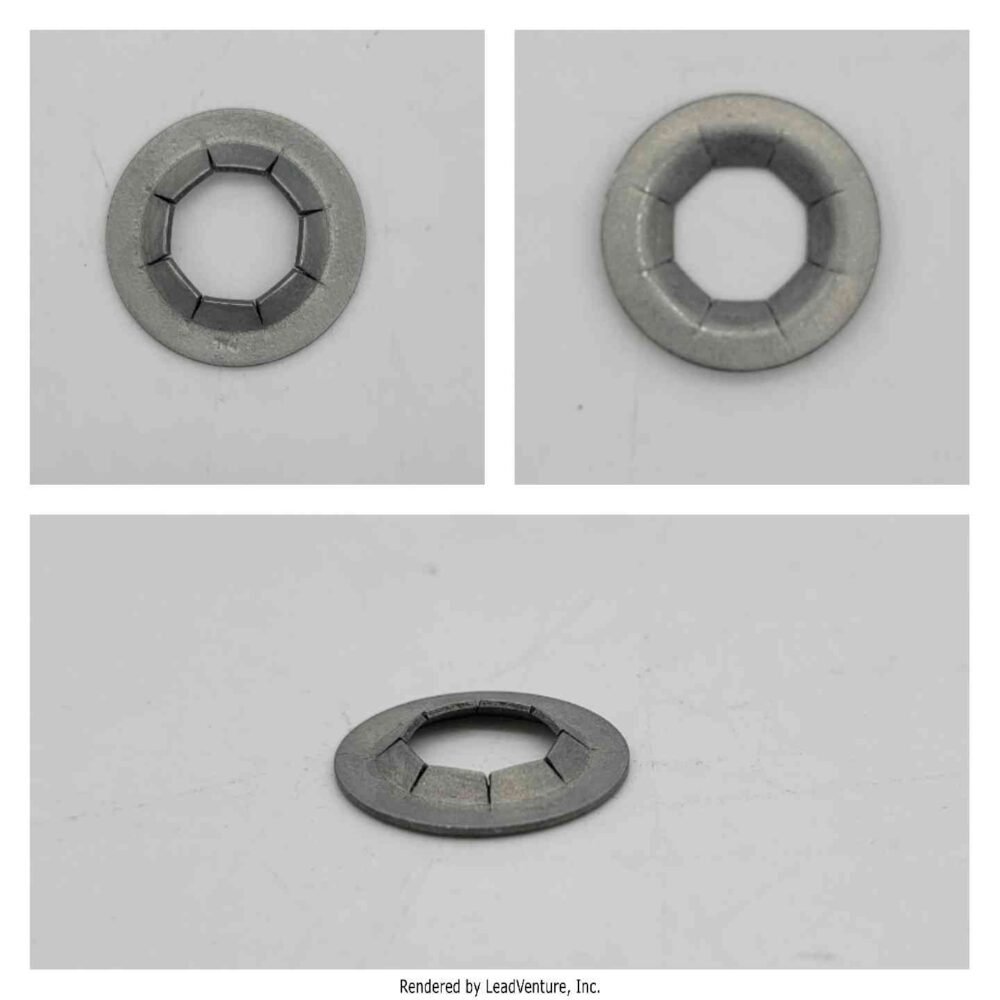

A starlock washer is a one-piece steel retainer with inward-facing teeth. Pushed onto a plain shaft it bites in and resists being pulled back off, which makes it a fast, groove-free way to retain a wheel, roller or pivot pin. There is no circlip groove to machine and no fastener to loosen, which is exactly why it is used on assemblies that are built once and rarely disturbed.

The teeth deform as the washer is driven on, so a starlock washer is a one-use part — removing one almost always destroys its grip even if it looks intact afterwards. Fit a new one whenever the assembly has been apart. Replace any washer that has lost teeth, that can be pulled off the shaft by hand, or that has corroded, since a retainer that lets go allows the component it holds to wander off its shaft in service.

Compatible Models for the Starlock Washer

• Tornado 93030 30″ Clean-Air Carpetkeeper (Wide Area) — Series F, G, H and J
• Tornado 93031 30″ Clean-Air Carpetkeeper (Wide Area) 230V
• Powr-Flite PF2030 30-Inch Wide Area Commercial Vacuum

These machines are built on the same wide-area platform under different brands and share the great majority of their parts.

This is a generic Tacony fastener used across many machines. Fits many Tacony models — call 763-535-0770 to confirm fitment for your machine.

Twin City Vacuum has been selling and servicing Tacony equipment since 1956 and stocks the genuine 02-0254-0000 part. Browse the full Tornado 93030 main assembly parts, or read more on the Tornado manufacturer site.

Frequently Asked Questions

What does the Starlock Washer do on the Tornado 93030?

it is a push-on retaining washer whose inward teeth bite into a plain shaft to hold a wheel, roller or pivot pin in place without needing a groove or a fastener.

Can I reuse a starlock washer?

No. Its teeth deform as it is pushed on and removal ruins the grip even when the washer looks undamaged. Always fit a new one when the assembly has been apart.

Does this washer fit other Tacony machines?

Yes — it is a common Tacony retainer used across many models. Call 763-535-0770 with your machine and we will confirm fitment before you order.

How do I order the Starlock Washer (part# 02-0254-0000) or get help?

You can add the Starlock Washer (part# 02-0254-0000) directly to your cart on this page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing Tacony equipment since 1956 and can help confirm the right part for your machine.
