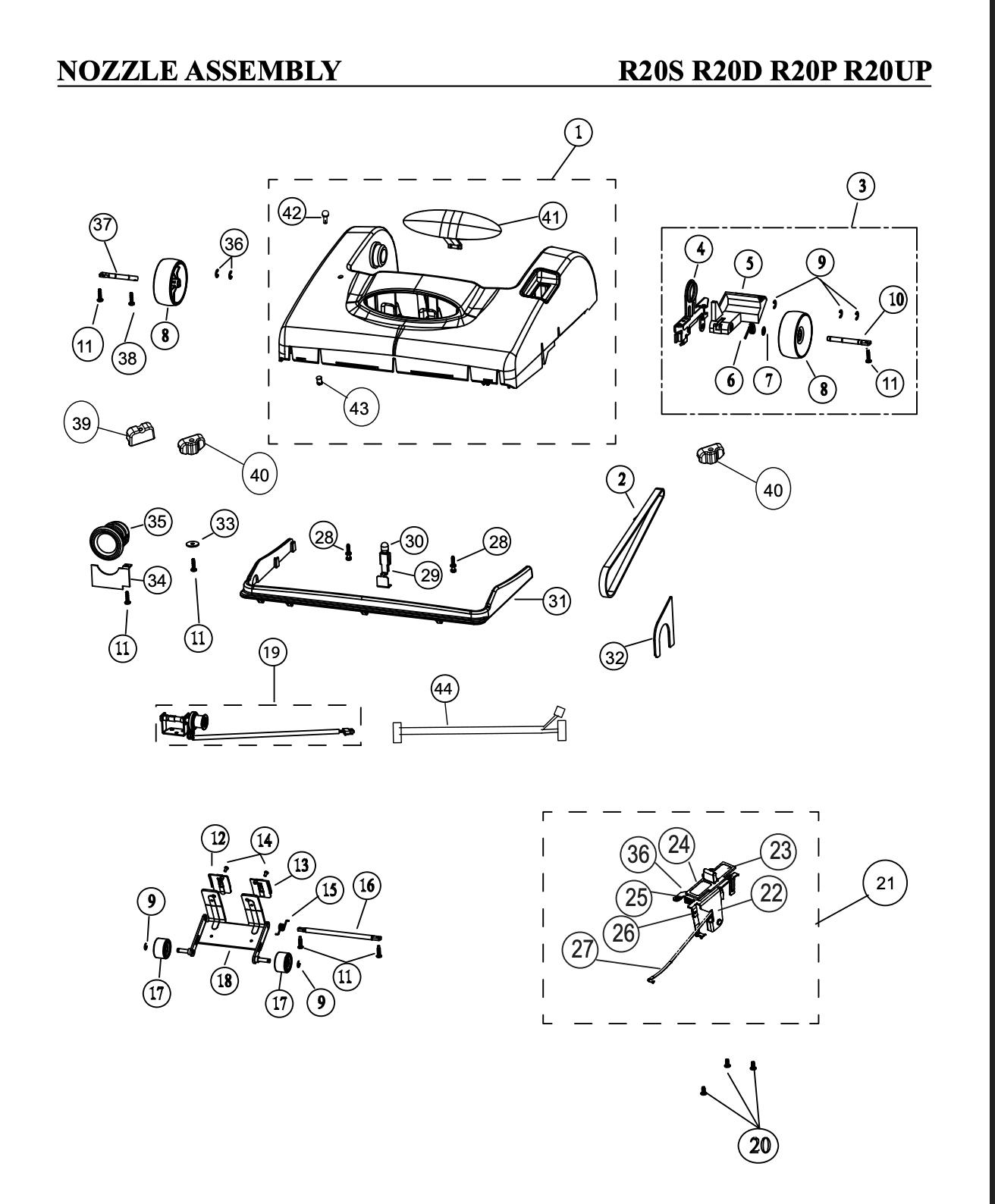

01. Teal Nozzle Assembly – D432-09B303. Foot Pedal Assembly – D020-070002. Belt – B014-130004. Foot Pedal Frame – B020-090005. Foot Pedal Release – B020-111406. Spring – B020-070007. Nylon Washer – A732-650008. Rear Wheel – B010-173109. E-Clip – A732-020010. Pedal Shaft – B020-050011. Screw – A732-790611. Screw Phillips Pan Head Hi-Lo – A732-831411. Screw Phillips Pan Head Hi-Lo – A732-831411. Screw Phillips Pan Head Hi-Lo – A732-831412. Skid Plate Left – B432-151415. Frame Shaft Spring – B008-110016. Roller Frame Shaft – B008-010009. E-Clip – A732-020009. E-Clip – A732-020018. Roller Frame – B008-0400B17. Roller Frame Wheel – B010-181317. Roller Frame Wheel – B010-181321. Carpet Floor Switch Assembly – D017-520022. Carpet Floor Switch Bracket – C017-380023. Carpet Floor Switch Rocker – B017-3814B24. Carpet Floor Switch Detent – B017-400025. Carpet Floor Switch Pivot Arm – B017-410026. Carpet Floor Switch Pivot Arm Pin – B017-420027. Clutch Rod – B012-330032. Agitator Packing Seal – B432-0300B31. Furniture Guard – B432-0714C28. Baseplate Stud – B015-0305B29. Light Socket and Harness – A018-0800D30. Light Bulb – A350-000028. Baseplate Stud – B015-0305B33. Nylon Washer – B017-250034. Wire Hose Retainer – B432-050035. Wire Hose Threaded Tube – B432-041438. Screw – A732-740042. Hall Sensor Lens – A018-110036. E-Clip – A732-030041. Headlight Lens – B018-0015C37. Wheel Shaft – B010-010019. Hall Sensor Assembly – D375-140014. Skid Plate Screw – A732-050013. Skid Plate Right – B432-141411. Screw Phillips Pan Head Hi-Lo – A732-831408. Rear Wheel – B010-173120. Screw Phillips – A732-730039. Axle Spacer Single Wheel – B010-270040. Axle Spacer – B010-290040. Axle Spacer – B010-290043. Lens Spacer – A018-120044. Hall Sensor Harness – B228-0200Image | Name | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | Teal Nozzle Assembly for Riccar R20P | $0.00 | | ||
| | Belt for Riccar R20P | $20.88 | | ||
| | Foot Pedal Assembly for Riccar R20P | $29.68 | | ||
| | Foot Pedal Frame for Riccar R20P | $4.38 | | ||
| | Foot Pedal Release for Riccar R20P | $3.28 | | ||

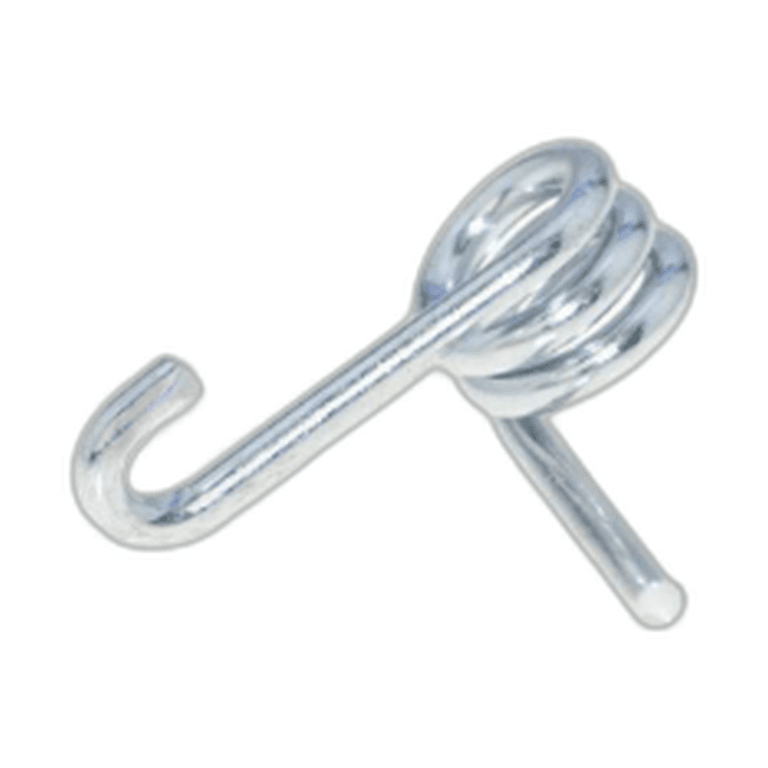

| | Spring for Riccar R20P | $3.28 | | ||
| | Nylon Washer for Riccar R20P | $3.28 | | ||
| | Rear Wheel for Riccar R20P | $5.48 | | ||
| | E-Clip for Riccar R20P | $3.28 | | ||
| | Pedal Shaft for Riccar R20P | $3.28 | | ||
| | Screw for Riccar R20P | $3.28 | | ||
| | Skid Plate Left for Riccar R20P | $5.98 | | ||
| | Skid Plate Right for Riccar R20P | $3.28 | | ||

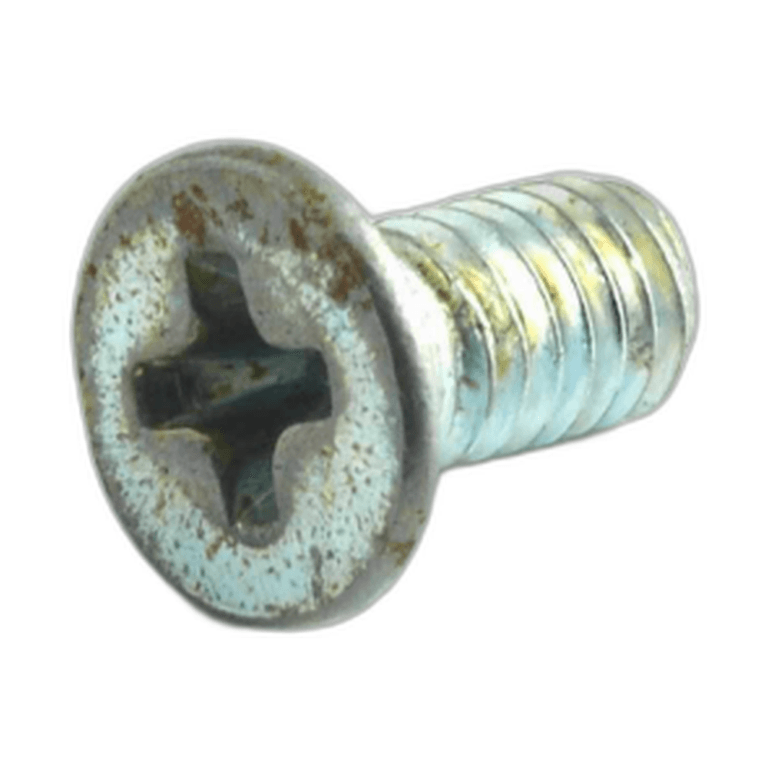

| | Skid Plate Screw for Riccar R20P | $3.28 | | ||
| | Frame Shaft Spring for Riccar R20P | $3.28 | | ||
| | Roller Frame Shaft for Riccar R20P | $0.00 | | ||
| | Roller Frame Wheel for Riccar R20P | $3.28 | | ||
| | Hall Sensor Assembly for Riccar R20P | $50.58 | | ||
| | Screw Phillips for Riccar R20P | $3.28 | | ||

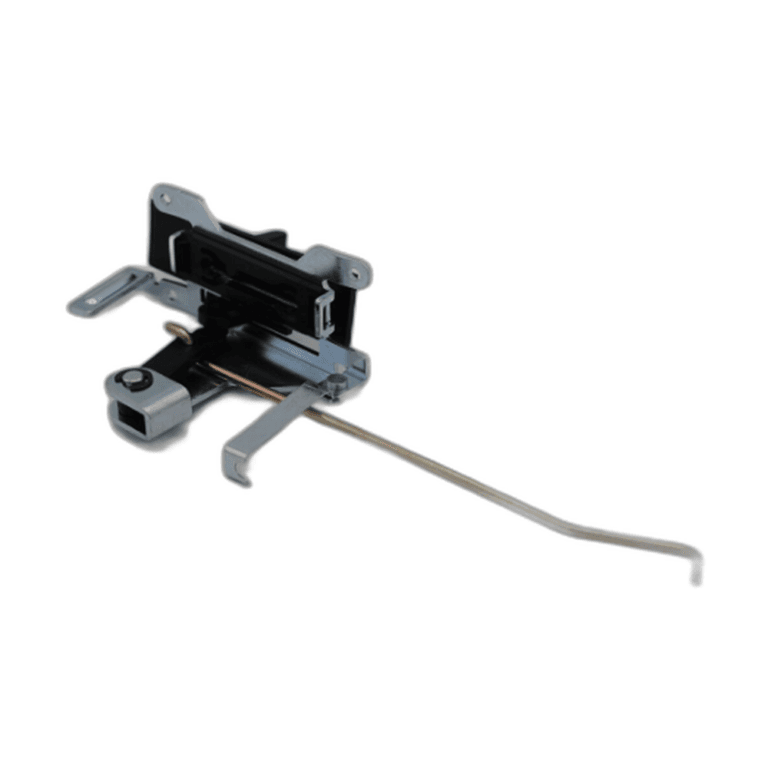

| | Carpet Floor Switch Assembly for Riccar R20P | $20.88 | | ||

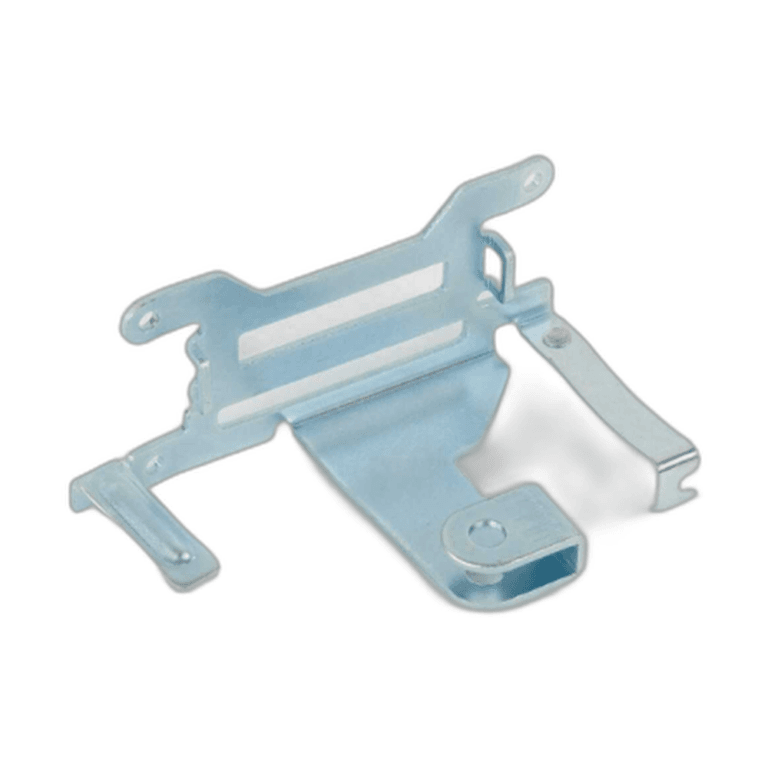

| | Carpet Floor Switch Bracket for Riccar R20P | $5.48 | | ||
| | Carpet Floor Switch Rocker for Riccar R20P | $3.28 | | ||

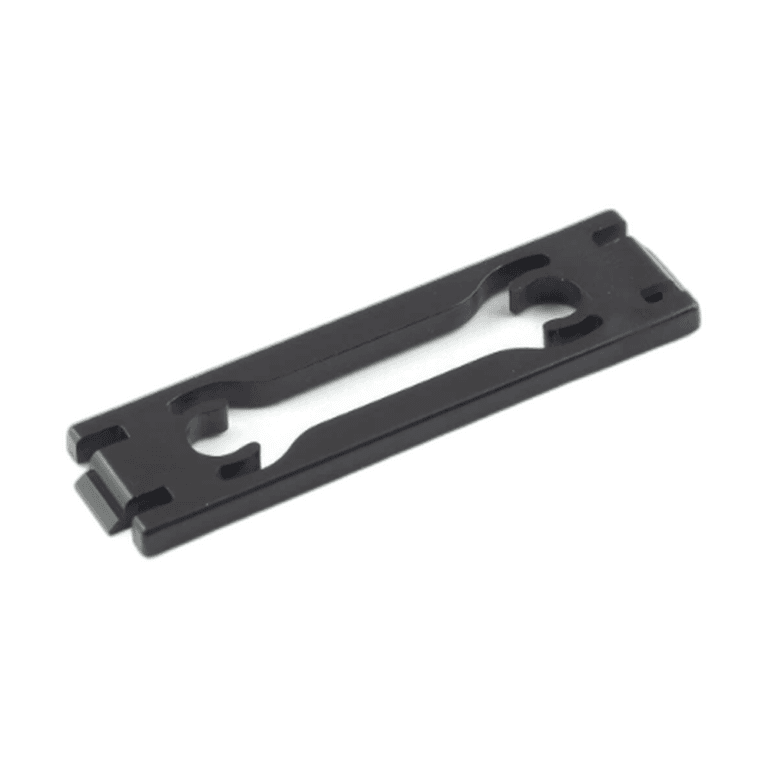

| | Carpet Floor Switch Detent for Riccar R20P | $3.28 | | ||
| | Carpet Floor Switch Pivot Arm for Riccar R20P | $3.28 | | ||
| | Carpet Floor Switch Pivot Arm Pin for Riccar R20P | $3.28 | | ||
| | Clutch Rod for Riccar R20P | $5.48 | | ||

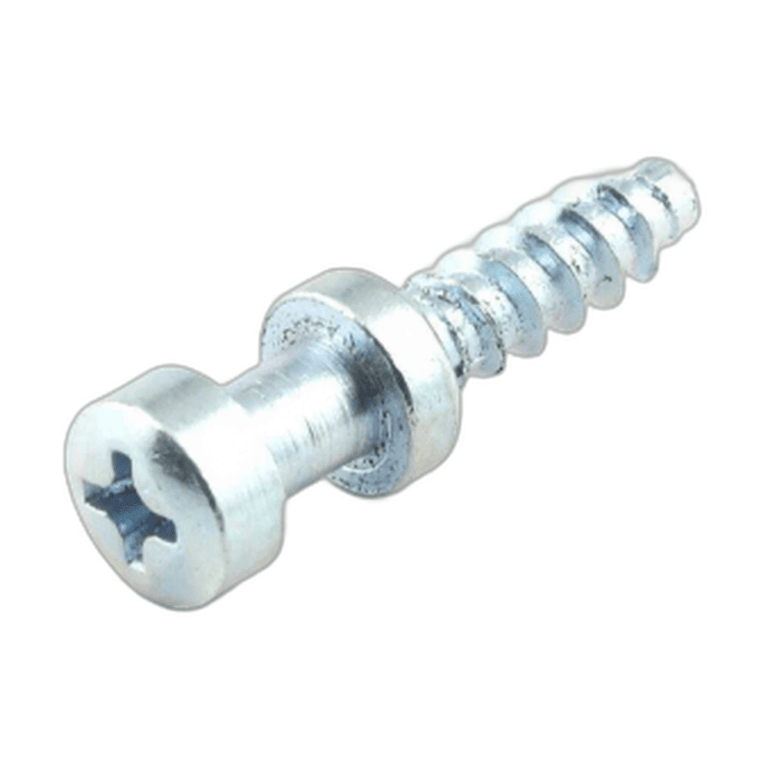

| | Baseplate Stud for Riccar R20P | $3.28 | | ||
| | Light Socket and Harness for Riccar R20P | $0.00 | | ||
| | Light Bulb for Riccar R20P | $0.00 | | ||
| | Furniture Guard for Riccar R20P | $0.00 | | ||

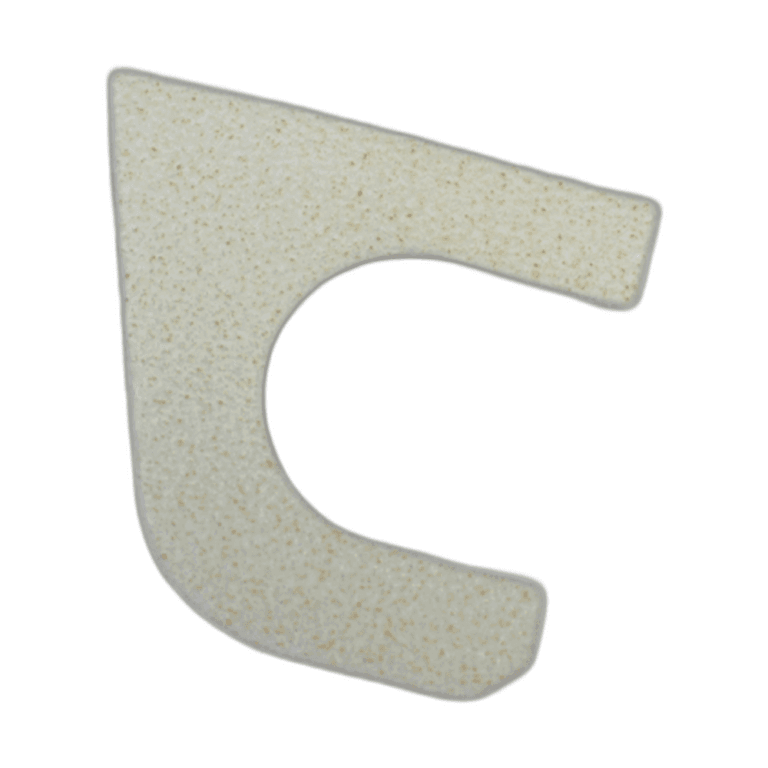

| | Agitator Packing Seal for Riccar R20P | $3.28 | | ||

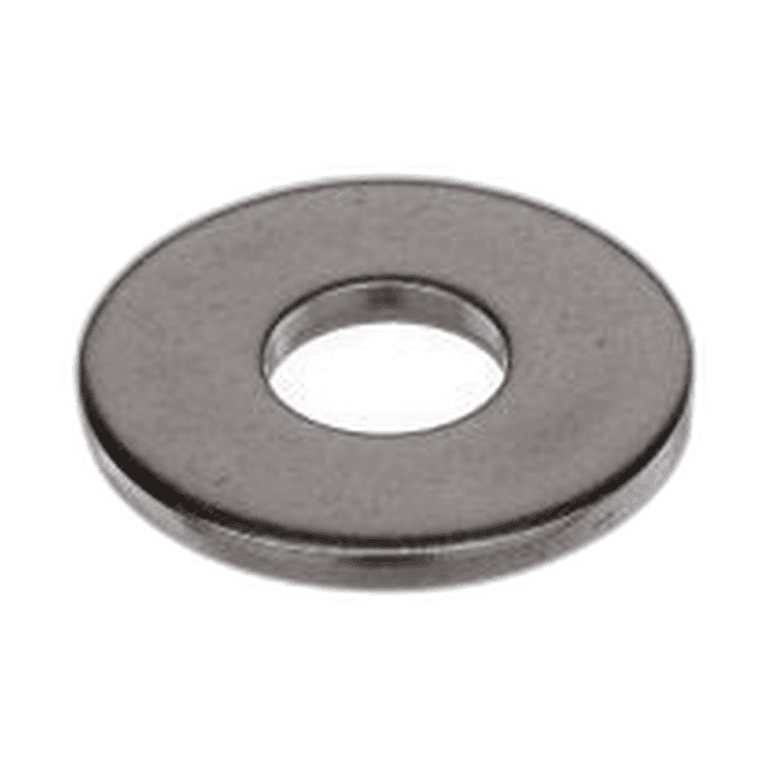

| | Nylon Washer for Riccar R20P | $3.28 | | ||
| | Wire Hose Retainer for Riccar R20P | $5.98 | | ||
| | Wire Hose Threaded Tube for Riccar R20P | $3.28 | | ||
| | E-Clip for Riccar R20P | $3.28 | | ||
| | Wheel Shaft for Riccar R20P | $3.28 | | ||
| | Screw for Riccar R20P | $3.28 | | ||
| | Axle Spacer for Riccar R20P | $3.28 | | ||
| | Axle Spacer for Riccar R20P | $3.28 | | ||

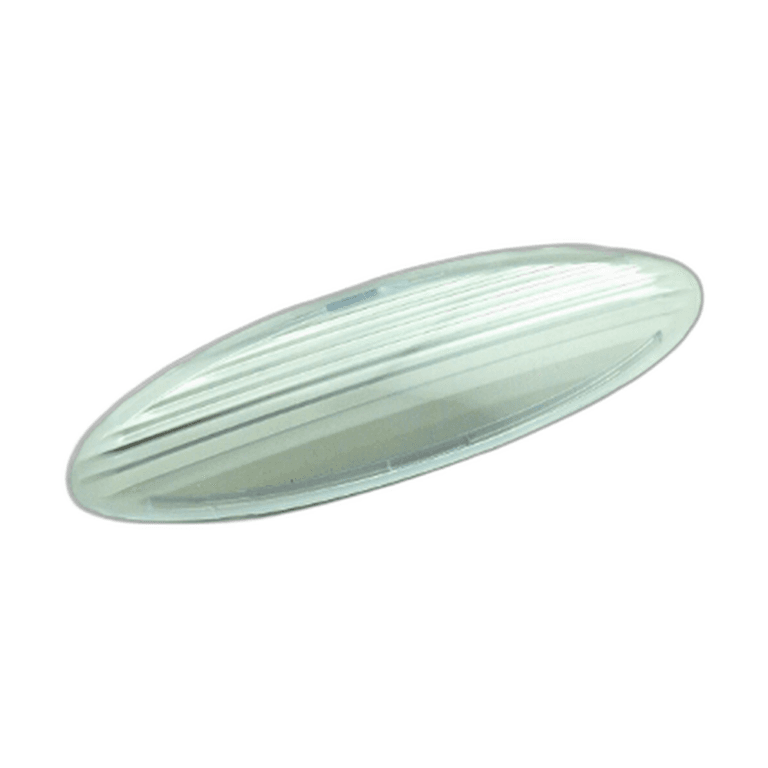

| | Headlight Lens for Riccar R20P | $4.38 | | ||
| | Hall Sensor Lens for Riccar R20P | $3.28 | | ||
| | Lens Spacer for Riccar R20P | $3.28 | | ||
| | Hall Sensor Harness for Riccar R20P | $0.00 | |
