Genuine Tornado 93031 Carpetkeeper parts for the 30-inch Clean-Air Carpetkeeper (Wide Area) 230V upright, Model 93031. Twin City Vacuum has been selling and servicing commercial floor-care equipment since 1956. Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.
Tornado 93031 Carpetkeeper Parts Diagrams
Pick the section of the machine your part belongs to. Each diagram page lists every part on that sheet with its callout number, part number and price.

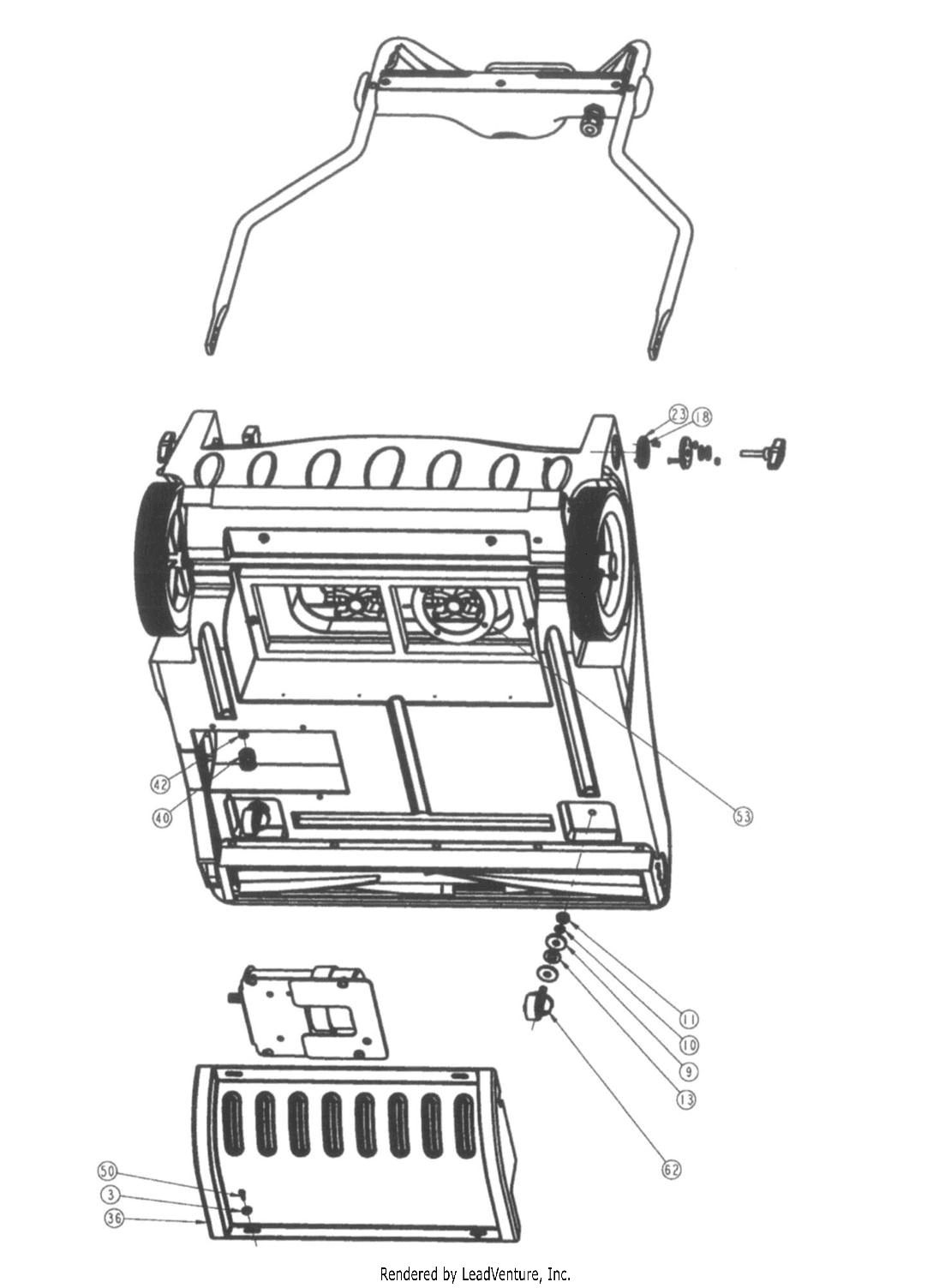

Left Side Parts
Exhaust cover, cable conduit and fittings, motor gaskets and caster. 13 parts listed.
Looking for a specific part? Use the diagrams above to browse the complete parts list. Every part number on those pages links straight to its product page.
About the Tornado 93031 Carpetkeeper
The Tornado 93031 is the 230V version of the 30-inch Clean-Air Carpetkeeper wide-area upright vacuum, built for large commercial carpeted floors such as hotels, schools and convention space. It uses twin vacuum motors and a separate belt-driven brush motor, so the agitator keeps working at full speed independently of suction. Because it is the 230V build, its motors, wiring harness, EMI filters and circuit breakers differ from the 115V 93030 even where the chassis, wheels and brush-roll hardware are shared — so match electrical parts to your machine’s voltage, and check the serial plate for the Series J build before ordering a harness or filter.
Common wear items on this machine are the brush roll and its bearings, the drive belt, the intake and exhaust filters, the vacuum bags, and the brush-roll shoe. We stock and ship Tornado cleaning equipment parts across the USA, and you can read the manufacturer’s own product information at tornadovac.com. If you are not sure which part you need, give us the callout number from the diagram and we will confirm it against your serial number.
Tornado 93031 Carpetkeeper Parts — Frequently Asked Questions
Which Tornado 93031 Carpetkeeper parts diagram should I use?

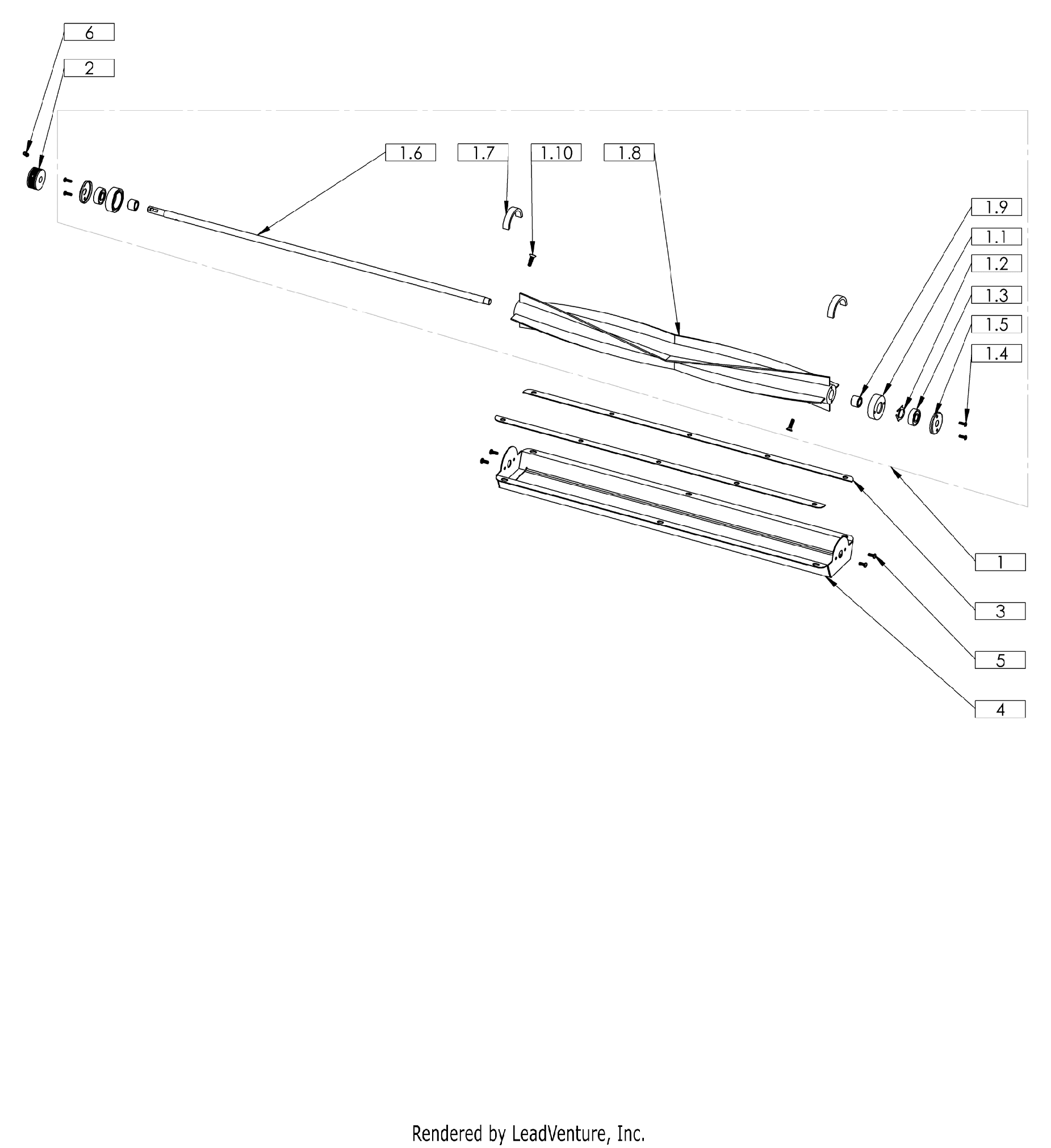

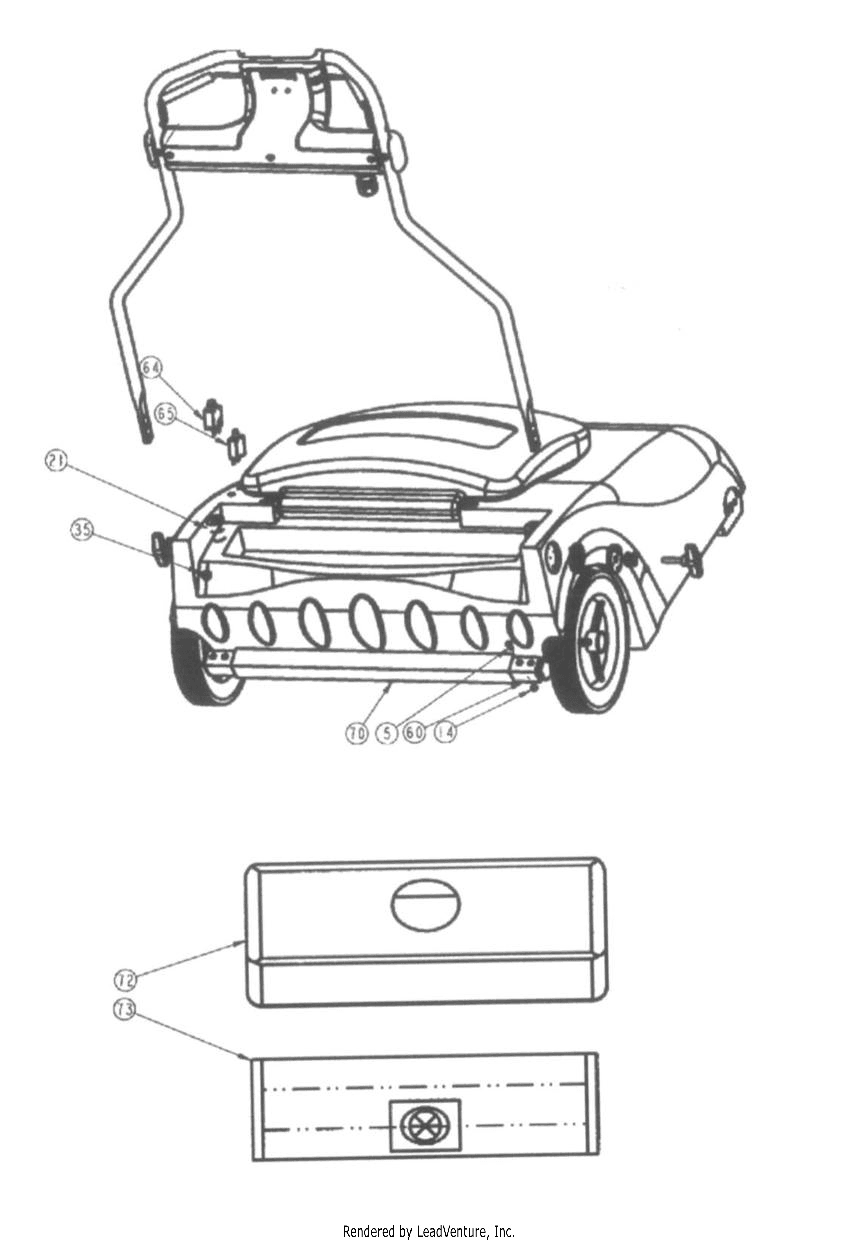

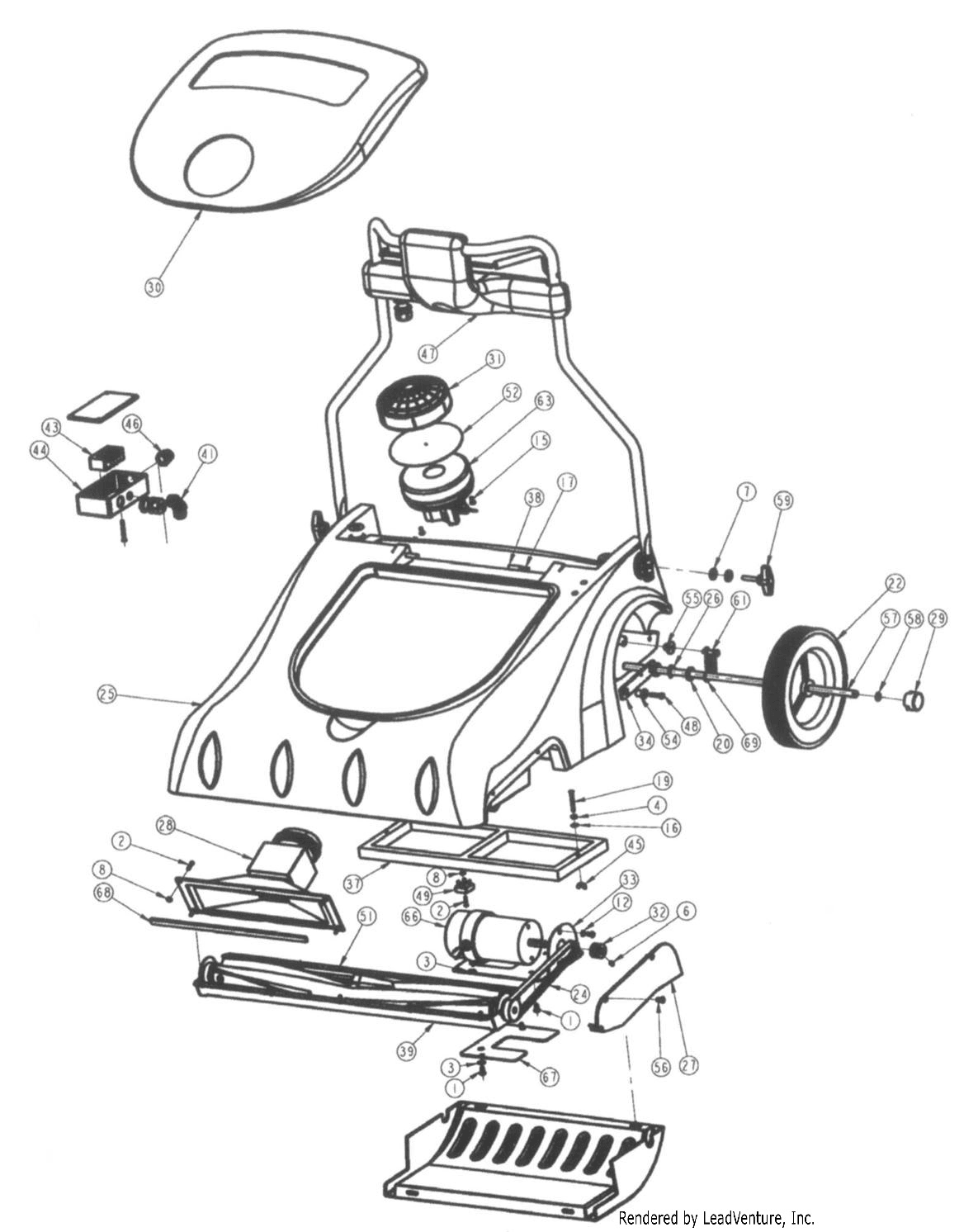

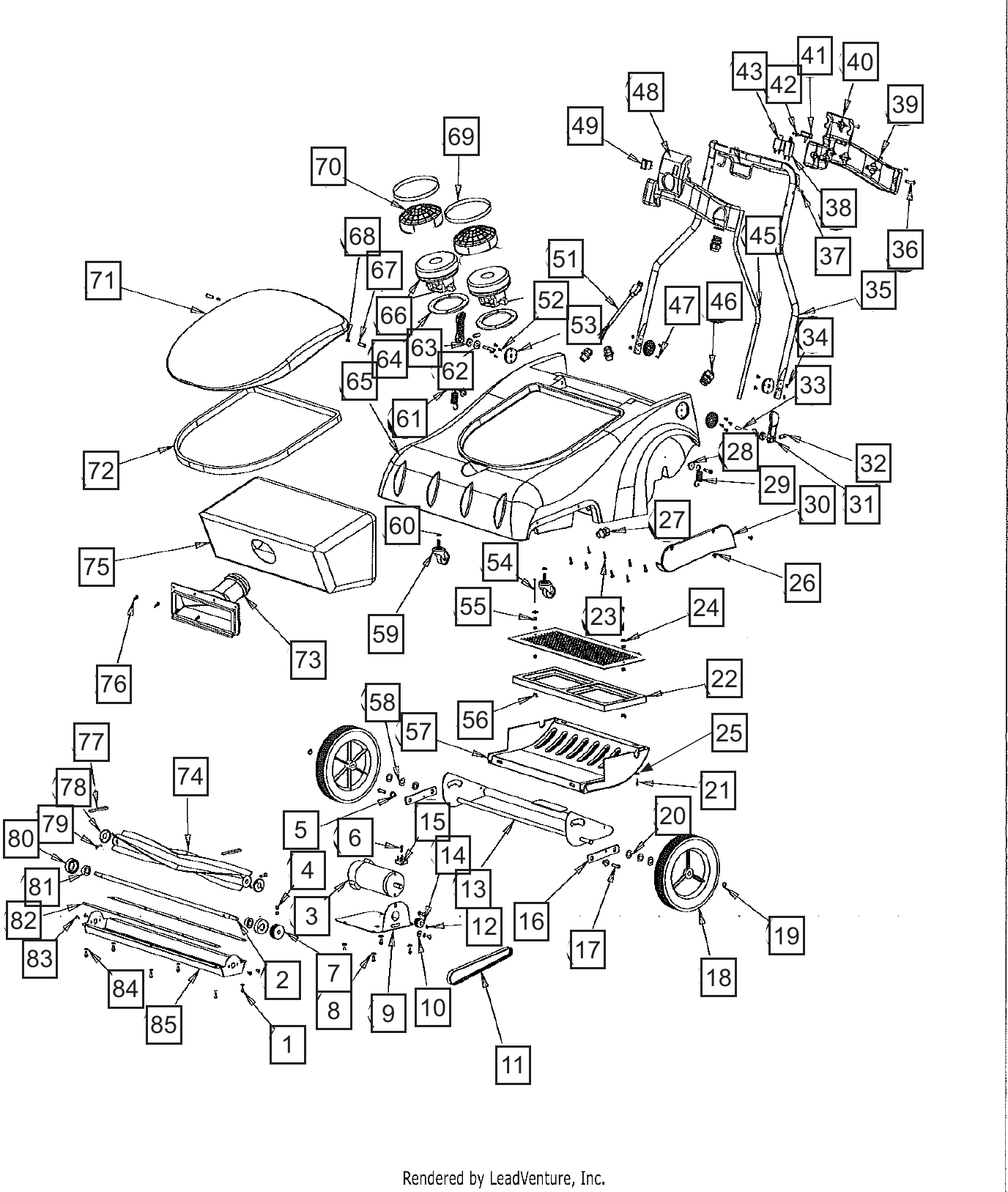

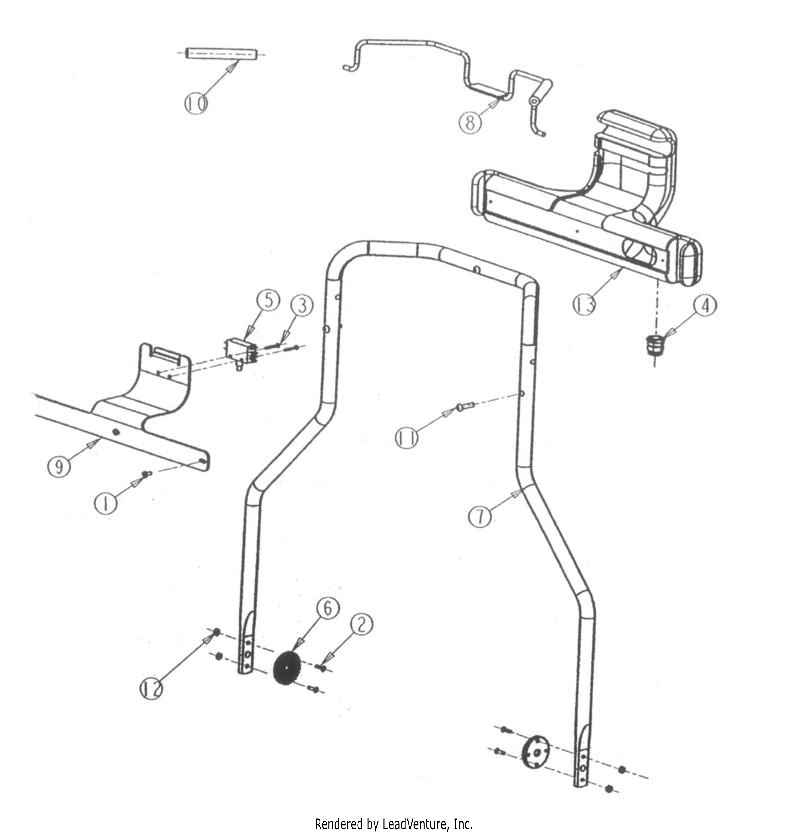

Work from the section of the machine the part sits on. The Front diagram covers the chassis, hood, intake duct and motors; Back covers the switch, breakers and bags; Left Side covers the exhaust cover and cable routing; Handle covers the handle tube and controls; Brush Roll covers the agitator assembly. If your machine is a later-production Series J build, use the Series J diagram, which shows the whole machine on one sheet.
How do I tell a Series J Tornado 93031 from an earlier one?
Check the serial plate on the machine. Series J machines use a different wiring harness and different EMI filters from the earlier production run, so the electrical parts are not interchangeable. If you are ordering a harness, filter or breaker and are not certain which build you have, call us at 763-535-0770 before ordering.
Why is the Tornado 93031 Carpetkeeper a 230V machine?
The 93031 is the 230V export version of the 30-inch Clean-Air Carpetkeeper wide-area upright. Its vacuum motors, brush motor, wiring harness and EMI filters are rated for 230V and differ from the 115V machine, even where the mechanical parts are shared. Always match electrical parts to the voltage of your machine.
Some parts show no price. Can I still order them?
Yes. A part listed without a price is still orderable, we simply confirm current pricing and availability by phone. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428 and we will quote it and confirm it fits your machine.
Do you ship Tornado 93031 Carpetkeeper parts?
Yes, we ship across the USA from our store in Crystal, Minnesota. Twin City Vacuum has been selling and servicing commercial floor-care equipment since 1956, so if you are unsure which part you need, send us the callout number from the diagram and we will confirm it.
Questions about Tornado 93031 Carpetkeeper parts? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428. You can also browse all Tornado cleaning equipment parts.
