Every Appliance Top part for the Tornado CV 38/2 (15″, Model 91415) and Tornado CV 48/2 (19″, Model 91419) commercial upright vacuums. Tornado publishes one drawing for both machines because the top assembly is identical — the housing, cover, switch, board, cord and the fixings around them are the same part numbers on the 15-inch and the 19-inch machine.
Find your part on the diagram, note the number beside it, and match that number to the first column of the table underneath. Hover any dot to see what it is. Every dotted part opens in a new tab. Can’t find your part? Call us at 763-535-0770.

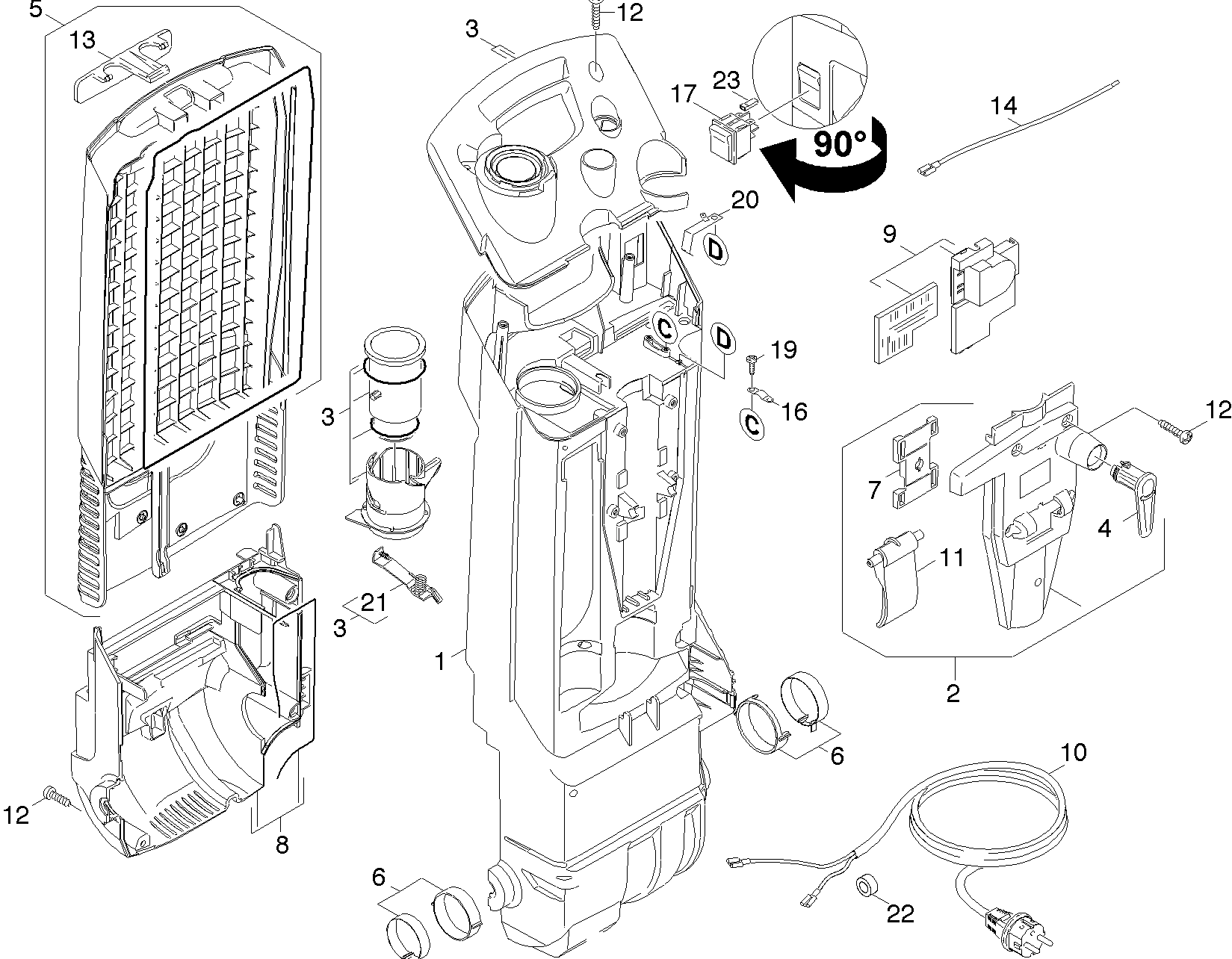

Tornado CV 38/2 & CV 48/2 Appliance Top Parts
1. Housing – K5060991010. Power Cord 40ft – K4649026011. Lever – K5481345012. Screw M5 x 20 – K7303108012. Screw M5 x 20 – K7303108012. Screw M5 x 20 – K7303108013. Dust Cover Lock – K5075030014. Tornado CV 38/2 & 48/2 Electrical Small Parts – K4839402016. Clamp – K6903241017. Rocker Switch – K6630678319. Screw M3.5 x 12 – K630331802. Complete Cover – K4032003020. Grounding Strap – K5034689021. Tornado CV 38/2 & 48/2 Spring Connection – K4332008022. Tornado CV 38/2 & 48/2 Ring – K6346036023. Tornado Insulation Sheath – K664774803. Cover Electric – K403200403. Cover Electric – K403200403. Cover Electric – K403200404. Cord Hook – K504466105. Tornado CV Front Cover Black – K406400006. Tornado Bearing Set – K288907606. Tornado Bearing Set – K288907607. Clamp – K503244808. Motor Cover – K405322409. PC Board – K46820010The appliance top is the part of these machines that gets handled every shift. The cover is opened for bag changes, the rocker switch is worked at the start and end of every job, and the cord is pulled, coiled and stood on. That is why the wear items here are predictable: the switch, the cord, the dust cover latch and the small fixings that hold the electrical cover in place. The circuit board and the grounding strap fail less often but are worth knowing about, because a machine that trips a breaker or will not start is usually one of those two rather than the motor.
Frequently asked questions
Do the Tornado CV 38/2 and CV 48/2 use the same appliance top parts?
Yes. Tornado publishes one Appliance Top Parts breakdown covering both machines, and every part number on it is common to the two models. The difference between them is nozzle width — 15 inches on the CV 38/2, 19 inches on the CV 48/2 — which affects the brush head, not the top assembly.
Why do some parts on this page not say Tornado in the name?
Because they are not Tornado-only. The CleanMax CMP-5T Champ is built on the same platform, so a number of these components carry one part number across both brands. We name those parts without a brand and list every machine they fit, rather than implying the part belongs to one badge.
One number appears in several places on the diagram. Is that a mistake?
No. Position 12 (Screw M5 x 20) is marked three times and positions 3 and 6 twice each — the quantity column tells you how many the machine takes.
What if the part I need has no number beside it?
It is still the correct part for these machines — order it by part number, or call us on 763-535-0770 and we will confirm it.
Can you get parts that show Call for price?
Yes. Two items here have no published price at the moment, so we have not guessed at one — call and we will quote them. Call 763-535-0770 and we will quote and check availability.
Looking for a different assembly? The Tornado CV 38/2 parts hub lists every breakdown for these machines, and the Tornado parts hub covers the rest of the range. We are Twin City Vacuum in Crystal, Minnesota — call 763-535-0770 and we will confirm the part against your machine’s data plate before you order.
