Tornado 98168 Marathon 1200 control panel replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
01. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw #10-24 x 7/16″ – 0366002. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Rocker Switch – 1067003. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nylon Nut – 1788304. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Cable Clamp – 1871705. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Pushbutton Momentary Switch 10A – 1912106. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nylon Screw #6-32 x 3/4″ – 1912407. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nut – 1914508. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Rectifier 35A – X119309. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Cord Hook – B352-690010. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Circuit Breaker 2.5A – X119211. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Control Module – 1931512. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Strain Relief – 1946113. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw #10-32 x 5/8″ – 3043614. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Power Cord 14/3 x 25′ Yellow – 3221615. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Main Wiring Harness (Marathon – 800/1200) – 32221Find genuine Tornado 98168 Marathon 1200 control panel replacement parts for Model 98168. This diagram covers the operator panel and the electrical hardware behind it — the rocker switch and momentary pushbutton switch that bring the vacuum motor and the pump online, the 35A rectifier and 2.5A circuit breaker that protect them, the 14/3 x 25″ power cord, the main wiring harness that ties the panel to the machine, and the cable clamps and nylon fasteners that keep the loom tidy and off the chassis. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 01 | Screw #10-24 x 7/16″ | 03660-98168 | $2.99 | |
| 02 |  | Rocker Switch | 10670 | $3.99 |
| 03 | Nylon Nut | 17883 | $2.99 | |
| 04 | Cable Clamp | 18717 | $1.99 | |

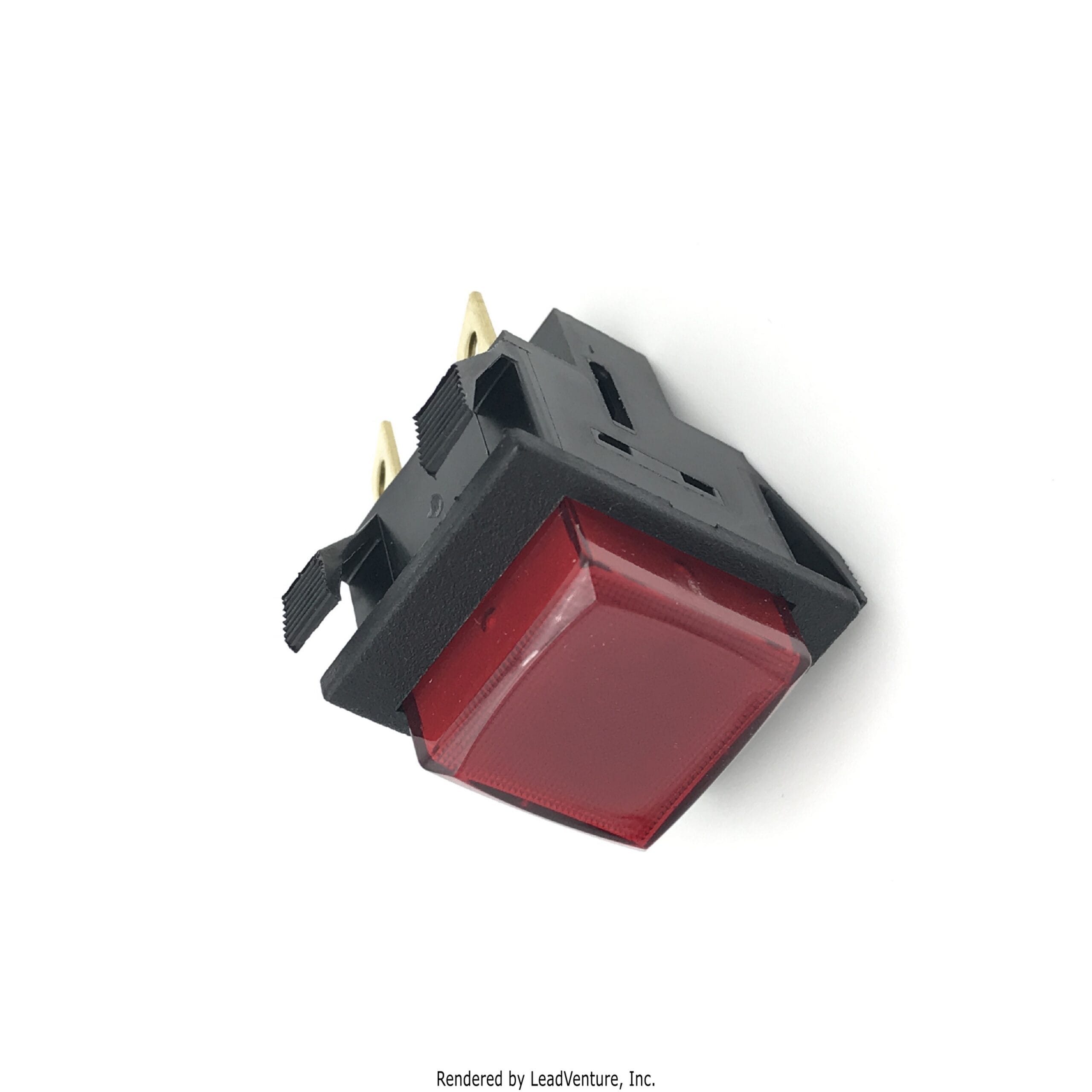

| 05 |  | Pushbutton Momentary Switch 10A | 19121 | $19.99 |
| 06 | Nylon Screw #6-32 x 3/4″ | 19124 | $1.99 | |
| 07 | Nut | 19145 | ||

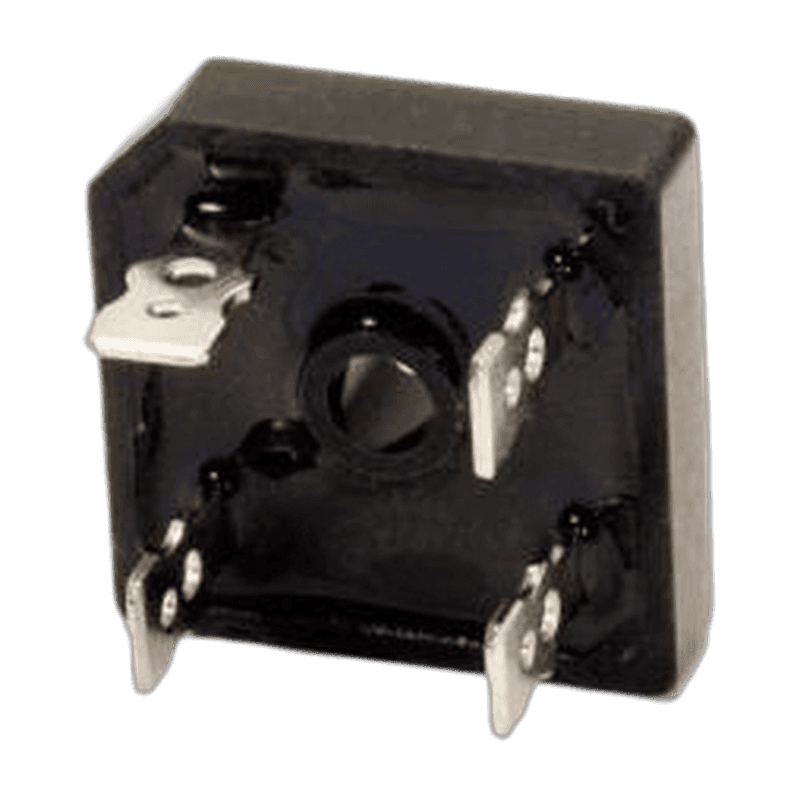

| 08 |  | Rectifier 35A | X1193 | $14.99 |
| 09 |  | Cord Hook | B352-6900 | $4.99 |

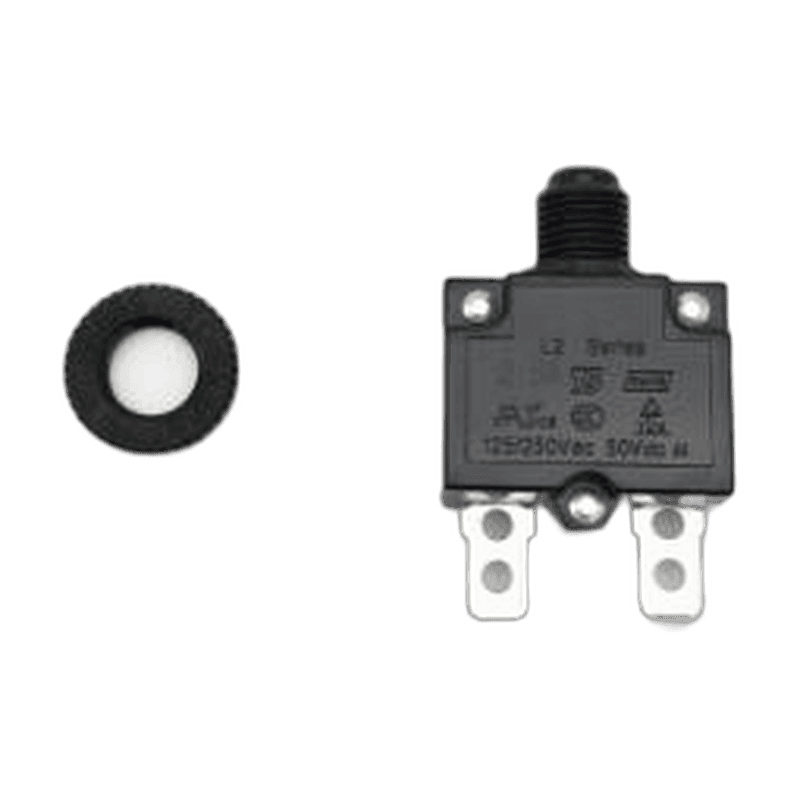

| 10 |  | Circuit Breaker 2.5A | X1192 | $8.99 |
| 11 | Control Module | 19315 | $173.16 | |
| 12 | Strain Relief | 19461 | $15.99 | |
| 13 | Screw #10-32 x 5/8″ | 30436 | $1.99 | |
| 14 | Power Cord 14/3 x 25′ Yellow | 32216 | $13.99 | |

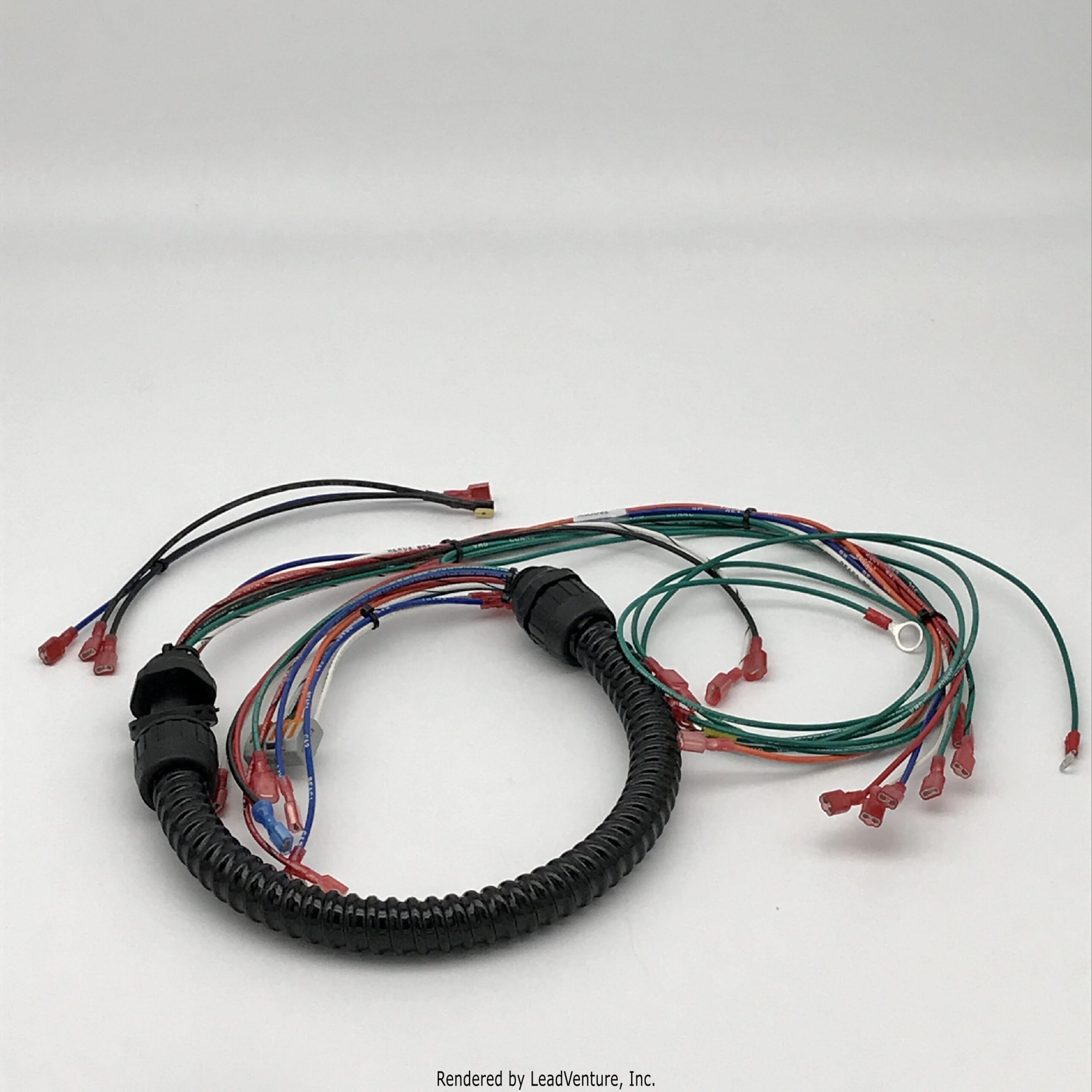

| 15 |  | Main Wiring Harness (Marathon – 800/1200) | 32221 | $412.99 |
Frequently Asked Questions
Why won’t my Tornado 98168 turn on at all?
Start at the cord and the breaker. A 14/3 x 25″ power cord that has been run over or pinched at the strain relief is the most common cause, and the 2.5A circuit breaker on this panel will trip and stay tripped if something downstream is drawing too much. If the cord tests good and the breaker resets and holds, the rocker switch is the next suspect — they fail closed or dead after enough wet-hand cycles.
How do I tell a bad switch from a bad wiring harness?
A failed switch usually kills one function — the pump or the vacuum — while everything else still runs. A harness fault more often shows up as an intermittent that changes when you move the handle or flex the loom. If wiggling the wiring changes the symptom, replace the main wiring harness rather than chasing individual switches.
Can I replace just the power cord instead of the whole panel?
Yes. The power cord is a separate serviceable part on this diagram and comes off without disturbing the switches or the harness. Replace the cable clamp at the same time if the old one is cracked — a loose clamp is what chafed the cord in the first place.
Do these control panel parts fit every series of the 98168?
This diagram is the 12-Gallon 115V build. The 98168 was produced in several series and the control panel changed in places between them — the strain relief in particular. Have your serial number handy and call 763-535-0770 and we will confirm the right part for your machine before you order.
Browse every assembly for this machine on the Tornado 98168 parts hub, or call 763-535-0770 and we will identify your part from the serial number. Twin City Vacuum, 5415 West Broadway, Crystal, MN 55428.
