Lindhaus Activa 30 Pro (Eco-Force) Vacuum Parts

Find genuine Lindhaus Activa Eco-Force replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background2. Bag Door Gasket3. Bag Door Latch4. Bag Door Spring5. Bag Housing6. Bag Housing Gasket7. Exhaust Grill Hook8. Bag Safety Support9. Strain Relief Kit10. Internal Cord 11. Antistatic Spring12. Hose Support14. Transport Handle15. Accessory Clip16. Exhaust Grill18. Motor Protection Filter19. Foam Filter20. Motor Filter21. Electric Panel Housing22. Electric Panel Cover23. Vacuum Sensor With Light24. Red Lens25. Main Switch26. Switch Button 29. Circuit Board – Variable Speed31. Terminal Block 2 Poles32. Cord Clamp33. Cord 2×17 Thin, 2 Prong, 2 Wire34. Lindhaus Handle Grip A43 DI34 DY3435. CHROMATE TUBE + HANDLE BUTTON36. BUTTON+SUPPORT+SPRING 2 POSITION37. Extension Hose With Handle Grip39. Crevice Tool40. Center Strip (Only)41. Upholstery Tool 42. Circuit Board – 3 Wire43. Vacuum Motor 120v 60 Hz 44. Motor Gasket45. Brush Holder Gasket46. Double Pulley With Ball Bearings47. Double Support48. Timing Belt49. O-Ring54. Bushing55. Support Right56. Left Support58. Housing59. Motor Housing62. Brush Pulley with Metal Insert63. Hepa Filter64. Brush Roller 30 Activia 65. Foot Pedal66. Foot Pedal Spring67. Base Lift Lever68. Base Housing69. Rear Wheel Assembly70. Adjusting Knob71. Brush Height Adjuster72. Side Cover73. Roller Support74. O-Ring75. Wheel Support76. Roller Cover Clip77. Front Wheel 78. Front Axle79. Channel Cover80. Roller Cover81. Rear Bumper82. Front Bumper83. Natural Bristle Brush Only84. Rubber Tube 85. Electric Panel Cap86. Trans Support With Sensor87. Grill Complete89. Handle Tube Assembly90. Bag Housing Cover92. Screw 3.5 X 9.5 TG Pack of 2093. Screw95. Screws 4.8 X 13 TG96. Screw 3.5MM X 32mm97. Screw 3.9 X 1998. SCREW 3.9 X 13 PACK OF 20100. SCREW 3.9 X 25101. Screw 2.9 X 16 Pack of 20102. Shaft 5 X 28 Pack Of 20103. Speed Sensor104. Cord 3 Wires105. Lens Set, Red and Green106. Spacer Cord Hook108. SCREW 3.9 X 13 TG PACK OF 20110. Kit Motor Gasket112. Bushing (Motor Gasket)113. Cord W/ Thermal Protect (New Motor)

The parts table below covers the complete Lindhaus Activa Eco-Force upright vacuum, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice
2Bag Door GasketBag Door Gasket011760315$6.20
3Lindhaus Bag Door Latch 004491201 part number 004491201Bag Door Latch004491201$6.20
4Bag Door SpringBag Door Spring012370009$1.20
5Bag HousingBag Housing004451201$148.00
6Bag Housing GasketBag Housing Gasket085620000$0.80
7Exhaust Grill HookExhaust Grill Hook004581304$5.00
8Bag Safety SupportBag Safety Support004571304$7.40
9Strain Relief KitStrain Relief Kit085450081$9.00
10Internal CordInternal Cord022170028$10.00
11Antistatic SpringAntistatic Spring012350009$10.00
12Hose SupportHose Support004540104$10.00
14Transport HandleTransport Handle004560104$10.00
15Accessory ClipAccessory Clip004550104$4.20
16Exhaust GrillExhaust Grill003360100$12.40
18Motor Protection FilterMotor Protection Filter012330316$2.80
19Foam FilterFoam Filter012540016$3.20
20Motor FilterMotor Filter010910016$4.80
21Electric Panel HousingElectric Panel Housing004511201$45.60
22Electric Panel CoverElectric Panel Cover004501201$24.60
23Vacuum Sensor With LightVacuum Sensor With Light022150000$23.00
24Red LensRed Lens004610835$3.20
25Main SwitchMain Switch022140000$15.80
26Switch ButtonSwitch Button—Call 763-535-0770 to order
29Circuit Board - Variable SpeedCircuit Board – Variable Speed020800000$58.00
31Terminal Block 2 PolesTerminal Block 2 Poles020040400$1.60
32Cord ClampCord Clamp000070305$1.00
33Cord 2x17 Thin, 2 Prong, 2 WireCord 2×17 Thin, 2 Prong, 2 Wire021950320$53.80
34Lindhaus Handle Grip (Only) 085461281 part number 085461281Lindhaus Handle Grip A43 DI34 DY34085461281$29.00
35CHROMATE TUBE + HANDLE BUTTONCHROMATE TUBE + HANDLE BUTTON085520081$26.00
36BUTTON+SUPPORT+SPRING 2 POSITIONBUTTON+SUPPORT+SPRING 2 POSITION084520081$7.40
37Extension Hose With Handle GripExtension Hose With Handle Grip086640381$63.20
39Crevice ToolCrevice Tool030060310$4.60
40Center Strip (Only)Center Strip (Only)030740300$3.40
41Upholstery ToolUpholstery Tool—Call 763-535-0770 to order
42Circuit Board - 3 WireCircuit Board – 3 Wire023020000$70.00
43Lindhaus Activa vacuum motor part number 051650080Vacuum Motor 120v 60 Hz051650080$178.00
44Motor GasketMotor Gasket005100308$19.80
45Brush Holder GasketBrush Holder Gasket086630381$11.20
46Double Pulley With Ball BearingsDouble Pulley With Ball Bearings086430081$29.80
47Double SupportDouble Support012410029$7.40
48Timing BeltTiming Belt012440300$16.00
49O-RingO-Ring012480307$0.70
54BushingBushing004440036$7.40
55Support RightSupport Right—Call 763-535-0770 to order
56Left SupportLeft Support004370304$9.00
58HousingHousing—Call 763-535-0770 to order
59Motor HousingMotor Housing086791281$77.80
62Brush Pulley with Metal InsertBrush Pulley with Metal Insert086160381$9.40
63Hepa FilterHepa Filter030720100$45.20
64Brush Roller 30 ActiviaBrush Roller 30 Activia087570301$38.00
65Lindhaus Foot Pedal 004341205 part number 004341205Foot Pedal004341205$16.00
66Foot Pedal SpringFoot Pedal Spring012380009$1.60
67Base Lift LeverBase Lift Lever012400029$11.00
68Base HousingBase Housing086410301$60.20
69Lindhaus Rear Wheel Assembly 085490081 part number 085490081Rear Wheel Assembly085490081$20.60
70Lindhaus Adjusting Knob 003751204 part number 003751204Adjusting Knob003751204$10.40
71Brush Height AdjusterBrush Height Adjuster000990305$7.40
72Side CoverSide Cover004251204$10.00
73Roller SupportRoller Support085650081$28.80
74O-RingO-Ring012480307$0.70
75Wheel SupportWheel Support081940081$19.80

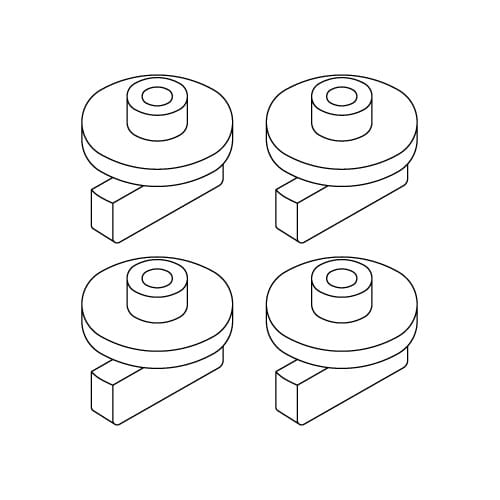

76Roller Cover ClipRoller Cover Clip004271304$14.60
77Front WheelFront Wheel002260000$5.60
78Front AxleFront Axle012390029$23.20

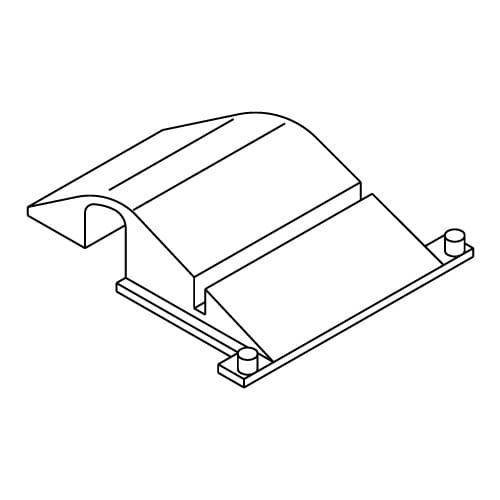

79Channel CoverChannel Cover004241204$6.60
80Lindhaus Activa Roller Cover 30 - 004220333 part number 004220333Roller Cover004220333$38.20
81Lindhaus Rear Bumper 38 004310112 part number 004310112Rear Bumper004310112$3.20
82Lindhaus Front Bumper 30 004290112 part number 004290112Front Bumper004290112$12.80
83Natural Bristle Brush OnlyNatural Bristle Brush Only030900300$7.20
84Rubber TubeRubber Tube085510000$1.40
85Electric Panel CapElectric Panel Cap004641201$1.40

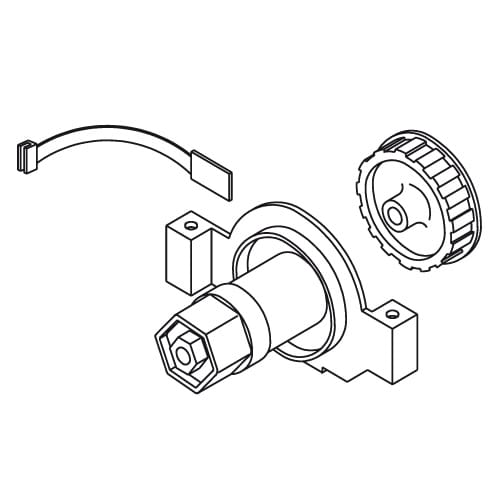

86Trans Support With SensorTrans Support With Sensor085920081$79.20
87Grill CompleteGrill Complete085440081$24.60
89Handle Tube AssemblyHandle Tube Assembly085251281$73.80

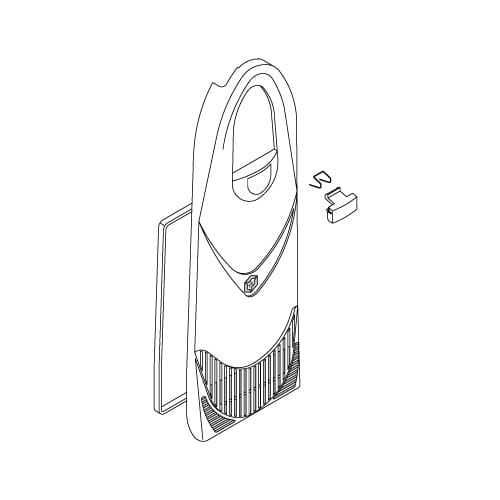

90Bag Housing CoverBag Housing Cover085330201$104.00
92Screw 3.5 X 9.5 TG Pack of 20Screw 3.5 X 9.5 TG Pack of 20085540009$8.00
93ScrewScrew085550009$8.00
95Screws 4.8 X 13 TGScrews 4.8 X 13 TG085640009$8.00
96Screw 3.5MM X 32mmScrew 3.5MM X 32mm—$7.00
97Screw 3.9 X 19Screw 3.9 X 19085580009$7.40
98SCREW 3.9 X 13 PACK OF 20SCREW 3.9 X 13 PACK OF 20085590009$9.60
100SCREW 3.9 X 25SCREW 3.9 X 25085550009$8.00
101Screw 2.9 X 16 Pack of 20Screw 2.9 X 16 Pack of 20085530009$6.80
102Shaft 5 X 28 Pack Of 20Shaft 5 X 28 Pack Of 20085960009$9.60
103Speed SensorSpeed Sensor022490000$21.60
104Cord 3 WiresCord 3 Wires022220028$11.60
105Lens Set, Red and GreenLens Set, Red and Green083010000$6.20
106Spacer Cord HookSpacer Cord Hook005030004$3.70
108Lindhaus Screw 3,9x13 TG (Pk 20pcs.) 086450009 part number 086450009SCREW 3.9 X 13 TG PACK OF 20086450009$9.60
110Kit Motor GasketKit Motor Gasket086290081$29.20
112Bushing (Motor Gasket)Bushing (Motor Gasket)—$25.95
113Cord W/ Thermal Protect (New Motor)Cord W/ Thermal Protect (New Motor)022640028$14.60

Additional Compatible Parts

These genuine Lindhaus Activa Eco-Force parts fit this machine but their exact schematic callout number isn’t confirmed. Call 763-535-0770 for help matching one to your diagram.

ImagePart DescriptionPart NumberPriceNote

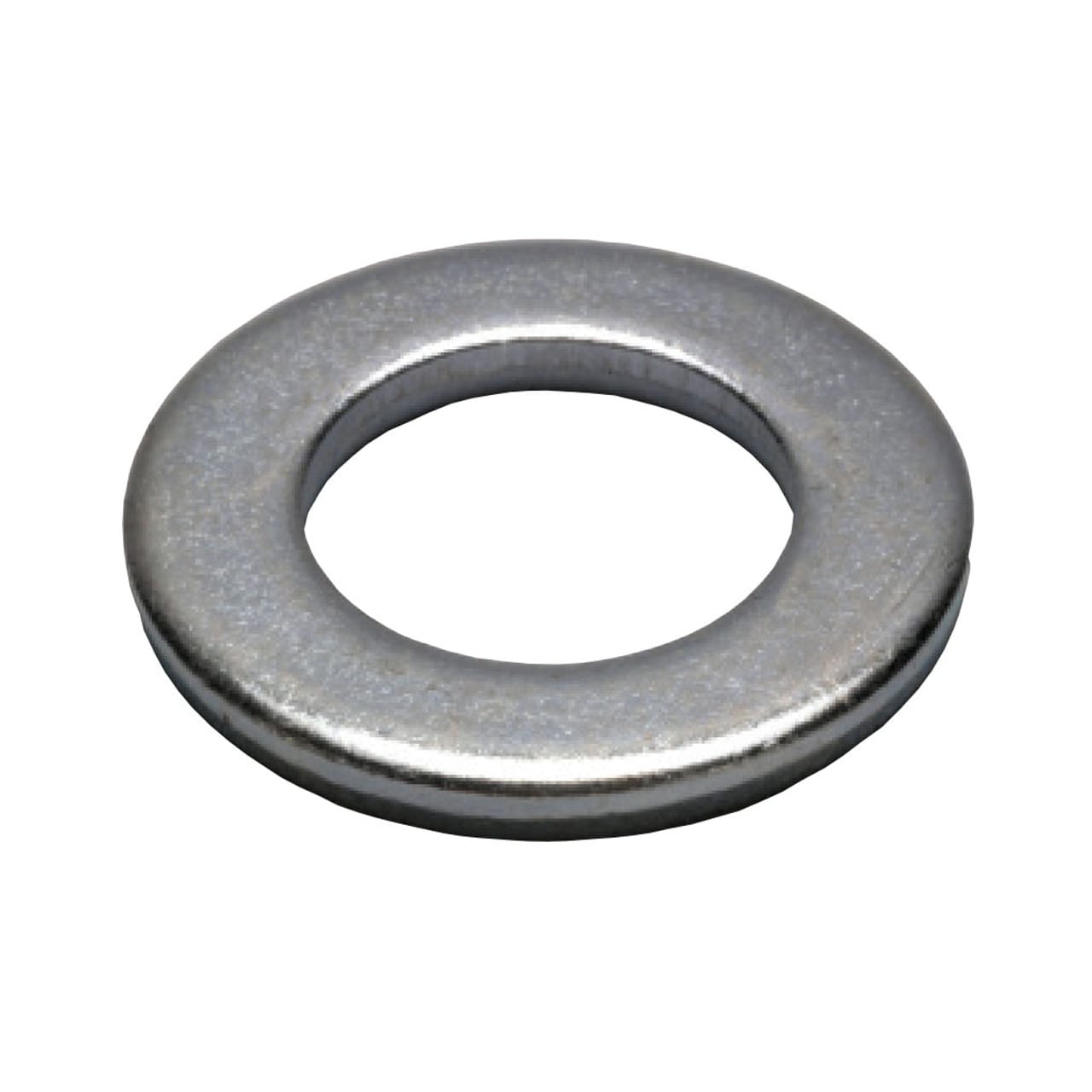

Washer (Pack of 20)086460009$3.20On diagram — callout number not marked
Drive Joint Clutch Kit085420000$19.20Diagram callout needs confirmation (was mis-tagged #98)

Lindhaus Activa Eco-Force Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus Activa Eco-Force schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number? Call 763-535-0770 with your model.

What are the most common Lindhaus Activa Eco-Force replacement parts?

The brushroll, brush belt, HEPA and exhaust filters, and cloth/paper bags are the most frequently replaced wear items. Base plates, roller covers, bumpers and switches are next most common — all listed above by schematic number.

Do Lindhaus Activa Eco-Force parts fit other Lindhaus models?

Some do — Activa shares certain belts, brushrolls, filters, bags and hardware with the Diamante and Dynamic uprights, but many parts are model-specific. See the original Activa parts. Confirm by part number before ordering, or call us.

How do I order a Lindhaus Activa Eco-Force part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus Activa Eco-Force.

Looking for the original generation? Browse the Lindhaus Activa parts, all Lindhaus vacuum parts, or the Lindhaus Activa parts hub.
