Lindhaus CH Pro Vacuum Body Parts

Find genuine Lindhaus CH Pro (body) replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

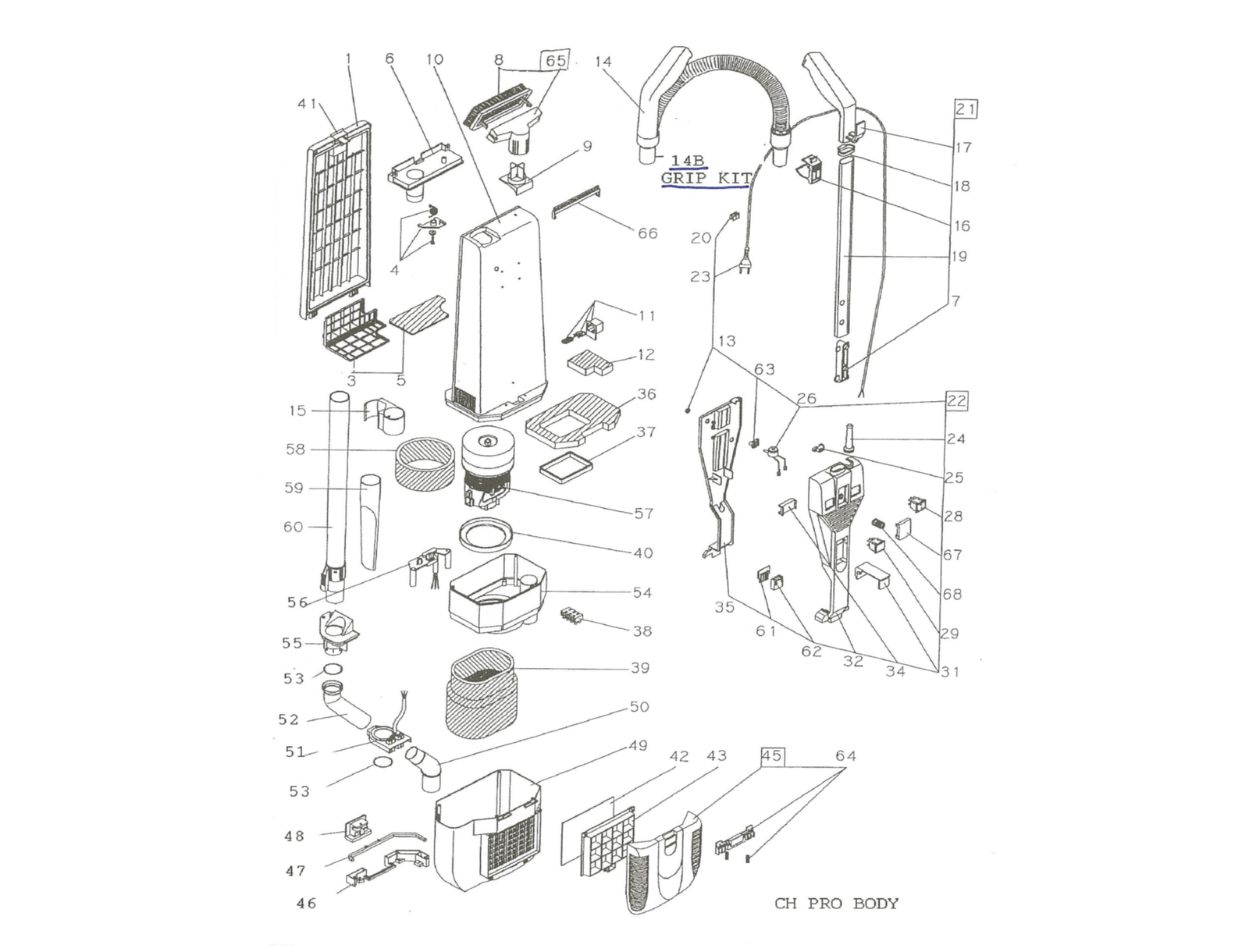

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background1. Bag Housing Cover – 0801702813. Filter Holder – 0001603044. Safety Support Kit (4 Pcs) – 0845800815. CH Pro Filter, Internal Foam – 0114103166. Bag Entrance With Safety Support – 0843700817. Button+support+spring 2 Position – 0845200818. Upholstery Tool, Natural Bristle Brush [only] – 0309003009. Dust Brush Support – 00183020510. Bag Housing Complete / Old Motor – 08319028111. Relief Valve Kit (2 Pcs) – 08079008112. Valve Filter – 01105001613. O-ring – 01026030714. Extension Hose With Handle Grip (D.38mm 1-1/2") [standard] – 08667038115. Wand / Crevice Tool Clip – 00273010416. Upper Hose Hook For Flexible Hose – 00195011017. Handle Grip (Only) – 08077018118. Retainer – 00287010519. Chromate Tube – 2 Position With Button Lock – 08459008120. Cord Clip (Cord To Cord) – 00168030421. Handle Tube Assembly 2 Position [complete] – 08441018122. Electric System Assembly / 3-way Switch – 08349228023. Cord 3×18 12.5 Mt. Usa Plug Yellow (3 Prong / 41 Ft) – 02248002024. Strain Relief V.100/120 D.8 – 01083030725. Cord Clamp – 00007030526. Vacuum Sensor – 02134000028. Main Switch 15A 3 Way – 02105030029. Indicator Light – 02002000031. LOWER CORD HOOK MEDIUM GREY – 00188010532. Handle Cover Without Electronic – 08661028134. Comb Wire Holder – 00198030635. Frame Handle – 00190020136. Filter, Foam Upper – 01020001638. Terminal Block 4 Poles – 02079040040. Motor Gasket – 00020030841. Bag Door Latch + Spring – 08272028142. Exhaust Microfilter (12 Pack) – 08535008143. Exhaust Grill – 00336010045. Front Grill [includes #64 Bottom Cover Kit] – 08363228146. Blocking Joint Pin Support – 00398013347. Joint Pin Blocking – 01084000948. Control Pin Slide – 00150010549. . Vacuum Motor Housing – 00330023350. Lower Curve – 00176033151. Curve Support 3 Wires – 08461008052. Upper Curve – 00175033154. Inner Vacuum Motor Housing – 08462018155. Hose Inlet – 00397013356. . Motor Clamp Without Electronic 4 Wires – 08350008057. Vacuum Motor R26apss (He) V.120/60 W.750 – 05135008058. Filter, Foam Motor – 01022001660. Telescopic Wand (D.38mm 1-1/2") – 03055030061. Contact Housing Cover – 00248000362. 4 Contact Housing – 00240000363. Vacuum Sensor Adaptor – 00323000164. Botton Cover Kit (1 Pc) – 08444018165. Upholstery Tool With Natural Bristle [complete] (D.38mm 1-1/2") [standard] – 03111030066. Upholstery Tool, Black Center Strip Brush [only] – 03074030067. Button Dark Grey – 00520010168. Handle Spring – 012980009

The parts table below covers the body of the Lindhaus CH Pro upright vacuum, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice
1Bag Housing Cover - 080170281Bag Housing Cover – 080170281080170281$88.32
3Lindhaus RX Hepa Filter Holder part number 000160304Filter Holder – 000160304000160304$12.96
4Safety Support Kit (4 Pcs) - 084580081Safety Support Kit (4 Pcs) – 084580081084580081$12.00

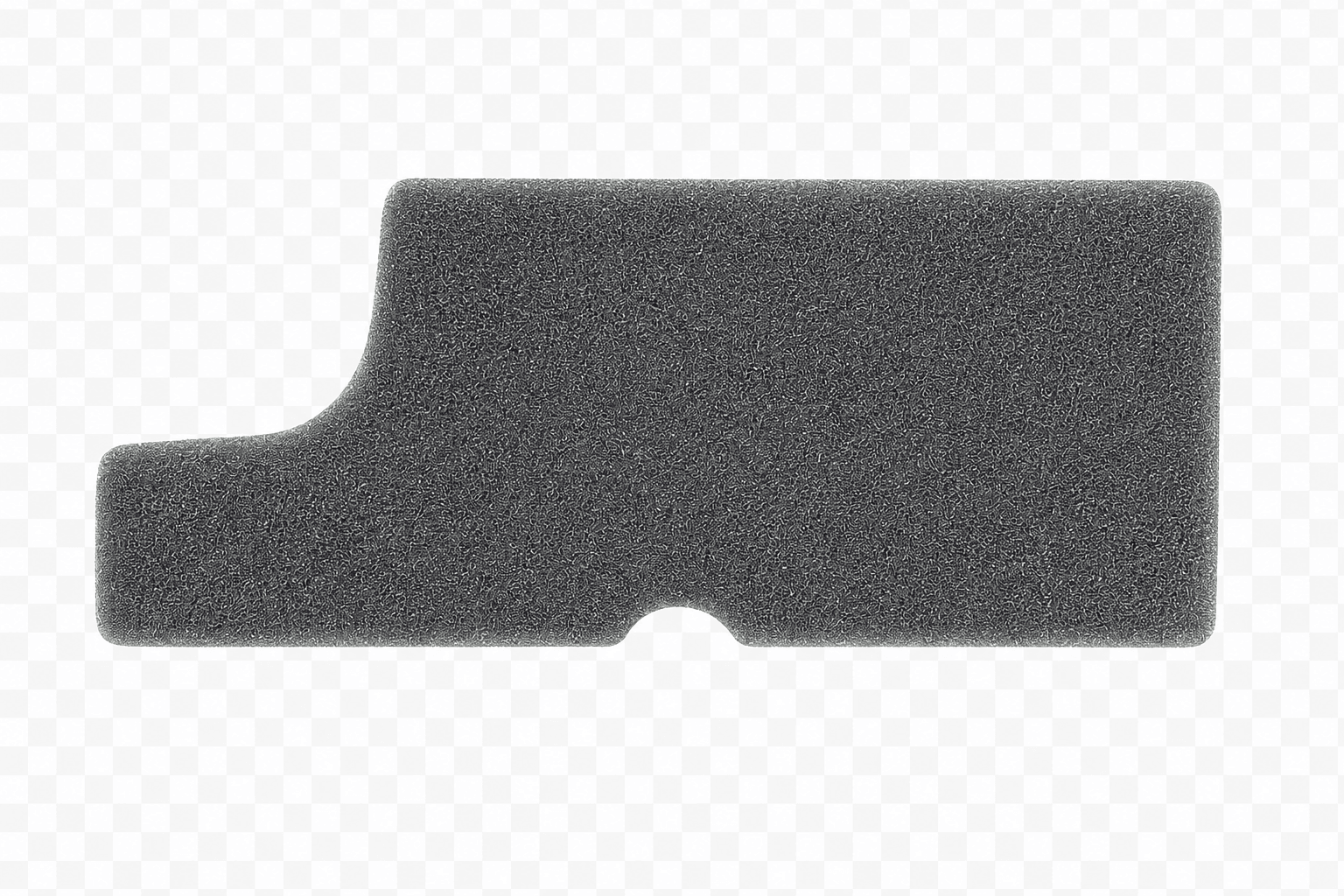

5Lindhaus CH Pro Filter, Internal Foam - 011410316Lindhaus CH Pro Filter, Internal Foam – 011410316011410316$2.20
6Bag Entrance With Safety Support - 084370081Bag Entrance With Safety Support – 084370081084370081$55.44
7Button+support+spring 2 Position - 084520081Button+support+spring 2 Position – 084520081084520081$7.46
8Upholstery Tool, Natural Bristle Brush [only] - 030900300Upholstery Tool, Natural Bristle Brush [only] – 030900300030900300$7.28
9Dust Brush Support - 001830205Dust Brush Support – 001830205001830205$4.16
10Bag Housing Complete / Old Motor - 083190281Bag Housing Complete / Old Motor – 083190281083190281From $118.00

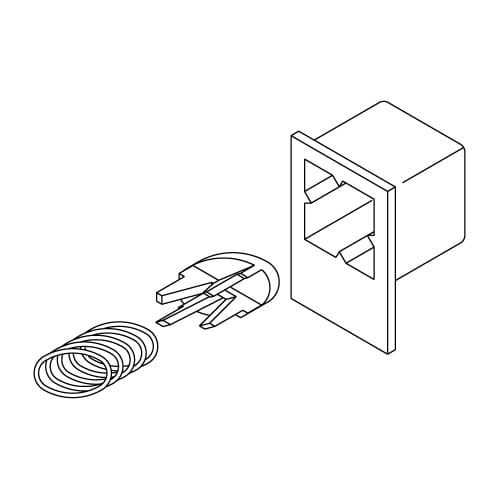

11Relief Valve Kit (2 Pcs) - 080790081Relief Valve Kit (2 Pcs) – 080790081080790081$12.20
12Valve Filter - 011050016Valve Filter – 011050016011050016$1.80
13O-ring - 010260307O-ring – 010260307010260307$0.72
14Extension Hose With Handle Grip (D.38mm 1-1/2") [standard] - 086670381Extension Hose With Handle Grip (D.38mm 1-1/2") [standard] – 086670381086670381$62.60
15Wand / Crevice Tool Clip - 002730104Wand / Crevice Tool Clip – 002730104002730104$14.72
16Upper Hose Hook For Flexible Hose - 001950110Upper Hose Hook For Flexible Hose – 001950110001950110$12.20
17Handle Grip (Only) - 080770181Handle Grip (Only) – 080770181080770181$22.40
18Retainer - 002870105Retainer – 002870105002870105$2.24
19Chromate Tube - 2 Position With Button Lock - 084590081Chromate Tube – 2 Position With Button Lock – 084590081084590081$31.60
20Cord Clip (Cord To Cord) - 001680304Cord Clip (Cord To Cord) – 001680304001680304$0.74
21Handle Tube Assembly 2 Position [complete] - 084410181Handle Tube Assembly 2 Position [complete] – 084410181084410181$75.80
22Electric System Assembly / 3-way Switch - 083492280Electric System Assembly / 3-way Switch – 083492280083492280$179.80
23Cord 3x18 12.5 Mt. Usa Plug Yellow (3 Prong / 41 Ft) - 022480020Cord 3×18 12.5 Mt. Usa Plug Yellow (3 Prong / 41 Ft) – 022480020022480020$81.60
24Strain Relief V.100/120 D.8 - 010830307Strain Relief V.100/120 D.8 – 010830307010830307$5.04
25Cord Clamp - 000070305Cord Clamp – 000070305000070305$1.00
26Vacuum Sensor - 021340000Vacuum Sensor – 021340000021340000$23.80
28Lindhaus 3-way main switch for CH Pro, CH Pro Eco-Force, Diamante and Health Care Pro part number 021050300Main Switch 15A 3 Way – 021050300021050300$12.40

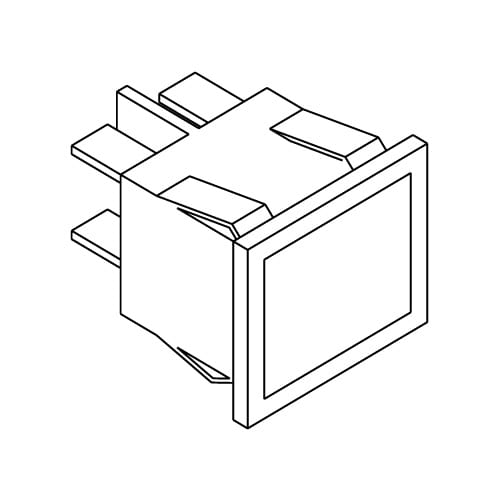

29Indicator Light - 020020000Indicator Light – 020020000020020000$8.08
31LOWER CORD HOOK MEDIUM GREY - 001880105LOWER CORD HOOK MEDIUM GREY – 001880105001880105$6.22
32Lindhaus RX Hepa Handle Cover Without Electronic part number 086610281Handle Cover Without Electronic – 086610281086610281$51.82
34Comb Wire Holder - 001980306Comb Wire Holder – 001980306001980306$1.56
35Frame Handle - 001900201Frame Handle – 001900201001900201$35.38
36Filter, Foam Upper - 010200016Filter, Foam Upper – 010200016010200016$2.62
38Lindhaus Terminal Block 4 Poles part number 020790400Terminal Block 4 Poles – 020790400020790400$3.10
40Motor Gasket - 000210308Motor Gasket – 000210308000200308$13.86
41Lindhaus RX Hepa Bag Door Latch + Spring part number 082720281Bag Door Latch + Spring – 082720281082720281$14.00
42Exhaust Microfilter (12 Pack) - 085350081Exhaust Microfilter (12 Pack) – 085350081085350081$56.00
43Exhaust GrillExhaust Grill003360100$12.42
45Lindhaus RX Hepa Front Grill part number 083632281Front Grill [includes #64 Bottom Cover Kit] – 083632281083632281$58.80
46Lindhaus Blocking Joint Pin Support 003980133 part number 003980133Blocking Joint Pin Support – 003980133003980133$7.46
47Joint Pin Blocking - 010840009Joint Pin Blocking – 010840009010840009$17.80
48Control Pin Slide - 001500105Control Pin Slide – 001500105001500105$11.94
49. Vacuum Motor Housing - 003960233. Vacuum Motor Housing – 003960233003300233$79.60
50Lower Curve - 001760331Lower Curve – 001760331001760331$6.64
51Curve Support 3 Wires - 084610080Curve Support 3 Wires – 084610080084610080$20.20
52Upper Curve - 001750331Upper Curve – 001750331001750331$6.64
54Inner Vacuum Motor Housing - 084620181Inner Vacuum Motor Housing – 084620181084620181$65.60

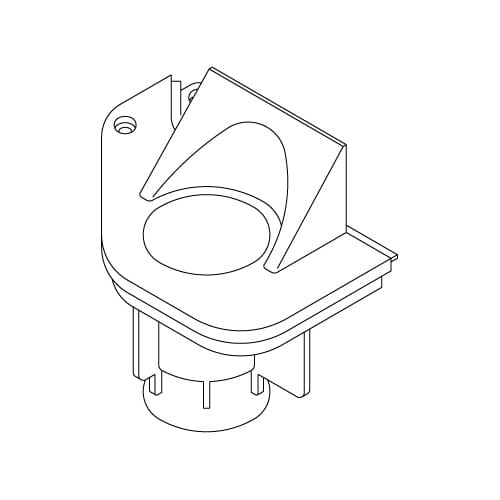

55Hose Inlet - 003970133Hose Inlet – 003970133003970133$17.40
56. Motor Clamp Without Electronic 4 Wires - 083500080. Motor Clamp Without Electronic 4 Wires – 083500080083500080$25.80
57Vacuum Motor R26apss (He) V.120/60 W.750 - 051350080Vacuum Motor R26apss (He) V.120/60 W.750 – 051350080051350080$178.00
58Filter, Foam Motor - 010220016Filter, Foam Motor – 010220016010220016$3.10
60Telescopic Wand (D.38mm 1-1/2") - 030550300Telescopic Wand (D.38mm 1-1/2") – 030550300030550300$27.80
61Contact Housing Cover - 002480003Contact Housing Cover – 002480003002480003$2.24
624 Contact Housing - 0024000034 Contact Housing – 002400003002400003$2.24
63Vacuum Sensor Adaptor - 003230001Vacuum Sensor Adaptor – 003230001003230001$0.62
64Botton Cover Kit (1 Pc) - 084440181Botton Cover Kit (1 Pc) – 084440181084440181$10.24
65Upholstery Tool With Natural Bristle [complete] (D.38mm 1-1/2") [standard] - 031110300Upholstery Tool With Natural Bristle [complete] (D.38mm 1-1/2") [standard] – 031110300031110300$19.80
66Upholstery Tool, Black Center Strip Brush [only] - 030740300Upholstery Tool, Black Center Strip Brush [only] – 030740300030740300$3.30
67Button Dark Grey - 005200101Button Dark Grey – 005200101—Call 763-535-0770 to order

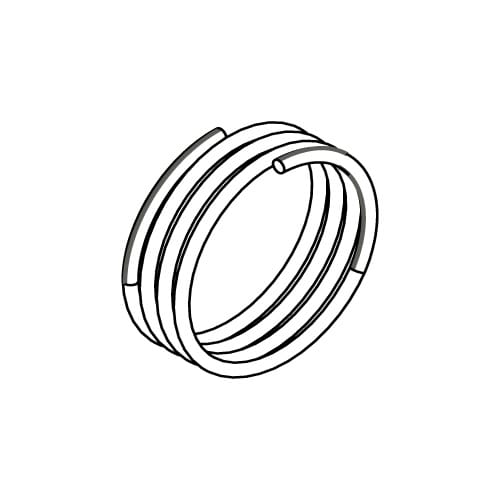

68Handle Spring - 012980009Handle Spring – 012980009012980009$1.18

Lindhaus CH Pro Body Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus CH Pro Body schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number? Call 763-535-0770 with your model.

What are the most common Lindhaus CH Pro Body parts?

The HEPA and exhaust filters, cloth/paper bags and drive belt are the most frequently replaced body parts. All are listed in the table above by schematic number.

Do original CH Pro and CH Pro Eco-Force parts interchange?

Many do — belts, brushrolls, bags and HEPA/exhaust filters generally cross over, and both machines share the same power-brush head. Some housings, base and electrical parts are generation-specific. See the CH Pro Eco-Force body parts. Confirm by part number, or call us.

How do I order a Lindhaus CH Pro part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus CH Pro.

Browse the CH Pro power brush parts, the CH Pro Eco-Force body parts, or the CH Pro parts hub.
