Lindhaus LB3 Eco-Force Parts

Find genuine Lindhaus LB3 Eco-Force replacement parts. Can’t find your part? Call us at 763-535-0770.

Click on any numbered part in the diagram below to go directly to that part’s product page.

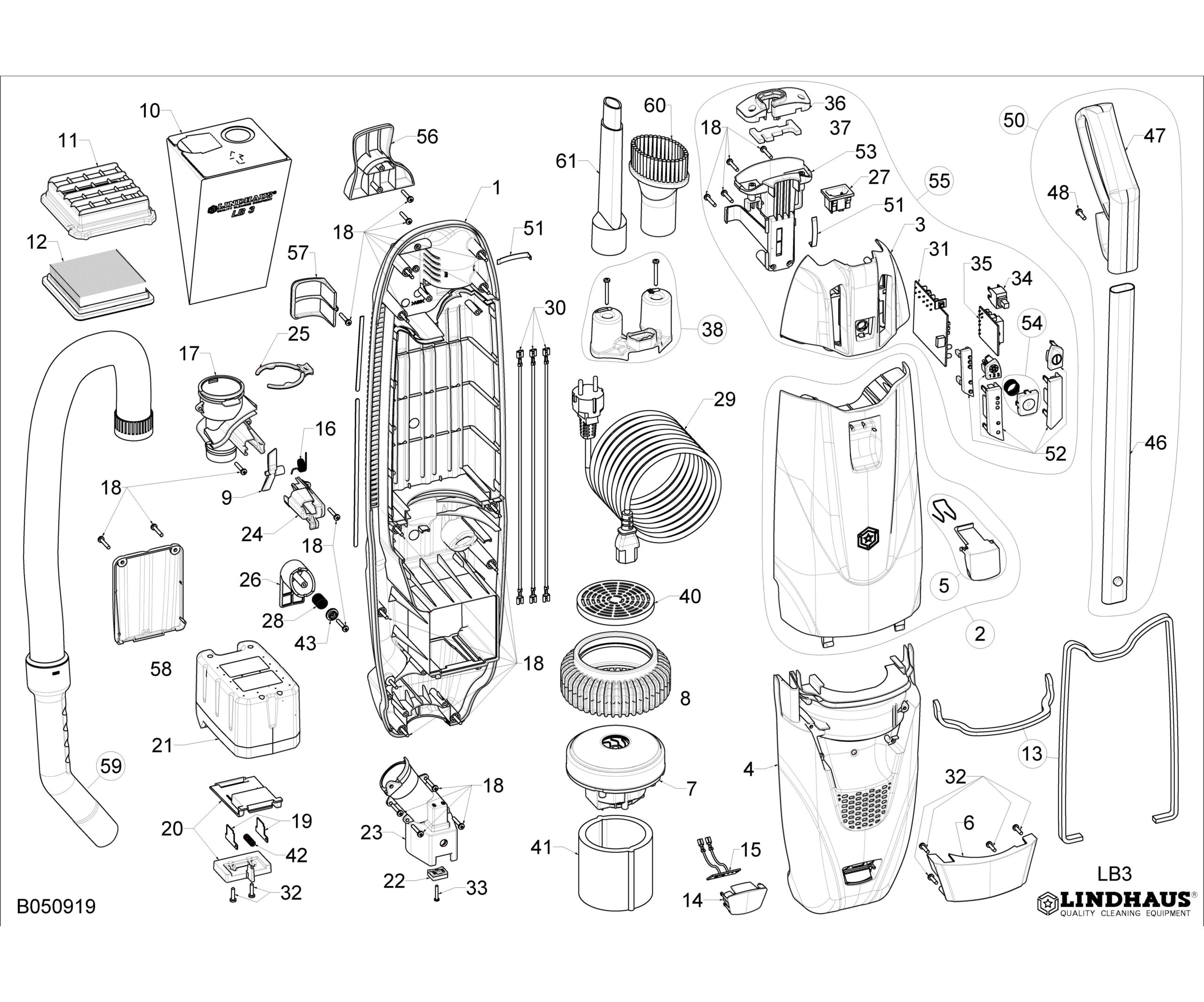

Lindhaus LB3 Eco-Force upright vacuum body parts diagram1. Bag Housing (Electric) – 1024912012. LB3 Eco-Force Bag Cover Complete Grey – 1848046813. Electric Panel Box Grey – 1014946014. LB3 Eco-Force Motor Housing Cover Grey – 1848146815. Bag Door Latch + Spring Blue – 1837038816. Central Handle Blue – 1015138017. LB3 Eco-Force Vacuum Motor R115 APS 700 W – 0520200808. Gasket Motor – 0159503009. Safety Latch (Pack of 10) – 18380138110. LB3 Microfiber Dust Bag Package (10 Bags + 1 HEPA Filter H13) – 03303000011. HEPA Filter Housing – 10172500112. HEPA Filter LB3 H13 – 03277000013. Gasket 5×9 (1 m) – 18243008114. LED Cover Blue – 10157380116. Spring Safety Latch (Pack of 10) – 18381000917. Bag Support – 18456038118. Screw 3.9×22 (Pack of 20) – 08726000922. Contact Retainer (Pack of 10) – 18382038123. Connector Nozzle – 10159030624. Bag Holder – 10153460125. Hose Retainer – 10170130026. Lower Cord Hook – 00497460127. Power Inlet Connector Black 3 Way – 02524030028. Spring Lower Cord Hook (Pack of 10) – 18383000929. Cord 3×18 12.5 m Yellow – 02418002030. LB3 Eco-Force Wires Kit – 18482008032. Screw 3.5×16 (Pack of 20) – 08705000933. Screw 2.9×16 (Pack of 20) – 08561000934. Main Switch – 02214000036. Plug Retainer – 10160120138. Accessories Holder Kit – 18372128140. Motor Protection Grill – 10173500143. Clip Spring Ring – 00141120146. Chromate Tube + Handle Button – 08552008147. Handle Grip Blue – 08546388148. Screw 3.9×16 (Pack of 20) – 08556000950. Handle Tube Assembly Blue – 08525388152. LB3 Eco-Force Buttons/Lens Kit – 18483008153. Wand Support – 10175030154. Handle Button Blue + Spring Kit – 18377388156. Top Hose Holder – 10155120157. Side Hose Holder – 10156120158. Closing Door – 10168120159. Extension Hose – 18378008160. Round Dusting Brush – 03146031061. Telescopic Crevice Tool – 00342030463. Foam Motor Filter – 01179001664. Vacuum Sensor Plate – 10226410165. Vacuum Sensor – 02459000066. Main Switch 10A – 022600300

This is the body of the corded Lindhaus LB3 Eco-Force commercial upright, numbered to match the current Lindhaus drawing above: the R115 APS vacuum motor and its gasket, the motor protection grill, the grey bag housing, bag cover, electric panel box and motor housing cover, the bag support and bag holder, the blue bag door latch and its spring, the HEPA filter housing and H13 HEPA filter, the microfiber bag package, the main switch, wires kit and power inlet connector, the yellow 12.5 m cord and its lower cord hook, the handle tube, grip and chromate tube, the hose holders, extension hose and on-board tools, and the screws, clips and retainers that hold it together. The M30 and M38 power nozzles have their own drawings, linked below. Callout 55 is printed on the drawing, but Lindhaus lists no part under that number for the Eco-Force. Twin City Vacuum has been selling and servicing Lindhaus equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.

#ImagePart DescriptionPart NumberPrice

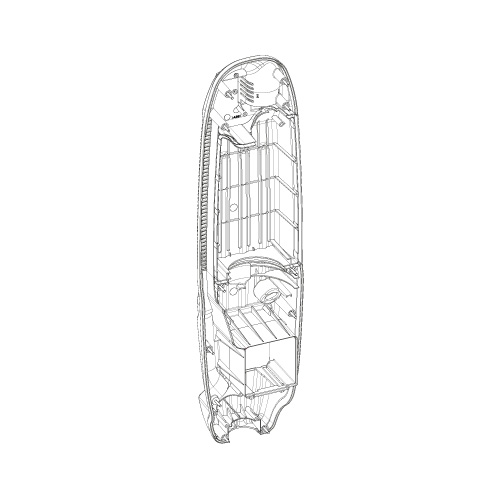

1Lindhaus Bag Housing part number 102491201Bag Housing (Electric)102491201$158.00
2Lindhaus LB3 Eco-Force Bag Cover Complete Grey part number 184804681LB3 Eco-Force Bag Cover Complete Grey184804681$124.98

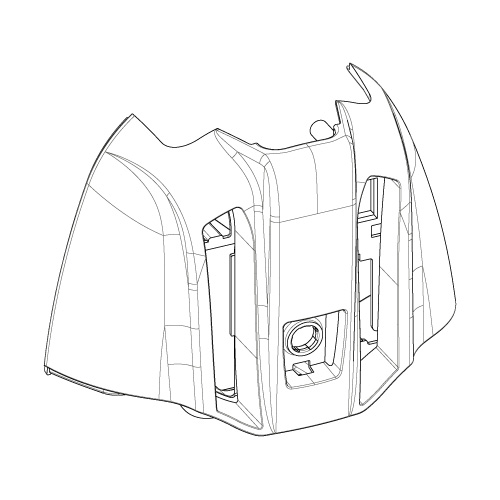

3Lindhaus LB3 Electric and LB3 L-ion Electric Panel Box part number 101494601Electric Panel Box Grey101494601$44.88
4Lindhaus LB3 Eco-Force Motor Housing Cover Grey part number 184814681LB3 Eco-Force Motor Housing Cover Grey184814681$131.56

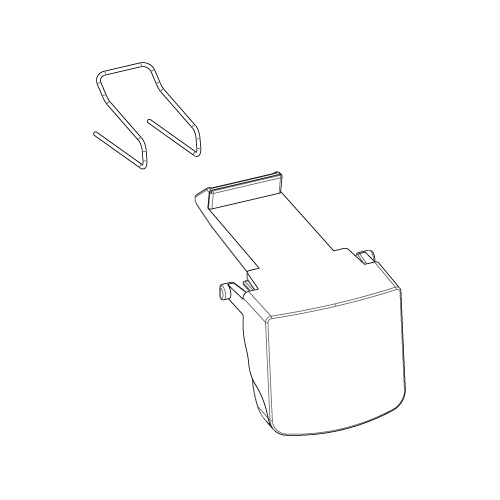

5Lindhaus LB3 Electric and LB3 L-ion Bag Door Latch Kit part number 183703881Bag Door Latch + Spring Blue183703881$22.96

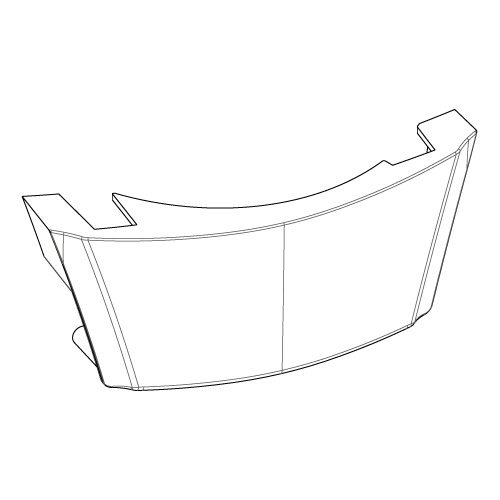

6Lindhaus Central Handle part number 101513801Central Handle Blue101513801$29.56
7Lindhaus LB3 Eco-Force Vacuum Motor R115 APS 700 W part number 052020080LB3 Eco-Force Vacuum Motor R115 APS 700 W052020080$178.00

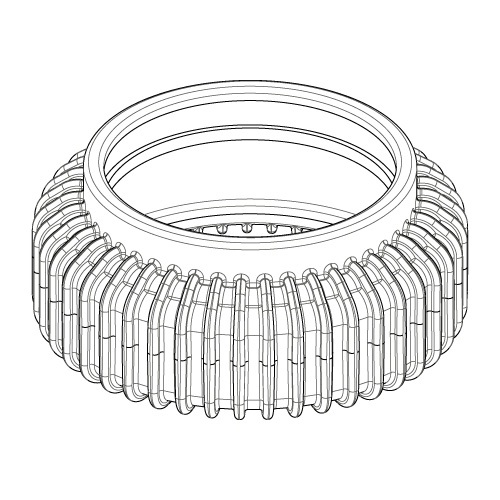

8Lindhaus Gasket Motor part number 015950300Gasket Motor015950300$24.00

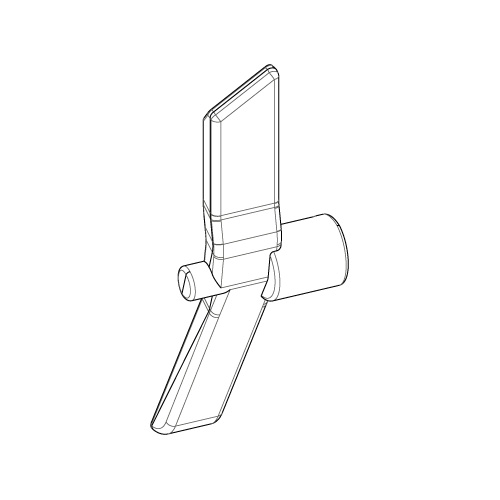

9Lindhaus Safety Latch Pack of 10 part number 183801381Safety Latch (Pack of 10)183801381$39.60
10Lindhaus HEPA cloth bags 033030000, 10 pack with HEPA filter, for Valzer, LB3 and KarismaLB3 Microfiber Dust Bag Package (10 Bags + 1 HEPA Filter H13)033030000$47.60
11Lindhaus HEPA Filter Housing part number 101725001HEPA Filter Housing101725001$15.80

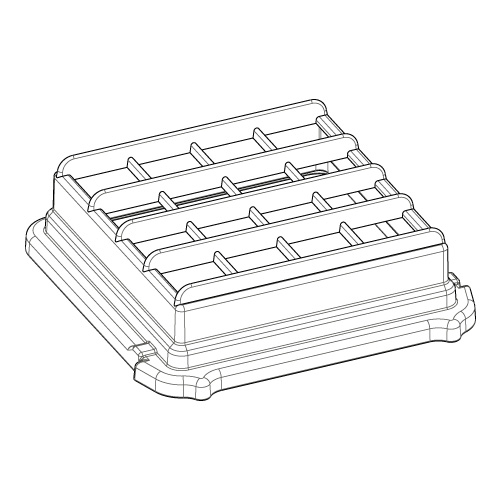

12Hepa Filter Lb3 part number 032770000HEPA Filter LB3 H13032770000$45.20
13Lindhaus Gasket Kit part number 182430081Gasket 5×9 (1 m)182430081$7.92

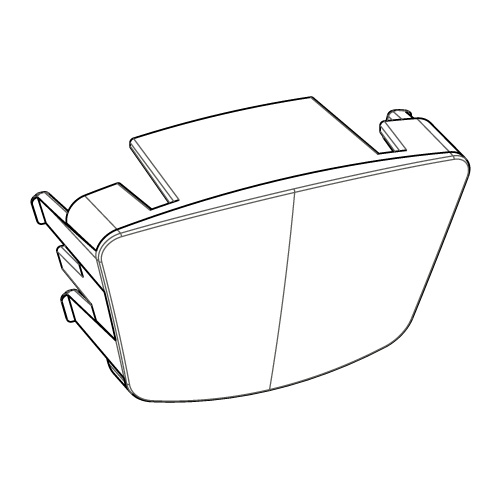

14Lindhaus Led Cover part number 101573801LED Cover Blue101573801$5.52
16Lindhaus L-ion Valzer Eco Green Spring Safety Latch (Pack of 10) part number 183810009Spring Safety Latch (Pack of 10)183810009$47.56
17Lindhaus L-ion Valzer Eco Green Bag Support part number 184560381Bag Support184560381$36.94
18Lindhaus Screw 3.9x22 087260009 part number 087260009Screw 3.9×22 (Pack of 20)087260009$8.08
22Lindhaus L-ion Valzer Eco Green Contact Retainer (Pack of 10) part number 183820381Contact Retainer (Pack of 10)183820381$33.90
23Lindhaus Valzer, Valzer L-ion, LB3 Electric and LB3 L-ion connector nozzle part number 101590306Connector Nozzle101590306$23.80

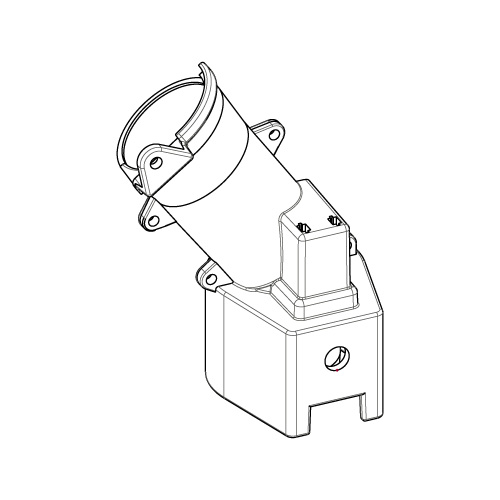

24Lindhaus Bag Holder part number 101534601Bag Holder101534601$10.04

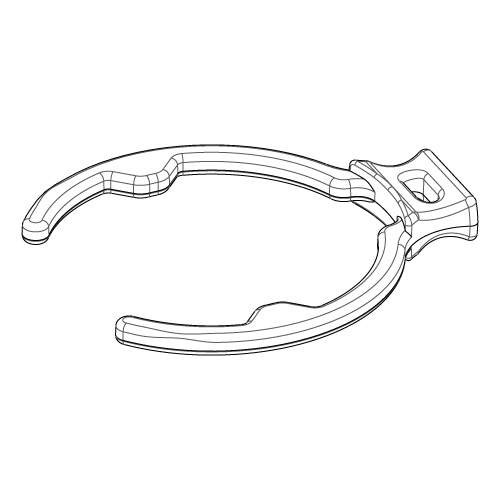

25Lindhaus Hose Retainer part number 101701300Hose Retainer101701300$2.88

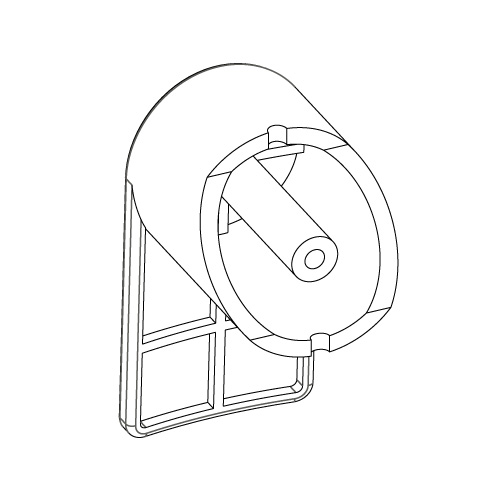

26Lindhaus Lower Cord Hook part number 004974601Lower Cord Hook004974601$9.60
27Lindhaus Power Inlet Connector Black 3 Way part number 025240300Power Inlet Connector Black 3 Way025240300$14.40
28Lindhaus L-ion Valzer Eco Green Spring Lower Cord Hook (Pack of 10) part number 183830009Spring Lower Cord Hook (Pack of 10)183830009$9.10
29Lindhaus Cord 3x18 12,5 Mt. Usa Plug Yellow part number 024180020Cord 3×18 12.5 m Yellow024180020$100.80
30Lindhaus LB3 Eco-Force Wires Kit part number 184820080LB3 Eco-Force Wires Kit184820080$18.22
32Lindhaus Screw 3.5x16 087050009 part number 087050009Screw 3.5×16 (Pack of 20)087050009$6.60
33Lindhaus Screw 2.9 x 16 (Pack of 20) 085610009 part number 085610009Screw 2.9×16 (Pack of 20)085610009$8.64
34Lindhaus Main Switch 022140000 part number 022140000Main Switch022140000$15.80

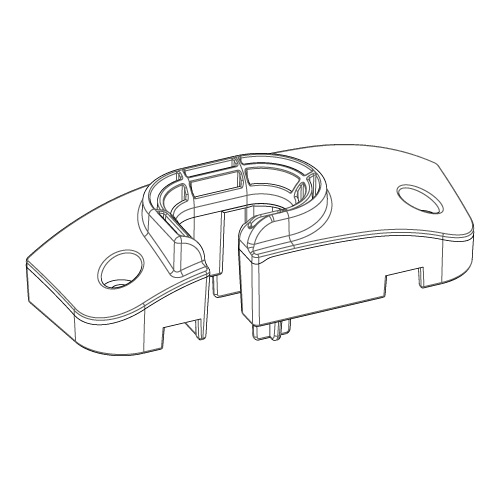

36Lindhaus Plug Retainer part number 101601201Plug Retainer101601201$10.00
38Lindhaus Accessories Holder Kit part number 183721281Accessories Holder Kit183721281$19.80

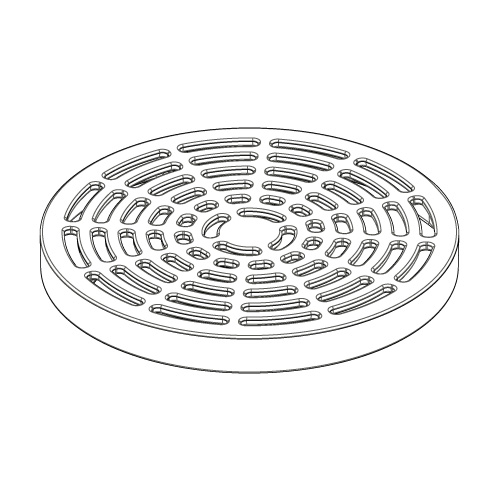

40Lindhaus Motor Protection Grill part number 101735001Motor Protection Grill101735001$9.60
43Lindhaus Clip Spring Ring part number 001411201Clip Spring Ring001411201$1.20

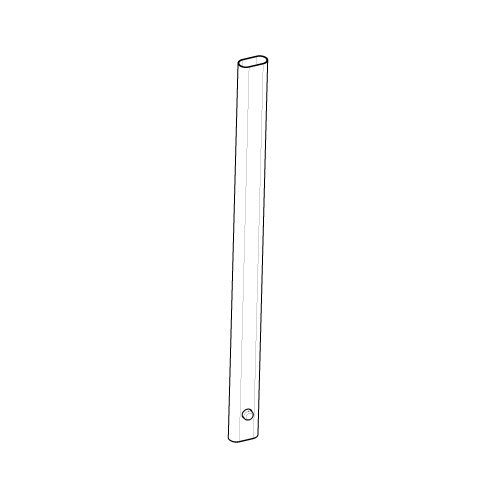

46Lindhaus Cromate Tube + Handle Button 085520081 part number 085520081Chromate Tube + Handle Button085520081$26.00
47Lindhaus Handle Grip Blue part number 085463881Handle Grip Blue085463881$33.12

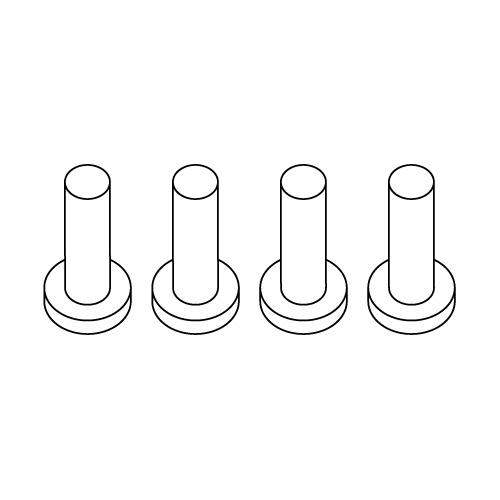

48Lindhaus Screw 3.9 x 16 085560009 part number 085560009Screw 3.9×16 (Pack of 20)085560009$7.54
50Lindhaus Dynamic Eco-Force Handle Tube Assembly Blue 085253881Handle Tube Assembly Blue085253881$79.60
52Lindhaus LB3 Eco-Force Buttons/Lens Kit part number 184830081LB3 Eco-Force Buttons/Lens Kit184830081$23.52

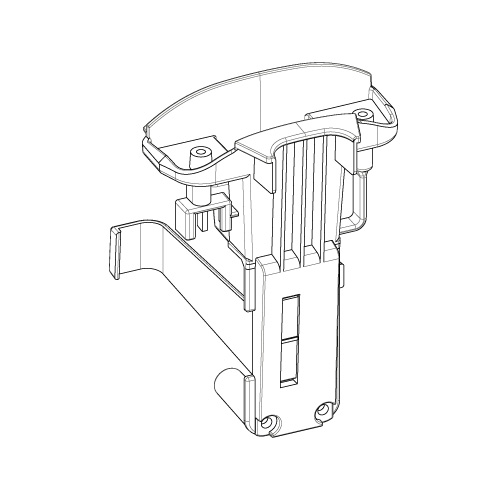

53Lindhaus Wand Support part number 101750301Wand Support101750301$19.60

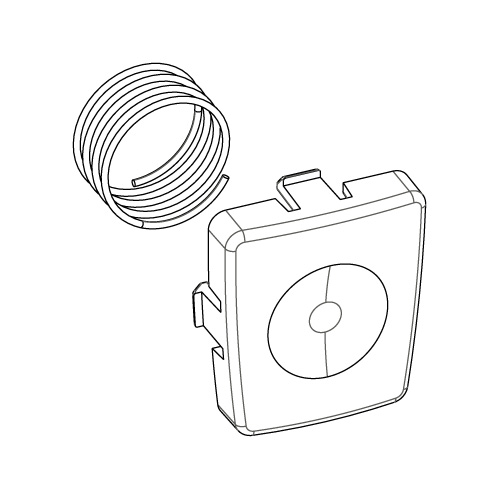

54Lindhaus Handle Button+Spring Kit part number 183773881Handle Button Blue + Spring Kit183773881$19.80
55Printed on the drawing; Lindhaus lists no part number for this callout on the LB3 Eco-Force.
56Lindhaus Top Hose Holder part number 101551201Top Hose Holder101551201$15.18

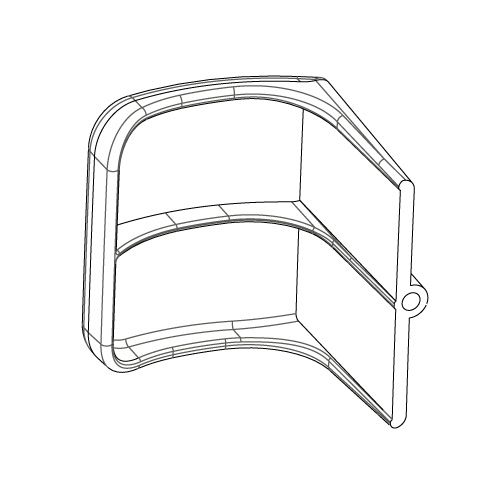

57Lindhaus Side Hose Holder part number 101561201Side Hose Holder101561201$13.20

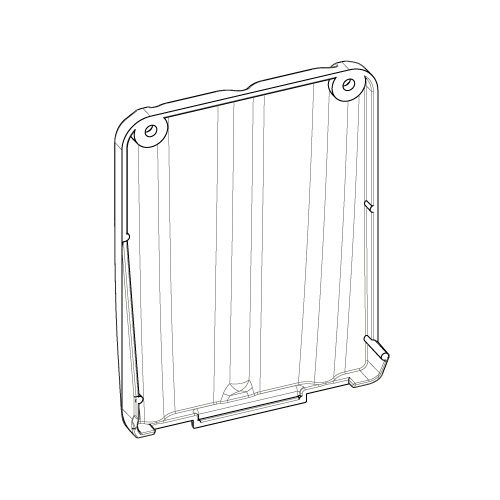

58Lindhaus Closing Door part number 101681201Closing Door101681201$14.60

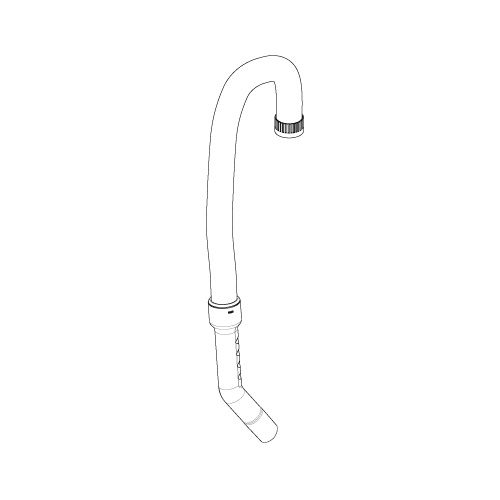

59Lindhaus Extension Hose part number 183780081Extension Hose183780081$45.60
60Lindhaus round dusting brush natural bristle part number 031460310Round Dusting Brush031460310$10.88

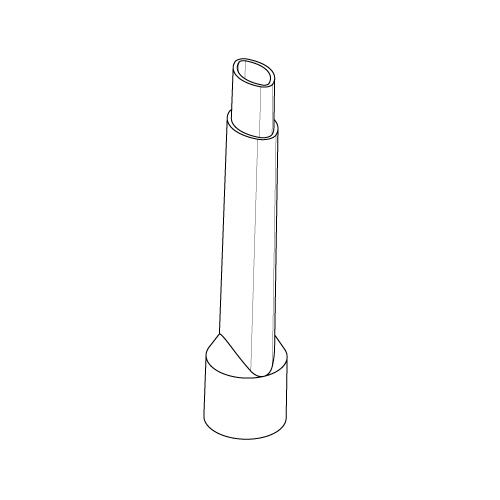

61Lindhaus Crevice Tool 003420304Telescopic Crevice Tool003420304$11.80
63Foam Motor Filter part number 011790016Foam Motor Filter011790016$7.20
64Lindhaus L-ion Valzer Eco Green Vacuum Sensor Plate part number 102264101Vacuum Sensor Plate102264101$5.82
65Lindhaus RX Eco-Force Vacuum Sensor 024590000 part number 024590000Vacuum Sensor024590000$25.20
66Lindhaus L-ion Valzer Eco Green Main Switch 10A part number 022600300Main Switch 10A022600300$10.80

Lindhaus LB3 Eco-Force Parts — Frequently Asked Questions

Which Lindhaus LB3 does this parts page cover?

This page covers the body of the corded Lindhaus LB3 Eco-Force upright, the model with the R115 APS vacuum motor and the yellow cord. The cordless LB3 L-ion Digital Pro uses a different body drawing with its own battery, circuit boards and part numbers, so it has its own page. The power nozzle is drawn separately: see the M30 (12-inch) or M38 (14-inch) power brush page.

How do I tell the LB3 Eco-Force from the LB3 L-ion Digital Pro?

The Eco-Force plugs into the wall with a long yellow cord and has no battery. The L-ion Digital Pro runs on a removable 6.0 Ah lithium battery. The model name is also printed on the data plate. If you are not sure, call 763-535-0770 with the machine in front of you and we will confirm it.

Which power nozzle does my LB3 Eco-Force have?

The LB3 Eco-Force was sold with either the M30 (12-inch) or the M38 (14-inch) power nozzle. Measure the brush roller opening on the underside of the nozzle: about 12 inches is the M30, about 14 inches is the M38. Each nozzle has its own numbered drawing linked on this page.

How do I find the right part on the diagram?

Find the part on the drawing and click its red dot, or find the callout number in the table below. Both open that part in a new tab, and every part page lists all the Lindhaus models it fits. Parts Lindhaus lists without a number on the drawing are shown at the end of the table as Not shown.

See the other LB3 drawings: LB3 L-ion Digital Pro body, M30 power brush and M38 power brush, or go back to the Lindhaus LB3 parts hub. Manufacturer information is at lindhaus.com/us. Questions? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.
