Lindhaus LB3 L-ion Digital Pro Parts

Find genuine Lindhaus LB3 L-ion Digital Pro replacement parts. Can’t find your part? Call us at 763-535-0770.

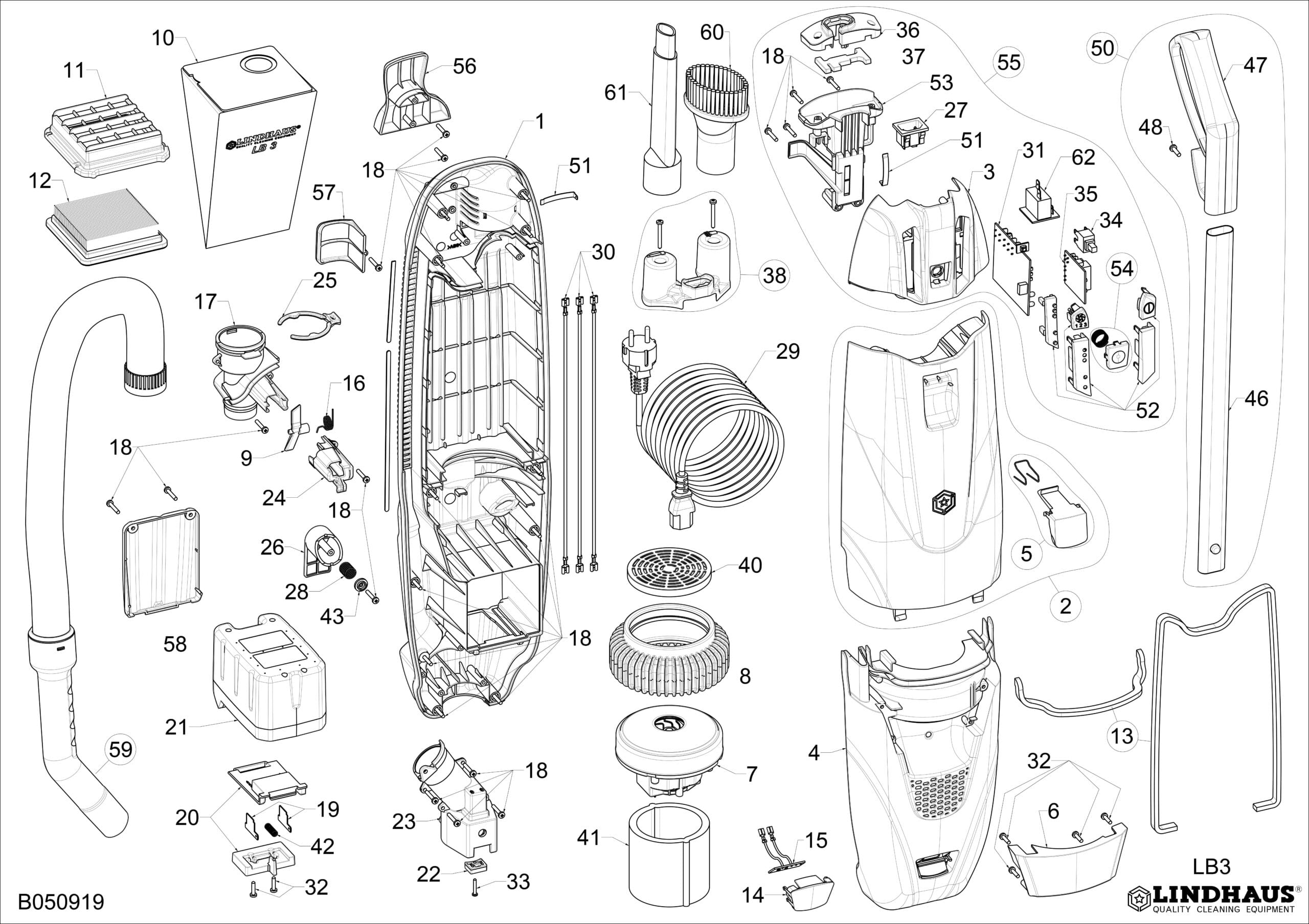

Click on any numbered part in the diagram below to go directly to that part’s product page.

Lindhaus LB3 L-ion Digital Pro upright vacuum body parts diagram1. Bag Housing – 1014712012. LB3 L-ion Digital Pro Bag Cover Complete Grey – 1836946813. Electric Panel Box Grey – 1014946014. LB3 L-ion Digital Pro Motor Housing Cover Grey – 1015046015. Bag Door Latch + Spring Blue – 1837038816. Central Handle Blue – 1015138017. Vacuum Motor RB115/45 APS 340 W Digital – 0519400818. Gasket Motor – 0159503009. Safety Latch (Pack of 10) – 18380138110. LB3 Microfiber Dust Bag Package (10 Bags + 1 HEPA Filter H13) – 03303000011. HEPA Filter Housing – 10172500112. HEPA Filter LB3 H13 – 03277000013. Gasket 5×9 (1 m) – 18243008114. LED Cover Blue – 10157380116. Spring Safety Latch (Pack of 10) – 18381000917. Bag Support – 10158030118. Screw 3.9×22 (Pack of 20) – 08726000919. Contact Plate (Pack of 20) – 18230000020. Battery Support Kit – 18371008021. Lithium Battery 6 Ah Digital – 02535000022. Contact Retainer (Pack of 10) – 18382038123. Connector Nozzle – 10159030624. Bag Holder – 10153460125. Hose Retainer – 10170130030. Wires Kit – 18379008131. LB3 L-ion Digital Pro Circuit Board – 02596000032. Screw 3.5×16 (Pack of 20) – 08705000933. Screw 2.9×16 (Pack of 20) – 08561000934. Main Switch – 02214000035. Distribution Board – 02597000036. Plug Retainer – 10160120137. Safety Plate – 10174500138. Accessories Holder Kit – 18372128140. Motor Protection Grill – 10173500141. Foam Motor Filter – 01597001642. Spring (Pack of 10) – 18373000946. Chromate Tube + Handle Button – 08552008147. Handle Grip Blue – 08546388148. Screw 3.9×16 (Pack of 20) – 08556000950. Handle Tube Assembly Blue – 08525388152. Buttons/Lens Kit – 18376008153. Wand Support – 10175030154. Handle Button Blue + Spring Kit – 18377388156. Top Hose Holder – 10155120157. Side Hose Holder – 10156120159. Extension Hose – 18378008160. Round Dusting Brush with Natural Bristles – 03174031061. Telescopic Crevice Tool – 00342030462. Circuit Board CS5038 – 026190000

This is the body of the Lindhaus LB3 L-ion Digital Pro commercial upright, numbered to match the current Lindhaus drawing above: the vacuum motor and motor protection grill, the foam motor filter, the 6.0 Ah lithium battery with its battery support kit, contact plate and contact retainer, the circuit board, distribution board and CS5038 control board, the main switch and wires kit, the bag housing, bag cover, bag support and bag holder, the HEPA filter housing and H13 HEPA filter, the microfiber bag package, the blue handle tube, grip, buttons and lens kit and handle button kit, the hose holders, extension hose, dusting brush and crevice tool, and the screws, springs and clips that hold it together. Lindhaus also lists a few parts for this model that are not numbered on the drawing; they are shown at the end of the table. Callouts 15 and 55 are printed on the drawing, but Lindhaus lists no part under those numbers for the L-ion Digital Pro. Twin City Vacuum has been selling and servicing Lindhaus equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.

#ImagePart DescriptionPart NumberPrice
1Lindhaus Bag Housing part number 101471201Bag Housing101471201$158.00
2Lindhaus LB3 L-ion Digital Pro Bag Cover Complete Grey part number 183694681LB3 L-ion Digital Pro Bag Cover Complete Grey183694681$98.00
3Lindhaus LB3 Electric and LB3 L-ion Electric Panel Box part number 101494601Electric Panel Box Grey101494601$44.88
4Lindhaus LB3 L-ion Digital Pro Motor Housing Cover Grey part number 101504601LB3 L-ion Digital Pro Motor Housing Cover Grey101504601$85.80
5Lindhaus LB3 Electric and LB3 L-ion Bag Door Latch Kit part number 183703881Bag Door Latch + Spring Blue183703881$22.96
6Lindhaus Central Handle part number 101513801Central Handle Blue101513801$29.56
7Lindhaus Vacuum Motor part number 051940081Vacuum Motor RB115/45 APS 340 W Digital051940081$240.00
8Lindhaus Gasket Motor part number 015950300Gasket Motor015950300$24.00
9Lindhaus Safety Latch Pack of 10 part number 183801381Safety Latch (Pack of 10)183801381$39.60
10Lindhaus HEPA cloth bags 033030000, 10 pack with HEPA filter, for Valzer, LB3 and KarismaLB3 Microfiber Dust Bag Package (10 Bags + 1 HEPA Filter H13)033030000$47.60
11Lindhaus HEPA Filter Housing part number 101725001HEPA Filter Housing101725001$15.80
12Hepa Filter Lb3 part number 032770000HEPA Filter LB3 H13032770000$45.20
13Lindhaus Gasket Kit part number 182430081Gasket 5×9 (1 m)182430081$7.92
14Lindhaus Led Cover part number 101573801LED Cover Blue101573801$5.52
15Printed on the drawing; Lindhaus lists no part number for this callout on the LB3 L-ion Digital Pro.
16Lindhaus L-ion Valzer Eco Green Spring Safety Latch (Pack of 10) part number 183810009Spring Safety Latch (Pack of 10)183810009$47.56
17Lindhaus Bag Support part number 101580301Bag Support101580301$35.04
18Lindhaus Screw 3.9x22 087260009 part number 087260009Screw 3.9×22 (Pack of 20)087260009$8.08
19Lindhaus LW30 L-ion Contacts, Battery (Single) part number 182300000AContact Plate (Pack of 20)182300000$118.00
20Lindhaus Battery Support Kit part number 183710080Battery Support Kit183710080$17.28
21Lindhaus LW30 L-ion BatteryLithium Battery 6 Ah Digital025350000$538.00
22Lindhaus L-ion Valzer Eco Green Contact Retainer (Pack of 10) part number 183820381Contact Retainer (Pack of 10)183820381$33.90
23Lindhaus Valzer, Valzer L-ion, LB3 Electric and LB3 L-ion connector nozzle part number 101590306Connector Nozzle101590306$23.80
24Lindhaus Bag Holder part number 101534601Bag Holder101534601$10.04
25Lindhaus Hose Retainer part number 101701300Hose Retainer101701300$2.88
30Lindhaus Wires Kit part number 183790081Wires Kit183790081$39.80
31Lindhaus LB3 L-ion Digital Pro Circuit Board part number 025960000LB3 L-ion Digital Pro Circuit Board025960000$198.00
32Lindhaus Screw 3.5x16 087050009 part number 087050009Screw 3.5×16 (Pack of 20)087050009$6.60
33Lindhaus Screw 2.9 x 16 (Pack of 20) 085610009 part number 085610009Screw 2.9×16 (Pack of 20)085610009$8.64
34Lindhaus Main Switch 022140000 part number 022140000Main Switch022140000$15.80
35Lindhaus Distribution Board part number 025970000Distribution Board025970000$68.60
36Lindhaus Plug Retainer part number 101601201Plug Retainer101601201$10.00
37Lindhaus Safety Plate part number 101745001Safety Plate101745001$7.12
38Lindhaus Accessories Holder Kit part number 183721281Accessories Holder Kit183721281$19.80
40Lindhaus Motor Protection Grill part number 101735001Motor Protection Grill101735001$9.60
41Lindhaus Foam Motor Filter part number 015970016Foam Motor Filter015970016$6.72
42Lindhaus Spring (Pack of 10) part number 183730009Spring (Pack of 10)183730009$9.10
46Lindhaus Cromate Tube + Handle Button 085520081 part number 085520081Chromate Tube + Handle Button085520081$26.00
47Lindhaus Handle Grip Blue part number 085463881Handle Grip Blue085463881$33.12
48Lindhaus Screw 3.9 x 16 085560009 part number 085560009Screw 3.9×16 (Pack of 20)085560009$7.54
50Lindhaus Dynamic Eco-Force Handle Tube Assembly Blue 085253881Handle Tube Assembly Blue085253881$79.60
52Lindhaus Buttons / Lens Kit LB3 part number 183760081Buttons/Lens Kit183760081$25.60
53Lindhaus Wand Support part number 101750301Wand Support101750301$19.60
54Lindhaus Handle Button+Spring Kit part number 183773881Handle Button Blue + Spring Kit183773881$19.80
55Printed on the drawing; Lindhaus lists no part number for this callout on the LB3 L-ion Digital Pro.
56Lindhaus Top Hose Holder part number 101551201Top Hose Holder101551201$15.18
57Lindhaus Side Hose Holder part number 101561201Side Hose Holder101561201$13.20
59Lindhaus Extension Hose part number 183780081Extension Hose183780081$45.60
60Lindhaus Round Dusting Brush with Natural Bristles 031740310 part number 031740310Round Dusting Brush with Natural Bristles031740310$9.84
61Lindhaus Crevice Tool 003420304Telescopic Crevice Tool003420304$11.80
62Lindhaus Circuit Board CS5038 part number 026190000Circuit Board CS5038026190000$28.32
Not shownLindhaus Lower Cord Hook part number 004974601Lower Cord Hook004974601$9.60
Not shownLindhaus Power Inlet Connector Black 3 Way part number 025240300Power Inlet Connector Black 3 Way025240300$14.40
Not shownLindhaus L-ion Valzer Eco Green Spring Lower Cord Hook (Pack of 10) part number 183830009Spring Lower Cord Hook (Pack of 10)183830009$9.10
Not shownLindhaus Clip Spring Ring part number 001411201Clip Spring Ring001411201$1.20
Not shownLindhaus Ground Plate Hose (Pack of 10) part number 183750009Ground Plate Hose (Pack of 10)183750009$143.20
Not shownLindhaus Closing Door part number 101681201Closing Door101681201$14.60
