Tornado BD Compact Scrubber

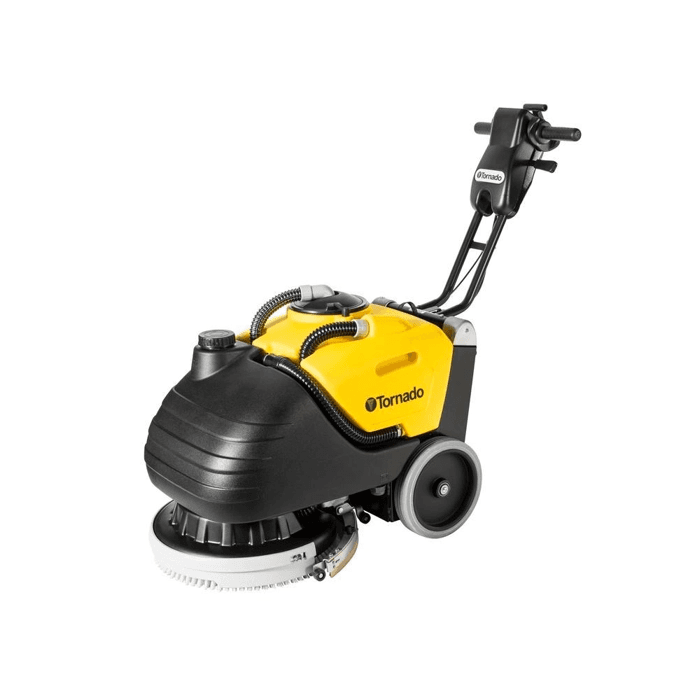

Tornado BD Compact Scrubber — BD 14/4 (99414) and BD 17/6 (99617)

The Tornado BD Compact Scrubber is a battery-powered automatic floor scrubber built for the confined, narrow spaces where standard walk-behind scrubbers don’t fit and mop-and-bucket remains the default cleaning method. Low-profile body, highly maneuverable design, maintenance-free AGM battery, and a parabolic squeegee system that rotates up to 180° — recovering solution immediately even through turns, leaving floors dry rather than wet. Low-moisture operation conserves water and cleaning chemistry while maintaining scrubbing effectiveness. The collapsible handle and storage wheels on the back of the unit fold down for compact storage in a closet or equipment room. Available in two cleaning path widths: BD 14/4 (Catalog #99414) at 14 inches and BD 17/6 (Catalog #99617) at 17 inches. Both models include 2 AGM batteries, charger, and standard scrub brush. 2-year parts / 10-year roto / 2-year labor warranty.

Twin City Vacuum in Crystal, Minneapolis, MN is an authorized Tornado dealer. We carry the complete Tornado commercial equipment lineup. Questions? Call us at 763-535-0770. Free shipping on orders over $30 to all 50 states.

BD 14/4 vs BD 17/6 — Choosing Your Size

The BD 14/4 fits in tighter spaces with its narrower 15-inch body width, and at 143 lbs is 48 lbs lighter than the BD 17/6. The BD 17/6’s 17-inch cleaning path covers 44% more floor per pass and 16,200 sq ft/hr productivity significantly outpaces the 14/4’s 11,300 sq ft/hr. Both models share the same fundamental design: same squeegee technology, same low-moisture approach, same battery type, same handle and storage system, same warranty. Choose based on aisle width and the cleaning area you need to cover per shift.

Key Features of the Tornado BD Compact Scrubber

Parabolic Squeegee — 180° Rotation for Instant Recovery Through Turns

The most operationally significant feature of the BD series is the integrated parabolic squeegee that rotates up to 180°. On conventional compact scrubbers with fixed squeegees, turning the machine through corners and around obstacles leaves a trail of unrecovered solution on the floor — the squeegee loses contact with the floor surface during the turn, solution is left behind, and the operator must make a second pass to recover it. The BD’s rotating squeegee maintains contact through the full turn, recovering solution as the machine changes direction without leaving wet streaks or requiring correction passes. In restrooms, around fixtures, at the end of aisles, and through doorways, this is the feature that makes the BD a genuine productivity advantage over both mop-and-bucket and conventional fixed-squeegee scrubbers. Floors are left dry rather than wet.

Low-Moisture Design — Dry Floors, Reduced Chemical Consumption

The BD series is designed as a low-moisture scrubber — solution is applied at a controlled rate that wets the floor surface for effective scrubbing without flooding it. Low-moisture operation has three direct operational benefits. First, floors dry faster after cleaning — reducing slip hazard duration and allowing spaces to return to use more quickly. Second, cleaning chemistry consumption is lower per square foot of floor cleaned — reducing ongoing supply costs. Third, residual moisture accumulation under equipment and in floor drains is reduced — a relevant concern in food service areas with unsealed concrete and in healthcare environments where moisture management matters. The combination of low-moisture delivery and the 180° parabolic squeegee recovery produces a floor that is both clean and substantially dry at the end of each scrubbing pass.

Maintenance-Free AGM Battery — No Watering, No Acid Maintenance

Both models run on AGM (Absorbent Glass Mat) batteries — 2 batteries included per machine with charger. AGM batteries are sealed, maintenance-free, and spill-proof — they require no periodic water addition, no acid level monitoring, and no ventilation precautions during charging that conventional flooded lead-acid batteries require. For cleaning operations where battery maintenance is an afterthought rather than a scheduled task, AGM batteries are the operationally simpler choice. Two batteries per machine means one charges while the other is in use — replacing the depleted battery extends the machine’s operational window for longer cleaning shifts.

Low-Profile Design — Access to Tight, Confined Spaces

The BD series is specifically designed for the spaces that conventional walk-behind scrubbers cannot access — narrow aisles between shelving, single-stall restrooms, food service serving lines, under counters and equipment bases, elevator interiors, and any space where standard scrubber width or height clearance is a constraint. The low-profile body stays below counters and under equipment where standard handles would contact overhead obstacles. In commercial facilities where the highest-traffic, highest-soil-accumulation floors are also the narrowest and most confined — food service corridors, retail back-of-house aisles, hospital service corridors — the BD fits where other machines cannot go.

Adjustable Ergonomic Handle — Minimizes Operator Fatigue

The adjustable ergonomic handle positions the operator’s hands and wrists correctly for sustained scrubbing operation at their individual height — reducing the cumulative strain of pushing a 143–191-lb machine through a full cleaning shift. Handle height adjusts to fit different operator body sizes without tools. For facilities where multiple operators use the same machine across shifts, the quick adjustment means each operator sets the handle for their own ergonomic comfort before starting.

Collapsible Handle and Storage Wheels — Compact Storage Footprint

The handle collapses and the storage wheels on the rear of the unit deploy to convert the BD from its operating configuration to a compact storage configuration. In the collapsed storage position, the machine’s footprint fits in a standard equipment closet or utility room without requiring dedicated scrubber storage space. The storage wheels allow the unit to be tipped back and rolled on the rear wheels to its storage position without lifting — important at 143–191 lbs. For facilities where equipment storage space is limited, the collapsible design eliminates the need to dedicate a separate storage area to the scrubber.

Feature Overview Video — Tornado BD 14/4

Official Tornado BD 14/4 feature overview — design, squeegee system, low-moisture operation, AGM battery, handle, and storage.

Operations Guide — Tornado BD 14/4

Official Tornado BD 14/4 operations guide — daily operation, tank management, battery care, squeegee maintenance, and storage.

Feature Overview Video — Tornado BD 17/6

Official Tornado BD 17/6 feature overview — 17-inch cleaning path, 340W brush motor, squeegee system, low-moisture design, and storage.

Training Video — Tornado BD 17/6

Official Tornado BD 17/6 training — key components, operation, and maintenance of the BD 17/6 compact automatic scrubber.

Operations Overview — Tornado BD 17/6

Official Tornado BD 17/6 operations overview — daily use, solution and recovery management, squeegee adjustment, battery management, and storage.

Commercial Applications — Tornado BD Compact Scrubber

• Commercial restrooms — single-stall and multi-stall restrooms where low-profile access under partitions and around fixtures is required; 180° squeegee recovers around toilet bases and fixture bases without leaving wet streaks
• Food service and commercial kitchens — narrow service corridors, between equipment rows, under counters; low-moisture design appropriate for tile near food preparation areas; oil-resistant squeegee accessories available for kitchen floors with grease
• Retail and grocery — back-of-house tile aisles, restrooms, food preparation areas; BD 14/4 fits in narrower stock aisles; BD 17/6 covers wider back-of-house corridors efficiently
• Healthcare facilities — patient room hard floors, service corridors, restrooms; 69 dB(A) for occupied-hour cleaning; low-moisture floors reduce slip hazard in areas with patient foot traffic immediately after cleaning
• Schools and education — restroom tile, cafeteria service areas, locker room floors; collapsible storage for schools with limited custodial closet space
• Hotels and hospitality — elevator interiors, service corridor tile, restroom floors in guest areas; low-profile body accesses under restroom counters and under elevator threshold plates
• Industrial and manufacturing — break room tile, plant restrooms, locker rooms; AGM batteries handle industrial environments without acid-maintenance requirements
• Building service contractors — compact mop-replacement scrubber for tight-space accounts; two-battery system supports continuous operation through extended cleaning shifts

Replacement Parts and Accessories

BD 14/4 (99414)

BD 17/6 (99617)

Call us at 763-535-0770 to order parts or accessories.

Technical Specifications — Tornado BD Compact Scrubber

Documentation

• BD 14/4 Spec Sheet (PDF)
• BD 14/4 Manual (PDF)
• BD 17/6 Spec Sheet (PDF)
• BD 17/6 Manual (PDF)
• Official Tornado BD 14/4 Product Page
• Official Tornado BD 17/6 Product Page

Frequently Asked Questions — Tornado BD Compact Scrubber

What does the parabolic squeegee rotating 180° mean in practice?

On a fixed squeegee scrubber, turning the machine through corners lifts the squeegee off the floor surface, leaving a trail of unrecovered solution that must be addressed with a second pass. The BD’s parabolic squeegee rotates up to 180° to maintain floor contact through turns — recovering solution through the full arc of the turn without lifting. In restrooms with multiple fixtures, at the end of aisles, and around obstacles, this means one pass rather than two, and dry floors rather than wet streaks left at corners.

Which model should I choose — BD 14/4 or BD 17/6?

If your primary constraint is aisle or restroom width, the BD 14/4’s 15-inch body fits in narrower spaces and at 143 lbs it’s 48 lbs lighter. If your primary goal is coverage rate, the BD 17/6’s 17-inch path and 16,200 sq ft/hr productivity (vs 11,300 for the 14/4) covers significantly more floor per shift. Both models are the same design with the same features — choose based on the tightest space you need to access and how much floor you need to cover per shift.

What is a low-moisture scrubber?

A low-moisture scrubber applies cleaning solution at a controlled rate that wets the floor for effective scrubbing without flooding it. Compared to high-flow scrubbers, low-moisture operation means faster floor drying after cleaning, lower chemical consumption per square foot, and less residual moisture under equipment and in floor drains. The BD’s parabolic squeegee recovers nearly all applied solution, contributing to the dry-floor result.

Do both batteries need to be installed to operate the machine?

The machine runs on its battery system — call us at 763-535-0770 to confirm the operating configuration. Two batteries are included so that one can charge while the other powers the machine, extending operational time across longer cleaning shifts.

What warranty do the BD models carry?

2 years parts, 10 years roto body, 2 years labor — identical across both the BD 14/4 and BD 17/6.

Is Twin City Vacuum an authorized Tornado dealer?

Yes. Twin City Vacuum in Crystal, Minneapolis, MN is an authorized Tornado dealer. All units are genuine Tornado equipment backed by the full manufacturer warranty. Our in-house technicians service Tornado commercial equipment at our Crystal, MN location. Call us at 763-535-0770.

Buy the Tornado BD Compact Scrubber from Twin City Vacuum — Authorized Tornado Dealer

Twin City Vacuum ships the Tornado BD Compact Scrubber in BD 14/4 and BD 17/6 configurations to all 50 states.

• ✔ Authorized Tornado dealer — genuine equipment, full manufacturer warranty
• ✔ Parabolic squeegee rotates 180° — instant solution recovery through turns, dry floors
• ✔ Low-moisture design — conserves water and chemistry
• ✔ Maintenance-free AGM batteries — 2 included per machine with charger
• ✔ Low-profile — accesses tight, confined spaces
• ✔ Adjustable ergonomic handle — minimizes operator fatigue
• ✔ Collapsible handle and storage wheels — compact storage footprint
• ✔ BD 14/4: 14″ path, 11,300 sq ft/hr, 143 lbs, 69 dB(A)
• ✔ BD 17/6: 17″ path, 16,200 sq ft/hr, 191 lbs, 69 dB(A)
• ✔ Oil-resistant squeegee accessories available for food service and kitchen floors
• ✔ 2-year parts / 10-year roto / 2-year labor warranty
• ✔ Free shipping on orders over $30 to all 50 states
• ✔ In-house Tornado service and repair in Crystal, MN

Questions before you order? Call 763-535-0770, email twincityvacuum@gmail.com, or send us a message.
