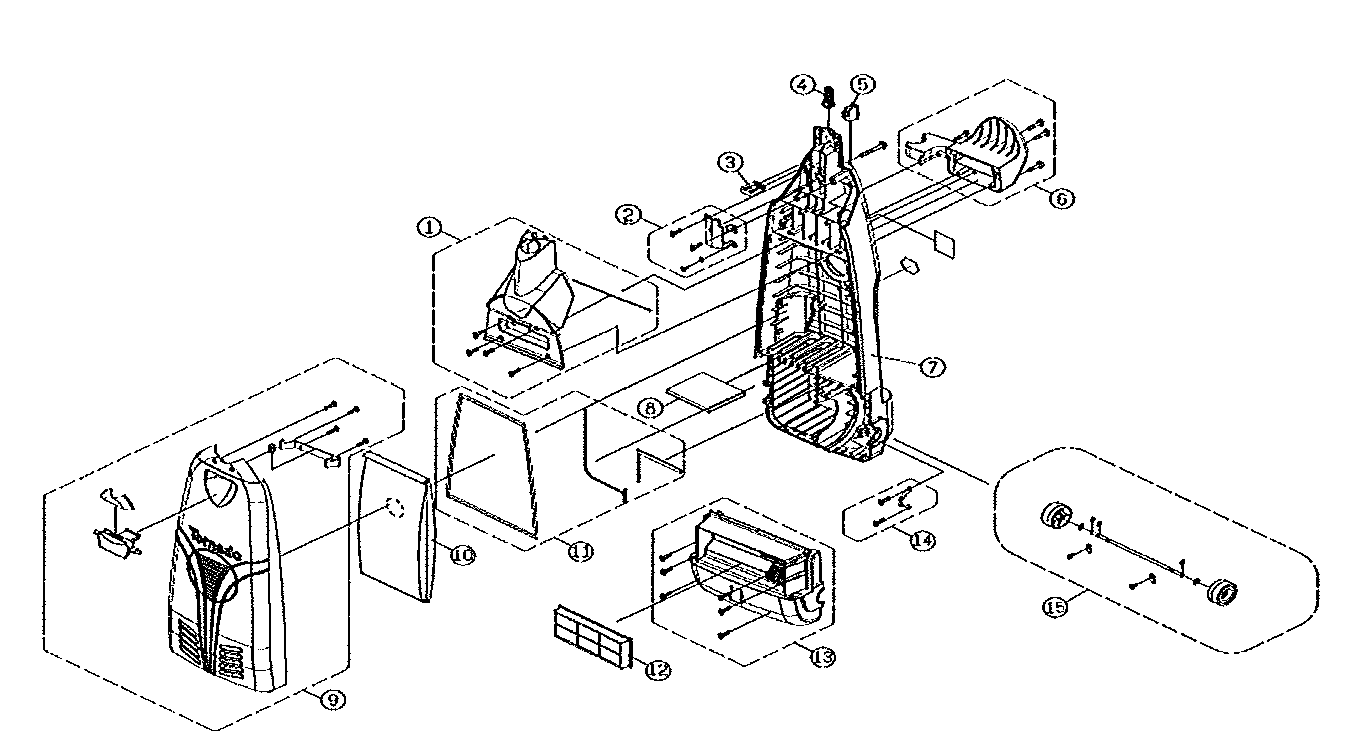

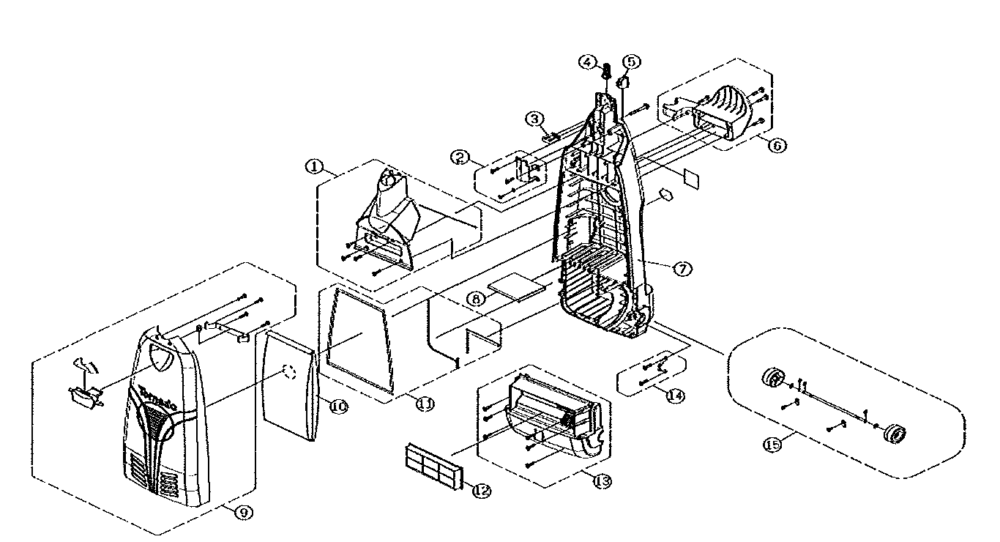

Bag housing parts for the Tornado CK 14/2 Pro commercial upright, model 98152. This section covers the bag compartment, the filtration, the switch and the cord entry. Hover a red marker on the diagram to see what it is, or click it to open that part.
1. Switch Cover 393002. Handle Clamp 393013. Terminal Block 393404. Strain Relief 393035. Switch Rocker Dual Motor 393046. Hose Hanger Bracket 393057. Bag Housing 393418. Motor Intake Filter 901459. Front Cover 3930710. Clean Breeze High Filtration Disposable Bag 10 Pack 9014111. Seal Kit 3930812. HEPA Exhaust Filter Cartridge 9014413. Motor Cover 3930914. Motor Bracket 3931015. Wheel Assembly 39311Handle Screw M5 x 45 39576Parts on this diagram
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Switch Cover | 39300 | 1 | $8.99 | View part |
| 2 |  | Handle Clamp | 39301 | 1 | Call 763-535-0770 | View part |
| 3 | | Terminal Block | 39340 | 1 | $1.99 | View part |
| 4 |  | Strain Relief | 39303 | 1 | $1.99 | View part |
| 5 |  | Switch, Dual Motor | 39304 | 1 | $2.99 | View part |
| 6 | | Hose Hanger Bracket | 39305 | 1 | Call 763-535-0770 | View part |
| 7 | | Bag Housing | 39341 | 1 | Call 763-535-0770 | View part |
| 8 |  | Motor Intake Filter | 90145 | 1 | $1.99 | View part |
| 9 |  | Front Cover | 39307 | 1 | $47.99 | View part |
| 10 |  | Clean Breeze Vacuum Bag (10 Pack) | 90141 | 1 | $16.99 | View part |
| 11 |  | Seal Kit | 39308 | 1 | $7.99 | View part |
| 12 |  | HEPA Cartridge Filter | 90144 | 1 | $7.99 | View part |
| 13 |  | Motor Cover | 39309 | 1 | $25.99 | View part |
| 14 |  | Motor Bracket | 39310 | 1 | $1.99 | View part |
| 15 |  | Wheel Assembly | 39311 | 1 | $41.99 | View part |
| — |  | Handle Screw M5 x 45 — listed on the factory breakdown without a callout number; its marker is on the diagram. | 39576 | 1 | $1.99 | View part |
Prices shown are current manufacturer list. Three part numbers carry no published price and are marked call-for-price rather than estimated. Twin City Vacuum has been selling and servicing Tornado equipment since 1956 — call 763-535-0770 with your model and serial number if you want a part confirmed before you order.
Frequently Asked Questions
Which machine does this diagram cover?
The Tornado CK 14/2 Pro, model 98152 – the 14-inch dual-motor commercial upright. Most of these parts are also catalogued for the Powr-Flite Borelli Dual Pro (PV160-W14-U), which is built on the same platform under a different brand, and several of them for the single-motor CK 14/1 range as well.
Will these parts fit my CK 14/1 Pro?
Some will and some will not, and the bag housing is the one to watch. The 14/2 uses housing 39341 while the 14/1 Pro uses 39306, because the dual-motor machine carries extra switching and wiring. The terminal block 39340 is 14/2-only for the same reason. Work from the number on your model plate.
Two parts show Call instead of a price. Why?
The manufacturer does not publish a price for the handle clamp (39301), the hose hanger bracket (39305) or the bag housing (39341) in the dealer catalogue. Rather than print a guess, those are listed as call-for-price. Ring 763-535-0770 and we will quote them.
Which parts here wear out fastest?
The Clean Breeze bag and the two filters, by a distance. On any upright the airflow does the cleaning, so a full bag or a blinded filter reads as a dying machine long before anything mechanical fails. The seal kit is the next most common, because a leaking bag seal puts dust into the compartment.
One row has no number. What is it?
The handle screw, part 39576. The factory lists it against this sheet without giving it a callout number, but it does have its own marker on the drawing, so you can click it like any other part.
