Accessories and consumables for the Tornado CK-LW 13/1 ProLite commercial upright, covering model 97130 (115V) and model 97131 (230V). Hover a red marker on the diagram to see what it is, or click it to open that part. Every number below is taken from the factory breakdown for this machine.

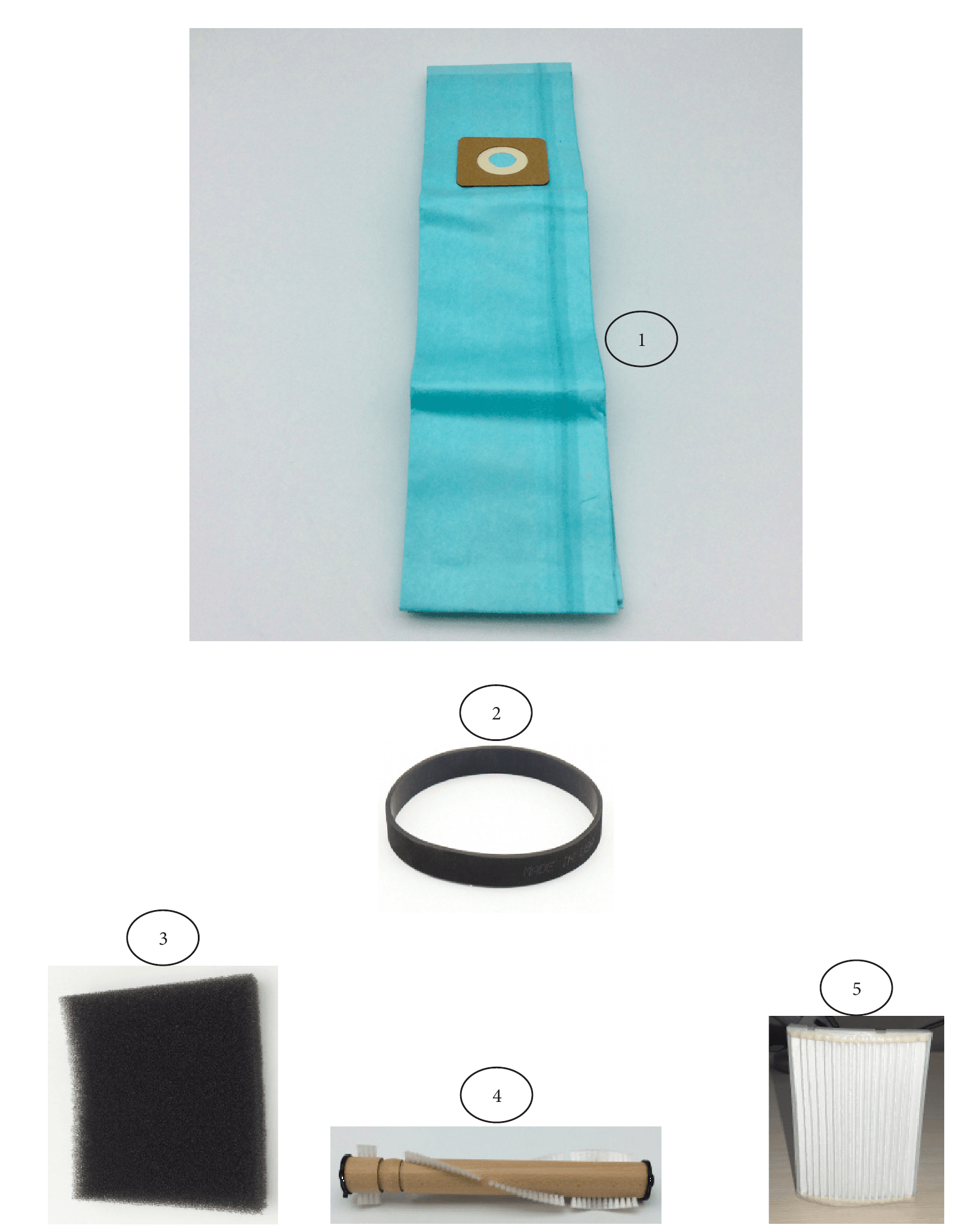

1. Paper Vacuum Bags 6-Pack 259PB2. Flat Brushroll Belt B014-0814B3. Foam Filter B015-02004. Wooden Brush Roll B012-3000Parts on this diagram
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Paper Vacuum Bag (6 Pack) | 259PB | 1 | $7.99 | View part |
| 2 |  | Belt | B014-0814B | 1 | $4.50 | View part |
| 3 | | Foam Filter (In Lieu of HEPA Filter) | B015-0200 | 1 | $1.99 | View part |
| 4 | | Wooden Brush Roll | B012-3000 | 1 | $30.99 | View part |
| 5 | | Foam Filter (In Lieu of HEPA Filter) — the drawing shows a pleated filter cartridge at this position; the factory list gives the foam filter number for it. Call 763-535-0770 before ordering if your machine has a pleated cartridge. | B015-0200 | 1 | $1.99 | View part |
Prices shown are current manufacturer list. Twin City Vacuum has been selling and servicing Tornado equipment since 1956 — call 763-535-0770 with your model and serial number if you want a part confirmed before you order.
See all Tornado CK-LW 13/1 ProLite parts
Frequently Asked Questions
Which machines do these accessories fit?
Everything on this sheet is for the Tornado CK-LW 13/1 ProLite commercial upright, model 97130 (115V) and model 97131 (230V). The paper bag and the foam filter also fit the Powr-Flite PF62EC and the Powr-Flite PF99, and the wooden brush roll fits the PF62EC. The flat belt is shared far more widely, across Tornado, Powr-Flite, Riccar, Simplicity and CleanMax machines.
Why is the same part number shown at two positions on the diagram?
The factory parts list gives the foam filter number against two positions on this sheet. The drawing, though, shows a black foam pad at one of them and a white pleated filter cartridge at the other, and that pleated cartridge carries no separate number in the factory list. Call 763-535-0770 with your model and serial number if the filter in your machine is a pleated cartridge rather than foam.
Which of these wear out first?
The paper bag, by a long way, then the foam filter. On a single-motor upright the airflow does the cleaning, so a choked bag shows up as lost suction long before anything mechanical fails. The belt and the brush roll are a slower cycle and are usually replaced together, because fitting one means removing the other.
