Tornado CVD 48/2 parts diagrams
Five factory sheets cover the machine. The back part, front part and top part sheets are shared with the CVD 38/2, and are linked here too. The brush head and accessories sheets on this page are the 19-inch versions — check the heading before you order from either of them. Open a diagram, find the item on the exploded view, then click the dot beside its number to land on that part.

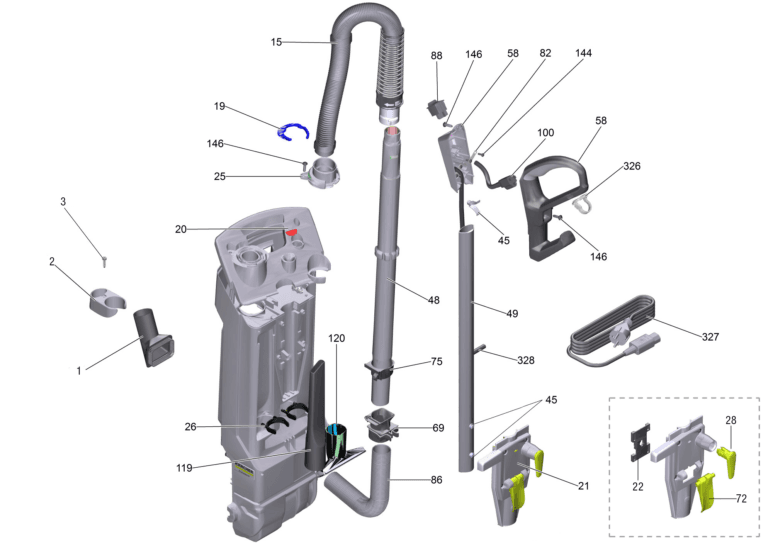

Back Parts27 part numbers across 30 callouts — suction motor and housing, filter chamber, switch and wiring, handle mounting, wheels. Shared with the other width.

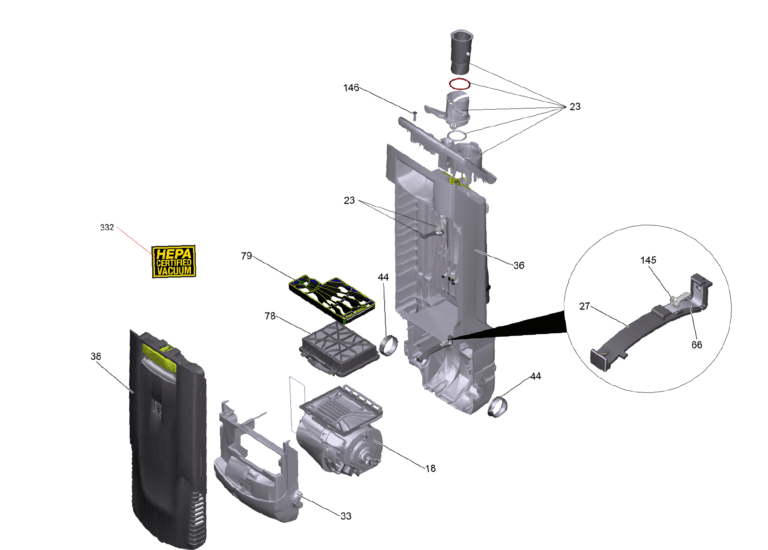

Front Parts14 parts — suction motor assembly, filter holder, sealed HEPA and intake filters, front and back housings, motor cover. Shared with the other width.
Top Parts7 parts — PC board, grounding strap and earth label, insulation sheaths, clamp and screws. Parts list.

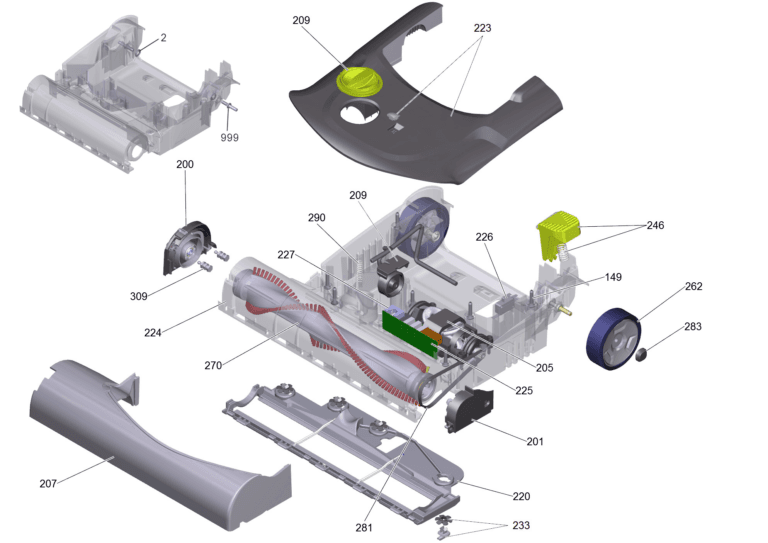

Brush Head — 19″24 parts — 19-inch roller brushes, brush motor and belt, glide sole, bumper, bottom housing, pinion, height adjustment, wheels.

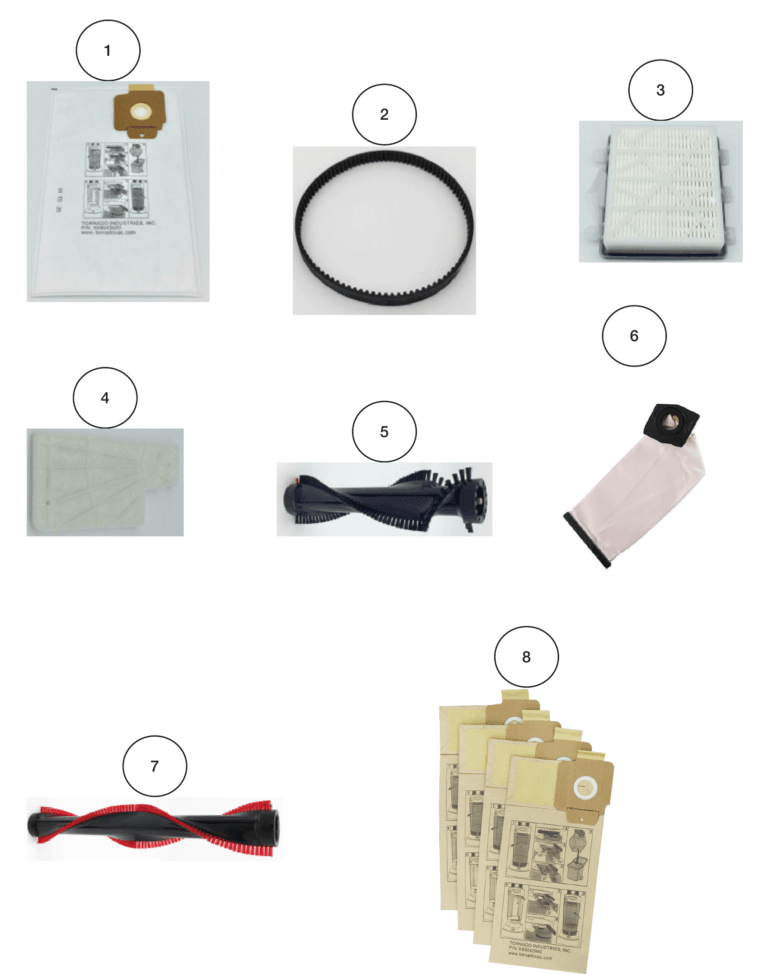

Accessories — 19″8 parts — bags, sealed HEPA and intake filters, belt and both 19-inch roller brush options.Why 19-inch parts get ordered wrong more often than any other Tornado upright
The 48/2’s brush-head parts fit two machines and no others: this machine and the CV 48/2 (91419) it replaced. Everything else in Tornado’s upright range is 15 inches or narrower, so the catalogue is full of near-identical rollers, bumpers and housings that will not fit. They sit next to each other in the parts list, they photograph the same, and the part numbers differ by a digit or two. If you are ordering a roller brush, a bumper, a bottom housing or a pinion, take the number off the 19-inch sheet rather than from a photograph or a previous order for a different machine.
What the 48/2 shares with the 15-inch machine
Under the brush head the two are one machine. The back, front and top sheets are the same diagram with the same part list, and the circuit board and the motor bearing set are common to all four of Tornado’s dual-motor HEPA uprights. For a building running both widths that means one set of body spares on the shelf and two sets of brush-head spares — which is the cheapest way to hold stock for a mixed fleet, and the reason the shared sheets on this page are the same pages the 38/2 links to.
Finding the right Tornado CVD 48/2 part
A 19-inch machine earns its width on long open runs — corridors, ballrooms, gymnasium floors — so the parts that go first are the ones the route punishes: the cord, the wheels, the bumper and the brush roll. Start at the diagram that covers the area you are working on, read the callout number off the exploded view, and click the dot beside it. The part page gives you the Tornado number, the price and what else it fits.
Browse everything in one place in the Tornado CVD 38/2 and 48/2 parts archive, or call 763-535-0770 with model number 91442.
