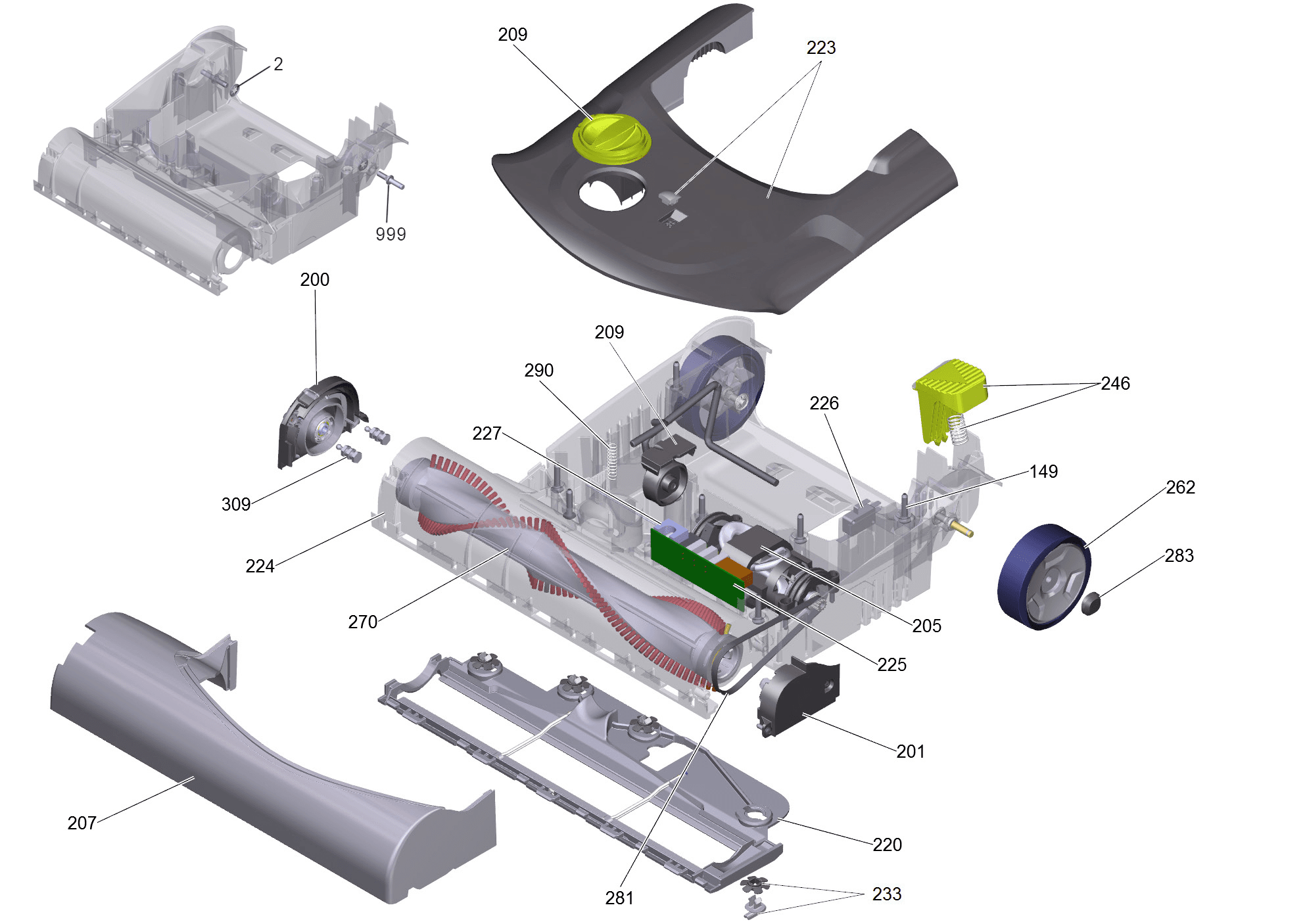

Every part on the 19-inch brush head of the Tornado CVD 48/2 (91442). This is one of the two sections that differ between the two machines — if you have a 15-inch CVD 38/2, use the 15-inch brush head page instead.
A 19-inch head covers ground faster and takes more punishment doing it: the roller brush, the bumper, the glide sole and the wheels all wear on a wide-path route. Note that the brush rolls, bumper, glide sole and bottom housing on this page fit the 19-inch machines only — their 15-inch equivalents photograph almost identically and carry different numbers. The body behind the head is shared and is covered on the back part, front part and top part pages.
149. Screw M5 x 25 – K730310902. Lock Washer – K63431190200. Complete Brush Access Cover – K40630243201. Complete Belt Side Covering Cap – K40637740205. Brush Motor – K46130090207. Bumper – K50334570209. Complete Adjusting Wheel – K45153160209. Complete Adjusting Wheel – K45153160220. Glide Sole – K50591423223. Top Cover – K40715450224. Bottom Housing – K40620090225. Circuit Board – K66822900226. Microswitch – K66301350227. Cap – K62865730233. Lock Piece Kit (4 Sets) – K40715460246. Complete Foot Pedal – K44812650262. Rear Wheel – K55153740270. Red Roller Brush – K47624880270. Black Roller Brush – K47624890281. Belt – K63484600283. Lock Washer – K63431870290. Spring – K53320820309. Insert – K53160213999. Axle Shaft – K9412178024 rows, 22 callouts, 24 dots. Callout 270 carries two alternate roller brushes — red and black — and callout 209 is marked in two places. The pinion K50334590 is drawn on the sheet without a printed number, so it has a table row and a dash in the number column rather than an invented figure.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 2 |  | Lock Washer | K63431190 | $1.99 |
| 149 |  | Screw M5 x 25 | K73031090 | $0.99 |
| 200 |  | Complete Brush Access Cover | K40630243 | $44.99 |
| 201 |  | Complete Belt Side Covering Cap | K40637740 | $68.99 |
| 205 | | Brush Motor | K46130090 | $137.99 |
| — | | Pinion | K50334590 | $3.99 |
| 207 | | Bumper | K50334570 | $114.99 |
| 209 | | Complete Adjusting Wheel | K45153160 | $35.99 |
| 220 | | Glide Sole | K50591423 | $31.99 |
| 223 |  | Top Cover | K40715450 | $61.99 |
| 224 | | Bottom Housing | K40620090 | $78.99 |
| 225 | | Circuit Board | K66822900 | $89.99 |
| 226 | | Microswitch | K66301350 | $9.99 |
| 227 | | Cap | K62865730 | Call for price |
| 233 |  | Lock Piece Kit (4 Sets) | K40715460 | $13.99 |
| 246 |  | Complete Foot Pedal | K44812650 | $10.99 |
| 262 |  | Rear Wheel | K55153740 | $19.99 |
| 270 |  | Red Roller Brush | K47624880 | $80.99 |
| 270 |  | Black Roller Brush | K47624890 | $67.99 |
| 281 | | Belt | K63484600 | $18.99 |
| 283 |  | Lock Washer | K63431870 | $3.99 |
| 290 | | Spring | K53320820 | $21.99 |
| 309 |  | Insert | K53160213 | $10.99 |
| 999 |  | Axle Shaft | K94121780 | $19.99 |
Frequently Asked Questions
Callout 270 has two parts — which do I order?
Red is the harder bristle for dense commercial loop; black is the softer grade for cut-pile and more delicate carpet. Both fit the same position on a 19-inch machine.
Can I fit a 15-inch brush roll to this machine?
No. It will not span the head. This is the single most common mis-order on the CVD platform, which is why the 15-inch and 19-inch brush heads have separate pages.
Which parts here are the same as the 15-inch machine?
The brush motor, circuit board, microswitch, foot pedal, rear wheel, top cover, adjusting wheel, belt and the fasteners. The brush rolls, bumper, glide sole, bottom housing and pinion are 19-inch only.
Why does the pinion have no callout number?
The drawing shows it on the sheet without printing a number against it. Rather than invent one we show a dash in the number column; the part is still linked and still orderable.
