Every part on the 15-inch brush head of the Tornado CVD 38/2 (91440). This is one of the two sections that differ between the 15-inch and the 19-inch machine — if you have a 19-inch CVD 48/2, use the 19-inch brush head page instead.
The brush head is where a dual-motor CVD earns its keep and where most of its wear happens: the brush roll and its bearings, the belt and brush motor, the glide sole and bumper that meet the floor, and the height adjustment that matches the machine to the carpet. The body behind it is shared with the 19-inch machine and is covered on the back part, front part and top part pages.

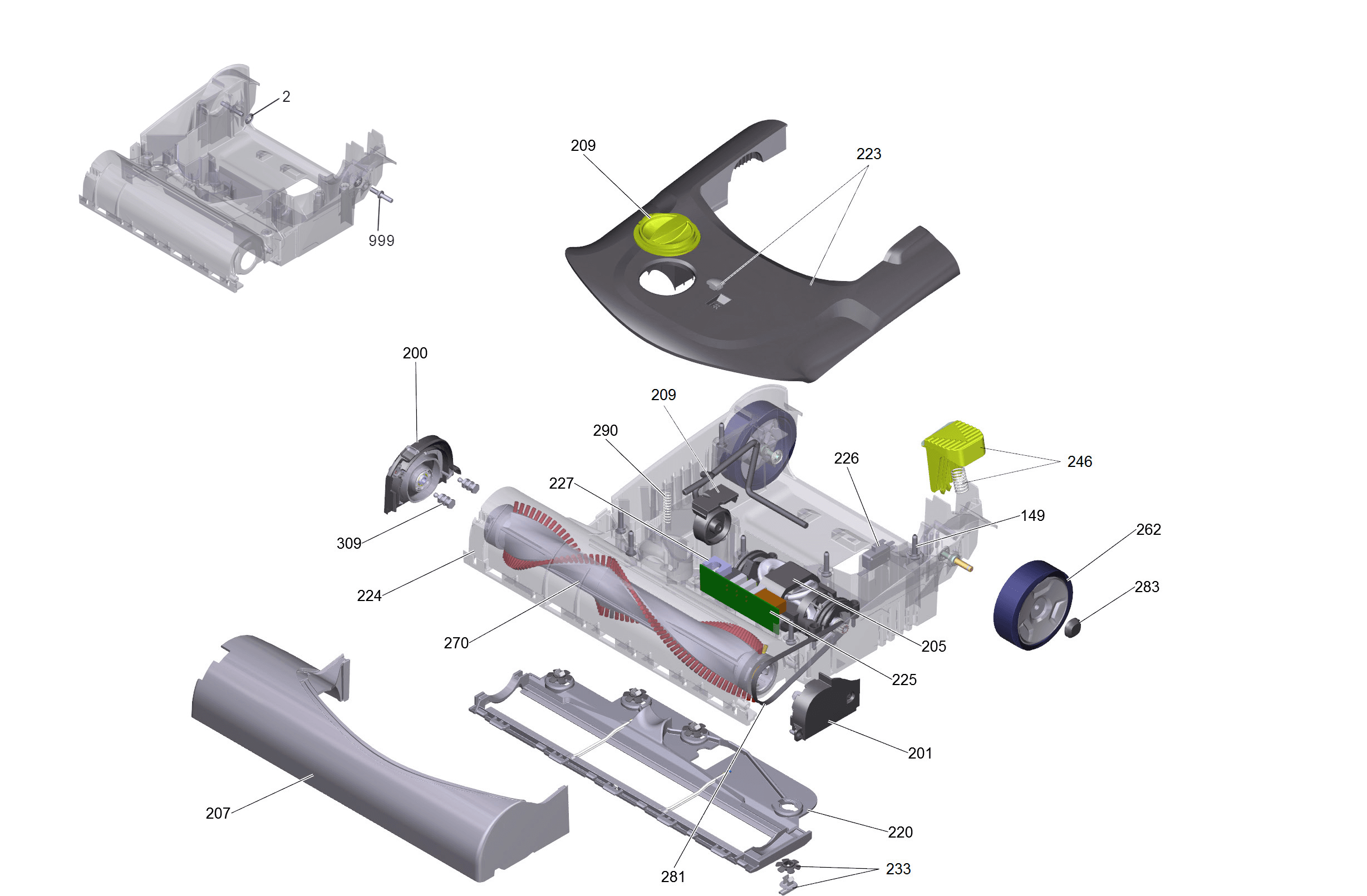

149. Screw M5 x 25 – K730310902. Lock Washer – K63431190200. Complete Brush Access Cover – K40630243201. Complete Belt Side Covering Cap – K40637740205. Brush Motor – K46130090207. Bumper – K50324560209. Complete Adjusting Wheel – K45153160209. Complete Adjusting Wheel – K45153160220. Glide Sole – K40715600223. Top Cover – K40715450224. Bottom Housing – K40620070225. Circuit Board – K66822900226. Microswitch – K66301350227. Cap – K62865730233. Lock Piece Kit (4 Sets) – K40715460246. Complete Foot Pedal – K44812650262. Rear Wheel – K55153740270. Brush Roll (Red Hard) – K69066440270. Brush Roll (Black Soft) – K69066430270. Anti-Static Roller Brush – K47624870281. Belt – K63484600283. Lock Washer – K63431870290. Spring – K53320820309. Insert – K53160213999. Axle Shaft – K9412178024 rows, 22 callouts, 25 dots. Callout 270 carries three alternate brush rolls — red hard, black soft and anti-static — which is why it has three dots and three rows; pick the bristle grade that suits your carpet. Callout 209 is marked in two places on the sheet.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 2 |  | Lock Washer | K63431190 | $1.99 |
| 149 |  | Screw M5 x 25 | K73031090 | $0.99 |
| 200 |  | Complete Brush Access Cover | K40630243 | $44.99 |
| 201 |  | Complete Belt Side Covering Cap | K40637740 | $68.99 |
| 205 | | Brush Motor | K46130090 | $137.99 |
| 207 |  | Bumper | K50324560 | $63.99 |
| 209 | | Complete Adjusting Wheel | K45153160 | $35.99 |

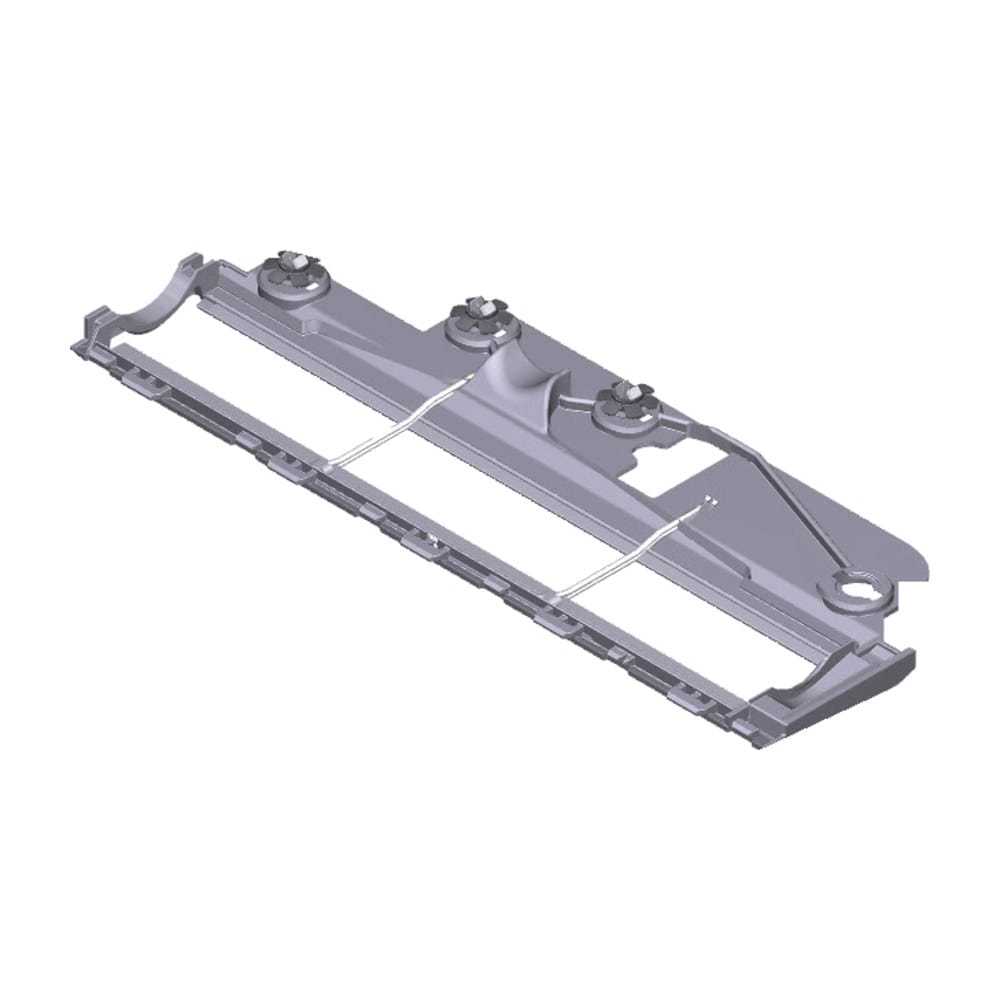

| 220 |  | Glide Sole | K40715600 | $31.99 |

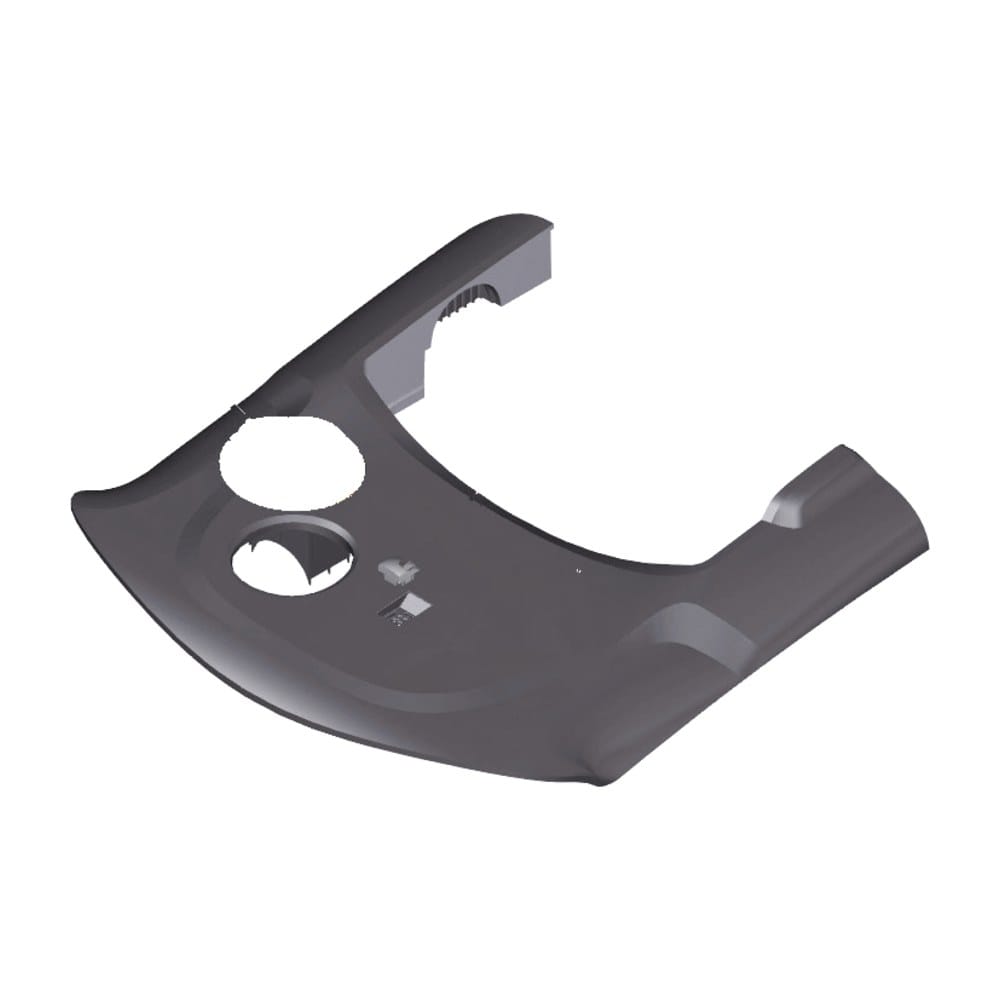

| 223 |  | Top Cover | K40715450 | $61.99 |
| 224 | | Bottom Housing | K40620070 | $77.99 |
| 225 | | Circuit Board | K66822900 | $89.99 |
| 226 | | Microswitch | K66301350 | $9.99 |
| 227 | | Cap | K62865730 | Call for price |
| 233 |  | Lock Piece Kit (4 Sets) | K40715460 | $13.99 |
| 246 |  | Complete Foot Pedal | K44812650 | $10.99 |
| 262 |  | Rear Wheel | K55153740 | $19.99 |
| 270 |  | Brush Roll (Red Hard) | K69066440 | $54.99 |
| 270 |  | Brush Roll (Black Soft) | K69066430 | $55.99 |
| 270 |  | Anti-Static Roller Brush | K47624870 | $88.99 |
| 281 | | Belt | K63484600 | $18.99 |
| 283 |  | Lock Washer | K63431870 | $3.99 |
| 290 | | Spring | K53320820 | $21.99 |
| 309 |  | Insert | K53160213 | $10.99 |
| 999 |  | Axle Shaft | K94121780 | $19.99 |
Frequently Asked Questions
Callout 270 has three parts — which one do I order?
Whichever bristle grade suits the carpet. Red hard for dense commercial loop, black soft for cut-pile and more delicate carpet, anti-static where dry-season static is a problem. All three fit the same position on a 15-inch machine.
Will these parts fit a 19-inch CVD 48/2?
Some will and some will not, which is exactly why there are two pages. The brush motor, circuit board, microswitch, foot pedal and most of the fasteners are common. The brush rolls, bumper, glide sole, bottom housing and pinion are width-specific.
My brush roll will not turn — where do I start?
The belt (K63484600) first, then the microswitch (K66301350), then the circuit board (K66822900). Working up in cost order rules out the cheap causes before the expensive one. Remember the suction motor runs independently, so the machine sounds normal throughout.
How do I get the brush roll out?
Release the lock pieces and lift the glide sole off — no tools — then the roll lifts clear. Clear any hair wrapped at the bearing ends while it is out.
Not sure which part you need? Call Twin City Vacuum on 763-535-0770 with your model number and the callout number from the diagram. See all Tornado CVD 38/2 and 48/2 parts.
