Lindhaus LW46 Vacuum Parts

Click on the Lindhaus LW46 drawing you need. The Hybrid and Electric share the handle drawing; each has its own base drawing.

Not sure which one? Give us a call 763-535-0770

Lindhaus LW46 Parts for the Hybrid and Electric Floor Scrubber

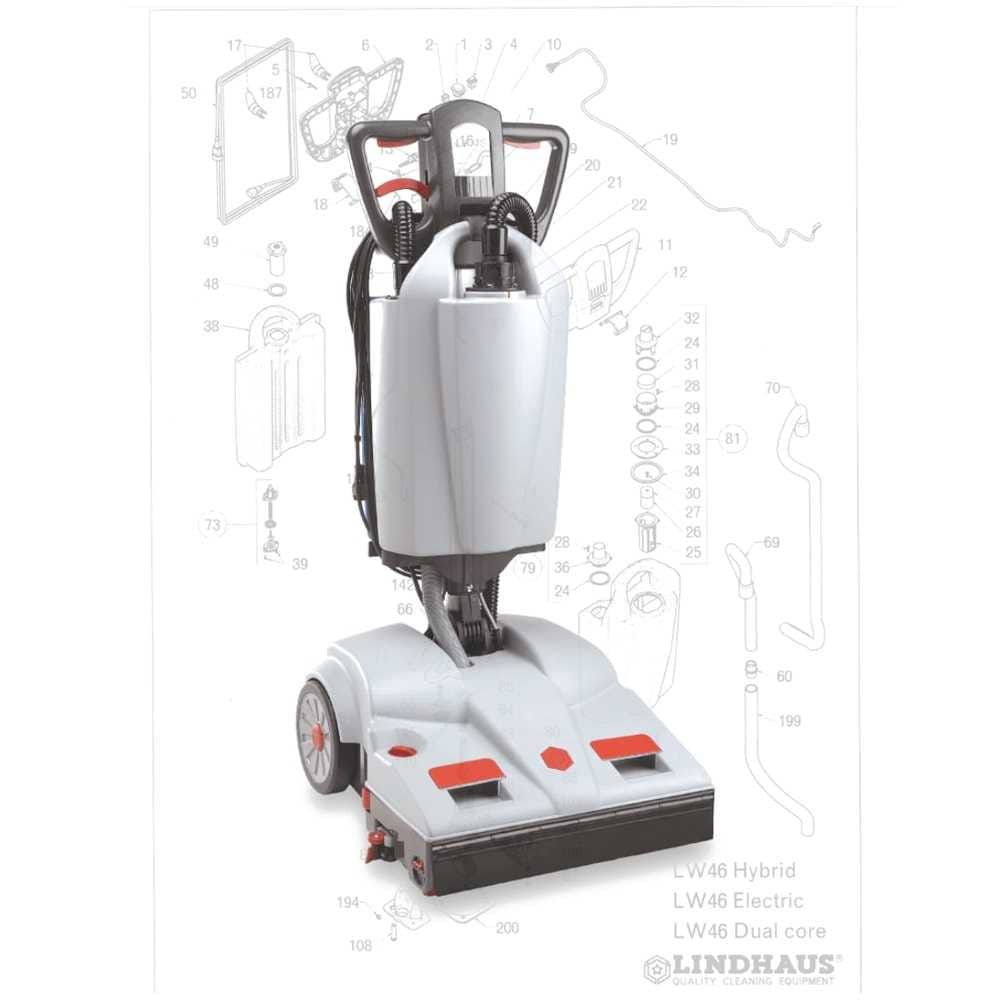

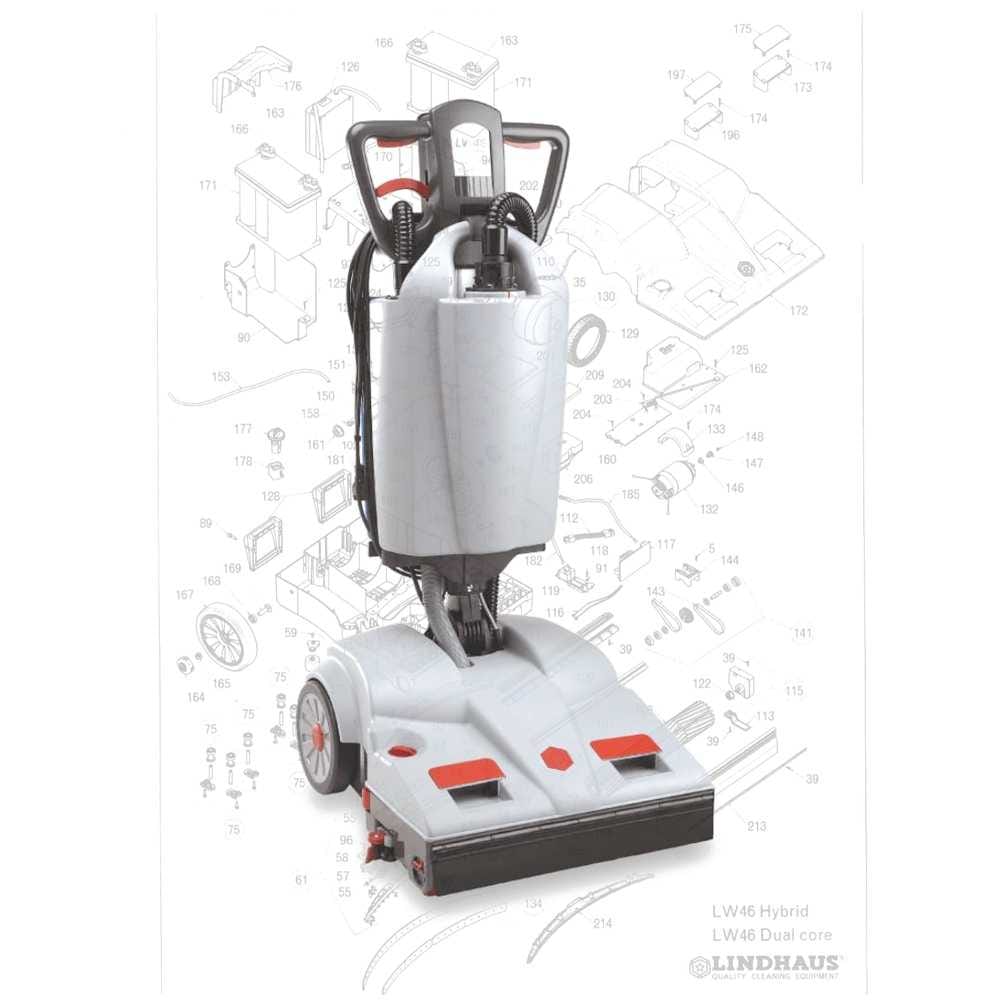

The Lindhaus LW46 is a compact walk-behind floor scrubber dryer built in two versions: the battery-powered LW46 Hybrid (including the Hybrid Dual Core) and the corded LW46 Electric. Lindhaus draws the machine on three sheets, and this page links to all of them. The LW46 handle drawing is shared by both versions and covers the handle and controls, the clean water and recovery tanks, the floats, the hoses and the handle joint. The base has two drawings: the LW46 Hybrid base and the LW46 Electric base.

Most parts are common to both machines: the tanks and floats, the squeegee and its wheels, the Timing Belt 8.5 mm (014400300), the Double Pulley Kit (180150081), the swivel and rear wheels, the front bumper and the cooling-air filters. What changes between the two is the power side. The Hybrid uses the Vacuum Motor R31ALSS V.24 (181000081), the Brush Motor R77MP V.24 (051520081) and the Pump 24V AC (023950000); the Electric uses the Vacuum Motor R31ALSS V.120/60 (181970080), the Brush Motor R74/45 V.120/60 (051600080) and the Kit Pump V.120/60 (023290181). The batteries, charger and wiring also differ between versions. Where the two differ at the same callout, the parts tables list both part numbers. If you are not sure which LW46 you have, send us the model number or a photo and we will confirm the part before you order.

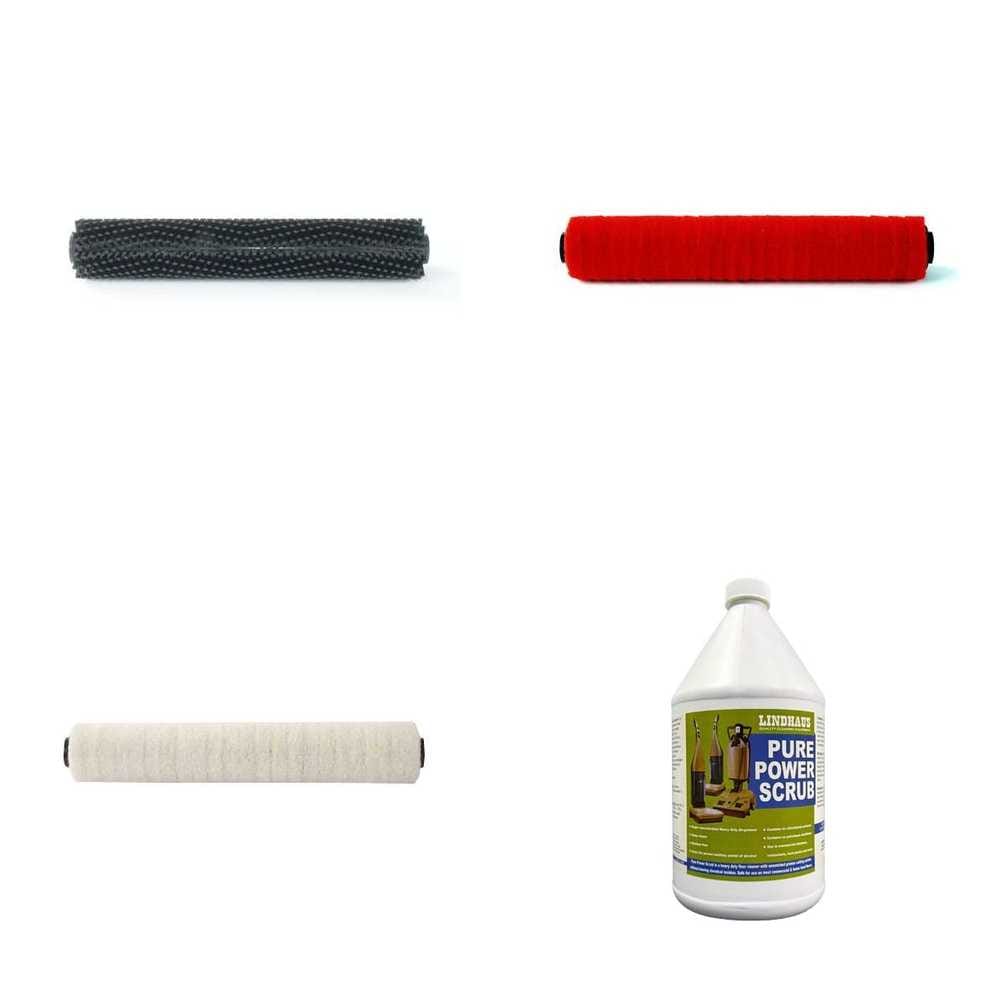

The parts we replace most often on the LW46 are the wear items: squeegee rubbers and wheels, the timing belt, the pump protection filters (088590000 Hybrid, 183030000 Electric), the Filter Motor Protection (014440316) and the recovery tank gaskets. Filters, squeegee kits and Lindhaus floor cleaner are collected in Lindhaus LW46 Accessories. For other Lindhaus machines see the Lindhaus parts page, and for the machine itself visit Lindhaus USA.

Twin City Vacuum has sold and serviced Lindhaus equipment since 1956. Not sure which part you need? Call us at 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.

Lindhaus LW46 Parts — Frequently Asked Questions

Which Lindhaus LW46 do I have?

The LW46 Electric runs from a power cord. The LW46 Hybrid and Hybrid Dual Core run on batteries and have a battery compartment in the base. The data plate on the machine names the version; call us at 763-535-0770 if you are not sure.

Do the LW46 Hybrid and LW46 Electric share parts?

Yes, most of them. The handle, tanks, floats, hoses, wheels, squeegee and most of the base are shared. The motors, pump, circuit board, wiring and a few handle parts differ, and the parts tables show both part numbers where they do.

Why is my LW46 leaving water on the floor?

Usually an air leak on the recovery side or a worn squeegee: check the float cup gasket, the recovery and suction hoses, the motor protection filter, the squeegee rubber and the squeegee wheels.

How do I order a part?

Open the drawing you need, click the red dot or the part name, and add the part to your cart. You can also call us at 763-535-0770 with the part number.
