Lindhaus LW46 Electric Base Parts

Find genuine Lindhaus LW46 Electric base replacement parts. Can’t find your part? Call us at 763-535-0770.

Click on any numbered part in the diagram below to go directly to that part’s product page.

Lindhaus LW46 Electric base parts diagram5. Screw 3.9×25 (Pack of 20) – 08560000914. Axle Lifting Lever (Pack of 20) – 08993000935. Vacuum Motor Wires and Connector – 02458002837. Screw 3.5×13 IX (Pack of 20) – 08996000939. Screw 3.5×16 IX (Pack of 20) – 08845000952. Squeegee Support Kit – 18056038156. Rubber Wheels D.22 (Pack of 20) – 08999038157. Shaft Squeegee Wheels (Pack of 20) – 18001000958. Side Squeegee Wheel Grey (Pack of 20) – 18002128159. Screw 4.8×13 TG (Pack of 20) – 08564000961. Support Squeegee Kit Grey Wheels (1 Pc) – 08974008162. Steel Support Squeegee – 01438000963. Tube Inlet Squeegee – 00846010564. Screw M4x6 TSP IX – 18003000965. Gasket Inlet Squeegee – 01714031675. Kit Squeegee Rollers – 08977008189. Screw M6x20 (Pack of 20) – 18012000990. Mounting Plate Left – 01422160993. Mounting Central Plate – 01423160994. Mounting Right Plate – 01424160996. Screw 4.8×9.5 TG (Pack of 20) – 180130009102. Antiwear Cord Guide (Pack of 20) – 180290081104. Support Side Metal – 014250329105. Brush Support Kit with Bearing – 180360081107. Extruded Sweep Rubber – 008740307109. Water Distribution Channel – 008530400110. Wires Protection Tube – 180330081111. Holed Distribution Channel – 008540400113. Transmission Cover – 008550305114. Base Housing – 180301281115. Transmission Support Complete – 089840081116. Wires Kit – 180340080120. Swivel Wheel Complete – 183360081121. Support Central Wheel – 008320305122. Drive Joint Base – 088620081123. Lever Central Wheel – 014260029124. Bridge Lever – 008570305125. Screw 4.8×22 (Pack of 20) – 180140009128. Rear Handle – 008270305129. Suction Group Gasket – 008830307130. Vacuum Motor R31ALSS 600 W – 181970080131. Fan Cover Gasket – 000220308132. Brush Motor R74/45 300 W – 051600080141. Double Pulley Kit – 180150081143. Timing Belt 8.5 mm – 014400300144. Double Transmission Bridge – 008590305147. Pinion and Nut – 183050081150. Pump Kit – 023290181151. Bridge Pump – 008600305152. Screw 3.9×45 (Pack of 20) – 087740009153. Water Tube D.4 L.1000 mm – 089860000154. Water Tube D.4 L.305 mm – 089870000155. Y Connector – 100310300156. Water Tube D.4 L.105 mm – 089880000157. 90° Connector With Insert – 089890081158. 90° Connector – 007480300159. Gasket Pump – 007360308160. Support Water Sensor – 008610305161. Gasket Pump – 007350308162. Motor and Circuit Board Cover – 008620305164. Cover Rear Wheels Grey – 180171281165. Nut M10 AB (Pack of 20) – 180180009167. Rear Wheel 200 mm – 060230081168. Rear Wheel Spacer (Pack of 20) – 180190009169. Wheel Screw M10x45 (Pack of 20) – 180200009172. Base Cover With Grey Logo – 180321681173. Front Handle Right – 014270029174. Screw 4.8×50 – 087270009175. Cover Front Handle Right Grey – 008651205177. Adjusting Knob Grey – 003131204178. Brush Adjuster – 000990305179. Side Wheels Grey, Support, Screw (Set Of 2 / 6 Pcs Total) – 089900081181. Support Plate – 014291609188. Motor Support Kit – 181980381189. Speed Sensor – 024570000195. Screw 3.9×9.5 – 086930009196. Front Handle Left – 014280029197. Cover Front Handle Left Grey – 008661205198. Red Clip and Screws (Pack of 20) – 180271381201. Base Lifting Spring – 014320009202. Sound Insulation – 014550316203. Water Sensor – 024110000204. Screw 3.9×13 (Pack of 20) – 085590009205. Front Bumper – 180370381207. Filter Intake Cooling Air – 014340316208. Filter Exhaust Cooling Air – 014350316209. Filter Exhaust Suction Air – 014360316210. Sound Insulation – 014700316212. Foam Filter Base – 014720016215. Internal Cable – 024720028

This is the base drawing for the corded Lindhaus LW46 Electric: the base housing and covers, the vacuum motor and brush motor with the motor support kit, the timing belt, double pulley and transmission, the brush supports, the circuit control board, speed sensor and internal cable, the pump kit with its filters, tubes and connectors, the water distribution channels, the swivel wheel and rear wheels, the front bumper, the squeegee housing, supports and wheels, and the cooling-air and foam filters. A few parts that are not drawn on this sheet are listed at the end of the table as Not shown. Twin City Vacuum has been selling and servicing Lindhaus equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.

#ImagePart DescriptionPart NumberPrice
5Lindhaus Screw 3.9x25 (Pack of 20) part number 085600009Screw 3.9×25 (Pack of 20)085600009$8.08
14Lindhaus Axle Lifting Lever (Pack of 20) part number 089930009Axle Lifting Lever (Pack of 20)089930009$81.32
35Lindhaus Vacuum Motor Wires and Connector part number 024580028Vacuum Motor Wires and Connector024580028$41.74
37Lindhaus Screw 3.5x13 IX (Pack of 20) part number 089960009Screw 3.5×13 IX (Pack of 20)089960009$25.56
39Lindhaus Screw 3.5x16 IX (Pack of 20) part number 088450009Screw 3.5×16 IX (Pack of 20)088450009$23.80
52Lindhaus Squeegee Support Kit part number 180560381Squeegee Support Kit180560381$71.34
56Lindhaus Rubber Wheels D.22 (Pack of 20) part number 089990381Rubber Wheels D.22 (Pack of 20)089990381$238.00
57Lindhaus Shaft Squeegee Wheels (Pack of 20) part number 180010009Shaft Squeegee Wheels (Pack of 20)180010009$162.40
58Lindhaus Side Squeegee Wheel Grey (Pack of 20) part number 180021281Side Squeegee Wheel Grey (Pack of 20)180021281$89.80
59Lindhaus Screw 4.8x13 TG (Pack of 20) part number 085640009Screw 4.8×13 TG (Pack of 20)085640009$8.08
61Lindhaus Support Squeegee Kit Grey Wheels (1 Pc) part number 089740081Support Squeegee Kit Grey Wheels (1 Pc)089740081$153.00
62Lindhaus Steel Support Squeegee part number 014380009Steel Support Squeegee014380009$198.00
63Lindhaus Tube Inlet Squeegee part number 008460105Tube Inlet Squeegee008460105$7.40
64Lindhaus Screw M4x6 TSP IX part number 180030009Screw M4x6 TSP IX180030009$14.80
65Lindhaus Gasket Inlet Squeegee part number 017140316Gasket Inlet Squeegee017140316$6.84
75Lindhaus Kit Squeegee Rollers part number 089770081Kit Squeegee Rollers089770081$139.60
89Lindhaus Screw M6x20 (Pack of 20) part number 180120009Screw M6x20 (Pack of 20)180120009$31.80
90Lindhaus Mounting Plate Left part number 014221609Mounting Plate Left014221609$246.42
93Lindhaus Mounting Central Plate part number 014231609Mounting Central Plate014231609$391.14
94Lindhaus Mounting Right Plate part number 014241609Mounting Right Plate014241609$246.42
96Lindhaus Screw 4.8x9.5 TG (Pack of 20) part number 180130009Screw 4.8×9.5 TG (Pack of 20)180130009$41.74
102Lindhaus Antiwear Cord Guide (Pack of 20) part number 180290081Antiwear Cord Guide (Pack of 20)180290081$59.80
104Lindhaus Support Side Metal part number 014250329Support Side Metal014250329$36.80
105Lindhaus Brush Support Kit with Bearing part number 180360081Brush Support Kit with Bearing180360081$38.00
107Lindhaus Extruded Sweep Rubber part number 008740307Extruded Sweep Rubber008740307$22.18
109Lindhaus Water Distribution Channel part number 008530400Water Distribution Channel008530400$10.40
110Lindhaus Wires Protection Tube part number 180330081Wires Protection Tube180330081$7.58
111Lindhaus Holed Distribution Channel part number 008540400Holed Distribution Channel008540400$12.40

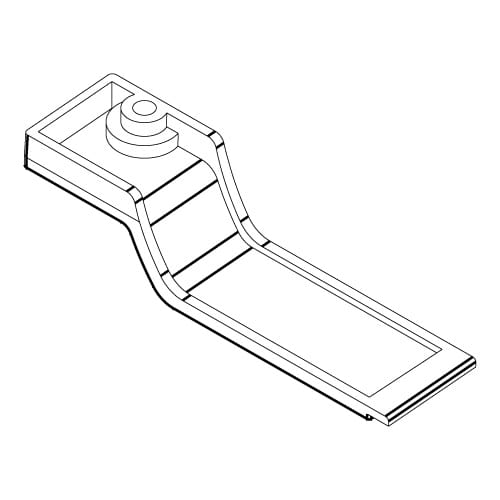

113Lindhaus Transmission Cover part number 008550305Transmission Cover008550305$4.44

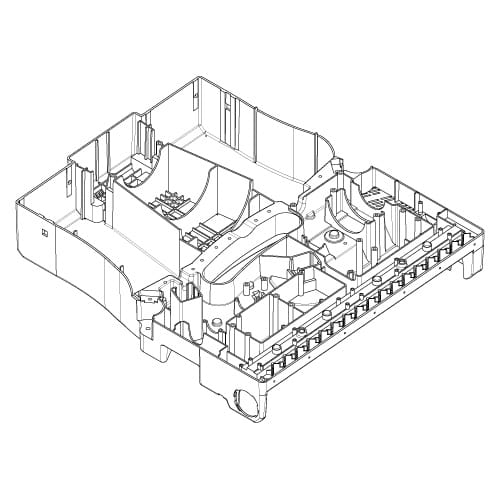

114Lindhaus Base Housing part number 180301281Base Housing180301281$338.00

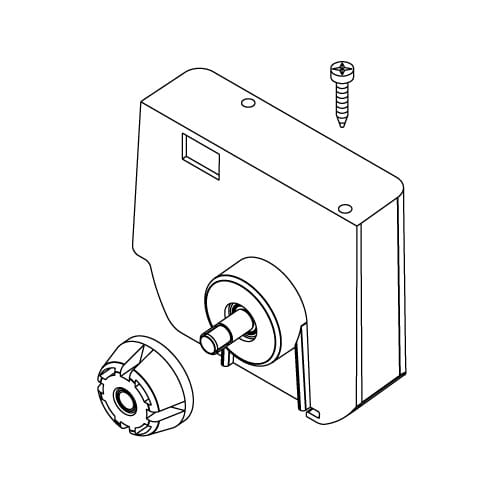

115Lindhaus Transmission Support Complete part number 089840081Transmission Support Complete089840081$119.60
116Lindhaus Wires Kit part number 180340080Wires Kit180340080$13.20
117Circuit Control Board LW46 Electric V.120027290000Call for price
120Lindhaus Swivel Wheel Complete part number 183360081Swivel Wheel Complete183360081$52.32
121Lindhaus Support Central Wheel part number 008320305Support Central Wheel008320305$9.60
122Lindhaus Drive Joint Base part number 088620081Drive Joint Base088620081$10.00
123Lindhaus Lever Central Wheel part number 014260029Lever Central Wheel014260029$25.80

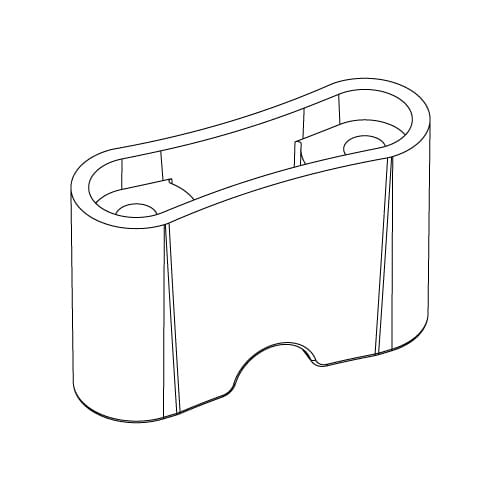

124Lindhaus Bridge Lever part number 008570305Bridge Lever008570305$5.76
125Lindhaus Screw 4.8x22 (Pack of 20) part number 180140009Screw 4.8×22 (Pack of 20)180140009$15.40
128Lindhaus Rear Handle part number 008270305Rear Handle008270305$35.80
129Lindhaus Suction Group Gasket part number 008830307Suction Group Gasket008830307$30.14

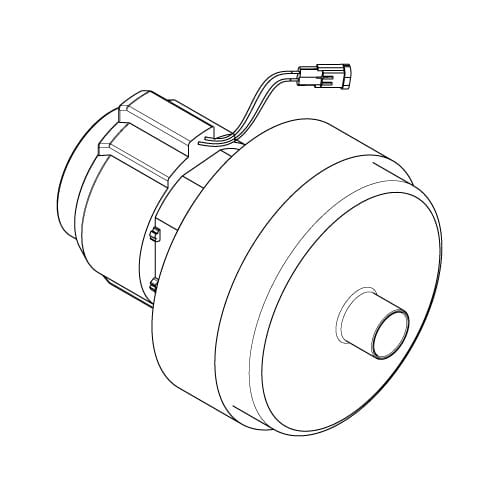

130Lindhaus Vacuum Motor R31ALSS 600 W part number 181970080Vacuum Motor R31ALSS 600 W181970080$258.00
131Lindhaus Fan Cover Gasket part number 000220308Fan Cover Gasket000220308$15.94
132Lindhaus Brush Motor R74/45 300 W part number 051600080Brush Motor R74/45 300 W051600080$331.44
141Lindhaus Double Pulley Kit part number 180150081Double Pulley Kit180150081$65.80
143Lindhaus Timing Belt 8.5 mm part number 014400300Timing Belt 8.5 mm014400300$43.62
144Lindhaus Double Transmission Bridge part number 008590305Double Transmission Bridge008590305$6.64
147Lindhaus Pinion and Nut part number 183050081Pinion and Nut183050081$10.12
150Lindhaus Pump Kit part number 023290181Pump Kit023290181$118.00
151Lindhaus Bridge Pump part number 008600305Bridge Pump008600305$6.84
152Lindhaus Screw 3.9x45 (Pack of 20) part number 087740009Screw 3.9×45 (Pack of 20)087740009$10.00
153Lindhaus Water Tube D.4 L.1000 mm part number 089860000Water Tube D.4 L.1000 mm089860000$21.60
154Lindhaus Water Tube D.4 L.305 mm part number 089870000Water Tube D.4 L.305 mm089870000$6.04
155Lindhaus Y Connector part number 100310300Y Connector100310300$13.66
156Lindhaus Water Tube D.4 L.105 mm part number 089880000Water Tube D.4 L.105 mm089880000$3.70
157Lindhaus 90° Connector With Insert part number 08989008190° Connector With Insert089890081$15.20
158Lindhaus 90° Connector part number 00748030090° Connector007480300$14.60
159Lindhaus Gasket Pump part number 007360308Gasket Pump007360308$11.90
160Lindhaus Support Water Sensor part number 008610305Support Water Sensor008610305$14.42
161Lindhaus Gasket Pump part number 007350308Gasket Pump007350308$11.90
162Lindhaus Motor and Circuit Board Cover part number 008620305Motor and Circuit Board Cover008620305$15.80
164Lindhaus Cover Rear Wheels Grey part number 180171281Cover Rear Wheels Grey180171281$23.78
165Lindhaus Nut M10 AB (Pack of 20) part number 180180009Nut M10 AB (Pack of 20)180180009$67.04
167Lindhaus Rear Wheel 200 mm part number 060230081Rear Wheel 200 mm060230081$119.80
168Lindhaus Rear Wheel Spacer (Pack of 20) part number 180190009Rear Wheel Spacer (Pack of 20)180190009$161.42
169Lindhaus Wheel Screw M10x45 (Pack of 20) part number 180200009Wheel Screw M10x45 (Pack of 20)180200009$84.24
172Lindhaus Base Cover With Grey Logo part number 180321681Base Cover With Grey Logo180321681$238.00
173Lindhaus Front Handle Right part number 014270029Front Handle Right014270029$59.20
174Lindhaus Screw 4.8x50 part number 087270009Screw 4.8×50087270009$25.20
175Lindhaus Cover Front Handle Right Grey part number 008651205Cover Front Handle Right Grey008651205$5.92
176Cover Battery Charger008674146Call for price
177Lindhaus Adjusting Knob Grey part number 003131204Adjusting Knob Grey003131204$12.14
178Lindhaus Brush Adjuster part number 000990305Brush Adjuster000990305$7.40
179Lindhaus Side Wheels Grey, Support, Screw (Set Of 2 / 6 Pcs Total) part number 089900081Side Wheels Grey, Support, Screw (Set Of 2 / 6 Pcs Total)089900081$20.60
181Lindhaus Support Plate part number 014291609Support Plate014291609$63.76
188Lindhaus Motor Support Kit part number 181980381Motor Support Kit181980381$25.56
189Lindhaus Speed Sensor part number 024570000Speed Sensor024570000$43.60
195Lindhaus Screw 3.9x9.5 part number 086930009Screw 3.9×9.5086930009$7.32
196Lindhaus Front Handle Left part number 014280029Front Handle Left014280029$59.20
197Lindhaus Cover Front Handle Left Grey part number 008661205Cover Front Handle Left Grey008661205$5.92
198Lindhaus Red Clip and Screws (Pack of 20) part number 180271381Red Clip and Screws (Pack of 20)180271381$58.00
201Lindhaus Base Lifting Spring part number 014320009Base Lifting Spring014320009$16.20
202Lindhaus Sound Insulation part number 014550316Sound Insulation014550316$10.12
203Lindhaus Water Sensor part number 024110000Water Sensor024110000$73.80
204Lindhaus Screw 3.9x13 (Pack of 20) part number 085590009Screw 3.9×13 (Pack of 20)085590009$9.60
205Lindhaus Front Bumper part number 180370381Front Bumper180370381$110.00
207Lindhaus Filter Intake Cooling Air part number 014340316Filter Intake Cooling Air014340316$8.88
208Lindhaus Filter Exhaust Cooling Air part number 014350316Filter Exhaust Cooling Air014350316$8.88
209Lindhaus Filter Exhaust Suction Air part number 014360316Filter Exhaust Suction Air014360316$8.88
210Lindhaus Sound Insulation part number 014700316Sound Insulation014700316$11.14
212Lindhaus Foam Filter Base part number 014720016Foam Filter Base014720016$9.60
215Lindhaus Internal Cable part number 024720028Internal Cable024720028$24.54
Not shownLindhaus Washer 4.3 D12 (Pack of 20) part number 087290009Washer 4.3 D12 (Pack of 20)087290009$6.58
Not shownLindhaus Boards Connection Wires part number 024010028Boards Connection Wires024010028$78.96
Not shownLindhaus Screw 3.9x22 (Pack of 20) part number 087260009Screw 3.9×22 (Pack of 20)087260009$8.08
Not shownLindhaus Battery Pole part number 014070014Battery Pole014070014$29.80
Not shownLindhaus Battery Pole + part number 014060014Battery Pole +014060014$29.80

Lindhaus LW46 Electric Base Parts: Motors, Belt, Pump and Squeegee

The Lindhaus LW46 Electric shares most of its base with the Hybrid, but the drive is different. The Electric uses the Vacuum Motor R31ALSS V.120/60 (181970080), the Brush Motor R74/45 V.120/60 (051600080) with the Kit Motor Support (181980381), the Kit Pump V.120/60 (023290181), the Speed Sensor (024570000) and its own circuit control board. If your LW46 runs on batteries, use the Hybrid base page instead.

The brush is driven by the Timing Belt 8.5 mm (014400300) through the Double Pulley Kit (180150081); if the motor runs and the brush does not, check the belt first. Solution reaches the brush from the pump through the water tubes and distribution channels. If the brush runs dry with a full tank, change the Pump Protection Filter (183030000) before suspecting the pump.

For drying, keep the squeegee in good order: the Rubber Wheels D.22 (089990381), the Shaft Squeegee Wheels (180010009), the Squeegee Support Kit (180560381) and the squeegee hose all affect how well the floor dries. Clean the cooling-air filters (014340316, 014350316, 014360316) and the Foam Filter Base (014720016) regularly so the motors stay cool. Filters and squeegee kits are also in Lindhaus LW46 Accessories, and product information is at Lindhaus USA.

On the Electric, check the power cord before suspecting the motors. A damaged cord, or one that has been pulled hard against the strain relief, can make the machine cut out. The yellow USA power cord (024180020) is on the LW46 handle page. If the brush slows or stops under load, a worn belt or a brush wrapped with string is a more common cause than a failed motor, so clear the brush and check the belt first.

The Electric’s speed sensor and internal cable are specific to the corded version and are listed in the table with their own part numbers. Always unplug the machine before opening the base.

Lindhaus LW46 Electric Base Parts — Frequently Asked Questions

Do LW46 Electric base parts fit the LW46 Hybrid?

Most do: the base housing, belt, pulleys, wheels, squeegee and water parts are shared. The motors, pump, circuit board and wiring differ, so check the part number in the table against your machine.

The brush motor runs but the brush does not turn. What part do I need?

Usually the Timing Belt 8.5 mm (014400300). If the belt is intact, check the Double Pulley Kit (180150081) and the brush supports.

What does Not shown mean in the table?

Lindhaus lists these parts for the LW46 Electric, but they are not drawn on this sheet. They are still the correct parts; call us if you need help identifying one.

How do I find the right part on the diagram?

Hover over or tap a red dot on the drawing to see the part name and number, then click it to open the part. Every dot matches a numbered row in the table below the drawing.

See the Lindhaus LW46 parts hub for the handle drawing and the Hybrid base, or the Lindhaus parts page for other machines. Questions? Call 763-535-0770.
