Lindhaus LW46 Handle Parts

Find genuine Lindhaus LW46 handle and tank replacement parts for the LW46 Hybrid and LW46 Electric. Can’t find your part? Call us at 763-535-0770.

Click on any numbered part in the diagram below to go directly to that part’s product page.

Lindhaus LW46 handle parts diagram1. Main Switch – 0236100002. Pump Switch (Hybrid / Electric) – 024070000/0234500003. Vacuum Switch – 0254200004. Switches Plate – 0081812015. Screw 3.9×25 (Pack of 20) – 0856000096. Rear Handle – 0081912337. Lever Switch Brush Motor – 0082001018. Brush Motor Microswitch – 0241000009. Joint Lever – 00821010510. Screw 2.9×19 (Pack of 20) – 08553000911. Handle Front (Hybrid / Electric) – 181201281/18199128112. Front Tank Hook – 00823123913. Base Lifting Lever – 01421002914. Axle Lifting Lever (Pack of 20) – 08993000915. Cord Clamp – 00007030516. Screw 2.9×16 (Pack of 20) – 08561000917. Rotating Cord Hook – 00711010118. Hook Rear Tank – 00824123919. Cord 7 Wires (Hybrid / Electric) – 023990320/02449032020. Screw M6x25 (Pack of 20) – 08994000921. Handle Bridge – 00825010522. Nut M6 AB (Pack of 20) – 08995000923. Recovery Tank with Tube Tank Entrance Kit – 18121168124. Gasket Tube Connector – 01408031525. Float Housing – 00833030526. Float Long – 00834010527. Float Short – 00835010528. Screw 5×16 HILO (Pack of 20) – 08898000929. Housing Motor Protection Filter – 00836030530. Screw 3.5×32 IX (Pack of 20) – 08897000931. Filter Motor Protection – 01444031632. Float Housing Tube – 00837030533. Cup Recovery Tank – 00838414634. Gasket Float Cup – 01431031536. Tube Tank Entrance – 00839030538. Water Tank – 18103438139. Screw 3.5×16 IX (Pack of 20) – 08845000945. Kit 3 Water Filters Pump – 18304008148. Gasket Dosing Cup – 01445031549. Dosing Cup – 00841414650. Power Cord 12.5 m (Yellow) – 02418002060. Connector Hoses – 00845010566. Screw 3.9×13 TSP+ (Pack of 20) – 08747000967. Body Valve – 00830040068. Gasket Valve – 00894030869. Hose Recovery L.640 mm – 03216030070. Hose Suction L.1340 mm – 03217030071. Support Tanks – 00847030572. Aluminum Wand – 01448001173. Valve Kit Water Tank – 08975008174. Tanks Guide Screw Kit (20 pcs) – 08976008176. Block Pin (Pack of 20) – 18011000977. Bar Release Joint – 01439160978. Extruded Wand Cover – 00875030779. Tube Tank Entrance Kit – 08978008180. Joint Kit – 08979008181. Float Housing Tube Kit – 08980008182. Joint – 00886030583. Block Joint – 01461002984. Spring Joint – 01443000985. Guide Spring – 01462002986. Plate Block Spring – 01463002987. Strain Relief D.8 – 01083030788. Support Joint Kit (2 Pcs) – 18035038189. Screw M6x20 (Pack of 20) – 18012000992. Metal Rack – 014710029142. Gasket Tanks Support – 014090315145. Water Tube D.4 L.60 mm – 089850000149. Pump Protection Filter (Pack of 10) (Hybrid / Electric) – 088590000/183030000180. Cord Block – 014670009183. Cord Protection Guide – 014690009184. Flex Steel Cord – 014680009186. Washers 6×18 (Pack of 20) – 180210009187. Screw 3.9×32 (Pack of 20) – 086970009193. Screw M8x50 (Pack of 20) – 180250009194. Nut M8 AB (Pack of 20) – 180260009199. Hose Squeegee – 032070000200. Joint Gasket – 014300315

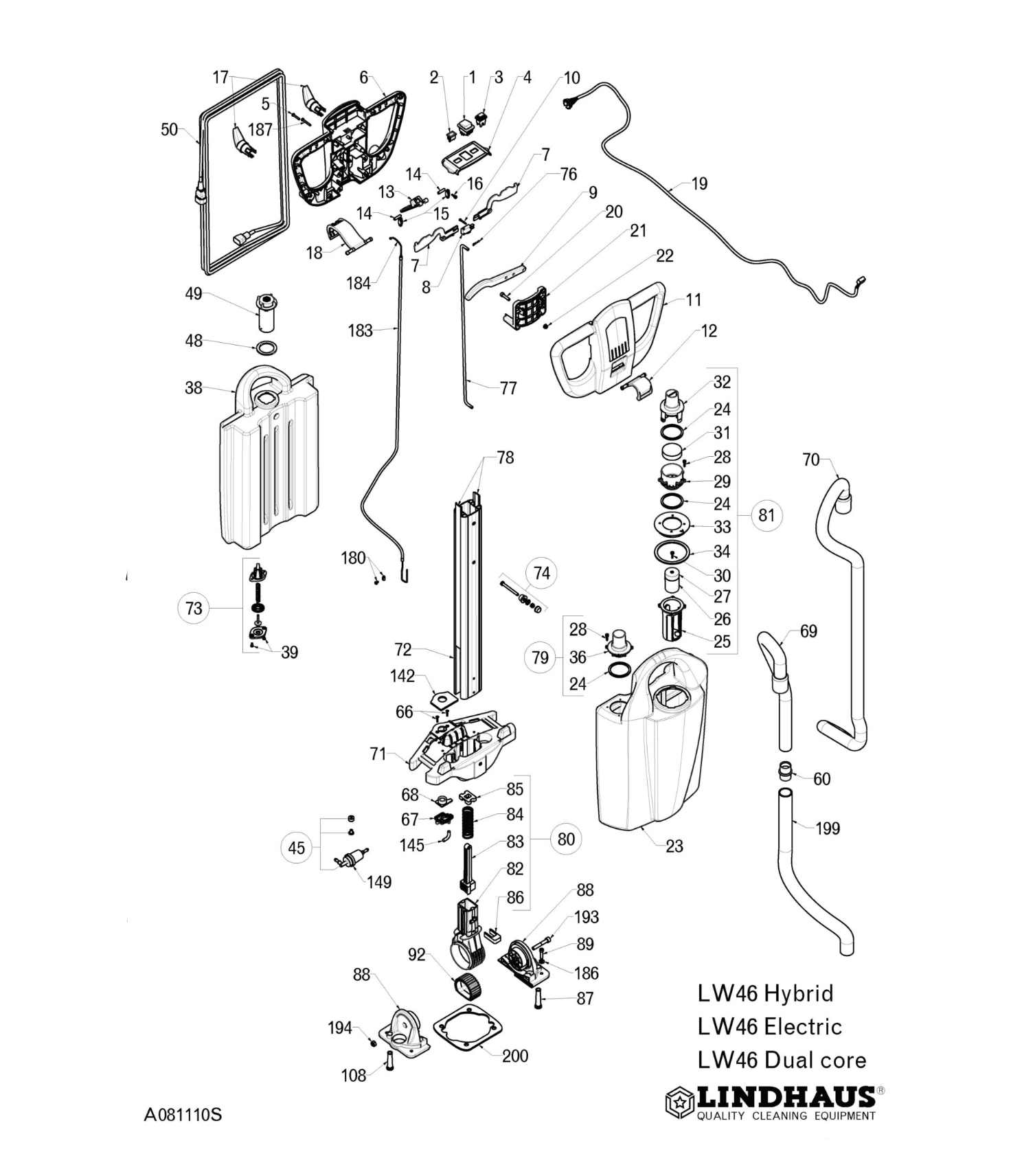

This is the Lindhaus LW46 handle drawing, shared by the LW46 Hybrid and the LW46 Electric: the handle grips and controls, the main, pump and vacuum switches, the brush motor lever and microswitch, the handle joint with its springs and block, the aluminium wand, the clean water tank and dosing cup, the recovery tank with its float shut-off and motor protection filter, the recovery, suction and squeegee hoses, and the tank support. Where the two versions use a different part at the same number, the table lists both, marked Hybrid and Electric. The base, motors, brush drive and squeegee are on the Hybrid base and Electric base pages. Twin City Vacuum has been selling and servicing Lindhaus equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.

#ImagePart DescriptionPart NumberPrice
1Lindhaus Main Switch part number 023610000Main Switch023610000$27.80

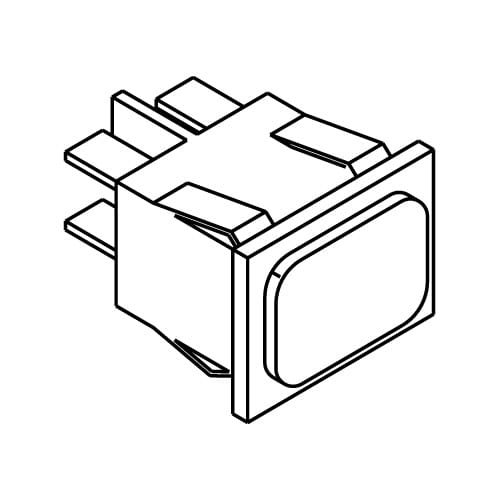

2Lindhaus Pump Switch V.24 part number 024070000Hybrid: Pump Switch V.24024070000$35.80
2Lindhaus Pump Switch part number 023450000Electric: Pump Switch023450000$29.80
3Lindhaus Vacuum Switch part number 025420000Vacuum Switch025420000$23.00
4Lindhaus Switches Plate part number 008181201Switches Plate008181201$9.80
5Lindhaus Screw 3.9x25 (Pack of 20) part number 085600009Screw 3.9×25 (Pack of 20)085600009$8.08
6Lindhaus Rear Handle part number 008191233Rear Handle008191233$133.00
7Lindhaus Lever Switch Brush Motor part number 008200101Lever Switch Brush Motor008200101$13.66
8Lindhaus Brush Motor Microswitch part number 024100000Brush Motor Microswitch024100000$39.80
9Lindhaus Joint Lever part number 008210105Joint Lever008210105$19.80
10Lindhaus Screw 2.9x19 (Pack of 20) part number 085530009Screw 2.9×19 (Pack of 20)085530009$6.84
11Lindhaus Handle Front part number 181201281Hybrid: Handle Front181201281$139.80
11Lindhaus Handle Front part number 181991281Electric: Handle Front181991281$178.62
12Lindhaus Front Tank Hook part number 008231239Front Tank Hook008231239$13.00
13Lindhaus Base Lifting Lever part number 014210029Base Lifting Lever014210029$24.00
14Lindhaus Axle Lifting Lever (Pack of 20) part number 089930009Axle Lifting Lever (Pack of 20)089930009$81.32
15Lindhaus Cord Clamp part number 000070305Cord Clamp000070305$1.00
16Lindhaus Screw 2.9x16 (Pack of 20) part number 085610009Screw 2.9×16 (Pack of 20)085610009$8.64
17Lindhaus Rotating Cord Hook part number 007110101Rotating Cord Hook007110101$19.80
18Lindhaus Hook Rear Tank part number 008241239Hook Rear Tank008241239$14.40
19Lindhaus Cord 7 Wires part number 023990320Hybrid: Cord 7 Wires023990320$59.80
19Lindhaus Cord 7 Wires part number 024490320Electric: Cord 7 Wires024490320$76.40
20Lindhaus Screw M6x25 (Pack of 20) part number 089940009Screw M6x25 (Pack of 20)089940009$45.04
21Lindhaus Handle Bridge part number 008250105Handle Bridge008250105$26.32
22Lindhaus Nut M6 AB (Pack of 20) part number 089950009Nut M6 AB (Pack of 20)089950009$37.44
23Lindhaus Recovery Tank with Tube Tank Entrance Kit part number 181211681Recovery Tank with Tube Tank Entrance Kit181211681$238.00
24Lindhaus Gasket Tube Connector part number 014080315Gasket Tube Connector014080315$5.80
25Lindhaus Float Housing part number 008330305Float Housing008330305$13.30
26Lindhaus Float Long part number 008340105Float Long008340105$6.04
27Lindhaus Float Short part number 008350105Float Short008350105$5.38
28Lindhaus Screw 5x16 HILO (Pack of 20) part number 088980009Screw 5×16 HILO (Pack of 20)088980009$36.44
29Lindhaus Housing Motor Protection Filter part number 008360305Housing Motor Protection Filter008360305$11.08
30Lindhaus Screw 3.5x32 IX (Pack of 20) part number 088970009Screw 3.5×32 IX (Pack of 20)088970009$25.80
31Lindhaus Filter Motor Protection part number 014440316Filter Motor Protection014440316$6.66

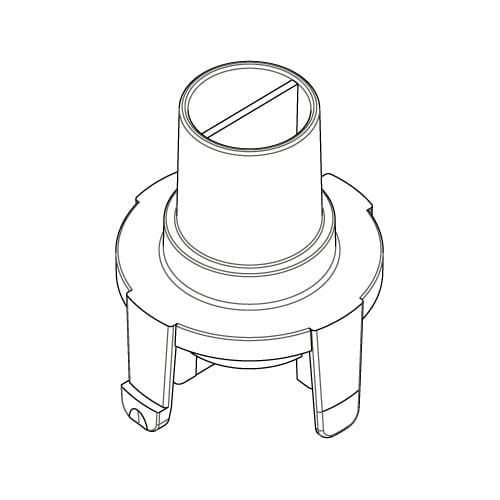

32Lindhaus Float Housing Tube part number 008370305Float Housing Tube008370305$11.88
33Lindhaus Cup Recovery Tank part number 008384146Cup Recovery Tank008384146$22.02
34Lindhaus Gasket Float Cup part number 014310315Gasket Float Cup014310315$12.56

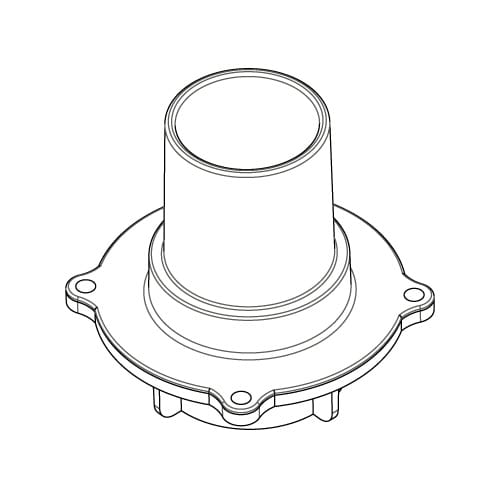

36Lindhaus Tube Tank Entrance part number 008390305Tube Tank Entrance008390305$10.60
38Lindhaus Water Tank part number 181034381Water Tank181034381$238.00
39Lindhaus Screw 3.5x16 IX (Pack of 20) part number 088450009Screw 3.5×16 IX (Pack of 20)088450009$23.80
45Lindhaus Kit 3 Water Filters Pump part number 183040081Kit 3 Water Filters Pump183040081$18.00
48Lindhaus Gasket Dosing Cup part number 014450315Gasket Dosing Cup014450315$9.40
49Lindhaus Dosing Cup part number 008414146Dosing Cup008414146$23.20
50Lindhaus Power Cord 12.5 m (Yellow) part number 024180020Power Cord 12.5 m (Yellow)024180020$100.80
60Lindhaus Connector Hoses part number 008450105Connector Hoses008450105$6.66
66Lindhaus Screw 3.9x13 TSP+ (Pack of 20) part number 087470009Screw 3.9×13 TSP+ (Pack of 20)087470009$8.34

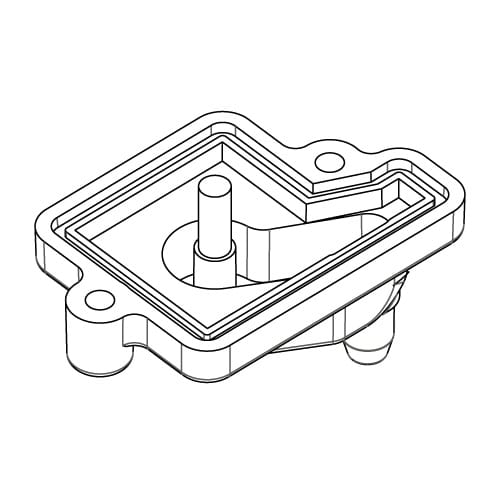

67Lindhaus Body Valve part number 008300400Body Valve008300400$4.44

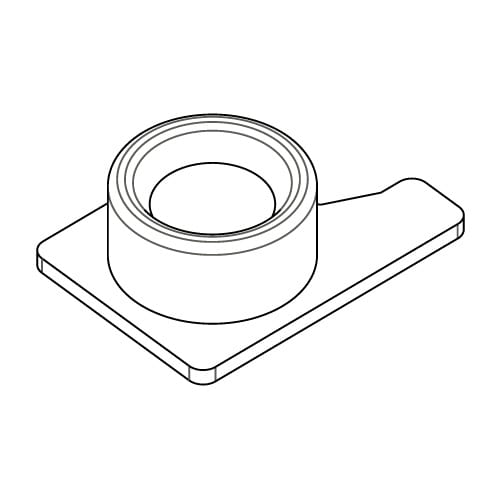

68Lindhaus Gasket Valve part number 008940308Gasket Valve008940308$10.34
69Lindhaus Hose Recovery L.640 mm part number 032160300Hose Recovery L.640 mm032160300$73.80
70Lindhaus Hose Suction L.1340 mm part number 032170300Hose Suction L.1340 mm032170300$95.80
71Lindhaus Support Tanks part number 008470305Support Tanks008470305$93.80
72Lindhaus Aluminum Wand part number 014480011Aluminum Wand014480011$246.42
73Lindhaus Valve Kit Water Tank part number 089750081Valve Kit Water Tank089750081$54.60
74Lindhaus Tanks Guide Screw Kit (20 pcs) part number 089760081Tanks Guide Screw Kit (20 pcs)089760081$93.62
76Lindhaus Block Pin (Pack of 20) part number 180110009Block Pin (Pack of 20)180110009$22.02
77Lindhaus Bar Release Joint part number 014391609Bar Release Joint014391609$80.70
78Lindhaus Extruded Wand Cover part number 008750307Extruded Wand Cover008750307$16.20
79Lindhaus Tube Tank Entrance Kit part number 089780081Tube Tank Entrance Kit089780081$19.60
80Lindhaus Joint Kit part number 089790081Joint Kit089790081$198.00
81Lindhaus Float Housing Tube Kit part number 089800081Float Housing Tube Kit089800081$118.16
82Lindhaus Joint part number 008860305Joint008860305$77.40
83Lindhaus Block Joint part number 014610029Block Joint014610029$65.78
84Lindhaus Spring Joint part number 014430009Spring Joint014430009$12.80
85Lindhaus Guide Spring part number 014620029Guide Spring014620029$15.52
86Lindhaus Plate Block Spring part number 014630029Plate Block Spring014630029$14.80
87Lindhaus Strain Relief D.8 part number 010830307Strain Relief D.8010830307$5.04
88Lindhaus Support Joint Kit (2 Pcs) part number 180350381Support Joint Kit (2 Pcs)180350381$221.12
89Lindhaus Screw M6x20 (Pack of 20) part number 180120009Screw M6x20 (Pack of 20)180120009$31.80
92Lindhaus Metal Rack part number 014710029Metal Rack014710029$47.40
142Lindhaus Gasket Tanks Support part number 014090315Gasket Tanks Support014090315$5.92
145Lindhaus Water Tube D.4 L.60 mm part number 089850000Water Tube D.4 L.60 mm089850000$2.96
149Lindhaus Pump Protection Filter (Pack of 10) part number 088590000Hybrid: Pump Protection Filter (Pack of 10)088590000$104.06
149Lindhaus Pump Protection Filter (Pack of 10) part number 183030000Electric: Pump Protection Filter (Pack of 10)183030000$142.70
180Lindhaus Cord Block part number 014670009Cord Block014670009$7.40
183Lindhaus Cord Protection Guide part number 014690009Cord Protection Guide014690009$39.80
184Lindhaus Flex Steel Cord part number 014680009Flex Steel Cord014680009$31.80
186Lindhaus Washers 6x18 (Pack of 20) part number 180210009Washers 6×18 (Pack of 20)180210009$25.56
187Lindhaus Screw 3.9x32 (Pack of 20) part number 086970009Screw 3.9×32 (Pack of 20)086970009$11.14
193Lindhaus Screw M8x50 (Pack of 20) part number 180250009Screw M8x50 (Pack of 20)180250009$84.24
194Lindhaus Nut M8 AB (Pack of 20) part number 180260009Nut M8 AB (Pack of 20)180260009$29.86
199Lindhaus Hose Squeegee part number 032070000Hose Squeegee032070000$65.86
200Lindhaus Joint Gasket part number 014300315Joint Gasket014300315$19.80

Lindhaus LW46 Handle, Tank and Hose Parts

The upper half of the Lindhaus LW46 is the same on the Hybrid and the Electric: the same handle frame, tanks, floats, hoses and joint. Only three parts on this drawing change between the two versions, and the table shows both: the front handle (181201281 on the Hybrid, 181991281 on the Electric), the pump switch (024070000 Hybrid, 023450000 Electric) and the seven-wire handle cable (023990320 Hybrid, 024490320 Electric). Check the data plate if you are not sure which you have.

Most handle-side service comes down to water and suction. If the machine leaves water behind, check the recovery side first: the Gasket Float Cup (014310315), the Gasket Tube Connector (014080315), the Filter Motor Protection (014440316) and the recovery and suction hoses (032160300 and 032170300). A torn gasket or a split hose lets the vacuum pull air instead of water. If the recovery tank fills and suction stops, that is the float shut-off doing its job; if suction stops with an empty tank, check the long and short floats (008340105, 008350105).

On the clean side, the Water Tank (181034381), Valve Kit Water Tank (089750081) and Dosing Cup (008414146) are the parts that wear. The brush is switched by the Lever Switch Brush Motor (008200101) and the Microswitch Brush Motor (024100000); if the brush will not start, those two are the usual suspects. Filters and the squeegee kit are also in Lindhaus LW46 Accessories, and the machine itself is at Lindhaus USA.

When you order a handle part, have the machine’s version in front of you. Three numbers on this sheet differ between the Hybrid and the Electric, and the wrong front handle or cable will not match the controls in the base. The tank parts, floats, gaskets and hoses are the same on both, so Hybrid and Electric owners order the same recovery tank, water tank and hose part numbers. Rinse the recovery tank, float cup and hoses after every use; dried dirt in the float housing is the most common reason the floats stick.
