Tornado 98168 Marathon 1200 main assembly replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.

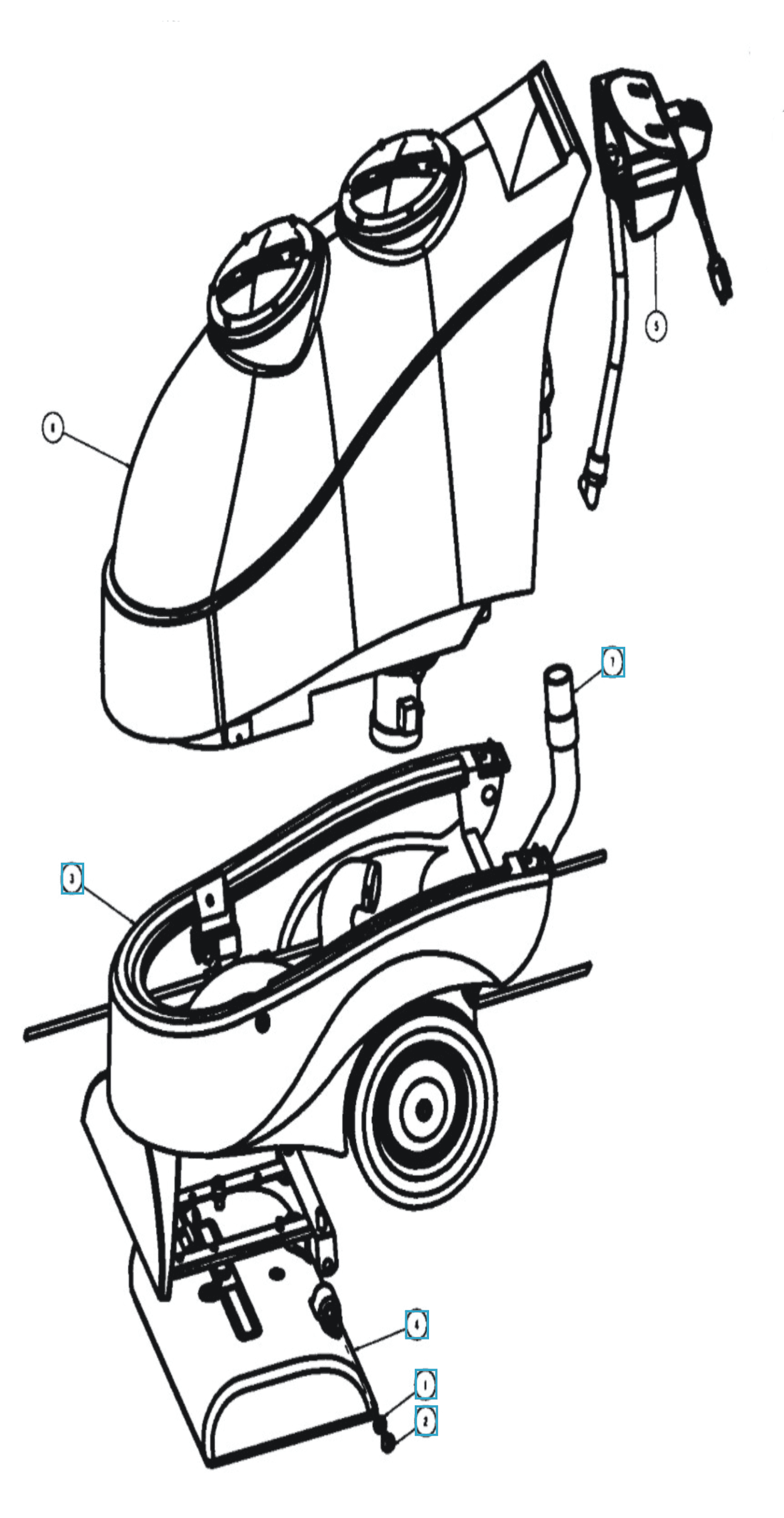

Click on any numbered part in the diagram below to go directly to that part’s product page.
01. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Shroud Pivot Bushing – 1915302. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 3/8-16 x 3/4″ – 1920703. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Chassis Assembly – 3097504. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brush/Spray Assembly – 3098007. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Steel Supported Hose 1-1/2″ x 42″ w/Cuffs – 31388Find genuine Tornado 98168 Marathon 1200 main assembly replacement parts for Model 98168. This is the top-level diagram that shows how the machine goes together — the chassis assembly and the brush/spray assembly as complete units, the shroud pivot bushing they hinge on, the 1-1/2″ x 42″ steel supported hose with cuffs that carries recovery back to the tank, and the 3/8-16 hardware that joins them. Use it to identify which sub-diagram your part lives on. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 01 |  | Shroud Pivot Bushing | 19153 | $5.99 |
| 02 |  | Screw 3/8-16 x 3/4″ | 19207 | $3.99 |
| 03 | Chassis Assembly | 30975 | ||
| 04 | Brush/Spray Assembly | 30980 | $1570.64 | |
| 07 | Steel Supported Hose 1-1/2″ x 42″ w/Cuffs | 31388 | $82.99 |
