Lindhaus Dynamic Vacuum Parts

Find genuine Lindhaus Dynamic replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

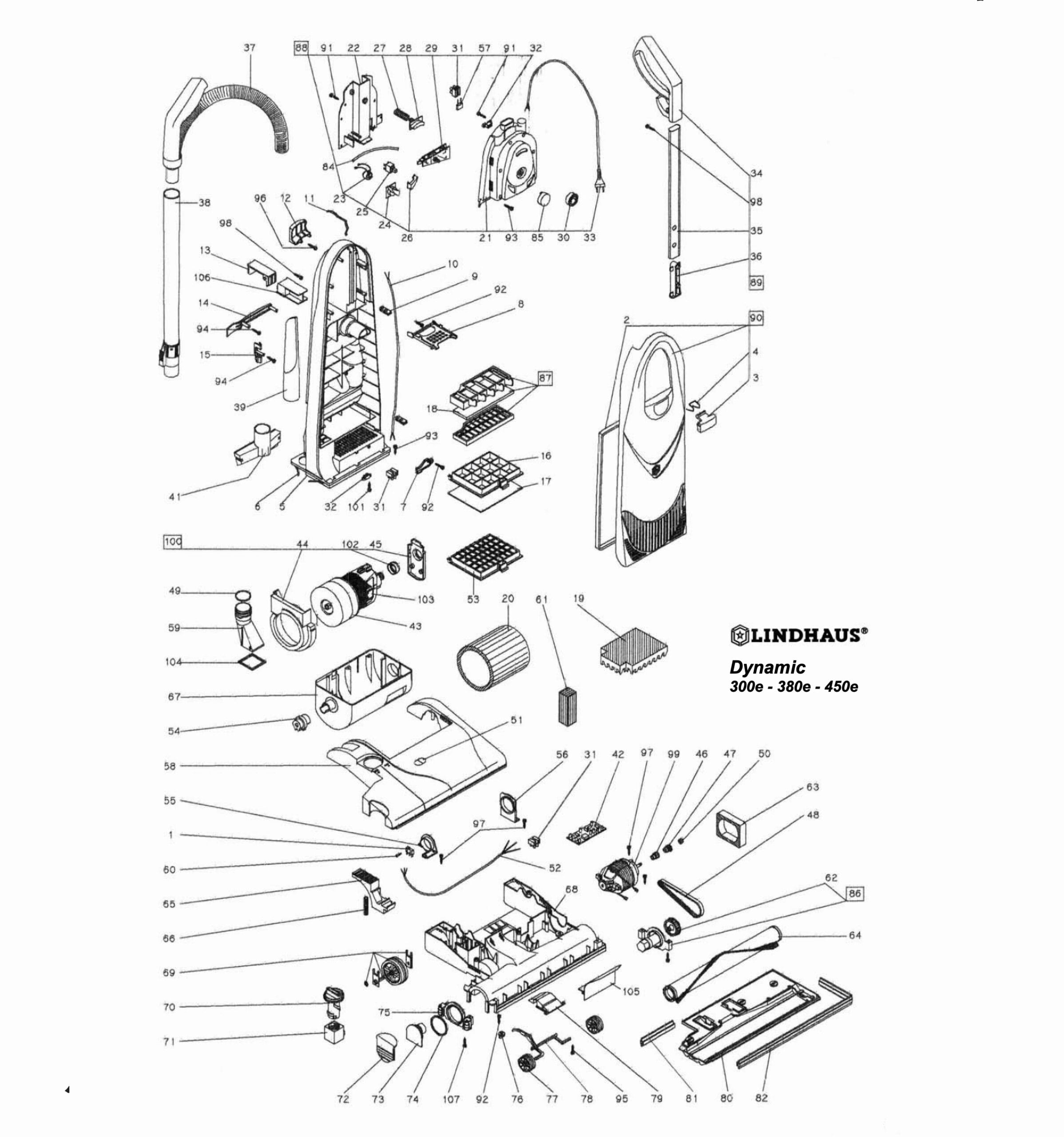

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background1 Lindhaus Dynamic Microswitch2 Lindhaus Dynamic Bag Door Gasket3 Lindhaus Dynamic Bag Door Latch4 Lindhaus Dynamic Bag Door Spring5 Lindhaus Dynamic Bag Housing Dark Gray6 Lindhaus Dynamic Bag Housing Gasket7 Lindhaus Dynamic Exhaust Grill Hook8 Lindhaus Dynamic Bag Safety Support9 Lindhaus Dynamic Strain Relief Kit 2 Pcs10 Lindhaus Dynamic Internal Cord 3 Wires11 Lindhaus Dynamic Antistatic Spring12 Lindhaus Dynamic Hose Support13 Lindhaus Dynamic Lower Cord Hook Medium Grey14 Lindhaus Dynamic Transport Handle15 Lindhaus Dynamic Accessory Clip16 Lindhaus Dynamic Exhaust Grill17 Lindhaus Dynamic Microfilter 12 Pack18 Lindhaus Dynamic Motor Protection Filter19 Lindhaus Dynamic Foam Filter20 Lindhaus Dynamic Motor Filter21 Lindhaus Dynamic Electric Panel Housing22 Lindhaus Dynamic Electric Panel Cover23 Lindhaus Dynamic Vacuum Sensor With Light24 Lindhaus Dynamic Red Lens25 Lindhaus Dynamic Main Switch26 Lindhaus Dynamic Switch Button27 Lindhaus Dynamic Handle Spring28 Lindhaus Dynamic Handle Button30 Lindhaus Dynamic Power Adjusting Knob31 Lindhaus Dynamic Terminal Block 3 Poles32 Lindhaus Dynamic Cord Clamp33 Lindhaus Dynamic Cord 3×18, 3 Prong34 Lindhaus Dynamic Handle Grip (Only)35 Lindhaus Dynamic Cromate Tube + Handle Button37. Extension Hose With Handle38 Lindhaus Dynamic Telescopic Wand39 Lindhaus Dynamic Crevice Tool41 Lindhaus Dynamic Upholstery Tool W/ Center Strip42 Lindhaus Dynamic Circuit Board43 Lindhaus Dynamic Vacuum Motor V.120/60 W.75044 Lindhaus Dynamic Motor Gasket45. Lindhaus Dynamic Brush Holder Gasket46 Lindhaus Dynamic Metal Spacer47 Lindhaus Dynamic Metal Pulley48 Lindhaus Dynamic Timing Belt 249 M749 Lindhaus Dynamic O-ring50 Lindhaus Dynamic Nut, Pinion51 Lindhaus Dynamic Lens Set Red & Green52 Dynamic Cord 3 Wires53 Lindhaus Dynamic Hepa Filter54 Lindhaus Dynamic Bushing56 Lindhaus Dynamic Left Support58 Lindhaus Dynamic Base Housing Cover59 Lindhaus Dynamic Throat Tube60 Lindhaus Dynamic Screw 2.2 X 16 Pack Of 2061 Lindhaus Dynamic Filter62 Lindhaus Dynamic Brush Pulley W/ Metal Insert63 Lindhaus Dynamic Filter Brush Motor64 Lindhaus Dynamic Brush Roller65 Lindhaus Dynamic Foot Pedal66 Lindhaus Dynamic Foot Pedal Spring67 Lindhaus Dynamic Motor Housing68 Lindhaus Dynamic Base Housing69 Lindhaus Dynamic Rear Wheel Assembly70 Lindhaus Dynamic Adjusting Knob Dark Grey71 Lindhaus Dynamic Brush Height Adjuster72 Lindhaus Dynamic Side Cover73 Lindhaus Dynamic Roller Support74 Lindhaus Dynamic O-ring75 Lindhaus Dynamic Wheel Support77 Lindhaus Dynamic Front Wheel Nylon78 Lindhaus Dynamic Front Axle79 Lindhaus Dynamic Channel Cover81 Lindhaus Dynamic Back Bumper 45 (18”) Grey82 Lindhaus Dynamic Front Bumper84 Lindhaus Dynamic Rubber Tube85 Lindhaus Dynamic Electric Panel Cap86 Lindhaus Dynamic Transmission Support W/ Pulley87 Lindhaus Dynamic Grill Complete88 Lindhaus Dynamic Electrical Panel V.120 3 Wires89 Lindhaus Dynamic Handle Tube Assembly90 Lindhaus Dynamic Bag Housing Cover Light Grey91 Lindhaus Dynamic Screw 2.9 X 19 Pack Of 2092 Lindhaus Dynamic Screw 3.5 X 9.5 Tg Pack Of 2093 Lindhaus Dynamic Screw 3.5 X 25 Pack Of 2094 Lindhaus Dynamic Screw 3.9 X 16 Pack Of 2095 Lindhaus Dynamic Screw 4.8 X 13 Tg Pack Of 2096 Lindhaus Dynamic Screw 3.5 X 32 Pack Of 2097 Lindhaus Dynamic Screw 3.9 X 19 Pack Of 2098 Lindhaus Dynamic Screw 3.9 X 13 Pack Of 2099 Lindhaus Dynamic Brush Motor For 12″ & 15″ Only100 Lindhaus Dynamic Kit Motor Gasket101 Lindhaus Dynamic Screw 2.9 X 16 Pack Of 20102 Lindhaus Dynamic Bushing (Motor Gasket)103 Lindhaus Dynamic Thermal Protector V.120104 Lindhaus Dynamic Gasket, Throat105 Lindhaus Dynamic Dcs Converter106 Lindhaus Dynamic Spacer Cord Hook107 Lindhaus Dynamic Screw 3.9 X 25 Pack Of 20

The parts table below covers the complete Lindhaus Dynamic upright vacuum, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice
1Lindhaus Dynamic MicroswitchLindhaus Dynamic Microswitch020640000$16.60
2Lindhaus Dynamic Bag Door GasketLindhaus Dynamic Bag Door Gasket011760315$6.20
3Lindhaus Dynamic Bag Door LatchLindhaus Dynamic Bag Door Latch004491201$6.20
4Lindhaus Dynamic Bag Door SpringLindhaus Dynamic Bag Door Spring012370009$1.20
5Lindhaus Dynamic Bag Housing Dark GrayLindhaus Dynamic Bag Housing Dark Gray004451201$148.00
6Lindhaus Dynamic Bag Housing GasketLindhaus Dynamic Bag Housing Gasket085620000$0.80
7Lindhaus Dynamic Exhaust Grill HookLindhaus Dynamic Exhaust Grill Hook004581304$5.00
8Lindhaus Dynamic Bag Safety SupportLindhaus Dynamic Bag Safety Support004571304$7.40
9Lindhaus Dynamic Strain Relief Kit 2 PcsLindhaus Dynamic Strain Relief Kit 2 Pcs085450081$9.00
10Lindhaus Dynamic Internal Cord 3 WiresLindhaus Dynamic Internal Cord 3 Wires022220028$11.60
11Lindhaus Dynamic Antistatic SpringLindhaus Dynamic Antistatic Spring012350009$10.00
12Lindhaus Dynamic Hose SupportLindhaus Dynamic Hose Support004540104$10.00
13Lindhaus Dynamic Lower Cord Hook Medium GreyLindhaus Dynamic Lower Cord Hook Medium Grey001880105$6.20
14Lindhaus Dynamic Transport HandleLindhaus Dynamic Transport Handle004560104$10.00
15Lindhaus Dynamic Accessory ClipLindhaus Dynamic Accessory Clip004550104$4.20
16Lindhaus Dynamic Exhaust GrillLindhaus Dynamic Exhaust Grill003360100$12.40
17Lindhaus Dynamic Microfilter 12 PackLindhaus Dynamic Microfilter 12 Pack085350081$56.00
18Lindhaus Dynamic Motor Protection FilterLindhaus Dynamic Motor Protection Filter012330316$2.80
19Lindhaus Dynamic Foam FilterLindhaus Dynamic Foam Filter012540016$3.20
20Lindhaus Dynamic Motor FilterLindhaus Dynamic Motor Filter010910016$4.80
21Lindhaus Dynamic Electric Panel HousingLindhaus Dynamic Electric Panel Housing004511201$45.60
22Lindhaus Dynamic Electric Panel CoverLindhaus Dynamic Electric Panel Cover004501201$24.60
23Lindhaus Dynamic Vacuum Sensor With LightLindhaus Dynamic Vacuum Sensor With Light022150000$23.00
24Lindhaus Dynamic Red LensLindhaus Dynamic Red Lens004610835$3.20
25Lindhaus Dynamic Main SwitchLindhaus Dynamic Main Switch022140000$15.80
26Lindhaus Dynamic Switch ButtonLindhaus Dynamic Switch Button004601701$3.20
27Lindhaus Dynamic Handle SpringLindhaus Dynamic Handle Spring012360006$1.59
28Lindhaus Dynamic Handle ButtonLindhaus Dynamic Handle Button004520101$9.60
30Lindhaus Dynamic Power Adjusting KnobLindhaus Dynamic Power Adjusting Knob004530101$2.40
31Lindhaus Dynamic Terminal Block 3 PolesLindhaus Dynamic Terminal Block 3 Poles020340400$3.00
32Lindhaus Dynamic Cord ClampLindhaus Dynamic Cord Clamp000070305$1.00
33Lindhaus Dynamic Cord 3x18, 3 ProngLindhaus Dynamic Cord 3×18, 3 Prong022480020$81.60
34Lindhaus Dynamic Handle Grip (Only)Lindhaus Dynamic Handle Grip (Only)085461281$29.00
35Lindhaus Dynamic Cromate Tube + Handle ButtonLindhaus Dynamic Cromate Tube + Handle Button085520081$26.00
37Extension Hose With HandleExtension Hose With Handle181460381$68.00
38Lindhaus Dynamic Telescopic WandLindhaus Dynamic Telescopic Wand030550300$27.80
39Lindhaus Dynamic Crevice ToolLindhaus Dynamic Crevice Tool030060310$4.60
41Lindhaus Dynamic Upholstery Tool W/ Center StripLindhaus Dynamic Upholstery Tool W/ Center Strip030820300$15.80
42Lindhaus Dynamic Circuit BoardLindhaus Dynamic Circuit Board022780000$70.00
43Lindhaus Dynamic Vacuum Motor V.120/60 W.750Lindhaus Dynamic Vacuum Motor V.120/60 W.750051360080$199.80
44Lindhaus Dynamic Motor GasketLindhaus Dynamic Motor Gasket005100308$19.80
45Lindhaus Dynamic Brush Holder GasketLindhaus Dynamic Brush Holder Gasket086630381$11.20
46Lindhaus Dynamic Metal SpacerLindhaus Dynamic Metal Spacer002890029$2.40
47Lindhaus Dynamic Metal PulleyLindhaus Dynamic Metal Pulley002880029$4.99
48Lindhaus Dynamic Timing Belt 249 M7Lindhaus Dynamic Timing Belt 249 M7013090300$18.80
49Lindhaus Dynamic O-ringLindhaus Dynamic O-ring012480307$0.70
50Lindhaus Dynamic Nut, PinionLindhaus Dynamic Nut, Pinion010490009$1.06
51Lindhaus Dynamic Lens Set Red & GreenLindhaus Dynamic Lens Set Red & Green083010000$6.20
52Dynamic Cord 3 WiresDynamic Cord 3 Wires022660028$13.00
53Lindhaus Dynamic Hepa FilterLindhaus Dynamic Hepa Filter030640000$45.20
54Lindhaus Dynamic BushingLindhaus Dynamic Bushing004440036$7.40
56Lindhaus Dynamic Left SupportLindhaus Dynamic Left Support004370304$9.00
58Lindhaus Dynamic Base Housing CoverLindhaus Dynamic Base Housing Cover087064681$50.00
59Lindhaus Dynamic Throat TubeLindhaus Dynamic Throat Tube004410201$10.00
60Lindhaus Dynamic Screw 2.2 X 16 Pack Of 20Lindhaus Dynamic Screw 2.2 X 16 Pack Of 20086950009$7.60
61Lindhaus Dynamic FilterLindhaus Dynamic Filter013050316$5.00
62Lindhaus Dynamic Brush Pulley W/ Metal InsertLindhaus Dynamic Brush Pulley W/ Metal Insert086160381$9.40
63Lindhaus Dynamic Filter Brush MotorLindhaus Dynamic Filter Brush Motor010580016$8.40
64Lindhaus Dynamic Brush RollerLindhaus Dynamic Brush Roller087570301$38.00
65Lindhaus Dynamic Foot PedalLindhaus Dynamic Foot Pedal004341205$16.00
66Lindhaus Dynamic Foot Pedal SpringLindhaus Dynamic Foot Pedal Spring014800009$1.58
67Lindhaus Dynamic Motor HousingLindhaus Dynamic Motor Housing005391233$75.20
68Lindhaus Dynamic Base HousingLindhaus Dynamic Base Housing086881281$78.00
69Lindhaus Dynamic Rear Wheel AssemblyLindhaus Dynamic Rear Wheel Assembly086910081$23.80
70Lindhaus Dynamic Adjusting Knob Dark GreyLindhaus Dynamic Adjusting Knob Dark Grey003751204$10.40
71Lindhaus Dynamic Brush Height AdjusterLindhaus Dynamic Brush Height Adjuster000990305$7.40
72Lindhaus Dynamic Side CoverLindhaus Dynamic Side Cover005781204$11.80
73Lindhaus Dynamic Roller SupportLindhaus Dynamic Roller Support081950081$28.80
74Lindhaus Dynamic O-ringLindhaus Dynamic O-ring012480307$0.70
75Lindhaus Dynamic Wheel SupportLindhaus Dynamic Wheel Support081940081$19.80
77Lindhaus Dynamic Front Wheel NylonLindhaus Dynamic Front Wheel Nylon003090004$3.40
78Lindhaus Dynamic Front AxleLindhaus Dynamic Front Axle013060029$23.80
79Lindhaus Dynamic Channel CoverLindhaus Dynamic Channel Cover005571304$8.00
81Lindhaus Dynamic Back Bumper 45 (18”) GreyLindhaus Dynamic Back Bumper 45 (18”) Grey004310112$3.20
82Lindhaus Dynamic Front BumperLindhaus Dynamic Front Bumper004290112$12.80
84Lindhaus Dynamic Rubber TubeLindhaus Dynamic Rubber Tube085510000$1.40
85Lindhaus Dynamic Electric Panel CapLindhaus Dynamic Electric Panel Cap004641201$1.40
86Lindhaus Dynamic Transmission Support W/ PulleyLindhaus Dynamic Transmission Support W/ Pulley181480081$66.80
87Lindhaus Dynamic Grill CompleteLindhaus Dynamic Grill Complete085440081$24.60
88Lindhaus Dynamic Electrical Panel V.120 3 WiresLindhaus Dynamic Electrical Panel V.120 3 Wires085221280$158.40
89Lindhaus Dynamic Handle Tube AssemblyLindhaus Dynamic Handle Tube Assembly087930081$78.00

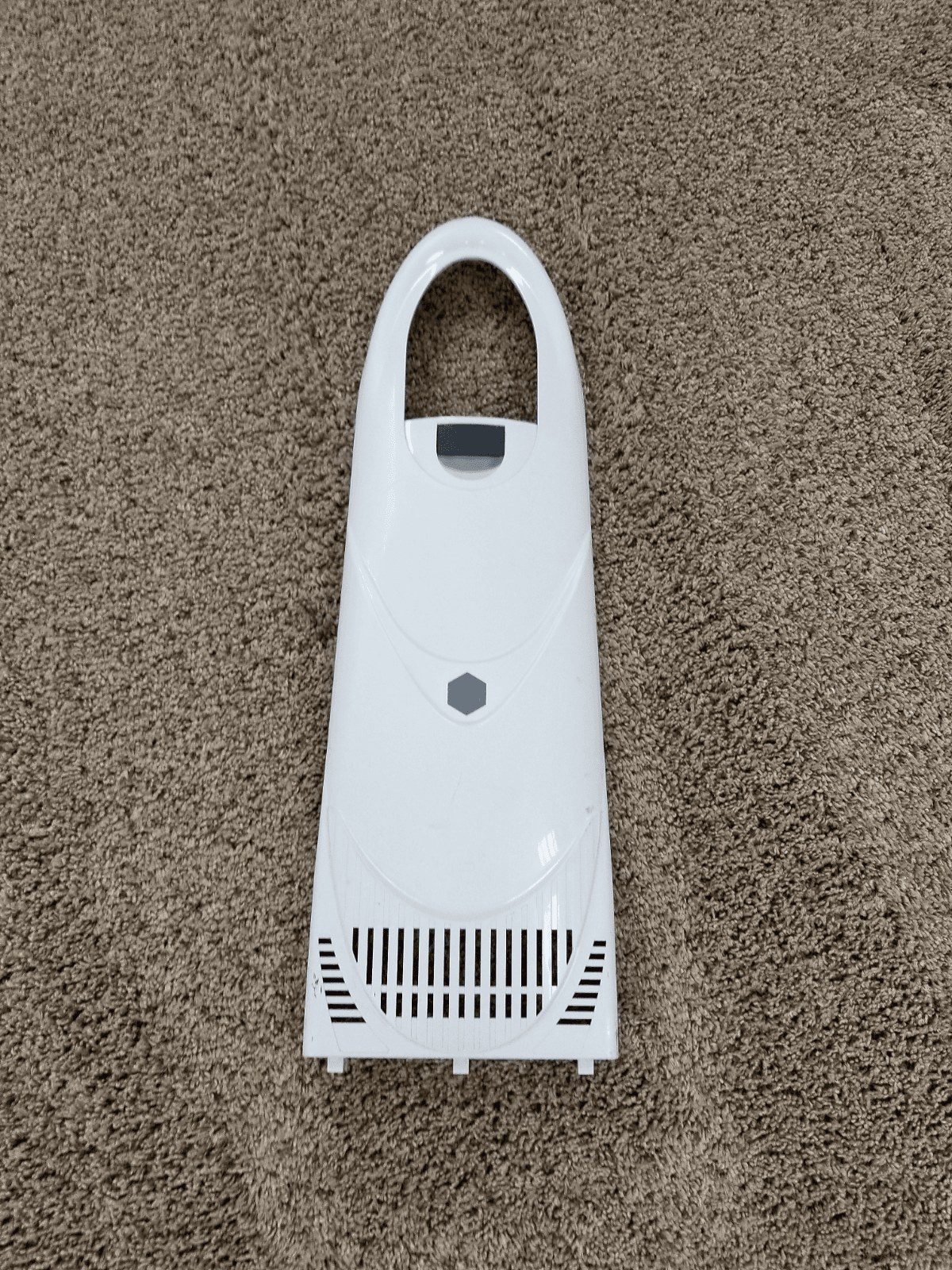

90Lindhaus Dynamic Bag Housing Cover Light GreyLindhaus Dynamic Bag Housing Cover Light Grey085330201$104.00
91Lindhaus Dynamic Screw 2.9 X 19 Pack Of 20Lindhaus Dynamic Screw 2.9 X 19 Pack Of 20085530009$6.80
92Lindhaus Dynamic Screw 3.5 X 9.5 Tg Pack Of 20Lindhaus Dynamic Screw 3.5 X 9.5 Tg Pack Of 20085540009$8.00
93Lindhaus Dynamic Screw 3.5 X 25 Pack Of 20Lindhaus Dynamic Screw 3.5 X 25 Pack Of 20085550009$8.00
94Lindhaus Dynamic Screw 3.9 X 16 Pack Of 20Lindhaus Dynamic Screw 3.9 X 16 Pack Of 20085560009$7.60
95Lindhaus Dynamic Screw 4.8 X 13 Tg Pack Of 20Lindhaus Dynamic Screw 4.8 X 13 Tg Pack Of 20085640009$8.00
96Lindhaus Dynamic Screw 3.5 X 32 Pack Of 20Lindhaus Dynamic Screw 3.5 X 32 Pack Of 20085570009$8.00
97Lindhaus Dynamic Screw 3.9 X 19 Pack Of 20Lindhaus Dynamic Screw 3.9 X 19 Pack Of 20085580009$7.40
98Lindhaus Dynamic Screw 3.9 X 13 Pack Of 20Lindhaus Dynamic Screw 3.9 X 13 Pack Of 20085590009$9.60
99Lindhaus Dynamic Brush Motor For 12" & 15" OnlyLindhaus Dynamic Brush Motor For 12" & 15" Only051050080$148.00
100Lindhaus Dynamic Kit Motor GasketLindhaus Dynamic Kit Motor Gasket086290081$29.20
101Lindhaus Dynamic Screw 2.9 X 16 Pack Of 20Lindhaus Dynamic Screw 2.9 X 16 Pack Of 20085610009$8.60
102Lindhaus Dynamic Bushing (Motor Gasket)Lindhaus Dynamic Bushing (Motor Gasket)005090000$29.20
103Lindhaus Dynamic Thermal Protector V.120Lindhaus Dynamic Thermal Protector V.120022280000$5.20
104Lindhaus Dynamic Gasket, ThroatLindhaus Dynamic Gasket, Throat012580315$2.20
105Lindhaus Dynamic Dcs ConverterLindhaus Dynamic Dcs Converter005791304$9.40
106Lindhaus Dynamic Spacer Cord HookLindhaus Dynamic Spacer Cord Hook005030004$3.70
107Lindhaus Dynamic Screw 3.9 X 25 Pack Of 20Lindhaus Dynamic Screw 3.9 X 25 Pack Of 20085600009$8.00

Lindhaus Dynamic Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus Dynamic schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number you need? Call 763-535-0770 with your model and we’ll identify it.

What are the most common Lindhaus Dynamic replacement parts?

The brushroll, brush belt, HEPA and exhaust filters, and cloth/paper bags are the most frequently replaced wear items on the Dynamic. Base plates, roller covers, bumpers, wheels and switches are the next most common. All are listed in the table above by schematic number.

Do Lindhaus Dynamic parts also fit the Dynamic Eco-Force?

Some do — belts, brushrolls, bags and filters often carry across — but base-housing, electric-panel and bumper parts are generation-specific. Confirm by part number before ordering, or see the Dynamic Eco-Force parts page. We’re happy to check compatibility at 763-535-0770.

How do I order a Lindhaus Dynamic part or get help?

Add any part directly to your cart from its product page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Dynamic.
