Lindhaus Dynamic Eco-Force Vacuum Parts

Find genuine Lindhaus Dynamic Eco-Force replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background01. Microswitch – 02064000002. Bag Door Gasket – 01176031503. Bag Door Latch – 00449120104. Bag Door Spring – 01237000905. Bag Housing Dark Gray – 00445120106. Bag Housing Gasket – 08562000007. Exhaust Grill Hook – 00458130408. Bag Safety Support – 00457130409. Strain Relief Kit 2 Pcs – 08545008110. Internal Cord 3 Wires – 02222002811. Antistatic Spring – 01235000912. Hose Support – 00454010413. Lower Cord Hook Medium Grey – 00188010514. Transport Handle – 00456010415. Accessory Clip – 00455010416. Exhaust Grill – 00336010017. Microfilter 12 Pack – 08535008118. Motor Protection Filter – 01233031619. Foam Filter – 01254001620. Motor Filter – 01091001621. Electric Panel Housing – 00451120122. Electric Panel Cover – 00450120123. Vacuum Sensor With Light – 02215000024. Red Lens – 00461083525. Main Switch – 02214000026. Switch Button – 00460170127. Handle Spring – 01236000928. Handle Button – 00452010129. Circuit Board V.100/120 – 02080000030. Power Adjusting Knob – 00453010131. Terminal Block 3 Poles – 02034040032 Cord Clamp33. Cord 3×18 3 Prong – 02248002034. Handle Grip Blue – 08546388135. Chromate Tube + Handle Button – 08552008136. Handle Button Assembly 2 Pos. – 08452008137. Extension Hose With Handle – 18145038138. Telescopic Wand – 03234030039. Crevice Tool – 03006031041. Upholstery Tool With Bristles – 03082030042. Circuit Board 120V – 02280000043. Vacuum Motor V.120 60 W.750 – 05136008044. Motor Gasket – 00510030845. Brush Holder Gasket With Motor Bush – 08663038147. Pinion + Nut – 18273008148. Timing Belt 249 M7 – 01309030049. O’Ring – 01248030751. Lens Set Red/Green – 08301000052. Cord 3 Wires – 02266002853. ABS Grill + Hepa Filter H13 – 03287000054. Bush – 00444003655. Right Support – 01386002956. Left Support – 00437030458. Base Housing Cover 12″ With Lens – 08706468159. Convoyer Tube – 00441020160. Screw 2.2 x 16 (Pk 20) – 08695000961. Filter – 01305031662. Pulley – 06029008163. Motor Filter – 01058001664. Brush Roller 300 12″ Black – 00965030165. Foot Pedal Red – 00434130566. Foot Pedal Spring – 01480000967. Motor Housing Dark Gray – 00539123368. Base Housing 12″ Dark Gray – 08688128169. Rear Wheel Assembly – 08691008170. Adjusting Knob Blue – 00375380471. Brush Adjuster – 00099030572. Side Cover Blue – 00578380473. Roller Support – 08195008174. O’Ring – 01136030775. Wheels Support – 08194008176. Wrapping of 20 Pcs Roller Cover Clip – 08607138177. Front Wheel Nylon – 00309000478. Front Axle – 01306002979. Channel Cover – 00557130480. Roller Cover 30 (12″) With Squeege & Wheels – 08926038181. Back Bumper 38 (15″) Blue – 00431381282. Front Bumper 30 (12″) Blue – 00429381284. Rubber Tube – 08551000085. El.Panel Cap – 00464120186. Transmission Support w/ Pulley – 18148008187. Complete Grill – 08544008188. Electric Panel CPL.V.120/60 3 Wires – 08522128089. Handle Tube Assembly Blue – 08525388190. Bag Door Assembly Light Grey – 08533480191. Screw 2.9 x 19 (Pk 20) – 08553000992 Screw 3.5 X 9.5 Tg Pack Of 2093. Screw 3.5 x 25 (Pk 20) – 08555000994 Screw 3.9 X 16 Pack Of 2095. Screw 4.8 x 13 TG (Pk 20) – 08564000996. Screw 3.5 x 32 (Pk 20) – 08557000997. Screw 3.9 x 19 (Pk 20) – 08558000998 Screw 3.9 X 13 Pack Of 2099. Brush Motor 100/120V 300-380 (12″-15″) – 051050080100. Kit Motor Gasket – 086290081101. Screw 2.9 x 16 (Pk 20) – 085610009102. Bush Motor – 005090000103. Thermal Protector CD2 V.120 – 022280000104. Convejor Gasket – 012580315105. Convejor – 005791304106. Spacer Cord Hook – 005030004107 Screw 3.9 X 25 Pack Of 20108. Drive Joint Base – 088620081109. Transmission Support Without Pulley – 181490081

The parts table below covers the complete Lindhaus Dynamic Eco-Force upright vacuum, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice
1Microswitch – 020640000Microswitch – 020640000020640000$16.60

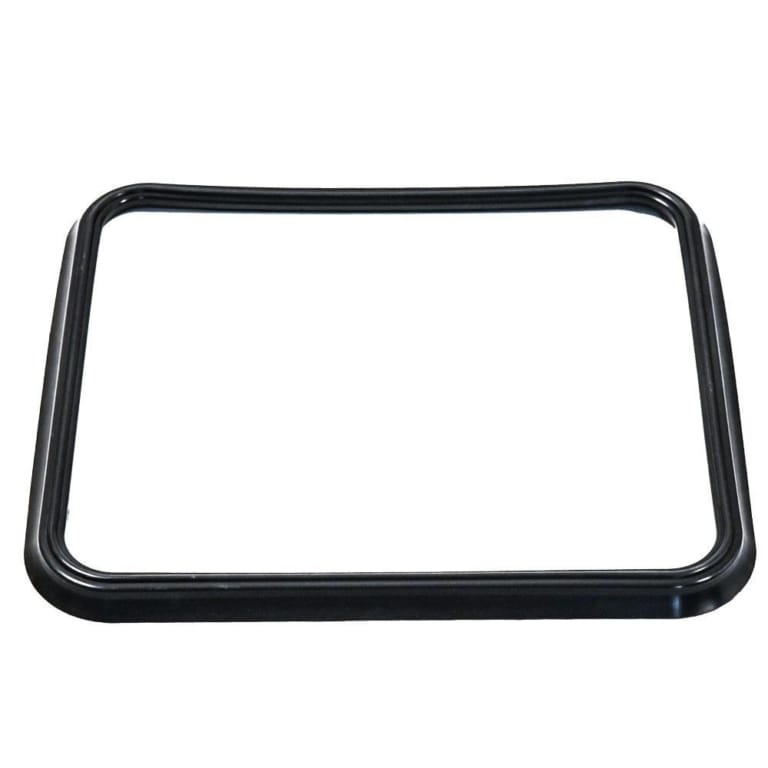

2Bag Door Gasket – 011760315Bag Door Gasket – 011760315011760315$6.20
3Bag Door Latch – 004491201Bag Door Latch – 004491201004491201$6.20
4Bag Door Spring – 012370009Bag Door Spring – 012370009012370009$1.20
5Bag Housing Dark Gray – 004451201Bag Housing Dark Gray – 004451201004451201$148.00
6Bag Housing Gasket – 085620000Bag Housing Gasket – 085620000085620000$0.80
7Exhaust Grill Hook – 004581304Exhaust Grill Hook – 004581304004581304$5.00
8Bag Safety Support – 004571304Bag Safety Support – 004571304004571304$7.40
9Strain Relief Kit 2 Pcs – 085450081Strain Relief Kit 2 Pcs – 085450081085450081$9.00
10Internal Cord 3 Wires – 022220028Internal Cord 3 Wires – 022220028022220028$11.60
11Antistatic Spring – 012350009Antistatic Spring – 012350009012350009$10.00
12Hose Support – 004540104Hose Support – 004540104004540104$10.00
13Lower Cord Hook Medium Grey – 001880105Lower Cord Hook Medium Grey – 001880105001880105$6.20
14Transport Handle – 004560104Transport Handle – 004560104004560104$10.00
15Accessory Clip – 004550104Accessory Clip – 004550104004550104$4.20
16Exhaust Grill – 003360100Exhaust Grill – 003360100003360100$12.40
17Microfilter 12 Pack – 085350081Microfilter 12 Pack – 085350081085350081$56.00
18Motor Protection Filter – 012330316Motor Protection Filter – 012330316012330316$2.80

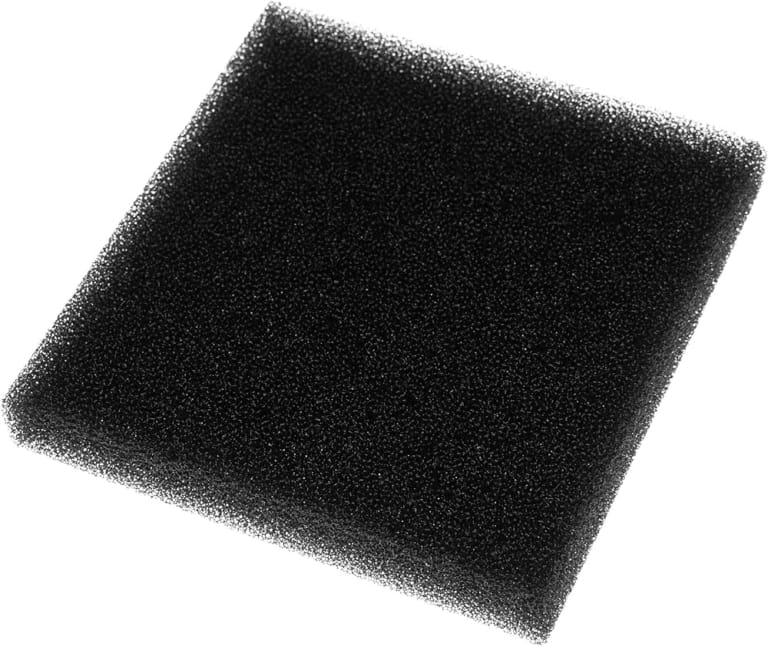

19Foam Filter – 012540016Foam Filter – 012540016012540016$3.20
20Motor Filter – 010910016Motor Filter – 010910016010910016$4.80
21Electric Panel Housing – 004511201Electric Panel Housing – 004511201004511201$45.60
22Electric Panel Cover – 004501201Electric Panel Cover – 004501201004501201$24.60
23Vacuum Sensor With Light – 022150000Vacuum Sensor With Light – 022150000022150000$23.00
24Red Lens – 004610835Red Lens – 004610835004610835$3.20
25Main Switch – 022140000Main Switch – 022140000—Call 763-535-0770 to order
26Switch Button – 004601701Switch Button – 004601701004601701$3.20
27Handle Spring – 012360009Handle Spring – 012360009012360006$1.59
28Handle Button – 004520101Handle Button – 004520101004520101$9.60
29Circuit Board V.100/120 – 020800000Circuit Board V.100/120 – 020800000—Call 763-535-0770 to order
30Power Adjusting Knob – 004530101Power Adjusting Knob – 004530101004530101$2.40
31Terminal Block 3 Poles – 020340400Terminal Block 3 Poles – 020340400020340400$3.00
32Cord ClampCord Clamp000070305$1.00

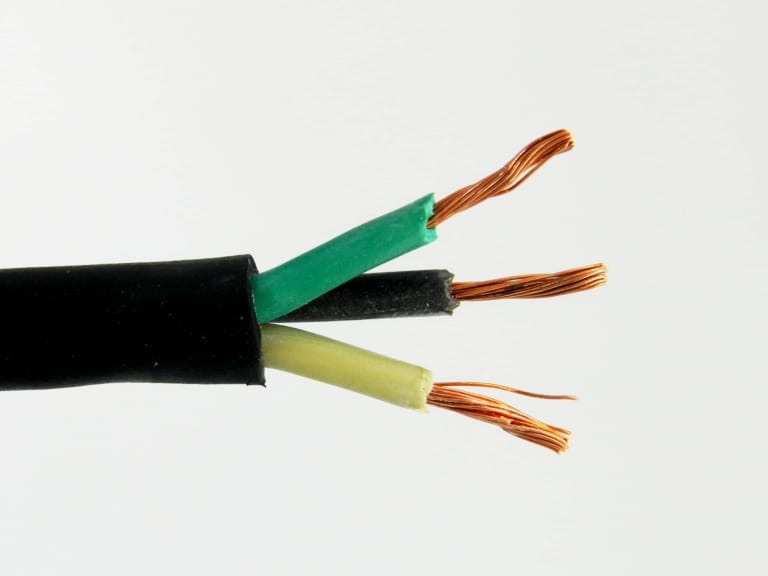

33Cord 3x18 3 Prong – 022480020Cord 3×18 3 Prong – 022480020022480020$81.60
34Handle Grip Blue – 085463881Handle Grip Blue – 085463881085463881$33.20
35Chromate Tube + Handle Button – 085520081Chromate Tube + Handle Button – 085520081085520081$26.00
36Handle Button Assembly 2 Pos. – 084520081Handle Button Assembly 2 Pos. – 084520081—Call 763-535-0770 to order

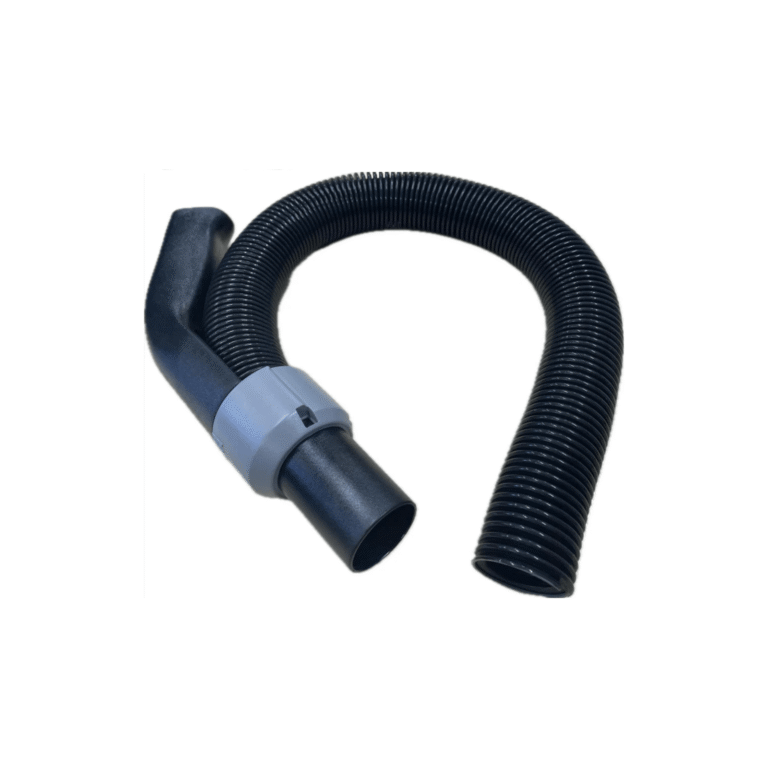

37Extension Hose With Handle – 181450381Extension Hose With Handle – 181450381181450381$79.20

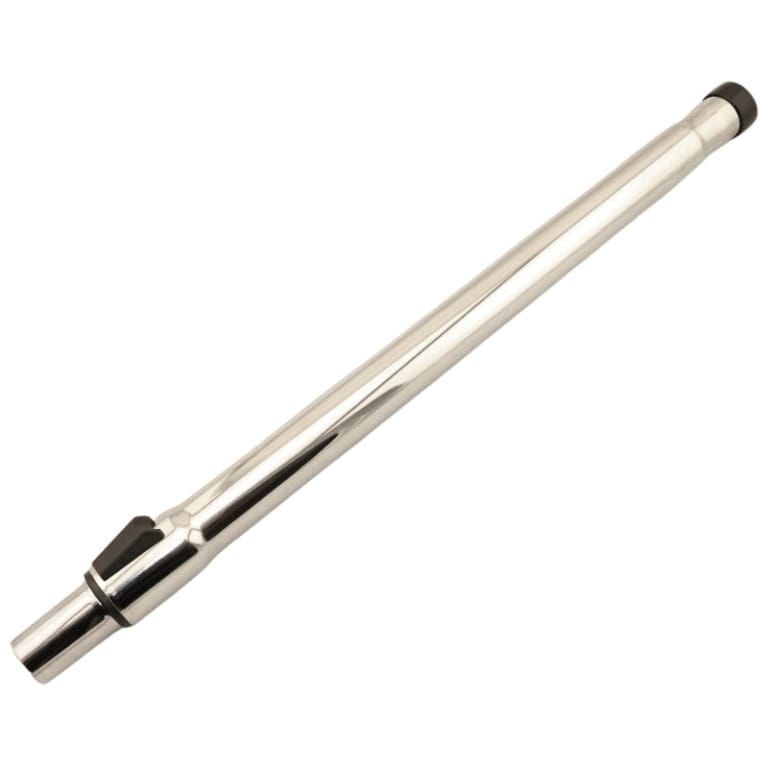

38Telescopic Wand – 032340300Telescopic Wand – 032340300030550300$27.80
39Crevice Tool – 030060310Crevice Tool – 030060310030060310$4.60
41Upholstery Tool With Bristles – 030820300Upholstery Tool With Bristles – 030820300030820300$15.80
42Circuit Board 120V – 022800000Circuit Board 120V – 022800000022780000$70.00
43Vacuum Motor V.120 60 W.750 – 051360080Vacuum Motor V.120 60 W.750 – 051360080051360080$199.80
44Motor Gasket – 005100308Motor Gasket – 005100308005100308$19.80
45Brush Holder Gasket With Motor Bush – 086630381Brush Holder Gasket With Motor Bush – 086630381086630381$11.20
47Pinion + Nut – 182730081Pinion + Nut – 182730081002880029$4.99
48Timing Belt 249 M7 – 013090300Timing Belt 249 M7 – 013090300013090300$18.80
49O'Ring – 012480307O’Ring – 012480307012480307$0.70
51Lens Set Red/Green – 083010000Lens Set Red/Green – 083010000083010000$6.20
52Cord 3 Wires – 022660028Cord 3 Wires – 022660028022660028$13.00
53ABS Grill + Hepa Filter H13 – 032870000ABS Grill + Hepa Filter H13 – 032870000032870000$45.20
54Bush – 004440036Bush – 004440036004440036$7.40
55Right Support – 013860029Right Support – 013860029—Call 763-535-0770 to order
56Left Support – 004370304Left Support – 004370304—Call 763-535-0770 to order

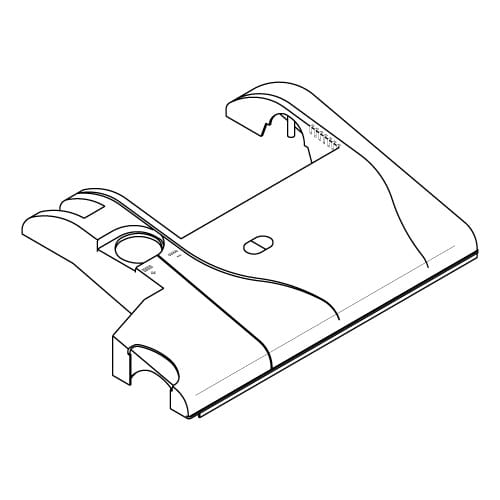

58Base Housing Cover 12" With Lens – 087064681Base Housing Cover 12" With Lens – 087064681087064681$50.00
59Convoyer Tube – 004410201Convoyer Tube – 004410201004410201$10.00
60Screw 2.2 x 16 (Pk 20) – 086950009Screw 2.2 x 16 (Pk 20) – 086950009086950009$7.60
61Filter – 013050316Filter – 013050316013050316$5.00
62Pulley – 060290081Pulley – 060290081086160381$9.40
63Motor Filter – 010580016Motor Filter – 010580016010580016$8.40

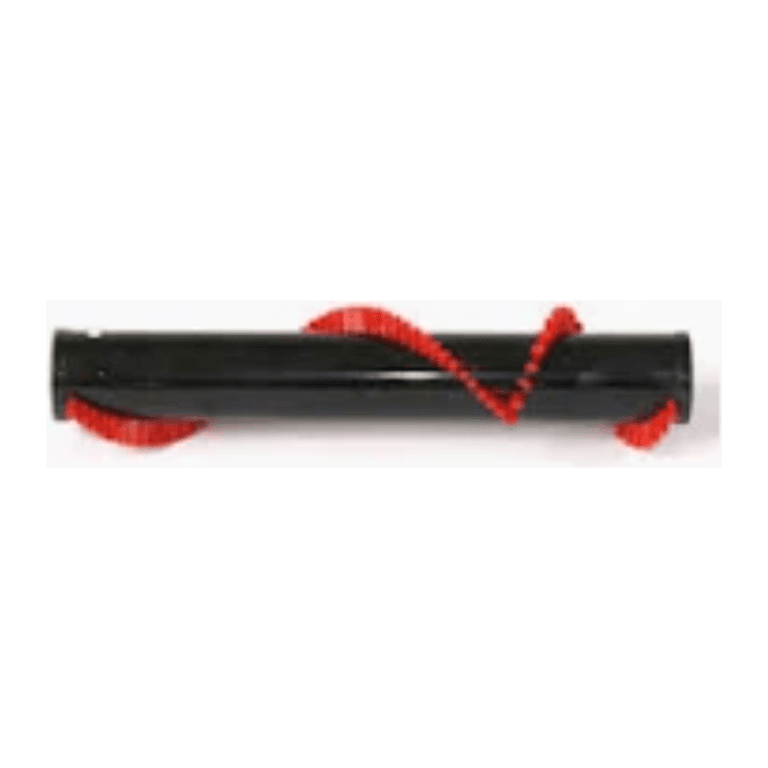

64Brush Roller 300 12" Black – 009650301Brush Roller 300 12" Black – 009650301009650301$44.00

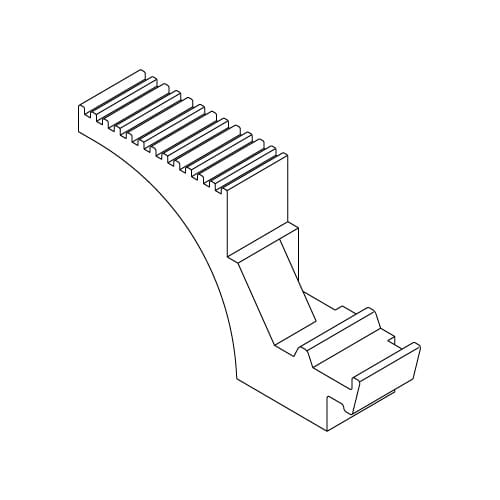

65Foot Pedal Red – 004341305Foot Pedal Red – 004341305004341305$14.40

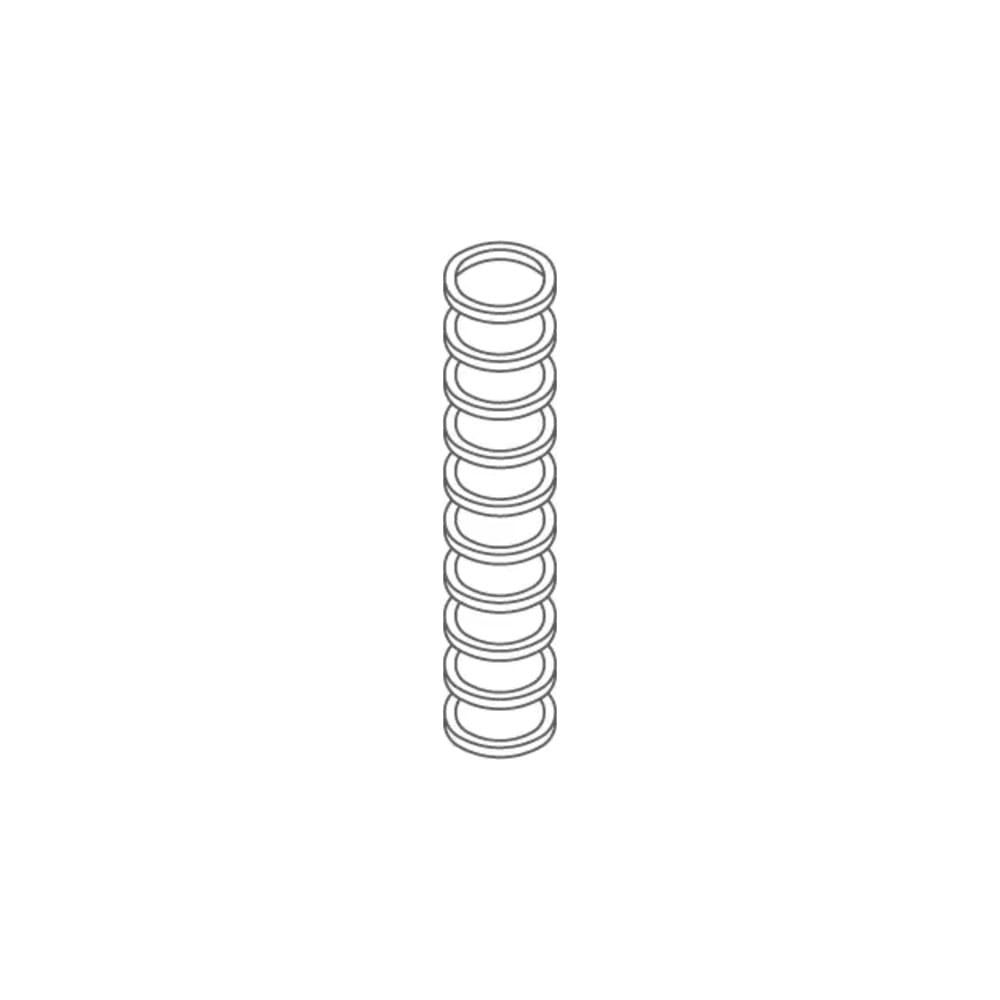

66Foot Pedal Spring – 014800009Foot Pedal Spring – 014800009014800009$1.58
67Motor Housing Dark Gray – 005391233Motor Housing Dark Gray – 005391233005391233$75.20
68Base Housing 12" Dark Gray – 086881281Base Housing 12" Dark Gray – 086881281086881281$78.00
69Rear Wheel Assembly – 086910081Rear Wheel Assembly – 086910081—Call 763-535-0770 to order
70Adjusting Knob Blue – 003753804Adjusting Knob Blue – 003753804003751204$10.40
71Brush Adjuster – 000990305Brush Adjuster – 000990305000990305$7.40
72Side Cover Blue – 005783804Side Cover Blue – 005783804005781204$11.80
73Roller Support – 081950081Roller Support – 081950081081950081$28.80
74O'Ring – 011360307O’Ring – 011360307012480307$0.70
75Wheels Support – 081940081Wheels Support – 081940081081940081$19.80
76Wrapping of 20 Pcs Roller Cover Clip – 086071381Wrapping of 20 Pcs Roller Cover Clip – 086071381—Call 763-535-0770 to order
77Front Wheel Nylon – 003090004Front Wheel Nylon – 003090004003090004$3.40
78Front Axle – 013060029Front Axle – 013060029013060029$23.80
79Channel Cover – 005571304Channel Cover – 005571304005571304$8.00
80Roller Cover 30 (12") With Squeege & Wheels – 089260381Roller Cover 30 (12") With Squeege & Wheels – 089260381—Call 763-535-0770 to order
81Back Bumper 38 (15") Blue – 004313812Back Bumper 38 (15") Blue – 004313812004310112$3.20
82Front Bumper 30 (12") Blue – 004293812Front Bumper 30 (12") Blue – 004293812004290112$12.80
84Rubber Tube – 085510000Rubber Tube – 085510000085510000$1.40
85El.Panel Cap – 004641201El.Panel Cap – 004641201—Call 763-535-0770 to order
86Transmission Support w/ Pulley – 181480081Transmission Support w/ Pulley – 181480081181480081$66.80
87Complete Grill – 085440081Complete Grill – 085440081085440081$24.60
88Electric Panel CPL.V.120/60 3 Wires – 085221280Electric Panel CPL.V.120/60 3 Wires – 085221280085221280$158.40
89Handle Tube Assembly Blue – 085253881Handle Tube Assembly Blue – 085253881085253881$79.60

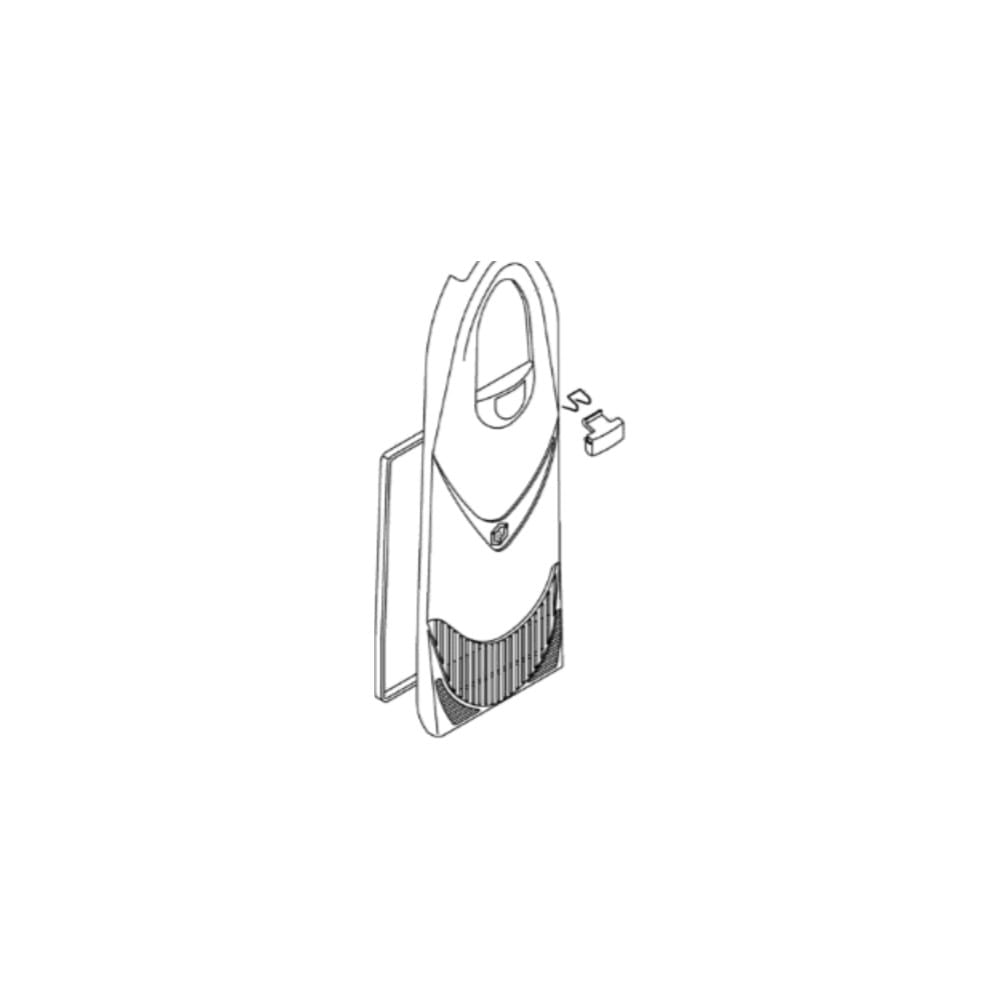

90Bag Door Assembly Light Grey – 085334801Bag Door Assembly Light Grey – 085334801085334801$104.00
91Screw 2.9 x 19 (Pk 20) – 085530009Screw 2.9 x 19 (Pk 20) – 085530009085530009$6.80
92Screw 3.5 X 9.5 Tg Pack Of 20Screw 3.5 X 9.5 Tg Pack Of 20085540009$8.00
93Screw 3.5 x 25 (Pk 20) – 085550009Screw 3.5 x 25 (Pk 20) – 085550009085550009$8.00
94Screw 3.9 X 16 Pack Of 20Screw 3.9 X 16 Pack Of 20085560009$7.60
95Screw 4.8 x 13 TG (Pk 20) – 085640009Screw 4.8 x 13 TG (Pk 20) – 085640009085640009$8.00
96Screw 3.5 x 32 (Pk 20) – 085570009Screw 3.5 x 32 (Pk 20) – 085570009085570009$8.00
97Screw 3.9 x 19 (Pk 20) – 085580009Screw 3.9 x 19 (Pk 20) – 085580009085580009$7.40
98Screw 3.9 X 13 Pack Of 20Screw 3.9 X 13 Pack Of 20085590009$9.60
99Brush Motor 100/120V 300-380 (12"-15") – 051050080Brush Motor 100/120V 300-380 (12"-15") – 051050080051050080$148.00
100Kit Motor Gasket – 086290081Kit Motor Gasket – 086290081086290081$29.20
101Screw 2.9 x 16 (Pk 20) – 085610009Screw 2.9 x 16 (Pk 20) – 085610009085610009$8.60
102Bush Motor – 005090000Bush Motor – 005090000005090000$29.20
103Thermal Protector CD2 V.120 – 022280000Thermal Protector CD2 V.120 – 022280000022280000$5.20
104Convejor Gasket – 012580315Convejor Gasket – 012580315012580315$2.20
105Convejor – 005791304Convejor – 005791304005791304$9.40
106Spacer Cord Hook – 005030004Spacer Cord Hook – 005030004005030004$3.70
107Screw 3.9 X 25 Pack Of 20Screw 3.9 X 25 Pack Of 20085600009$8.00
108Drive Joint Base – 088620081Drive Joint Base – 088620081—Call 763-535-0770 to order
109Transmission Support Without Pulley – 181490081Transmission Support Without Pulley – 181490081—Call 763-535-0770 to order

Lindhaus Dynamic Eco-Force Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus Dynamic Eco-Force schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number you need? Call 763-535-0770 with your model and we’ll identify it.

What’s different about Dynamic Eco-Force parts versus the original Dynamic?

The Dynamic Eco-Force uses an updated electric panel, sensor/circuit board and Eco-Force base assembly. Belts, brushrolls, bags and filters often cross over from the original Dynamic, but base-housing, electric-panel and bumper parts are specific to the Eco-Force. Match by part number, or see the original Dynamic parts page.

What are the most common Lindhaus Dynamic Eco-Force replacement parts?

The brushroll, brush belt, HEPA and exhaust filters, and cloth/paper bags are the most frequently replaced wear items. Base assemblies, roller covers, sensors and switches are next most common. All are listed above by schematic number.

How do I order a Lindhaus Dynamic Eco-Force part or get help?

Add any part directly to your cart from its product page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Dynamic Eco-Force.
