Lindhaus RX Hepa Eco-Force (RX380, RX450 & RX500) Head Parts

Find genuine Lindhaus RX Eco-Force (head) replacement parts. Can’t find your part? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428.

Click any numbered dot on the schematic below to open that part, or find it by its callout number in the parts table underneath.

Hotspot Background01. Lindhaus RX Eco Force (Rx_380_450_500) Base Housing 380(15′) [includes #54 Base Metal Guides Set] – 08199028102. Lindhaus RX Eco Force (Rx_380_450_500) Base Housing Cover 380(15)eco Force – 18161468103. Lindhaus RX Eco Force (Rx_380_450_500) Joint Complete 120v 3 Way – 083210380 04. Lindhaus RX Eco Force (Rx_380_450_500) Joint Pin Slide – 00229030505. Lindhaus RX Eco Force (Rx_380_450_500) Support Right Joint – 08191008006. Lindhaus RX Eco Force (Rx_380_450_500) Plunger – 00194003607. Lindhaus RX Eco Force (Rx_380_450_500) Spring, Detente – 01039000908. Lindhaus RX Eco Force (Rx_380_450_500) Double Pin Washer – 00193003609. Lindhaus RX Eco Force (Rx_380_450_500) Double Release Plate – 00218010510. Lindhaus RX Eco Force (Rx_380_450_500) Foot Pedal Blue – 00219380511. Lindhaus RX Eco Force (Rx_380_450_500) Support Left Joint – 08192008012. Lindhaus RX Eco Force (Rx_380_450_500) Switch Activator Pin – 00067003613. Lindhaus RX Eco Force (Rx_380_450_500) Spring Switch Activator Pin – 01048000914. Lindhaus RX Eco Force (Rx_380_450_500) Microswitch – 02064000015. Lindhaus RX Eco Force (Rx_380_450_500) Brush Height Adjuster – 00099030516. Lindhaus RX Eco Force (Rx_380_450_500) Adjusting Knob Blue – 00313380417. Lindhaus RX Eco Force (Rx_380_450_500) Front Axle – 01133002918. Lindhaus RX Eco Force (Rx_380_450_500) Front Wheel-rubber – 002260000 19. Lindhaus RX Eco Force (Rx_380_450_500) Spring Brush Adjust – 011160009 20. Lindhaus RX Eco Force (Rx_380_450_500) Rear Axle – 01139000921. Lindhaus RX Eco Force (Rx_380_450_500) Rear Big Wheel-rubber – 002270000 22. Lindhaus RX Eco Force (Rx_380_450_500) Wheel Retainer Cap – 01284000923. Lindhaus RX Eco Force (Rx_380_450_500) Screw 2.9×16 (Single) – 085610009A24. Lindhaus RX Eco Force (Rx_380_450_500) Filter Grill Blue – 002143804 25. Lindhaus RX Eco Force (Rx_380_450_500) Exhaust Filter – 01124031626. Lindhaus RX Eco Force (Rx_380_450_500) Stop Grill Plate Blue – 00216380427. Lindhaus RX Eco Force (Rx_380_450_500) Brush Motor 100v120v 380(15′) – 05003008028. Lindhaus RX Eco Force (Rx_380_450_500) Transmission Support With Pulley – 18148008129. Lindhaus RX Eco Force (Rx_380_450_500) Metal Spacer – 002890029 30. Lindhaus RX Eco Force (Rx_380_450_500) Metal Pulley – 00288002931. Lindhaus RX Eco Force (Rx_380_450_500) Nut M4 (Single) – 180160009A32. Lindhaus RX Eco Force (Rx_380_450_500) Circuit Board 120v – 02081000033. Lindhaus RX Eco Force (Rx_380_450_500) Channel Cover Blue – 00217380434. Lindhaus RX Eco Force (Rx_380_450_500) Transmission Support Without Pulley – 18149008135. Lindhaus RX Eco Force (Rx_380_450_500) Pulley With Shaft – 06029008136. Lindhaus RX Eco Force (Rx_380_450_500) Drive Joint Base – 08862008137. Lindhaus RX Eco Force (Rx_380_450_500) Timing Belt 7mm – 01079030038. Lindhaus RX Eco Force (Rx_380_450_500) Wheel Support – 08194008139. Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.9×22 (Single) – 087260009A40. Lindhaus RX Eco Force (Rx_380_450_500) Roller Support – 08195008141. Lindhaus RX Eco Force (Rx_380_450_500) Side Lever – 002210304 42. Lindhaus RX Eco Force (Rx_380_450_500) Front Bumper 380(15′) Blue – 00256381243. Lindhaus RX Eco Force (Rx_380_450_500) Back Bumper Gasket 380 (15′) Blue – 00257381244. Lindhaus RX Eco Force (Rx_380_450_500) Screw 4.8×50 (Single) – 087270009A 45. Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.5×38 (Single) – 087280009A46. Lindhaus RX Eco Force (Rx_380_450_500) Side Cover Blue – 00215380447. Lindhaus RX Eco Force (Rx_380_450_500) Brush Roller 380(15)bristle 0.25 Black+insert [standard] – 00973030148. Lindhaus RX Eco Force (Rx_380_450_500) Motor Filter – 01058001649. Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.9×13 (Single) – 085590009A50. Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.5×25 (Single) – 085550009A51. Lindhaus RX Eco Force (Rx_380_450_500) Screw 2.2×16(Single) – 086950009A52. Lindhaus RX Eco Force (Rx_380_450_500) Light Cover – 00981414653. Lindhaus RX Eco Force (Rx_380_450_500) Felt For Brush Housing – 01100001754. Lindhaus RX Eco Force (Rx_380_450_500) Base Metal Guides Set 380(15′) – 08289000055. Lindhaus RX Eco Force (Rx_380_450_500) O/ring – 01136030756. Lindhaus RX Eco Force (Rx_380_450_500) Male Electronic Connection Set 120v 3 Wires – 08249008057. Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.9×13 Tg (Single) – 086450009A

The parts table below covers the head of the Lindhaus RX Eco-Force upright vacuum, numbered to match the schematic diagram above. Each row links to that part with its Lindhaus part number and current price. A few parts on the diagram are not yet stocked online — call 763-535-0770 to order those.

#ImagePart DescriptionPart NumberPrice

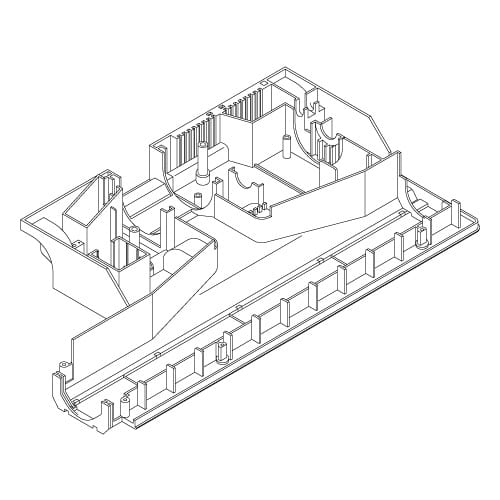

1Lindhaus RX Eco Force (Rx_380_450_500) Base Housing 380(15') [includes #54 Base Metal Guides Set] - 081990281Lindhaus RX Eco Force (Rx_380_450_500) Base Housing 380(15′) [includes #54 Base Metal Guides Set] – 081990281081990281$92.00

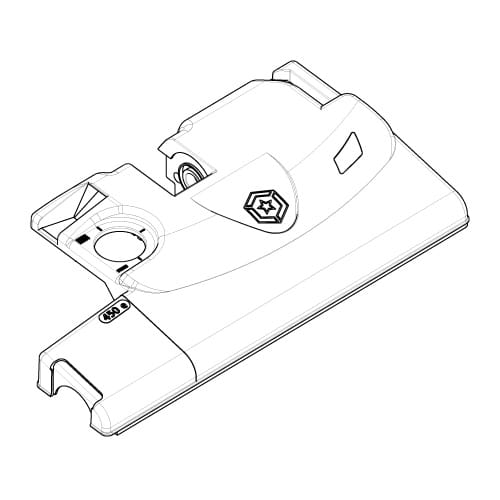

2Lindhaus RX Eco Force (Rx_380_450_500) Base Housing Cover 380(15)eco Force - 181614681Lindhaus RX Eco Force (Rx_380_450_500) Base Housing Cover 380(15)eco Force – 181614681181614681$64.00

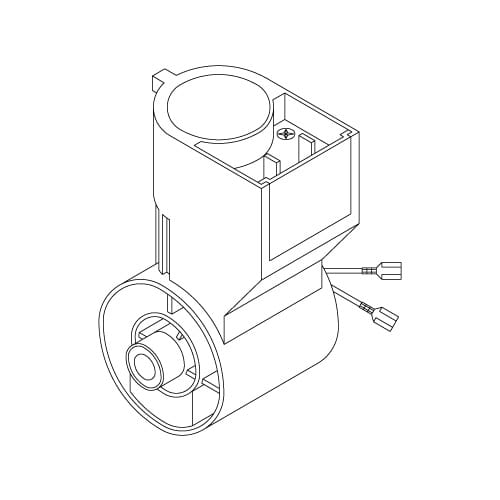

3Lindhaus RX Eco Force (Rx_380_450_500) Joint Complete 120v 3 Way - 083210380Lindhaus RX Eco Force (Rx_380_450_500) Joint Complete 120v 3 Way – 083210380083210380$93.80
4Lindhaus RX Eco Force (Rx_380_450_500) Joint Pin Slide - 002290305Lindhaus RX Eco Force (Rx_380_450_500) Joint Pin Slide – 002290305002290305$2.80

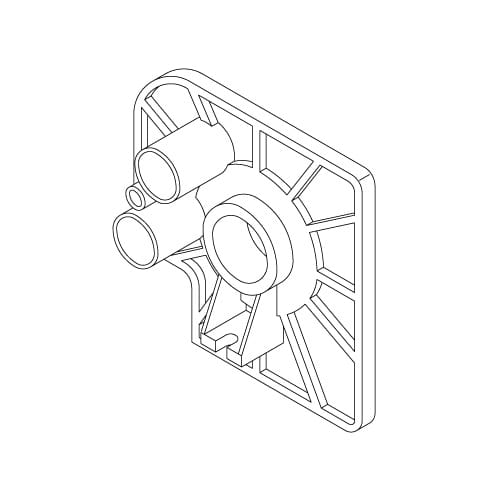

5Lindhaus RX Eco Force (Rx_380_450_500) Support Right Joint - 081910080Lindhaus RX Eco Force (Rx_380_450_500) Support Right Joint – 081910080081910080$17.00
6Lindhaus RX Eco Force (Rx_380_450_500) Plunger - 001940036Lindhaus RX Eco Force (Rx_380_450_500) Plunger – 001940036001940036$2.60
7Lindhaus RX Eco Force (Rx_380_450_500) Spring, Detente - 010390009Lindhaus RX Eco Force (Rx_380_450_500) Spring, Detente – 010390009010390009$1.20
8Lindhaus RX Eco Force (Rx_380_450_500) Double Pin Washer - 001930036Lindhaus RX Eco Force (Rx_380_450_500) Double Pin Washer – 001930036001930036$2.40
9Lindhaus RX Eco Force (Rx_380_450_500) Double Release Plate - 002180105Lindhaus RX Eco Force (Rx_380_450_500) Double Release Plate – 002180105002180105$2.00

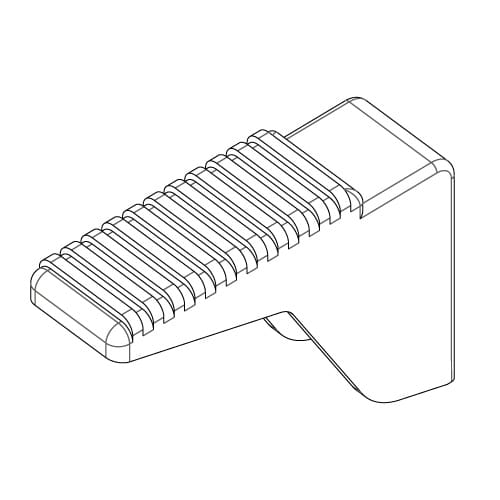

10Lindhaus RX Eco Force (Rx_380_450_500) Foot Pedal Blue - 002193805Lindhaus RX Eco Force (Rx_380_450_500) Foot Pedal Blue – 002193805002193805$9.60
11Lindhaus RX Eco Force (Rx_380_450_500) Support Left Joint - 081920080Lindhaus RX Eco Force (Rx_380_450_500) Support Left Joint – 081920080081920080$17.00
12Lindhaus RX Eco Force (Rx_380_450_500) Switch Activator Pin - 000670036Lindhaus RX Eco Force (Rx_380_450_500) Switch Activator Pin – 000670036000670036$1.00
13Lindhaus RX Eco Force (Rx_380_450_500) Spring Switch Activator Pin - 010480009Lindhaus RX Eco Force (Rx_380_450_500) Spring Switch Activator Pin – 010480009010480009$1.00
14Lindhaus RX Eco Force (Rx_380_450_500) Microswitch - 020640000Lindhaus RX Eco Force (Rx_380_450_500) Microswitch – 020640000020640000$16.60
15Lindhaus RX Eco Force (Rx_380_450_500) Brush Height Adjuster - 000990305Lindhaus RX Eco Force (Rx_380_450_500) Brush Height Adjuster – 000990305000990305$7.40

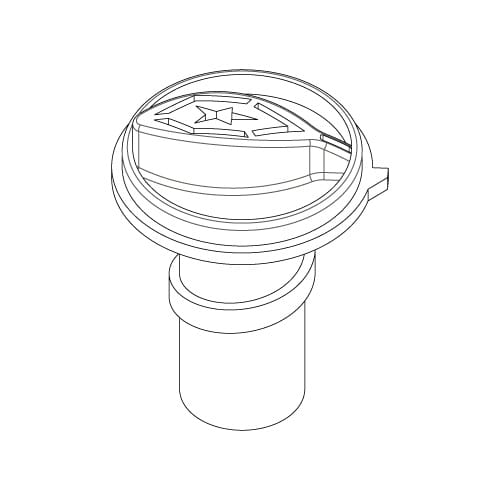

16Lindhaus RX Eco Force (Rx_380_450_500) Adjusting Knob Blue - 003133804Lindhaus RX Eco Force (Rx_380_450_500) Adjusting Knob Blue – 003133804003133804$10.60
17Lindhaus RX Eco Force (Rx_380_450_500) Front Axle - 011330029Lindhaus RX Eco Force (Rx_380_450_500) Front Axle – 011330029011330029$26.40
18Lindhaus RX Eco Force (Rx_380_450_500) Front Wheel-rubber - 002260000Lindhaus RX Eco Force (Rx_380_450_500) Front Wheel-rubber – 002260000002260000$5.60
19Lindhaus RX Eco Force (Rx_380_450_500) Spring Brush Adjust - 011160009Lindhaus RX Eco Force (Rx_380_450_500) Spring Brush Adjust – 011160009011160009$2.40
20Lindhaus RX Eco Force (Rx_380_450_500) Rear Axle - 011390009Lindhaus RX Eco Force (Rx_380_450_500) Rear Axle – 011390009011390009$15.00
21Lindhaus RX Eco Force (Rx_380_450_500) Rear Big Wheel-rubber - 002270000Lindhaus RX Eco Force (Rx_380_450_500) Rear Big Wheel-rubber – 002270000002270000$7.80
22Lindhaus RX Eco Force (Rx_380_450_500) Wheel Retainer Cap - 012840009Lindhaus RX Eco Force (Rx_380_450_500) Wheel Retainer Cap – 012840009012840009$1.06
23Lindhaus RX Eco Force (Rx_380_450_500) Screw 2.9x16 (Single) - 085610009ALindhaus RX Eco Force (Rx_380_450_500) Screw 2.9×16 (Single) – 085610009A085610009$8.60

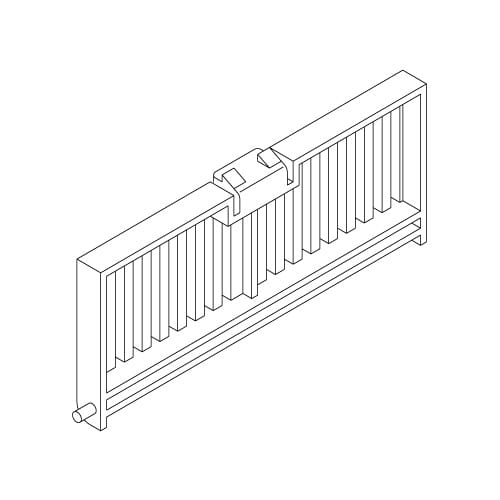

24Lindhaus RX Eco Force (Rx_380_450_500) Filter Grill Blue - 002143804Lindhaus RX Eco Force (Rx_380_450_500) Filter Grill Blue – 002143804002143804$15.60
25Lindhaus RX Eco Force (Rx_380_450_500) Exhaust Filter - 011240316Lindhaus RX Eco Force (Rx_380_450_500) Exhaust Filter – 011240316011240316$2.80
26Lindhaus RX Eco Force (Rx_380_450_500) Stop Grill Plate Blue - 002163804Lindhaus RX Eco Force (Rx_380_450_500) Stop Grill Plate Blue – 002163804002163804$0.80
27Lindhaus RX Eco Force (Rx_380_450_500) Brush Motor 100v120v 380(15') - 050030080Lindhaus RX Eco Force (Rx_380_450_500) Brush Motor 100v120v 380(15′) – 050030080050030080$148.00
28Lindhaus RX Eco Force (Rx_380_450_500) Transmission Support With Pulley - 181480081Lindhaus RX Eco Force (Rx_380_450_500) Transmission Support With Pulley – 181480081181480081$66.80
29Lindhaus RX Eco Force (Rx_380_450_500) Metal Spacer - 002890029Lindhaus RX Eco Force (Rx_380_450_500) Metal Spacer – 002890029002890029$2.40
30Lindhaus RX Eco Force (Rx_380_450_500) Metal Pulley - 002880029Lindhaus RX Eco Force (Rx_380_450_500) Metal Pulley – 002880029002880029$4.99
31Lindhaus RX Eco Force (Rx_380_450_500) Nut M4 (Single) - 180160009ALindhaus RX Eco Force (Rx_380_450_500) Nut M4 (Single) – 180160009A180160009A$3.20
32Lindhaus RX Eco Force (Rx_380_450_500) Circuit Board 120v - 020810000Lindhaus RX Eco Force (Rx_380_450_500) Circuit Board 120v – 020810000020810000$178.00

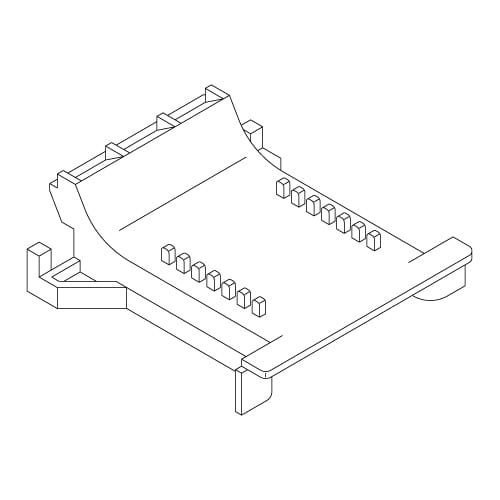

33Lindhaus RX Eco Force (Rx_380_450_500) Channel Cover Blue - 002173804Lindhaus RX Eco Force (Rx_380_450_500) Channel Cover Blue – 002173804002173804$16.20
34Lindhaus RX Eco Force (Rx_380_450_500) Transmission Support Without Pulley - 181490081Lindhaus RX Eco Force (Rx_380_450_500) Transmission Support Without Pulley – 181490081181490081$9.24
35Lindhaus RX Eco Force (Rx_380_450_500) Pulley With Shaft - 060290081Lindhaus RX Eco Force (Rx_380_450_500) Pulley With Shaft – 060290081060290081$34.80
36Lindhaus RX Eco Force (Rx_380_450_500) Drive Joint Base - 088620081Lindhaus RX Eco Force (Rx_380_450_500) Drive Joint Base – 088620081088620081$10.00
37Lindhaus RX Eco Force (Rx_380_450_500) Timing Belt 7mm - 010790300Lindhaus RX Eco Force (Rx_380_450_500) Timing Belt 7mm – 010790300010790300$16.00
38Lindhaus RX Eco Force (Rx_380_450_500) Wheel Support - 081940081Lindhaus RX Eco Force (Rx_380_450_500) Wheel Support – 081940081081940081$19.80
39Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.9x22 (Single) - 087260009ALindhaus RX Eco Force (Rx_380_450_500) Screw 3.9×22 (Single) – 087260009A087260009A$8.00
40Lindhaus RX Eco Force (Rx_380_450_500) Roller Support - 081950081Lindhaus RX Eco Force (Rx_380_450_500) Roller Support – 081950081081950081$28.80
41Lindhaus RX Eco Force (Rx_380_450_500) Side Lever - 002210304Lindhaus RX Eco Force (Rx_380_450_500) Side Lever – 002210304002210304$12.80
42Lindhaus RX Eco Force (Rx_380_450_500) Front Bumper 380(15') Blue - 002563812Lindhaus RX Eco Force (Rx_380_450_500) Front Bumper 380(15′) Blue – 002563812002563812$14.80
43Lindhaus RX Eco Force (Rx_380_450_500) Back Bumper Gasket 380 (15') Blue - 002573812Lindhaus RX Eco Force (Rx_380_450_500) Back Bumper Gasket 380 (15′) Blue – 002573812002573812$2.60
44Lindhaus RX Eco Force (Rx_380_450_500) Screw 4.8x50 (Single) - 087270009ALindhaus RX Eco Force (Rx_380_450_500) Screw 4.8×50 (Single) – 087270009A087270009A$25.20

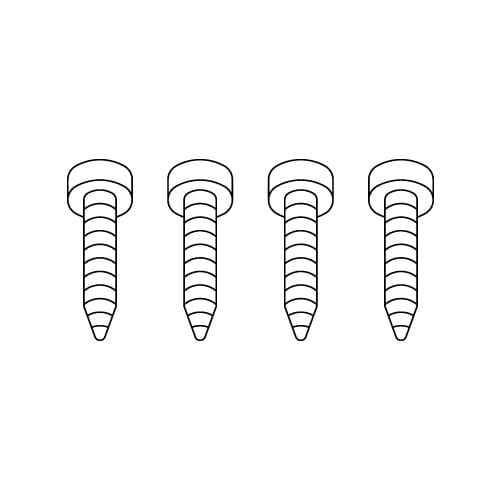

45Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.5x38 (Single) - 087280009ALindhaus RX Eco Force (Rx_380_450_500) Screw 3.5×38 (Single) – 087280009A087280009A$12.40
46Lindhaus RX Eco Force (Rx_380_450_500) Side Cover Blue - 002153804Lindhaus RX Eco Force (Rx_380_450_500) Side Cover Blue – 002153804002153804$11.40
47Lindhaus RX Eco Force (Rx_380_450_500) Brush Roller 380(15)bristle 0.25 Black+insert [standard] - 009730301Lindhaus RX Eco Force (Rx_380_450_500) Brush Roller 380(15)bristle 0.25 Black+insert [standard] – 009730301009730301$6.00
48Lindhaus RX Eco Force (Rx_380_450_500) Motor Filter - 010580016Lindhaus RX Eco Force (Rx_380_450_500) Motor Filter – 010580016010580016$8.40
49Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.9x13 (Single) - 085590009ALindhaus RX Eco Force (Rx_380_450_500) Screw 3.9×13 (Single) – 085590009A085590009A$9.60
50Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.5x25 (Single) - 085550009ALindhaus RX Eco Force (Rx_380_450_500) Screw 3.5×25 (Single) – 085550009A085550009A$9.60
51Lindhaus RX Eco Force (Rx_380_450_500) Screw 2.2x16(Single) - 086950009ALindhaus RX Eco Force (Rx_380_450_500) Screw 2.2×16(Single) – 086950009A086950009A$9.60
52Lindhaus RX Eco Force (Rx_380_450_500) Light Cover - 009814146Lindhaus RX Eco Force (Rx_380_450_500) Light Cover – 009814146009814146$4.80
53Lindhaus RX Eco Force (Rx_380_450_500) Felt For Brush Housing - 011000017Lindhaus RX Eco Force (Rx_380_450_500) Felt For Brush Housing – 011000017011000017$0.68

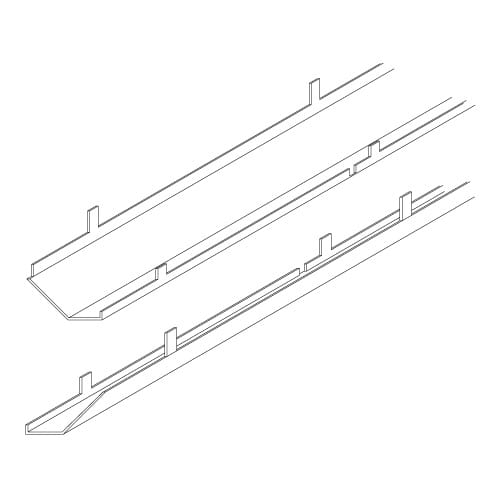

54Lindhaus RX Eco Force (Rx_380_450_500) Base Metal Guides Set 380(15') - 082890000Lindhaus RX Eco Force (Rx_380_450_500) Base Metal Guides Set 380(15′) – 082890000082890000$24.00
55Lindhaus RX Eco Force (Rx_380_450_500) O/ring - 011360307Lindhaus RX Eco Force (Rx_380_450_500) O/ring – 011360307012480307$0.70
56Lindhaus RX Eco Force (Rx_380_450_500) Male Electronic Connection Set 120v 3 Wires - 082490080Lindhaus RX Eco Force (Rx_380_450_500) Male Electronic Connection Set 120v 3 Wires – 082490080082490080$23.00

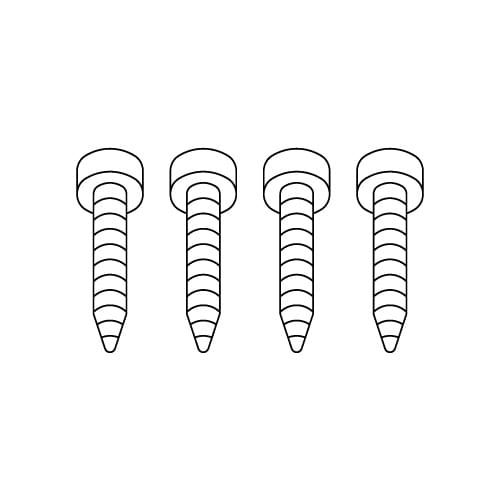

57Lindhaus RX Eco Force (Rx_380_450_500) Screw 3.9x13 Tg (Single) - 086450009ALindhaus RX Eco Force (Rx_380_450_500) Screw 3.9×13 Tg (Single) – 086450009A086450009A$7.60

Lindhaus RX Eco-Force Head Parts — Frequently Asked Questions

How do I find the right part on the Lindhaus RX Eco-Force Head schematic?

Every numbered dot on the diagram matches a numbered row in the table above. Click the dot or the row to open that exact part with its Lindhaus part number and price. Not sure which number? Call 763-535-0770 with your model.

What are the most common Lindhaus RX Eco-Force Head parts?

Brushrolls, belts, HEPA and exhaust filters, bags, base plates, roller covers, bumpers and switches are the most frequently replaced parts — all listed above by schematic number.

Do Lindhaus RX Eco-Force parts fit other Lindhaus RX models?

Many RX Hepa and RX Eco-Force (RX380/RX450/RX500) parts cross over, but some are size- or generation-specific. Confirm by part number before ordering, or call us.

How do I order a Lindhaus RX Eco-Force part or get help?

Add any part directly to your cart from its product page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Lindhaus vacuums since 1956 and can confirm the right part for your Lindhaus RX Eco-Force.
