Tornado 98169 Marathon 1200 chassis assembly replacement parts for Model 98169, sheet 2 of 2. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
Find genuine Tornado 98169 Marathon 1200 chassis assembly replacement parts for Model 98169. The chassis is the structural frame everything else mounts to, and it is split across two drawings because a single sheet cannot show the frame and all its mounted hardware legibly. This second sheet carries the chassis itself, the 10-inch wheels and their axle and retaining rings, the hinge, the shroud and nozzle mounting bracket weldment, the steel-supported vacuum hoses and their clamps, the quick-disconnect coupler, and the spacers, screws, washers and nuts that hold it together. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|

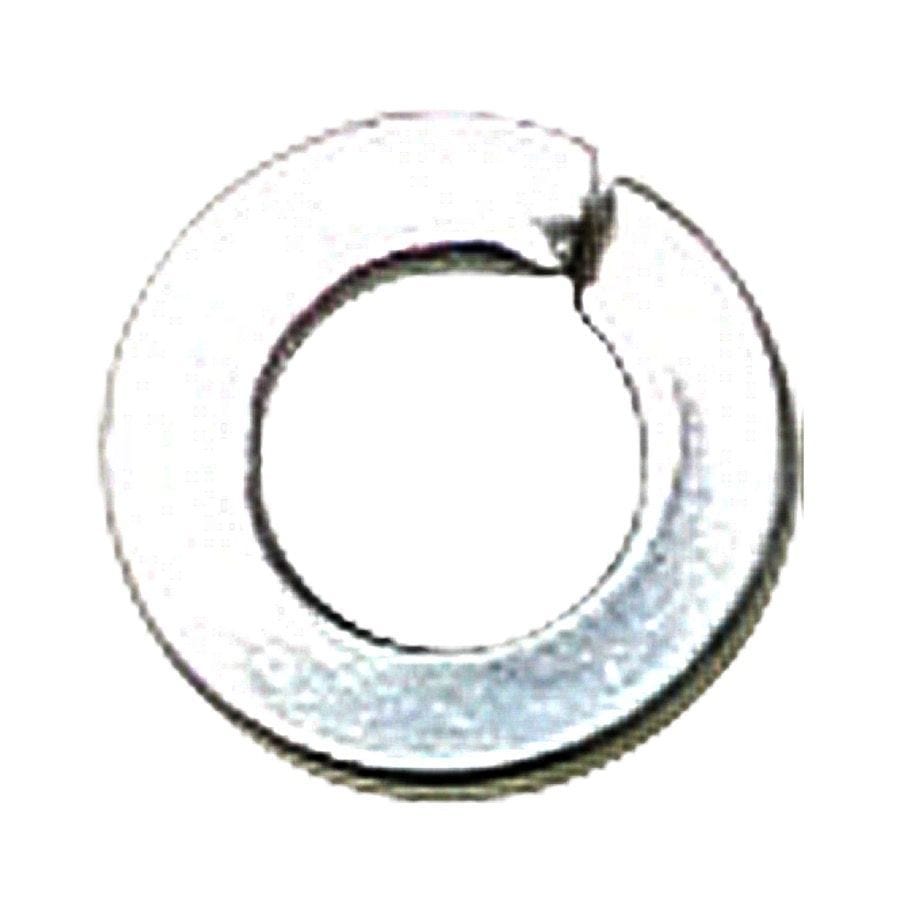

| 1 |  | Lock Washer | 01574 | $2.99 |
| 2 | Screw 1/4-20 x 7/8" | 02053 | $2.99 | |
| 3 |  | Wheel 10" | 02661 | $98.99 |

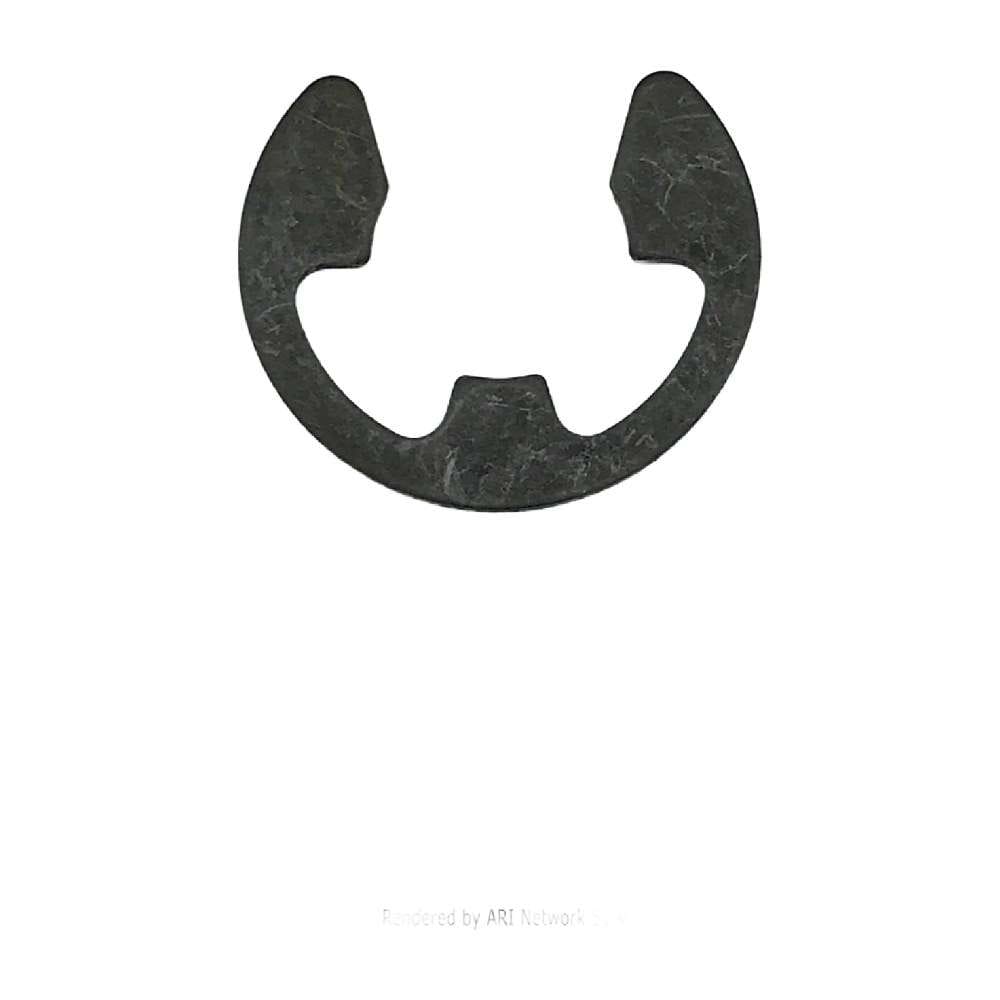

| 5 |  | Ext E Retaining Ring | 03470 | $1.99 |
| 7 | Screw 1/2-13 x 1" | 05441 | $5.99 | |
| 8 | Screw 1/4-20 x 1/2" | 06192 | $2.99 | |
| 12 | Washer | 14142 | $2.99 | |
| 13 | Hose Clamp | 14858 | $10.46 | |
| 14 |  | QD Coupler 1/4” M x 1/4” FPT | PX5 | $12.99 |
| 15 | Lock Nut | 15092 | Call for price | |

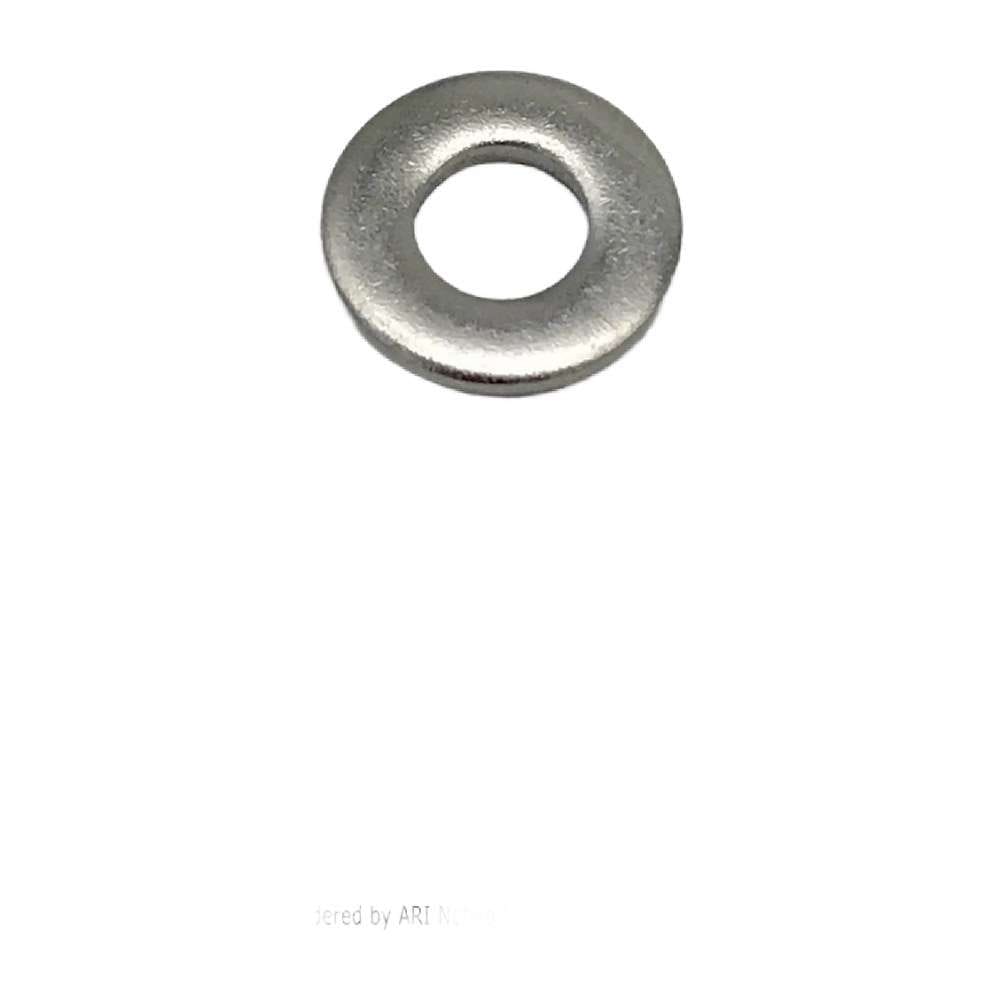

| 17 |  | Washer | 17850 | $2.99 |

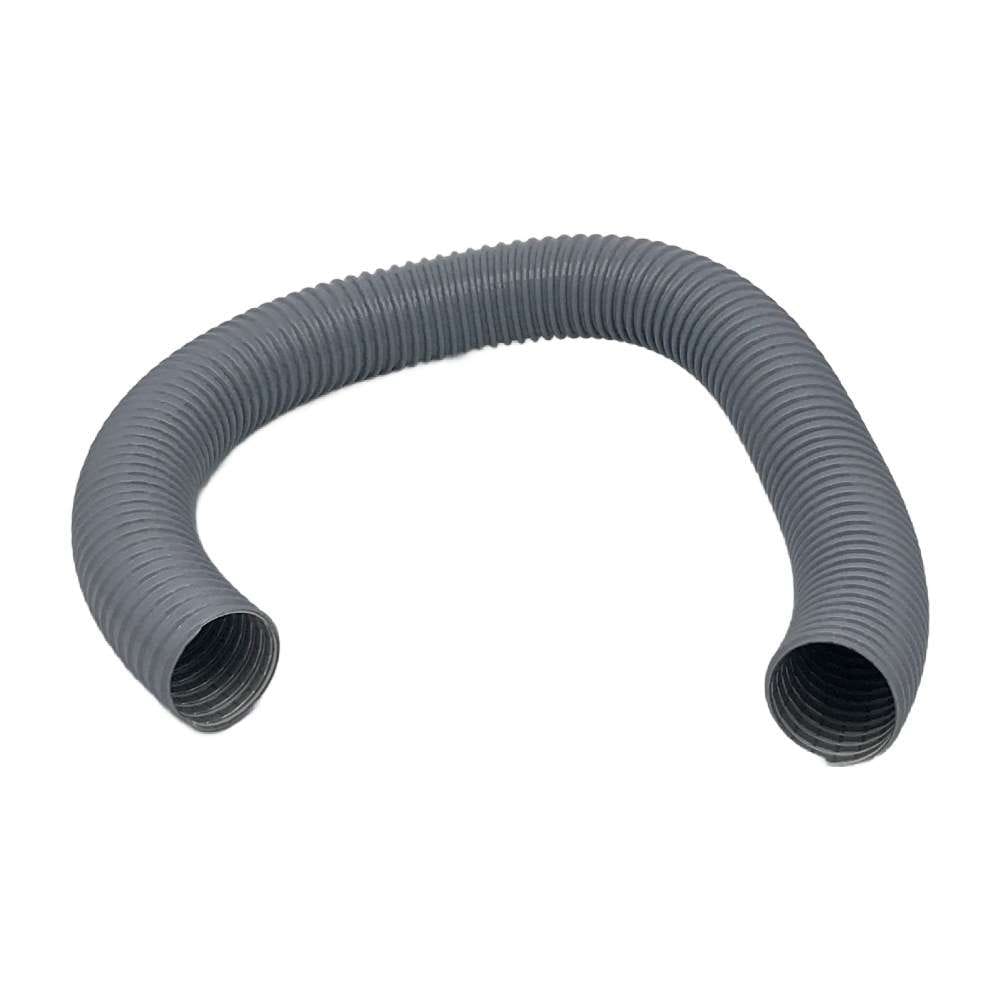

| 18 |  | Steel Supported Hose 2" x 38" No Cuffs | 18687 | $26.99 |
| 19 |  | Axle | 19143 | $24.99 |
| 20 | | Steel Supported Hose 2" x 38" No Cuffs | 18687 | $26.99 |
| 21 | Nut | 19145 | Call for price | |
| 22 | Hinge 1/4" x 2" | 19148 | $61.99 | |
| 23 | Shroud/Nozzle Mounting Bracket Weldment | 19155 | $85.99 | |
| 24 |  | Screw 3/8-16 x 1-1/4" | 19171 | $2.99 |
| 25 | | Screw 3/8-16 x 1-1/4" | 19171 | $2.99 |

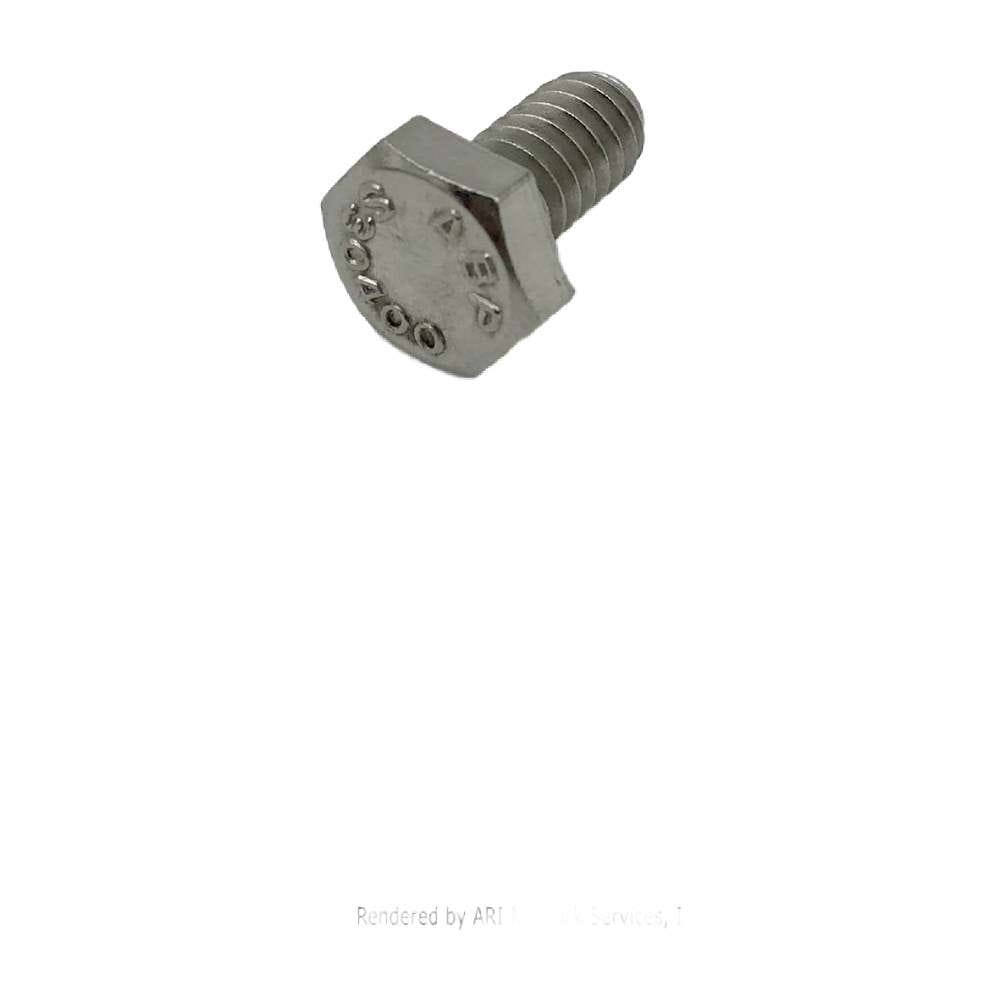

| 28 |  | Screw 1/4-20 x 1/2" | 19240 | $1.99 |
| 29 | Chassis | 19241 | $521.99 | |

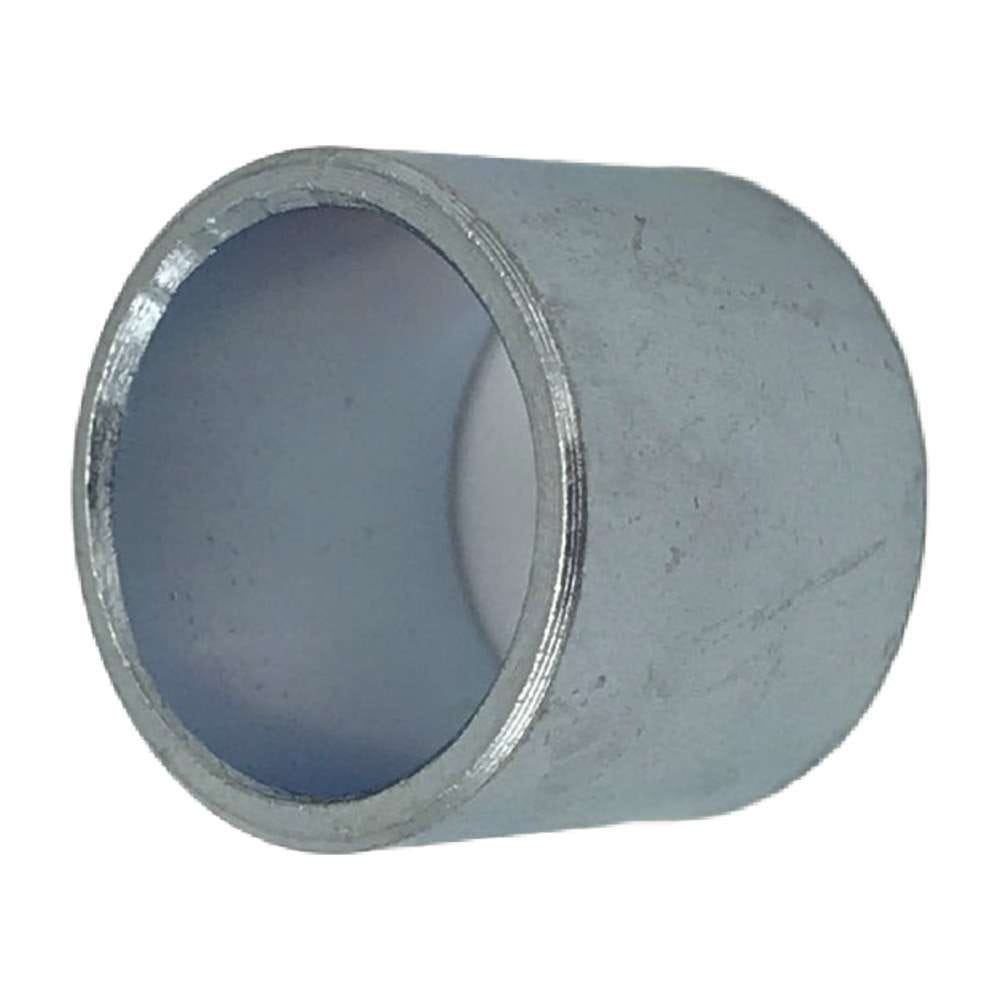

| 30 |  | Spacer | 19259 | $11.99 |
| 34 | Screw M4 x 16 | 23192 | $1.99 |
Frequently Asked Questions
Why are the chassis parts split across two sheets?
Because the frame and everything mounted to it will not fit legibly on one exploded drawing, so the manufacturer divides them into part 1 and part 2. If a part is not on the sheet you expected, check the other one.
What are the common chassis wear parts?
The 10-inch wheels and their bushings, by a wide margin. A machine that pulls to one side, sits unevenly, or has become hard to push over a threshold usually needs wheel or bushing work rather than any frame repair.
Why does the same screw appear twice on this sheet?
Some fasteners are called out at more than one position on the drawing. The part number is the same; the separate callouts simply mark the different places it is fitted.
Should I order spare fasteners when repairing this machine?
Yes, for anything you disturb. Clamps that have been cut, and brackets or fasteners that have been over-tightened, rarely reseat properly, and they are inexpensive enough that a spare set costs less than a second shipment.
How do I order Tornado 98169 chassis parts or get help?
Add the part to your cart from its product page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced Tornado equipment since 1956 and can identify a frame component from a photograph if the drawing is unclear.
Questions? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428. Browse every assembly for this machine on the Tornado 98169 Marathon 1200 parts page.
