Genuine Tacony replacement parts for the Tornado Strike TV190-W10-U dual-motor cordless upright vacuum. Every part below comes from the factory parts diagrams for this model. Can’t find what you need? Call us at 763-535-0770.
Tornado Strike TV190-W10-U parts diagrams
The Strike’s factory diagrams are grouped into four sections below. Click a section, then click any numbered callout on its diagram to go straight to that part.

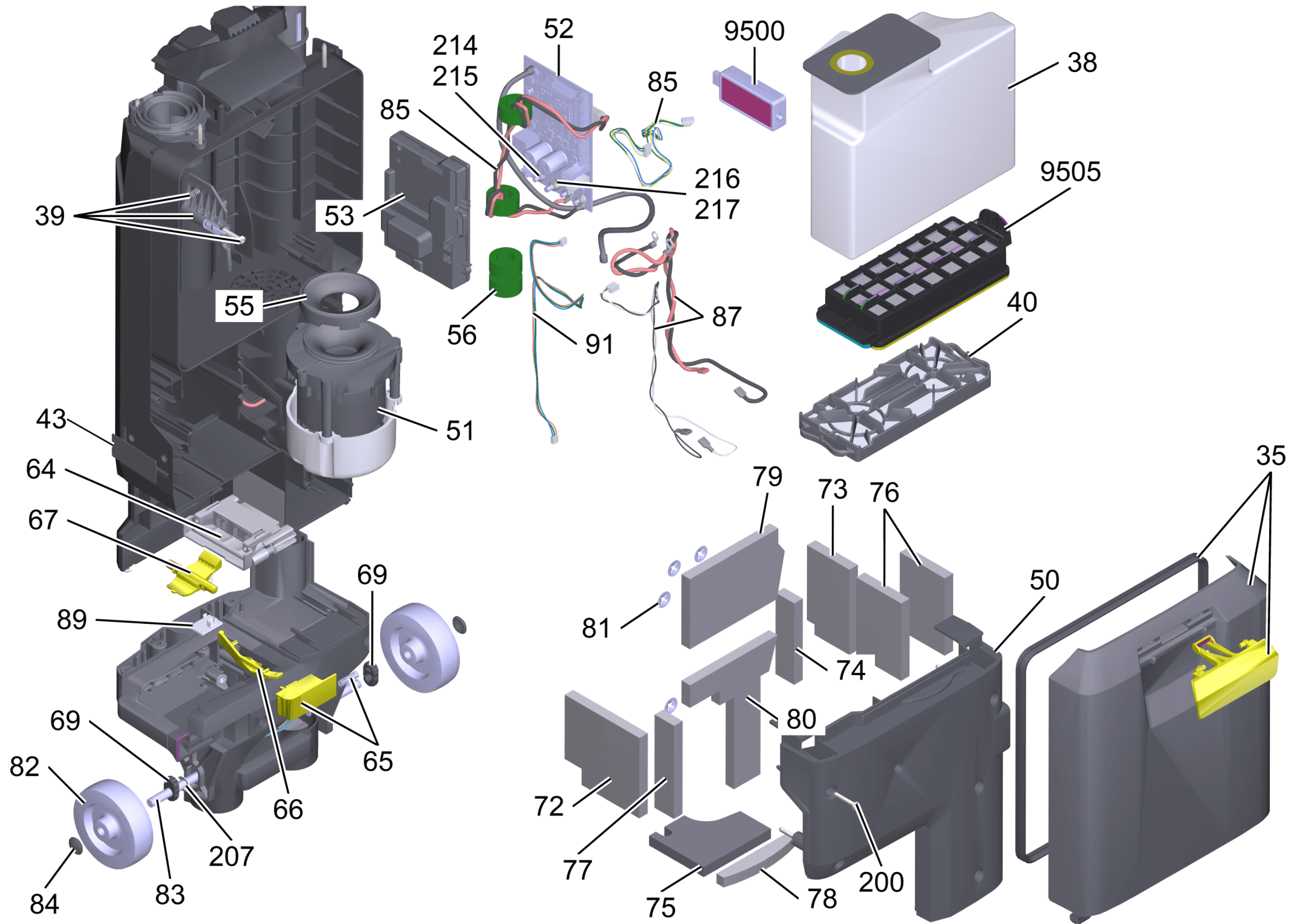

Back Part Parts40 parts — filter cover, fleece bags and HEPA cartridge, suction motor and foams, battery bay, electronics, wiring and rear wheels

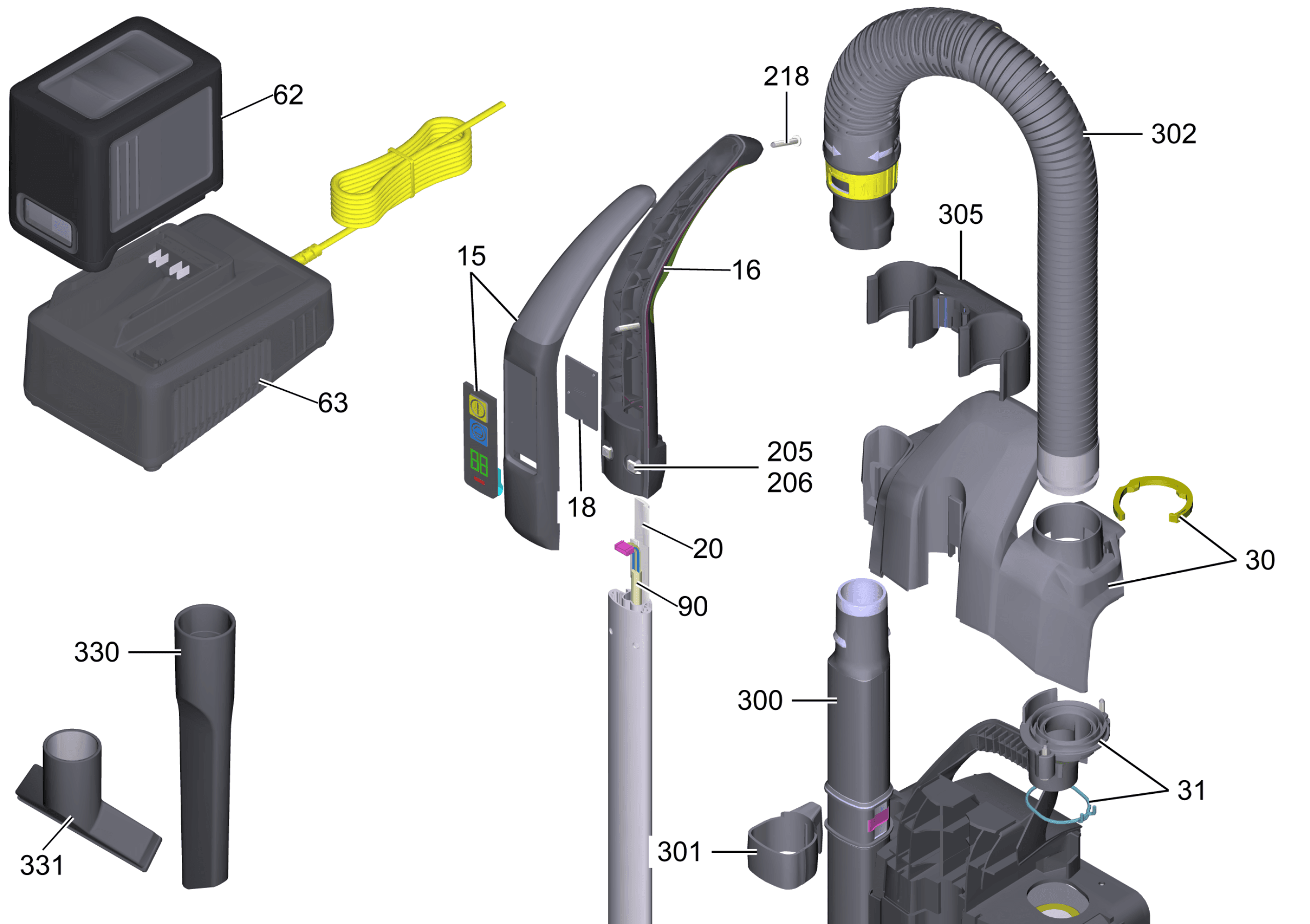

Top Handle Parts18 parts — handle sections, controls and electronic board, wand and hose, on-board tools, plus the 36V battery and charger

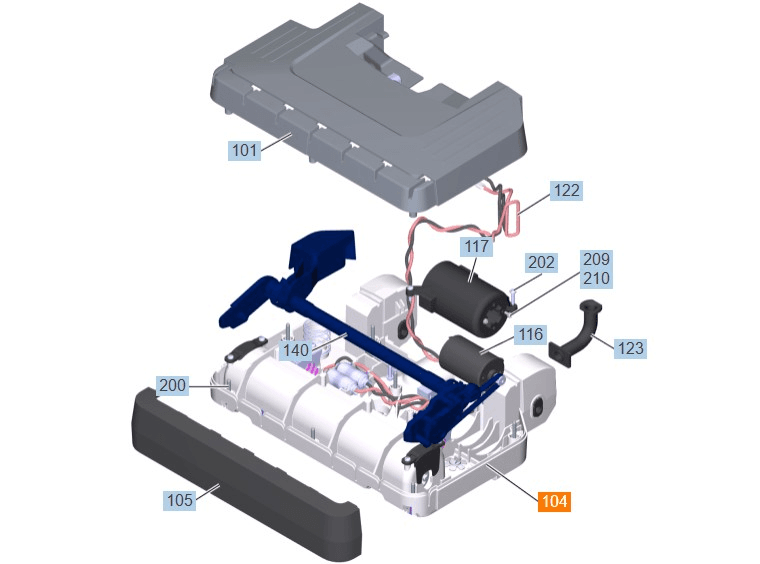

Brush Head Parts13 parts — brush motor and housing, belt, brush lifting assembly, capacitor and cable, bumper and covers

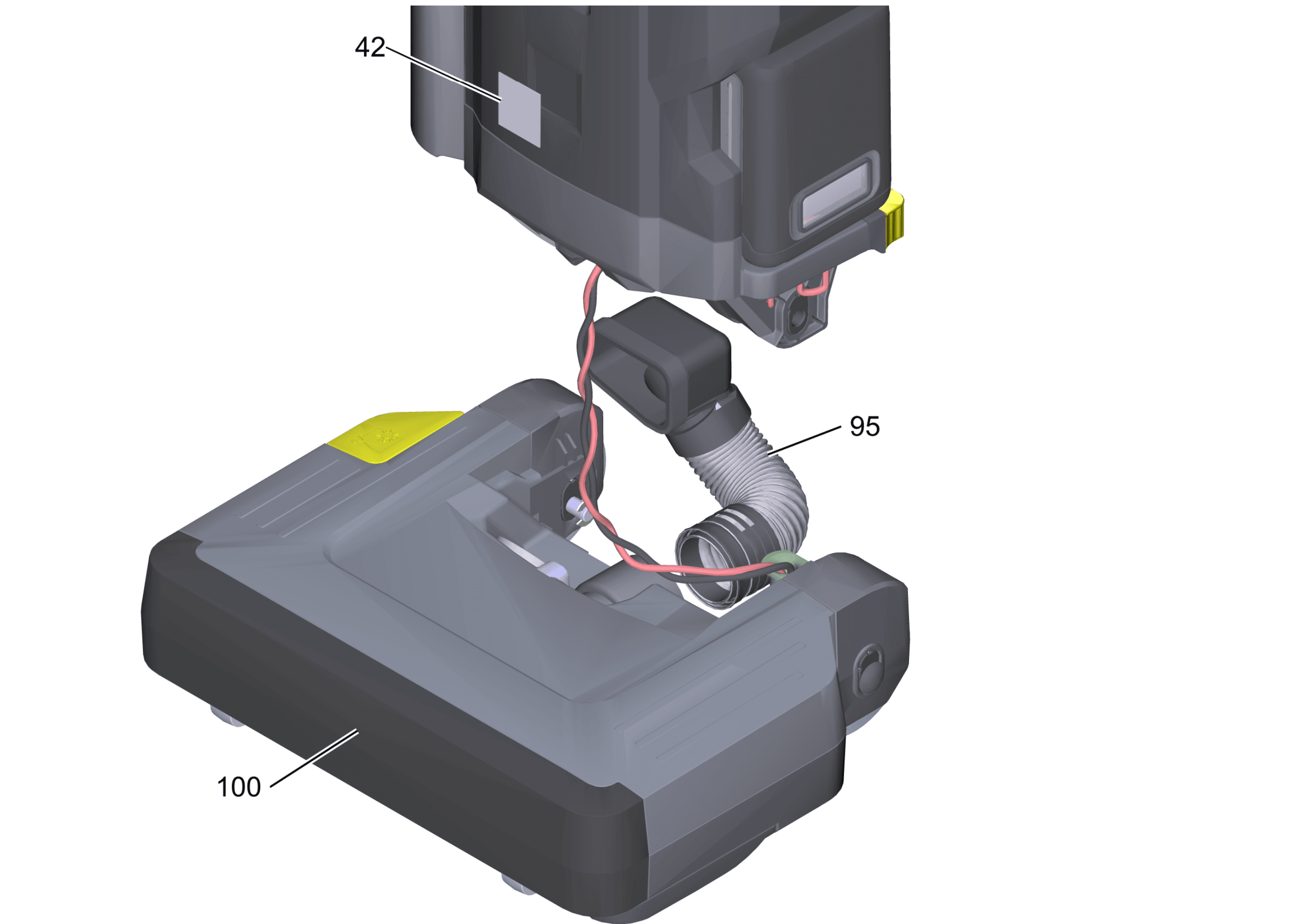

Sole, Base & Magnet Parts11 parts across four factory sheets — brushroll, glide sole, scraper, wheels and axles, sealing strip, magnet and bottom hoseFinding the right Tornado Strike part
Strike part numbers all begin with K. Work from the diagrams rather than from a description where you can — several parts on this machine look alike and are not interchangeable, including three different screws, two different nuts and nine separately numbered motor foams. If you are replacing a fastener, match it on the diagram rather than by eye.
A few parts appear on more than one sheet at different callout numbers, so our product pages never quote an item number. If you are unsure, call 763-535-0770 with your serial number and we will identify it with you. We have been servicing Tornado equipment from 5415 West Broadway, Crystal, MN 55428 since 1956.
Frequently Asked Questions
What machine is the Tornado Strike?
The Strike TV190-W10-U is Tacony’s dual-motor cordless upright vacuum, running on a 36V 7.5Ah lithium-ion pack. Dual motor means one motor makes the suction and a second, separate motor drives the brush roll — which is why a Strike can lose brush agitation while suction still works perfectly, and vice versa.
Is the Strike the same machine as the Tornado Zephyr or Tempest?
No, but they are close relatives. The Strike, Tempest and Zephyr are built on the same cordless platform under different names and share the great majority of their parts — the battery, the charger, the suction motor and much of the battery-bay hardware are common. Where a part is shared, our listing says so and names every machine it fits.
What battery and charger does the Strike use?
The 36V 7.5Ah lithium-ion pack (part# K24450750) and the 36V quick-charger (part# K24450530), both of which also fit the Tempest and the Zephyr. Both are listed on the Top Handle page. Lithium batteries ship under special handling rules, so call 763-535-0770 before ordering a pack and we will confirm what shipping to your address involves.
My Strike’s brush will not turn but suction is fine. Where do I start?
With the parking position sensor and its wiring, not the motherboard. The control board only drives the brush motor when the sensor reports the machine is reclined for use, so a failed sensor, a chafed sensor cable or a damaged magnet in the base all produce exactly this symptom — at a small fraction of the cost of a board. All of those parts are on the Back Part and Sole, Base & Magnet pages.
Can you help me find a Strike part that is not listed?
Yes. These pages cover every part on the factory diagrams for this model, but a handful of small items are not carried in Tacony’s dealer catalogue and show as call-for-price. Ring 763-535-0770 with your model and serial number and we will identify the part and confirm price and availability rather than guessing.
