Tornado Strike TV190-W10-U Sole, Base & Magnet Parts

Tornado Strike replacement parts for Model TV190-W10-U. Can’t find your part? Call us at 763-535-0770.

Click on any numbered part in the diagrams below to go directly to that part’s product page. This page covers four small factory assemblies — the base, both glide sole sheets and the magnet.

Base Assembly

Tornado Strike TV190-W10-U base assembly parts diagram42. Label – K5402848395. Hose Complete, Bottom Housing – K44410983
#ImagePart DescriptionPart NumberPrice
42Label part number K54028483 — photo coming soonLabelK54028483Call for price
95Hose Complete, Bottom Housing part number K44410983 — photo coming soonHose Complete, Bottom HousingK44410983$31.99

Glide Sole 1

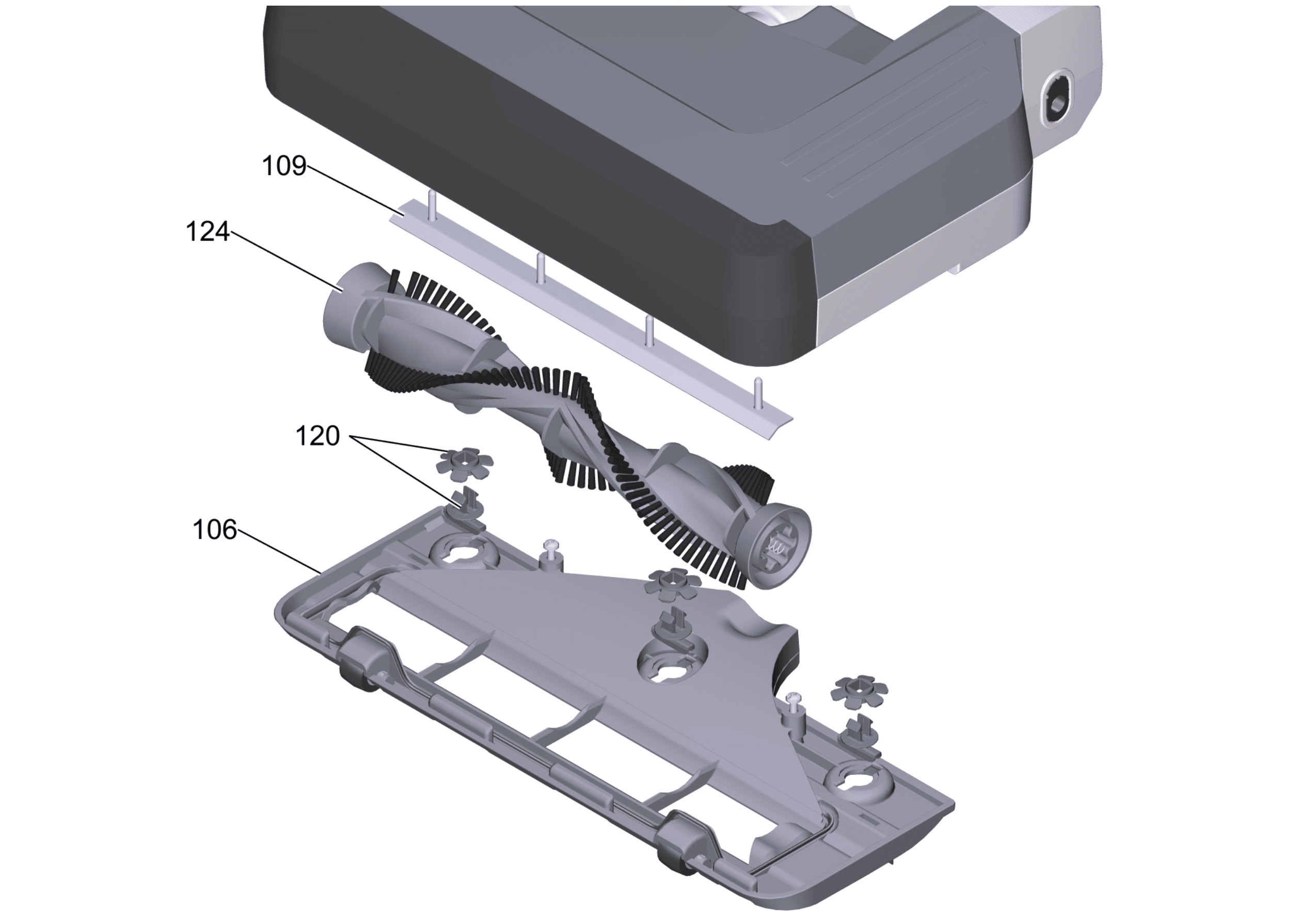

Tornado Strike TV190-W10-U glide sole parts diagram106. Glide Sole Assembly – K41011240109. Brush Roll Scraper – K47755880120. Lock Piece Kit, 4 Sets – K28842730124. Brushroll Complete – K47626443
#ImagePart DescriptionPart NumberPrice
106Tornado Strike Glide Sole Assembly schematic diagram part number K41011240Glide Sole AssemblyK41011240$33.99
109Tornado Strike Brush Roll Scraper schematic diagram part number K47755880Brush Roll ScraperK47755880$17.12
120Lock Piece Kit, 4 Sets part number K28842730 — photo coming soonLock Piece Kit, 4 SetsK28842730Call for price
124Tornado Strike Brushroll Complete schematic diagram part number K47626443Brushroll CompleteK47626443$45.99

Glide Sole 2

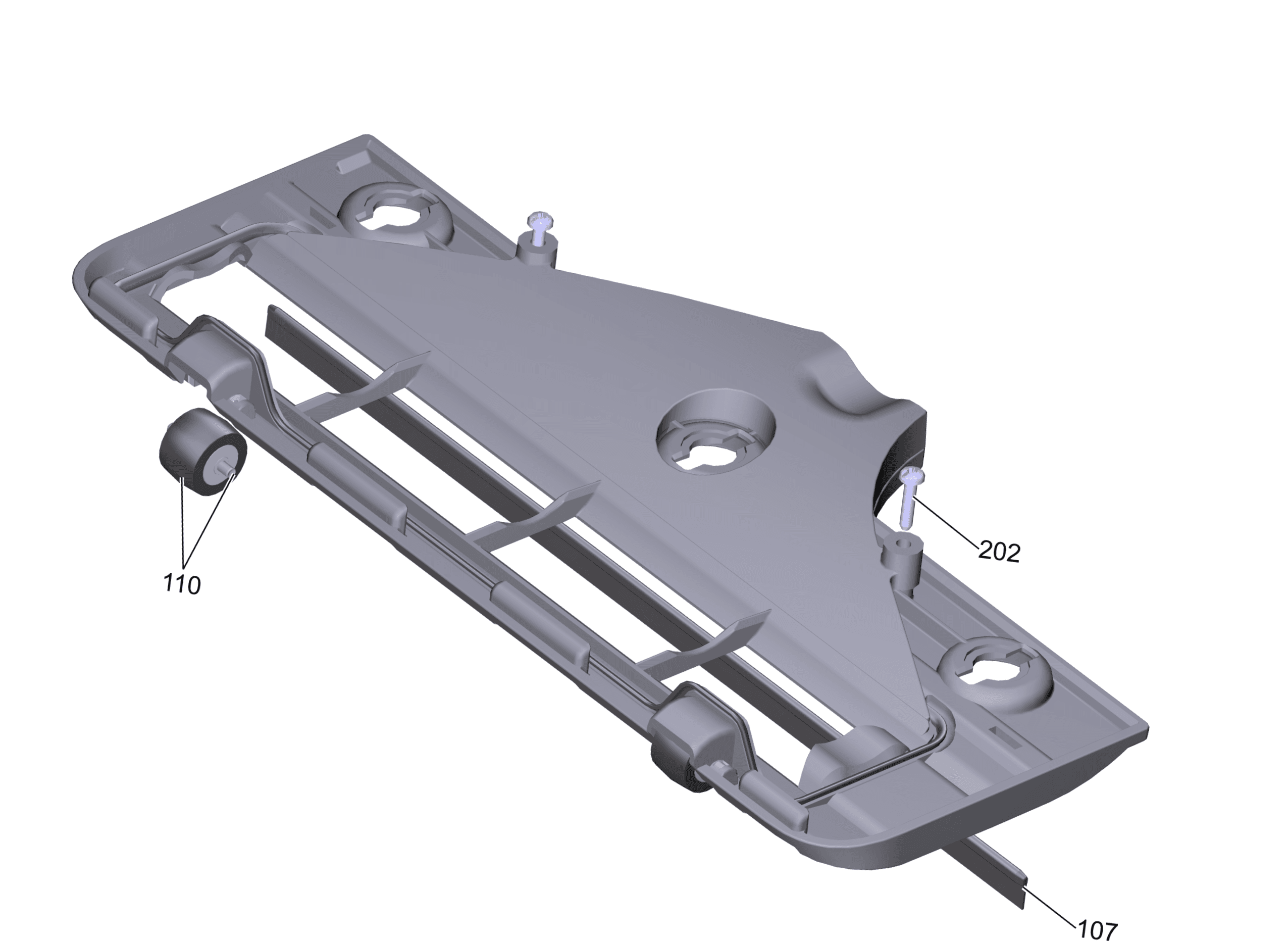

Tornado Strike TV190-W10-U glide sole sealing strip and wheels diagram107. Sealing Strip – K53650770110. Wheel and Axle Sets – K47755890202. Screw M3.5 x 16 – K73032060
#ImagePart DescriptionPart NumberPrice
107Sealing Strip part number K53650770 — photo coming soonSealing StripK53650770Call for price
110Wheel and Axle Sets part number K47755890 — photo coming soonWheel and Axle SetsK47755890$5.99
202Screw M3.5 x 16 part number K73032060 — photo coming soonScrew M3.5 x 16K73032060Call for price

Magnet

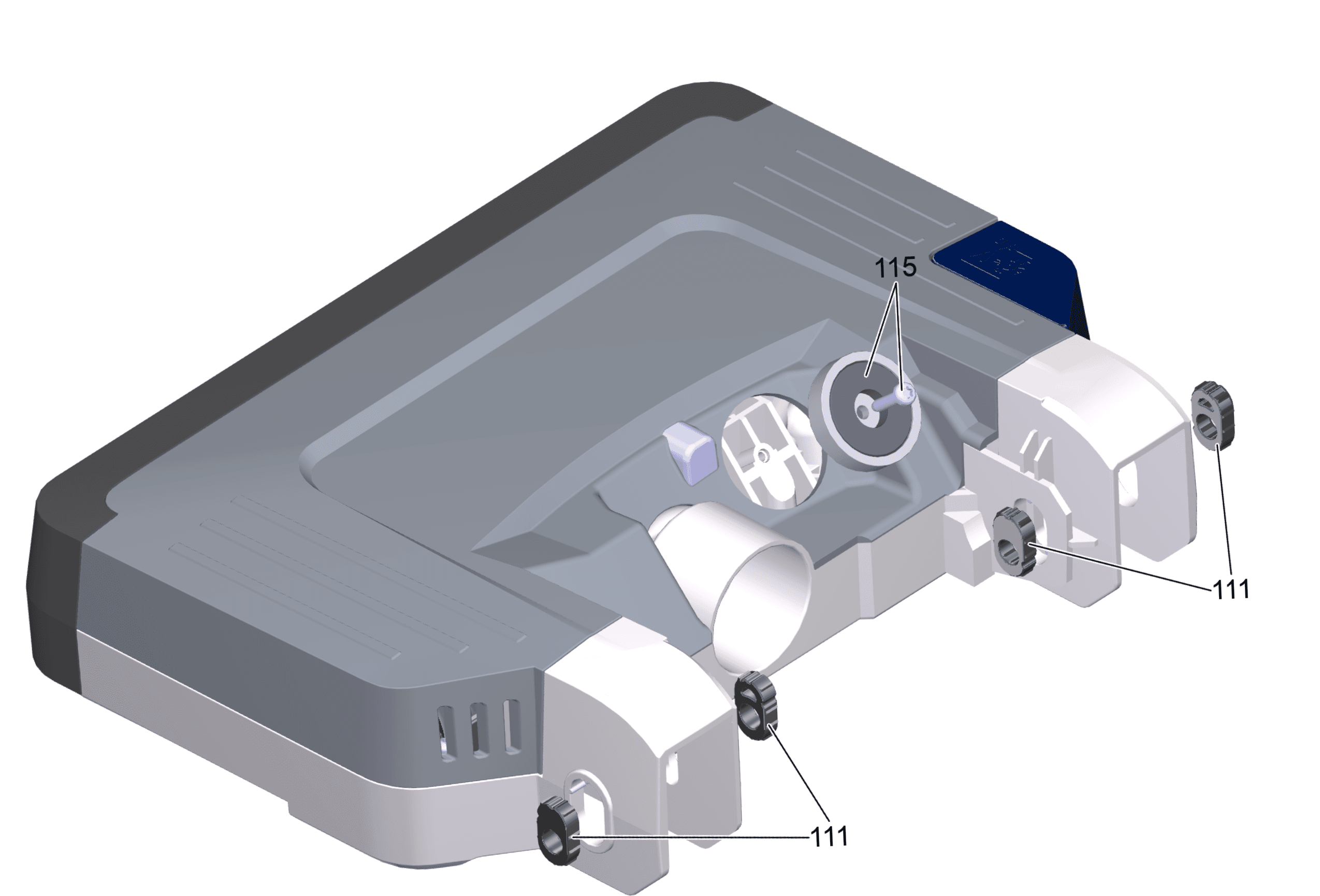

Tornado Strike TV190-W10-U magnet assembly parts diagram111. Sleeve, Axle – K47755840111. Sleeve, Axle – K47755840115. Magnet with Screw – K41011180
#ImagePart DescriptionPart NumberPrice
111Sleeve, Axle part number K47755840 — photo coming soonSleeve, AxleK47755840$4.99
115Magnet with Screw part number K41011180 — photo coming soonMagnet with ScrewK41011180$44.99

Frequently Asked Questions

Which Strike sole and base parts wear out first?

The glide sole assembly (part# K41011240) and the sealing strip (part# K53650770) go first, because they are the parts actually riding on the floor. The brushroll (part# K47626443) and its scraper (part# K47755880) are next. The magnet and the base label rarely need attention unless something has been damaged.

My Strike has lost suction but the bag and filter are clean. What next?

Check the sealing strip along the glide sole — if it has hardened, torn or worn back, air leaks in at the edge of the head instead of being pulled through the carpet. After that check the bottom housing hose (part# K44410983) for splits, and the brushroll for a heavy wrap of hair.

What does the magnet on the Tornado Strike actually do?

It is the half of the machine’s position sensing that the sensor reads. It tells the electronics whether the Strike is parked upright or reclined for use, so the brush motor behaves correctly in each position. If the brush will not start when reclined, this and the parking position sensor are the two things to check.

How do I order a Tornado Strike sole, base or magnet part?

Click the numbered dot on the diagram or the row in the table to open that part’s page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing Tornado equipment since 1956 and can confirm the right part from your model and serial number.

Looking for another assembly? Browse the full Tornado Strike parts hub or call 763-535-0770.
