Tornado Strike replacement parts for Model TV190-W10-U. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page. This page covers the Strike’s top handle assembly — the handle sections and their controls, the wand and hose, the on-board tools, and the battery and charger.
Top Handle Assembly
15. Handle Front with Controls and Display – K4775621016. Handle Rear – K5322471318. Electronic Board, Handle – K4683258320. Covering Strip, Handle – K5030136330. Top Housing with Hose Clip – K4775620031. Suction Hose Inlet – K4775499062. 36V 7.5Ah Lithium-Ion Battery – K2445075063. 36V Quick-Charger – K2445053090. Wiring, Handle – K66517690205. Screw M4 x 25, Handle – K73062110206. Square Nut M4, Handle – K73115690218. Screw 4 x 16, Handle – K73031290300. Wand – K54812423301. Wand Clip – K50410080302. Suction Hose Complete, Top Housing – K44402013305. Accessories Holder – K50410043330. Crevice Tool – K28892900331. Upholstery Nozzle – K69059980| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 15 | Handle Front with Controls and Display | K47756210 | $135.99 | |
| 16 | Handle Rear | K53224713 | $15.99 | |
| 18 | Electronic Board, Handle | K46832583 | $79.99 | |
| 20 | Covering Strip, Handle | K50301363 | $7.99 | |
| 30 | Top Housing with Hose Clip | K47756200 | $17.82 | |
| 31 | Suction Hose Inlet | K47754990 | $2.65 | |

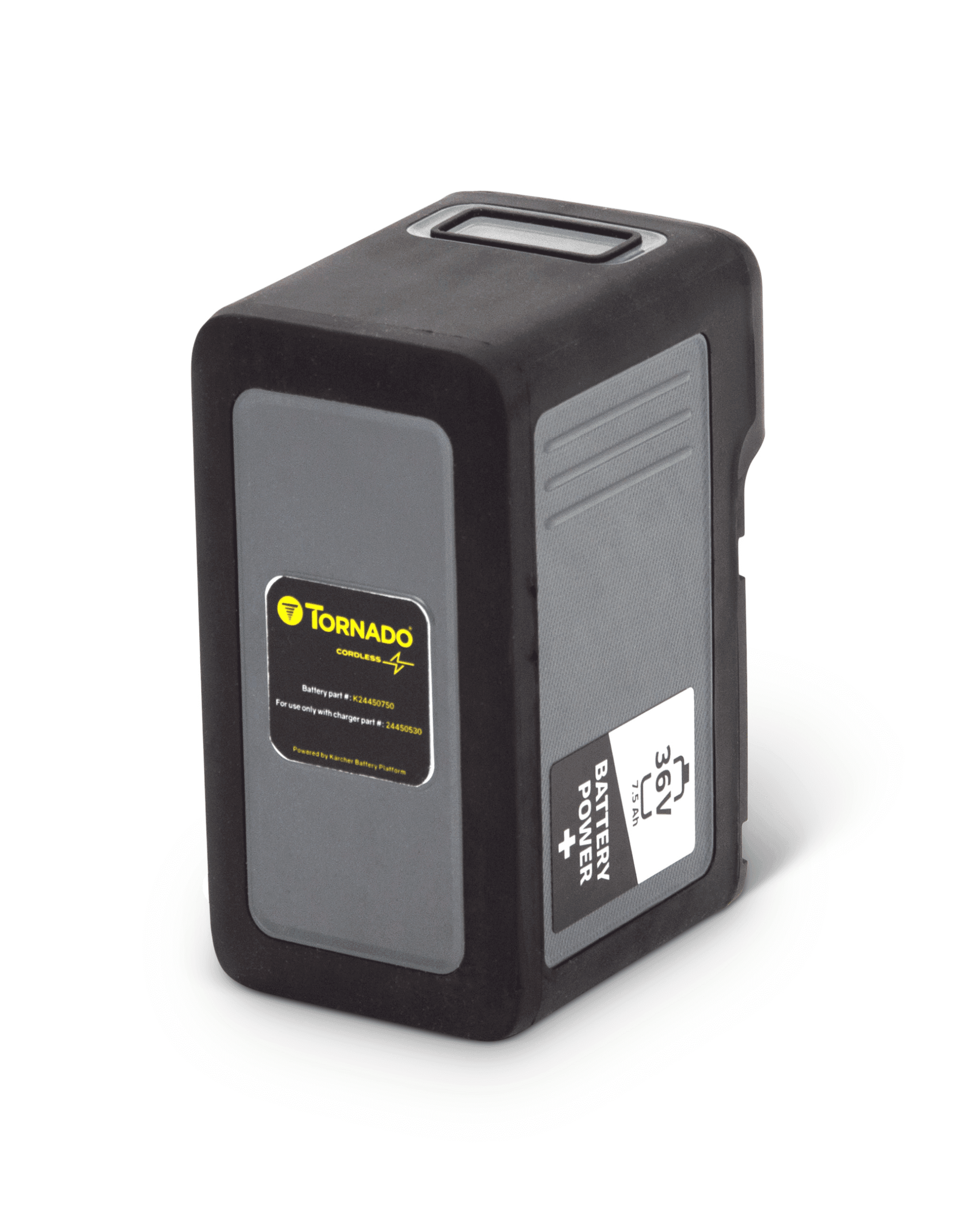

| 62 |  | 36V 7.5Ah Lithium-Ion Battery | K24450750 | $502.99 |
| 63 |  | 36V Quick-Charger | K24450530 | $226.99 |
| 90 | Wiring, Handle | K66517690 | $51.99 | |
| 205 | Screw M4 x 25, Handle | K73062110 | $0.22 | |
| 206 | Square Nut M4, Handle | K73115690 | $0.15 | |
| 218 | Screw 4 x 16, Handle | K73031290 | $1.99 | |
| 300 | Wand | K54812423 | $44.53 | |
| 301 | Wand Clip | K50410080 | $4.20 | |
| 302 | Suction Hose Complete, Top Housing | K44402013 | $94.99 | |
| 305 | Accessories Holder | K50410043 | $8.99 | |
| 330 | Crevice Tool | K28892900 | $8.99 | |
| 331 |  | Upholstery Nozzle | K69059980 | $11.99 |
Frequently Asked Questions
Which Tornado Strike top handle parts wear out first?
The wand (part# K54812423) and the suction hose (part# K44402013) take the most handling, followed by the accessories holder and wand clip that get knocked against door frames. The handle screws and square nuts are cheap and worth replacing any time the handle has been apart. The electronic board and handle wiring rarely fail on their own — check the mechanical parts first.
My Strike powers up but the controls do nothing. Is that a handle part?
It can be. The Strike’s controls and display live in the front handle section (part# K47756210), driven by the electronic board (part# K46832583) and connected through the handle wiring (part# K66517690). A wiring harness that has chafed where the handle pivots is the common culprit, so inspect the loom before ordering a board. If the machine will not power up at all, the battery and charger are the place to start instead.
Do you sell the Strike battery and charger?
Yes — the 36V 7.5Ah lithium-ion battery (part# K24450750) and the 36V quick-charger (part# K24450530) are both on this page, and both also fit the Tornado Tempest and Zephyr. Lithium batteries ship under special handling rules, so call us at 763-535-0770 before ordering the battery and we will confirm what shipping to your address involves.
How do I order Tornado Strike top handle parts?
Click any numbered callout on the diagram above, or any row in the table, to go straight to that part. You can order online, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing Tornado equipment since 1956 and can confirm the right part from your serial number.
