Find genuine Tornado Roam (Model 97300 / 97300C) replacement parts for the nozzle assembly. Can’t find your part? Call us at 763-535-0770.

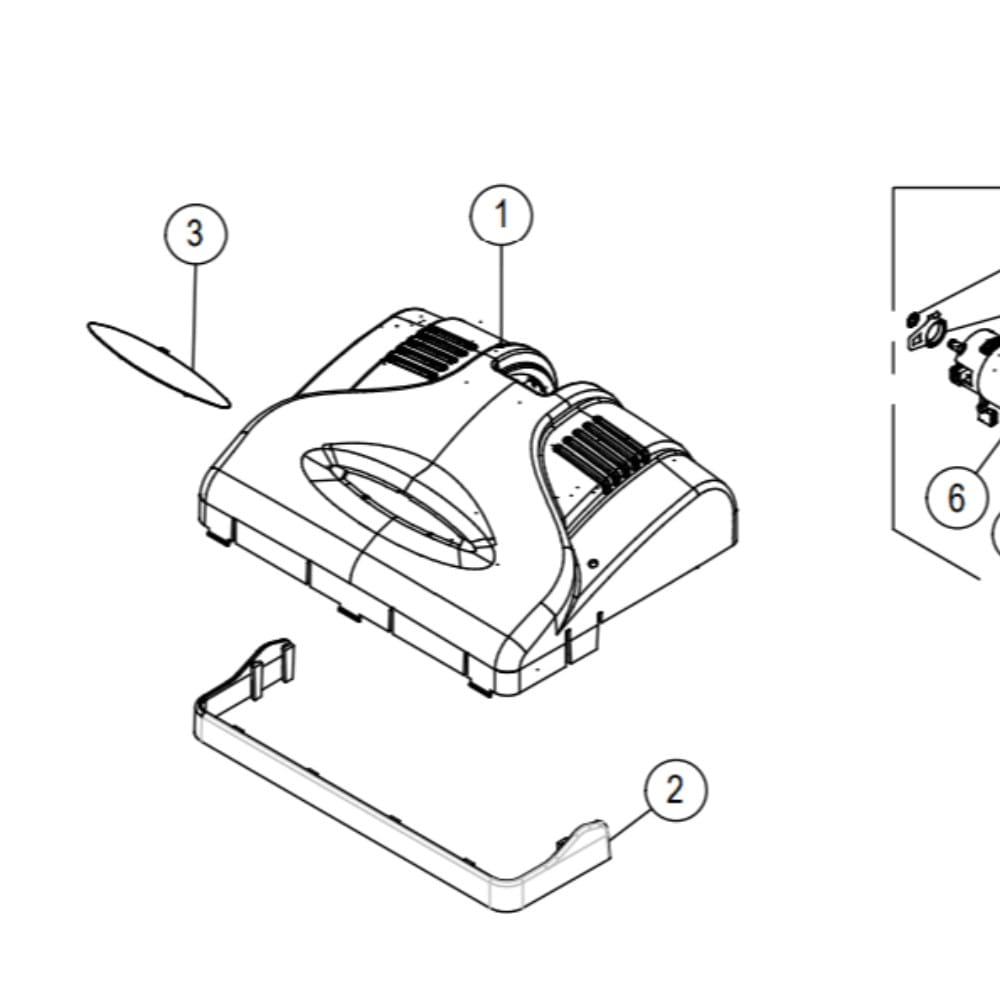

Click any numbered part in the diagram below, or any row in the parts table, to go directly to that part’s product page.

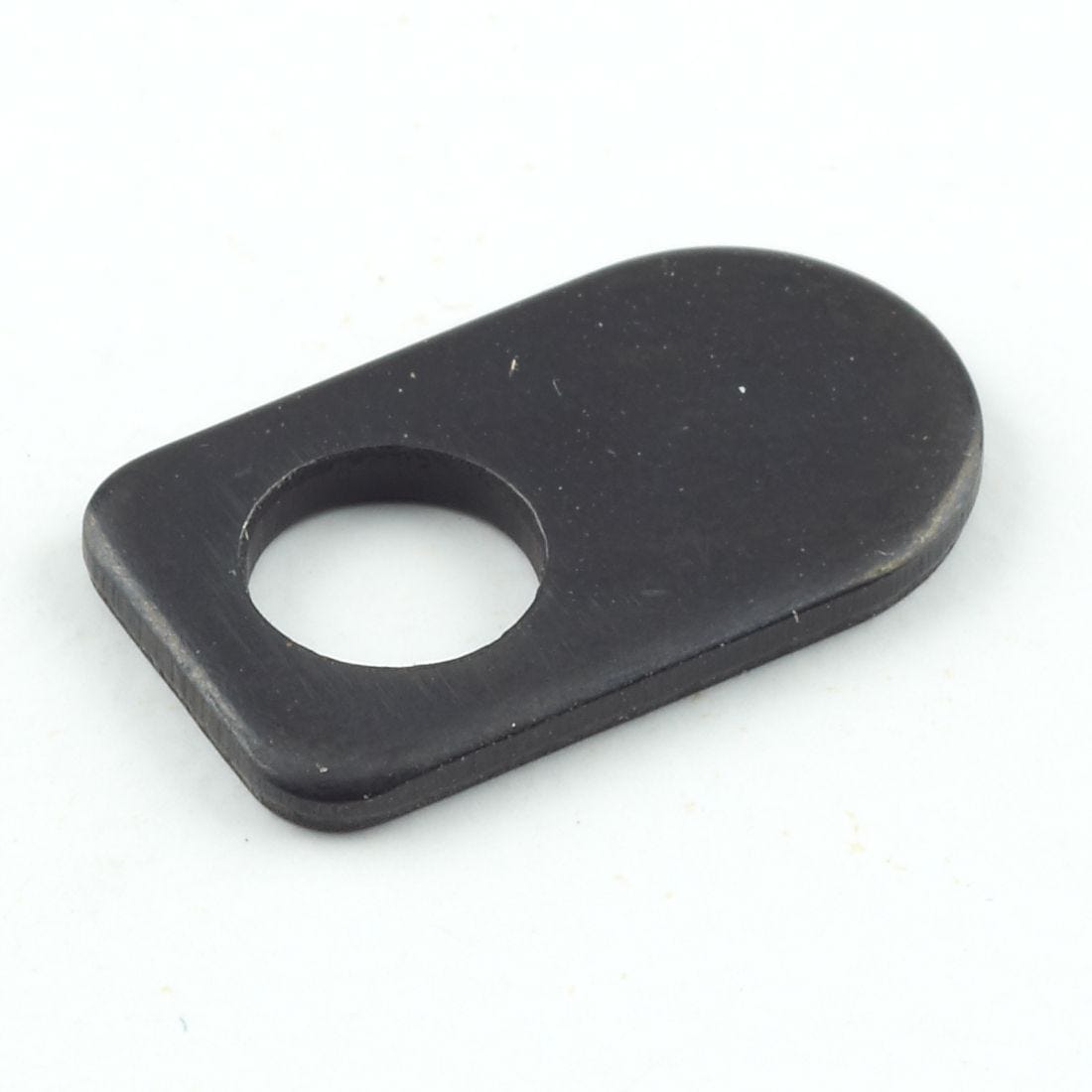

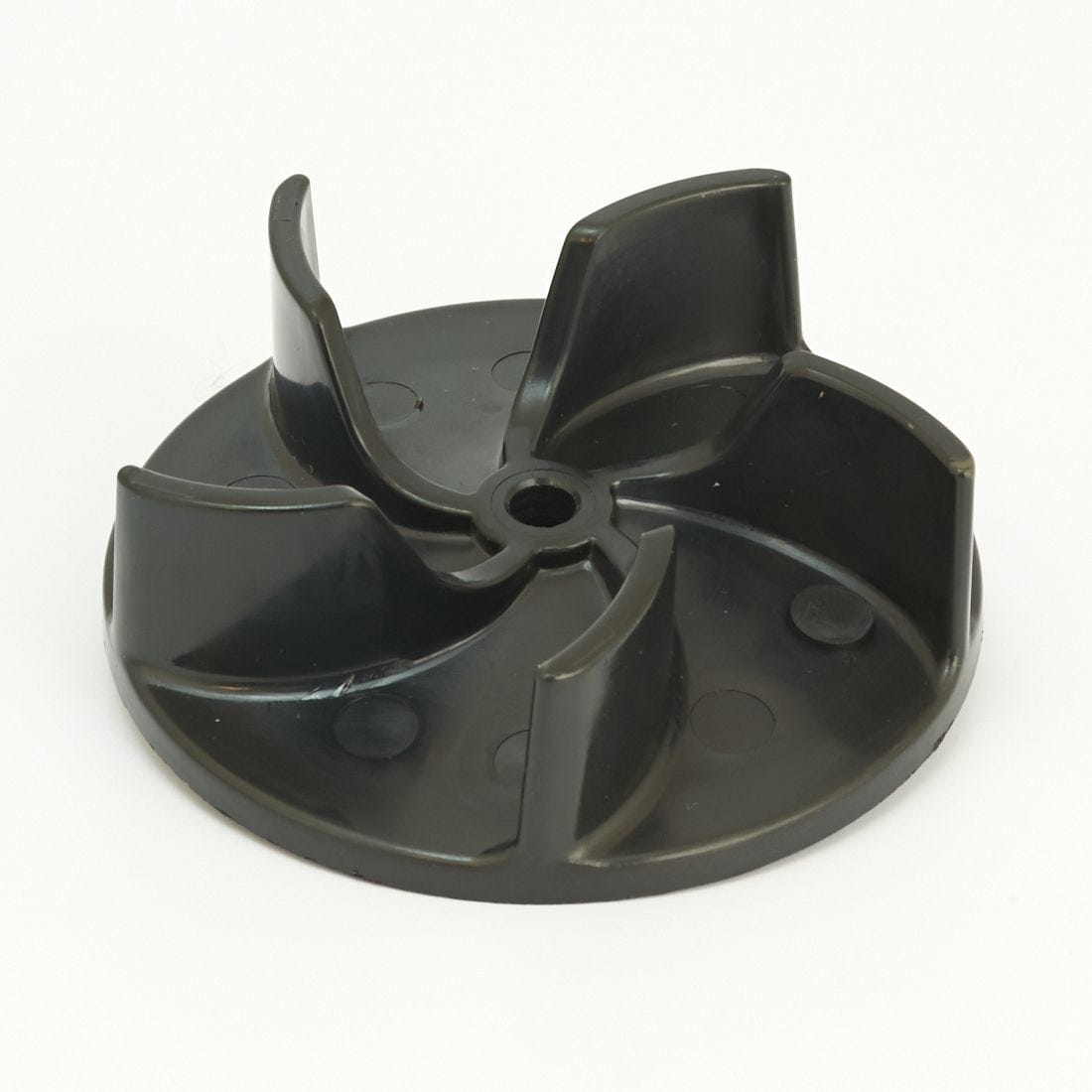

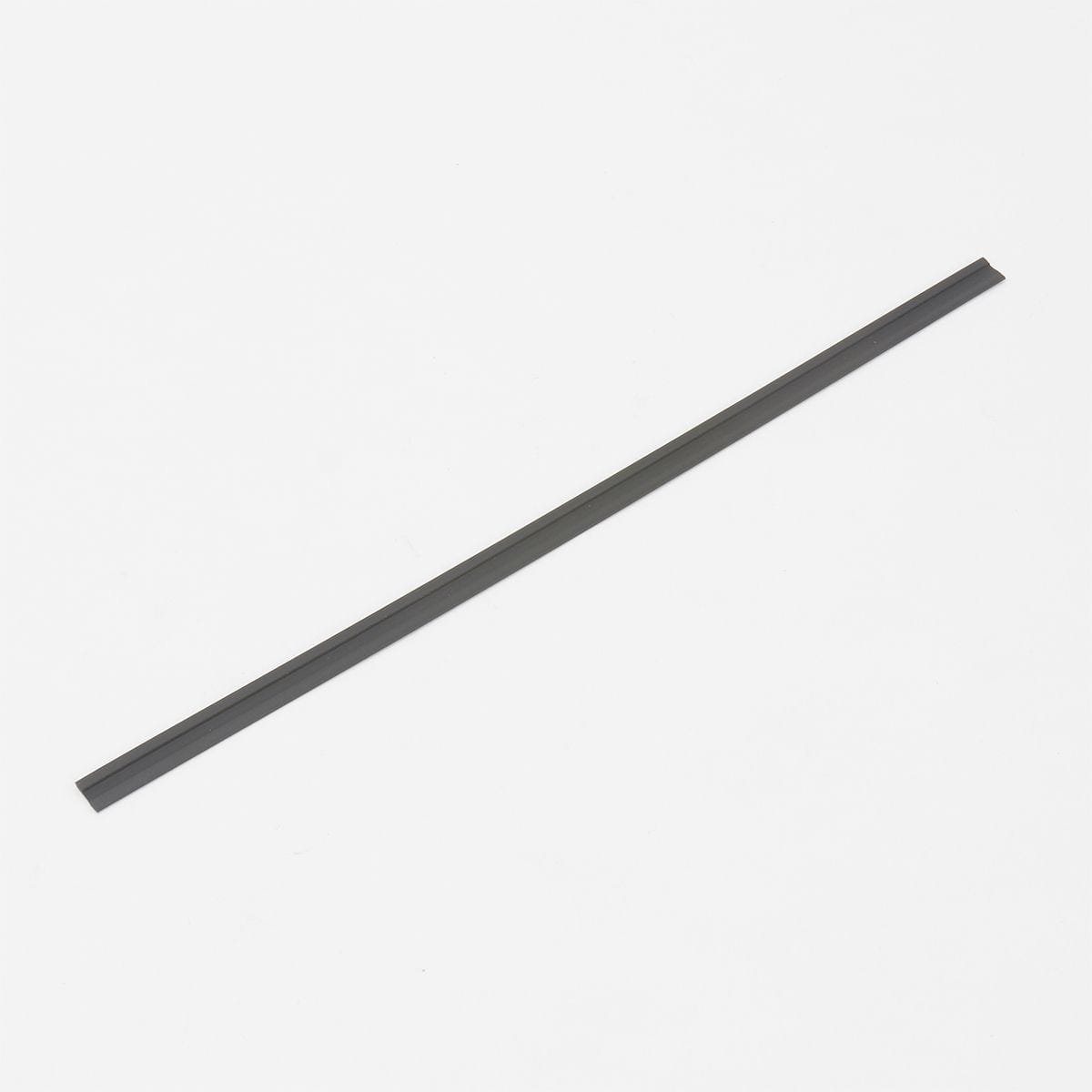

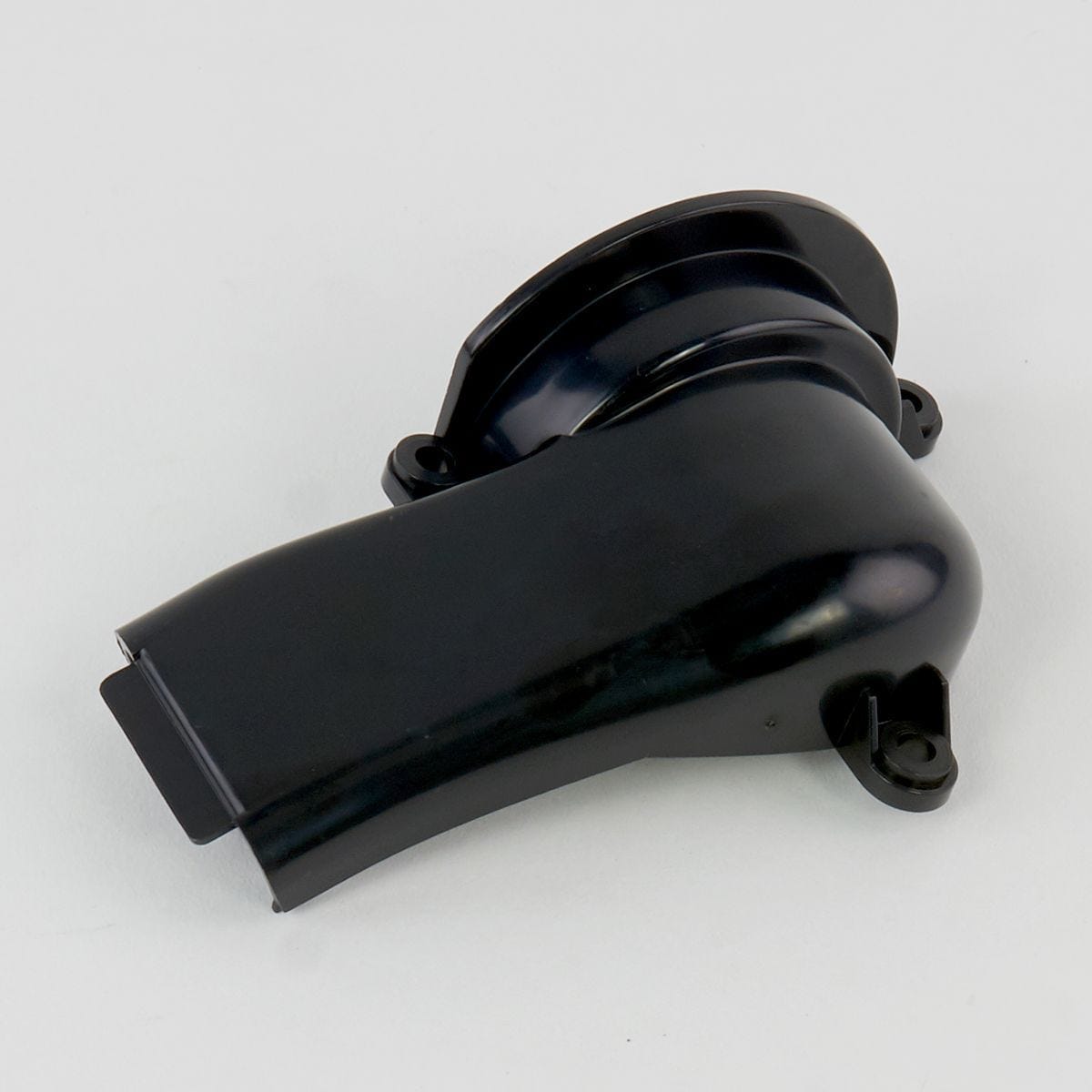

01. Nozzle Cover B220-24T002. Furniture Guard B220-261403. Lens B018-041504. E Clip for Motor Shaft A732-300005. Motor Support Base B223-2814C06. Motor Order #1907. Motor Housing B223-011408. Screw M5 X 6mm Socket A733-500009. Pivot Bushing B220-441410. Felt Pivot Seal B220-450011. Scroll Housing Right B220-401412. Washer (Behind Fan) A733-330013. Motor Fan B220-431414. Washer A733-220015. Hex Nut A432-060516. Scroll Housing Left B220-411417. Pan Head Hi Lo Screw #8 X 5/8 A732-831418. Motor Inlet Seal B480-451419. Motor Assembly D223-210020. Inlet Duct Cover B220-021409. Pivot Bushing B220-441421. Basetray Assembly D220-011422. Basetray Plug B016-191423. Upright Stop Spring B220-090024. Rear Axle Clamp 54.13625. Upright Stop Pedal Assembly D220-071426. Upright Stop Pedal B220-071427. Upright Stop Pedal Pivot B220-080028. Hole Plug A018-141429. LED PC Board Commercial B317-1150K30. Large Wheel Axle B010-2800C17. Pan Head Hi Lo Screw #8 X 5/8 A732-831417. Pan Head Hi Lo Screw #8 X 5/8 A732-831431. Rear Wheel (See #44) C220-0531C32. Front Wheel Axle (See #44) B010-0001E33. Front Wheel With Bushing C010-2714B34. Baseplate Assembly D220-041435. Baseplate B220-031436. Squeegee B015-3000B37. Baseplate Screw B220-041438. Baseplate Wheel Axle B370-1700B39. Baseplate Wheel B370-184340. Belt (2 pack) B014-0814B41. Agitator D012-230042. Combination Screw M4 X 12 ULW A732-250043. Strain Relief Washer B034-010044. Front Wheel With Bushing And Front Wheel Axle ( One #32 & One #33 Included) D010-2631The nozzle assembly forms the lower housing at the front of the Tornado Roam / 97300, holding the brush chamber, front wheels, squeegee, drive belt, and baseplate hardware. Because these components are in constant contact with the floor, parts like the squeegee, front wheels, belt, and baseplate screws are among the most frequently replaced items on the machine. Every part listed below is a genuine OEM Tornado / Powr-Flite component sourced directly from Tacony. Twin City Vacuum has been selling and servicing Tornado commercial vacuums since 1956 — call us at 763-535-0770 if you need help identifying a part.
Tornado Roam / 97300 Nozzle Assembly Parts List
Frequently Asked Questions — Tornado Roam / 97300 Nozzle Assembly
Where is the nozzle assembly located on the Tornado Roam / 97300?
The nozzle assembly is the lower front housing of the machine — it holds the brush roll chamber, front wheels, squeegee, and baseplate that contact the floor during cleaning.
Which Tornado Roam / 97300 nozzle parts wear out most often?
Squeegees, front wheels, drive belts, and baseplate hardware see the most wear because they are in constant contact with the floor and debris. These are the most commonly replaced nozzle assembly parts.
Are these genuine Tornado Roam / 97300 nozzle parts?
Yes. Every part listed is a genuine OEM Tornado / Powr-Flite component sourced directly from Tacony, the manufacturer. Twin City Vacuum is an authorized dealer.
How do I order a Tornado Roam / 97300 nozzle assembly part?
Click any part in the table above to open its product page, then add it to your cart. You can also call us at 763-535-0770 or visit our store at 5415 West Broadway, Crystal, MN 55428.
Looking for other Tornado Roam / 97300 parts? Return to the main Tornado Roam / 97300 parts page to browse the nozzle assembly, handle and body, and steel agitator sections, or call us at 763-535-0770 for help finding the right part.
