Tornado 98168 Marathon 1200 pump assembly view 1 replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.

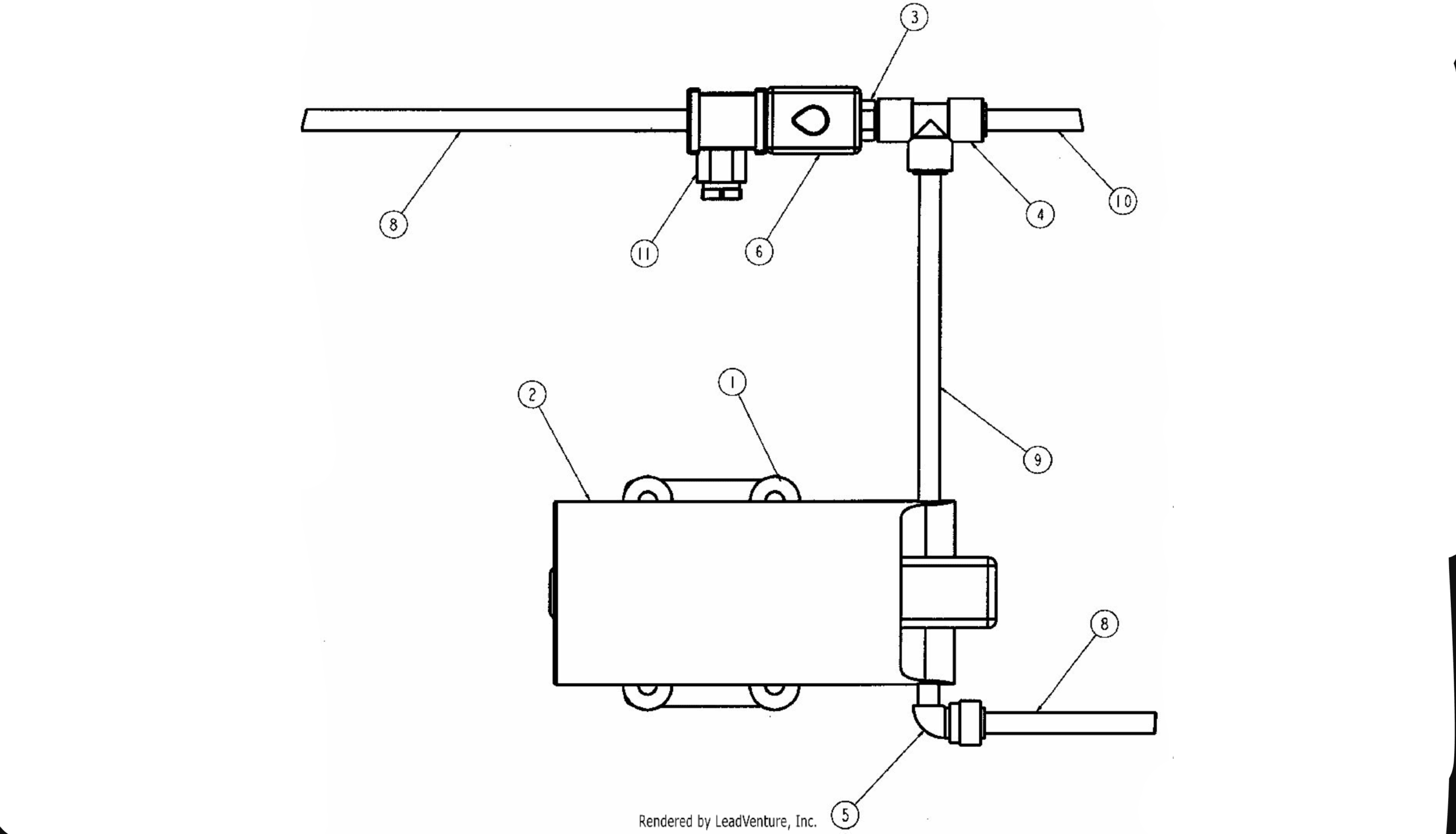

Click on any numbered part in the diagram below to go directly to that part’s product page.
01. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1121902. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Pump 115V 100 PSI – 3218003. Tornado 98168 12″ Gallon Self Contained Carpet Extractor QD 3/8″ M x 1/4″ MPT (Nylon) – 3218104. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Union Tee 3/8″ (Nylon) – 3218205. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nylon Elbow QD x 3/8″ Tube – 3218306. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Solenoid Valve Kit 120VAC 290 P.S.I. – SW290-KIT08. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose 3/8″ O.D. x 36″ – 3219209. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose 3/8″ O.D. x 7-1/2″ – 3219310. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose 3/8″ OD. x 22″ – 3231711. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Connector Assembly w/Wires – 3220708. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose 3/8″ O.D. x 36″ – 32192Find genuine Tornado 98168 Marathon 1200 pump assembly replacement parts for Model 98168. This diagram covers the solution circuit from the pump to the spray head — the 115V 100 PSI pump, the 120VAC 290 PSI solenoid valve kit that switches spray on and off, the connector assembly with wires that powers it, the nylon quick-disconnects, union tee and elbow that split the flow, and the 3/8″ O.D. hoses in 7-1/2″, 22″ and 36″ lengths that run between them. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 01 | Washer | 11219-98168-2 | $2.99 | |
| 02 | Pump 115V 100 PSI | 32180-98168 | $384.99 | |
| 03 | QD 3/8″ M x 1/4″ MPT (Nylon) | 32181 | $3.99 | |
| 04 | Union Tee 3/8″ (Nylon) | 32182 | $15.99 | |
| 05 | Nylon Elbow QD x 3/8″ Tube | 32183 | $13.99 | |
| 06 | Solenoid Valve Kit 120VAC 290 P.S.I. | SW290-KIT-98168 | $169.99 | |
| 08 | Hose 3/8″ O.D. x 36″ | 32192 | $10.99 | |
| 09 | Hose 3/8″ O.D. x 7-1/2″ | 32193 | $2.99 | |
| 10 | Hose 3/8″ OD. x 22″ | 32317 | $5.99 | |
| 11 | Connector Assembly w/Wires | 32207 | $51.60 |
Frequently Asked Questions
The pump runs but no solution comes out. What is wrong?
Suspect the solenoid valve before the pump. If the pump is audibly working and the tank has solution, the 120VAC solenoid valve kit is the part that decides whether that pressure reaches the spray bar, and a stuck-closed solenoid produces exactly this symptom.
My pump will not shut off, or sprays continuously.
That is the same solenoid valve failing the other way — stuck open. Check the connector assembly with wires first, though: a chafed lead that is permanently energising the valve costs a fraction of the valve itself.
There is a leak somewhere in the solution lines. How do I find it?
Work the quick-disconnects. Nearly every leak on this circuit is at a QD fitting or where a 3/8″ hose has been pushed on and off enough times to lose its grip. Order the exact hose length from the table below — the three lengths are not interchangeable in the routing.
Do I need pump view 1 or pump view 2?
View 1 is the main solution circuit and covers most repairs. View 2 carries a single nylon quick-disconnect connector. If the part you need is not on this page, check view 2 or call 763-535-0770 and we will find it for you.
Browse every assembly for this machine on the Tornado 98168 parts hub, or call 763-535-0770 and we will identify your part from the serial number. Twin City Vacuum, 5415 West Broadway, Crystal, MN 55428.
