CleanMax ZM-600 Nozzle Assembly Parts

Hotspot Background2. CleanMax ZM-600 Nozzle Housing D017-501403. Furniture Guard B029-031404. Fan Duct Cover With Seal D123-381405. Motor Seal Kit (Includes both seals) C121-000006. Lower Fan Housing B123-361407. Motor Fan B123-3000B08. Behind Fan Washer (Ametek Motor) A732-930509. Washer A733-220010. Hex Nut 1/4” x 28 A733-320012. Motor and Fan Assembly D113-140013. Screw Pan Head Hi Lo #8 x 5/8 A732-831416. Large Rear Wheel and Axle D350-663117. Base Tray Assembly with Plastic Upright Stop D016-111418. Base Tray Wheel Axle B010-0001E19. Base Tray Small Wheel B010-061421. Raw Base Plate B015-311422. Squeegee B015-3000B23. Base Plate Axle B370-1700B24. Base Plate Wheel B370-184325. Base Plate Assembly D015-291426. Combination Screw M4 x 12 A732-250027. Strain Relief Washer B034-010028. Upright Stop B016-123029. PCB Screw #4 X 5/16 (ZM-400, ZM-600) A732-730033. Circuit Breaker Hole Plug (ZM-600) A018-141435. Plastic Dowel Pin (ZM-600) A018-130036. Screw Hi/Lo #8 7/16” A732-841437. Hall Sensor Assembly (ZM-600) D375-1400

CleanMax Zoom ZM-600 Nozzle, Body & Motor Parts

#ImagePart DescriptionPart NumberPrice

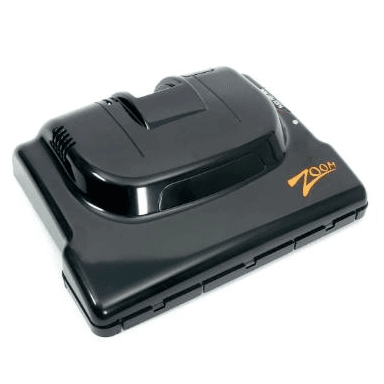

2CleanMax ZM-600 Nozzle Housing D017-5014CleanMax ZM-600 Nozzle Housing D017-5014D017-5014$27.99
3Furniture Guard B029-0314Furniture Guard B029-0314B029-0314$4.99
4Fan Duct Cover With Seal D123-3814Fan Duct Cover With Seal D123-3814D123-3814$6.99
5Motor Seal Kit C121-0000Motor Seal Kit C121-0000C121-0000$10.99
6Lower Fan Housing B123-3614Lower Fan Housing B123-3614B123-3614$3.99
7Motor Fan B123-3000BMotor Fan B123-3000BB123-3000B$3.99
8Behind Fan Washer — Ametek / TEK Motor (A732-9305 / A733-3300)Behind Fan Washer — Ametek / TEK Motor (A732-9305 / A733-3300)A732-9305$2.99
9Fan Washer A733-2200Fan Washer A733-2200A733-2200$2.99
10Fan Hex Nut 1/4 x 28 A733-3200Fan Hex Nut 1/4 x 28 A733-3200A733-3200$2.99

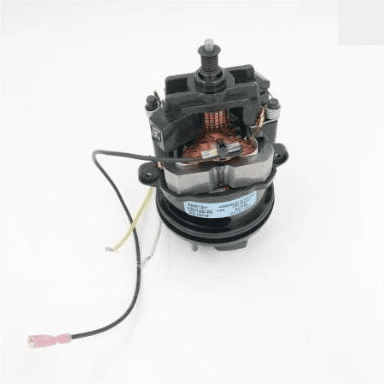

12Motor and Fan Assembly D113-1400Motor and Fan Assembly D113-1400D113-1400$183.99
13Phillips Pan Head Hi-Lo Screw A732-8314Phillips Pan Head Hi-Lo Screw A732-8314A732-8314$2.99
16Large Rear Wheel and Axle D350-6631Large Rear Wheel and Axle D350-6631D350-6631$11.99
17Base Tray Assembly with Upright Stop D016-1114Base Tray Assembly with Upright Stop D016-1114D016-1114$42.99
18Base Tray Wheel Axle B010-0001EBase Tray Wheel Axle B010-0001EB010-0001E$2.99
19Base Tray Small Wheel B010-0614Base Tray Small Wheel B010-0614B010-0614$2.99
21Raw Base Plate B015-3114Raw Base Plate B015-3114B015-3114$5.99
22Squeegee B015-3000BSqueegee B015-3000BB015-3000B$1.99
23Base Plate Axle B370-1700BBase Plate Axle B370-1700BB370-1700B$2.99
24Base Plate Wheel B370-1843Base Plate Wheel B370-1843B370-1843$2.99
25Base Plate Assembly D015-2914Base Plate Assembly D015-2914D015-2914$14.99
26Combination Screw M4 x 12 A732-2500Combination Screw M4 x 12 A732-2500A732-2500$2.99
27Strain Relief Washer B034-0100Strain Relief Washer B034-0100B034-0100$2.99
28Upright Stop B016-1230Upright Stop B016-1230B016-1230$2.99
29Nozzle Screws A732-7300Nozzle Screws A732-7300A732-7300$2.99
33Hole Plug A018-1414Hole Plug A018-1414A018-1414$2.99
35Plastic Dowel Pin (ZM-600) A018-1300Plastic Dowel Pin (ZM-600) A018-1300A018-1300$2.99
36Screw #8 x 7/16 Hi-Lo A732-8414Screw #8 x 7/16 Hi-Lo A732-8414A732-8414$2.99
37Hall Sensor Idler Assembly D375-1400Hall Sensor Idler Assembly D375-1400D375-1400$45.99
