Tornado 98169 Marathon 1200 main assembly replacement parts for Model 98169. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
Find genuine Tornado 98169 Marathon 1200 main assembly replacement parts for Model 98169. This is the top-level sheet, drawn as two views of the complete machine so the relationship between the tank body, the chassis and the hose runs is visible at a glance. It is the drawing a technician opens first, before diving into any one sub-assembly. The parts listed here are the items that join the large assemblies together: the steel-supported vacuum hoses that carry recovery between the nozzle and the tank, the nozzle hose adapter tube, the shroud pivot bushing, the lead retaining clip and ring terminal that dress the wiring, and the brass and steel screws that hold one assembly onto another. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| Not Shown |  | Shroud Pivot Bushing | 19153 | $5.99 |
| 2 |  | Screw 3/8-16 x 3/4" | 19207 | $3.99 |

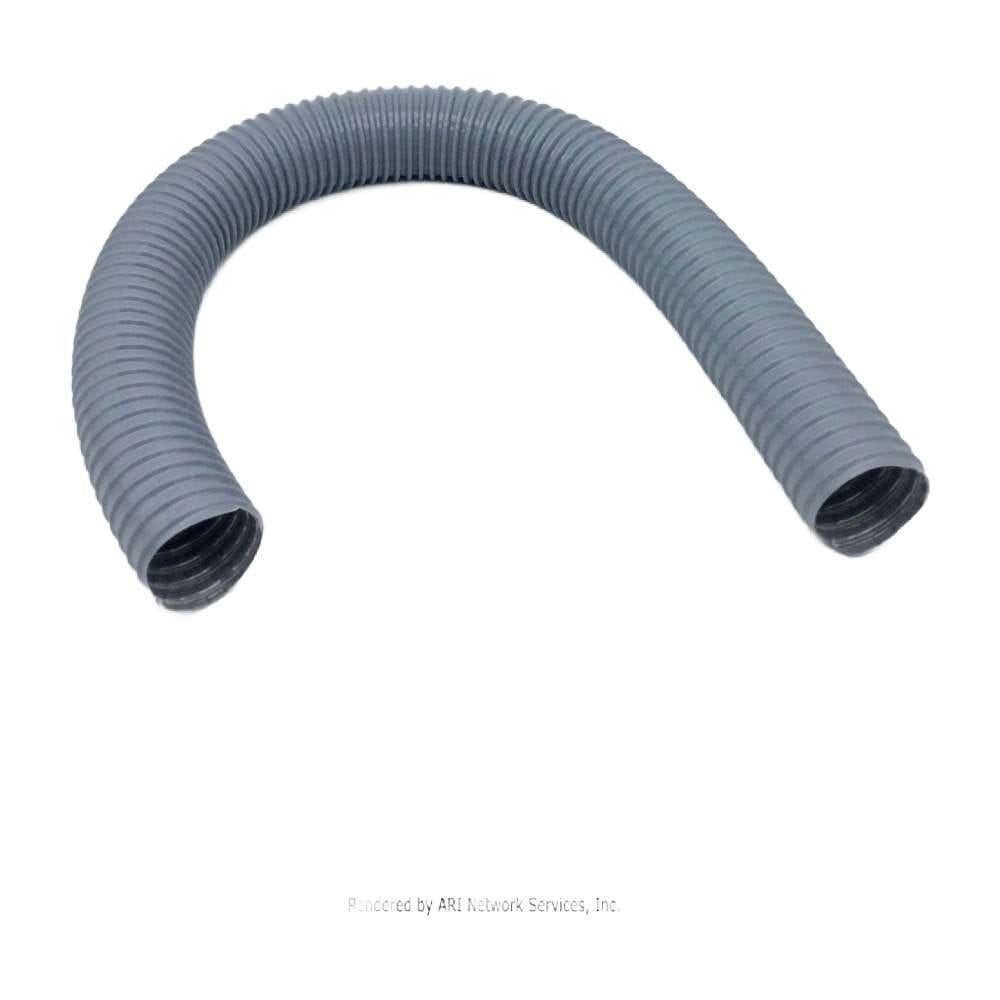

| 6 |  | Steel Supported Hose 1-1/2" x 42" w/Cuffs | 31388 | $82.99 |
| 8 | Brass Screw 3/8-16 x 1" | 03913 | $4.99 | |
| 9 | Lead Retaining Clip (Self Adhesive) | 10428 | $4.99 | |
| 10 | Ring Terminal | 15955 | Call for price | |
| 11 |  | Steel Supported Hose 1-1/2" x 64" w/Cuffs | 18967 | $94.99 |

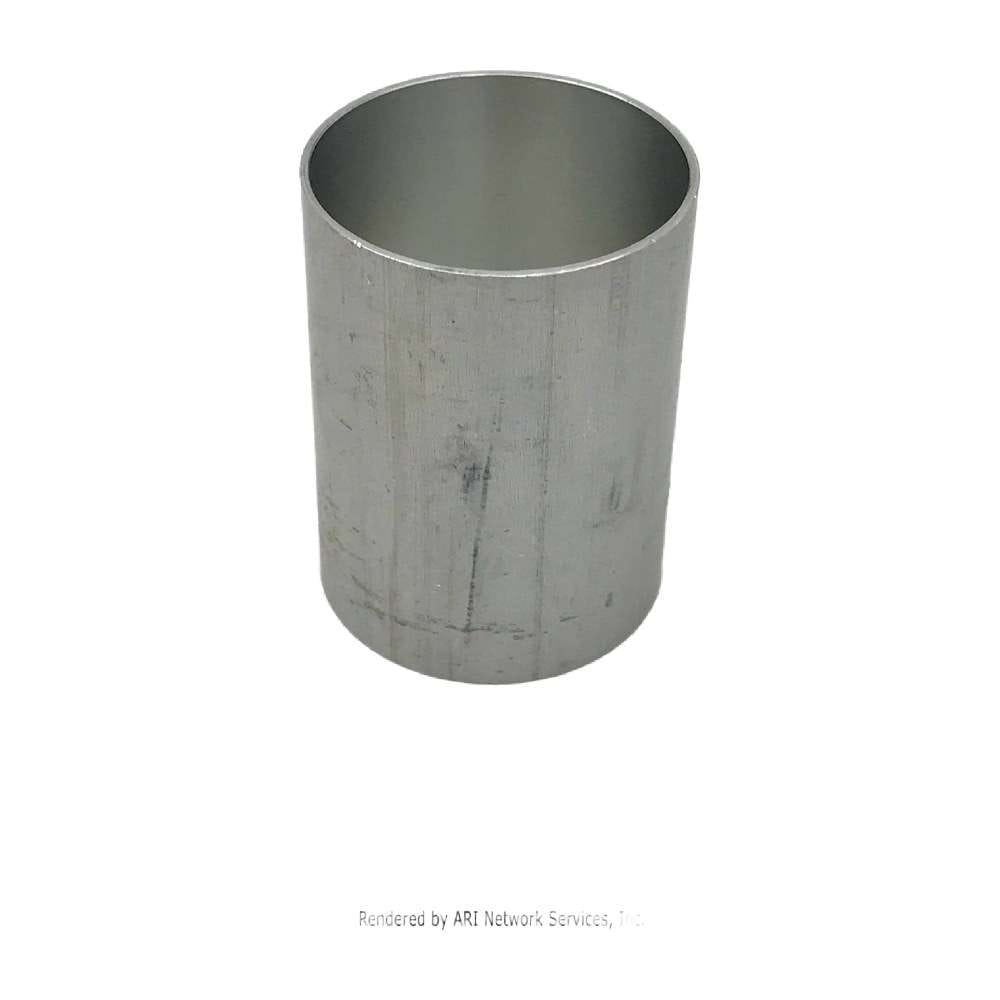

| 15 |  | Nozzle Hose Adapter Tube | 19197 | $33.99 |
Frequently Asked Questions
What is on the Tornado 98169 main assembly drawing?
The top-level items that hold the machine together, shown as two views of the whole machine: the vacuum hoses and adapter tube, the shroud pivot bushing, the wiring clip and ring terminal, and the fasteners that join one sub-assembly to another. Detailed internal components appear on their own assembly sheets.
Why does one row say Not Shown instead of a number?
The manufacturer lists that part on this assembly without marking it with a callout on the drawing. It belongs to the assembly and can be ordered normally; there is simply no numbered position for it on the artwork.
Which hose do I need, the 42 inch or the 64 inch?
They sit in different runs on the machine, so measure the hose you are replacing rather than guessing. Both are steel-supported with cuffs. Call us with your serial number if you are unsure and we will confirm which run yours uses.
Are these parts shared with the 115-volt 98168?
Yes. Body, frame, hose and fastener components are common across the Marathon family, and in many cases the 8-gallon Marathon 800 machines too. Only the voltage-rated electrical parts differ on the 230-volt machine.
How do I order Tornado 98169 main assembly parts or get help?
Add the part to your cart from its product page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing Tornado equipment since 1956 and can confirm the part against your machine before you order.
Questions? Call us at 763-535-0770 or visit us at 5415 West Broadway, Crystal, MN 55428. Browse every assembly for this machine on the Tornado 98169 Marathon 1200 parts page.
