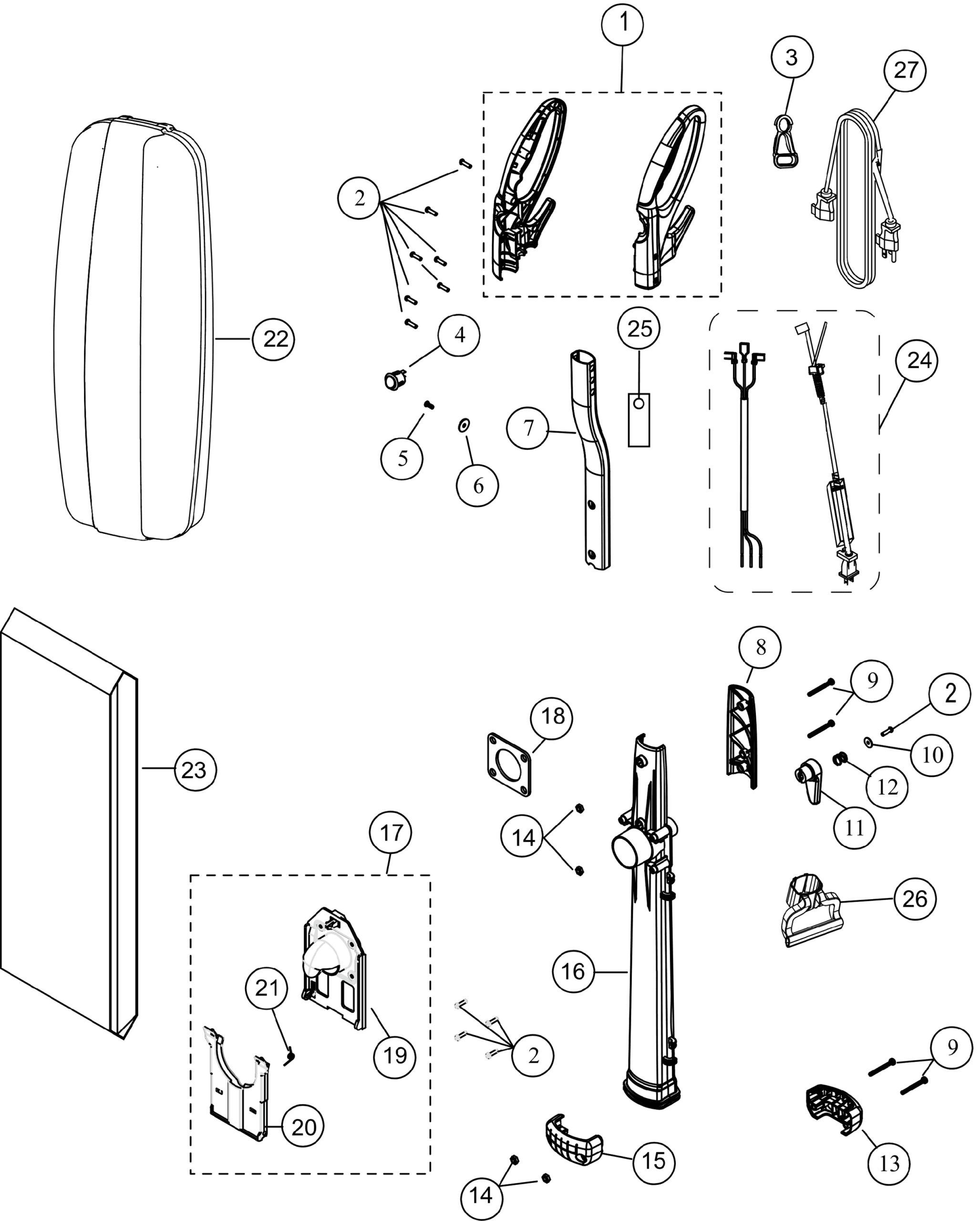

Every part on the handle and body assembly of the Tornado CK ULW 13/1 (model TV280-W12-U), taken straight from the factory parts sheet dated 15 December 2022. Click any numbered dot on the diagram to open that part in a new tab, or use the table below it.
This sheet covers the handle, the neck joint, the cord and switch, the bag mount and the bag itself. For the nozzle, motor, brushroll and baseplate, see the Tornado CK ULW 13/1 nozzle assembly parts page.
3. Cord Hook – B352-690027. Extension Cord 30′ – CMPS-EXT302. Screw #8-18 x 5/8″ – A732-83142. Screw #8-18 x 5/8″ – A732-831425. Handle Spacer – B388-59004. Two Speed Switch – A328-170022. Hard Shell Bag – B220-670024. Pigtail And Handle Harness Assembly – D434-3714B7. Handle Tube – B220-34005. Screw #8 x 7/16″ – A732-84146. Nylon Washer – B017-25008. Handle Back Cover – B220-31149. Screw #10-32 x 1-5/8″ – A432-07059. Screw #10-32 x 1-5/8″ – A432-070518. Bag Mount Seal – B220-390010. Washer – A430-040523. HEPA Bag (Bulk Single) – B220-5382C23. HEPA Bag (6 Pack) – CLH-623. Paper Bag (Bulk Single) – B211-880012. Upper Cord Hook Spring – B430-020011. Swivel Cord Hook – B220-331417. Bag Mount Assembly – D484-228214. Nyloc Nut – 3035814. Nyloc Nut – 3035826. Carry Handle – B220-621416. Handle Duct – B220-3014C21. Bag Collar Spring – B434-340019. Bag Mount – B220-381420. Bag Mount Hinge – B434-228215. Neck Coupling Front Black with Standard Lock Nut – C220-101413. Back Neck Coupling – B220-11141. Handle Grip Assembly – C220-351430 parts, 27 callouts. Callouts 2, 9 and 14 appear twice on the sheet and callout 23 three times — the bag options — so the diagram carries 32 dots. The pigtail cord assembly (D434-3814) is listed on the sheet without a callout and has no dot.
Frequently Asked Questions
Which handle and body parts wear out first on the CK ULW 13/1?
The consumables go first — bags, and the cord hooks and swivel that take daily handling. After those, the neck couplings and the handle grip assembly are the parts that fail from being pulled and dropped, and the pigtail and handle harness is worth checking whenever the machine has an intermittent power or switch fault.
There are three bags listed under callout 23. Which one do I need?

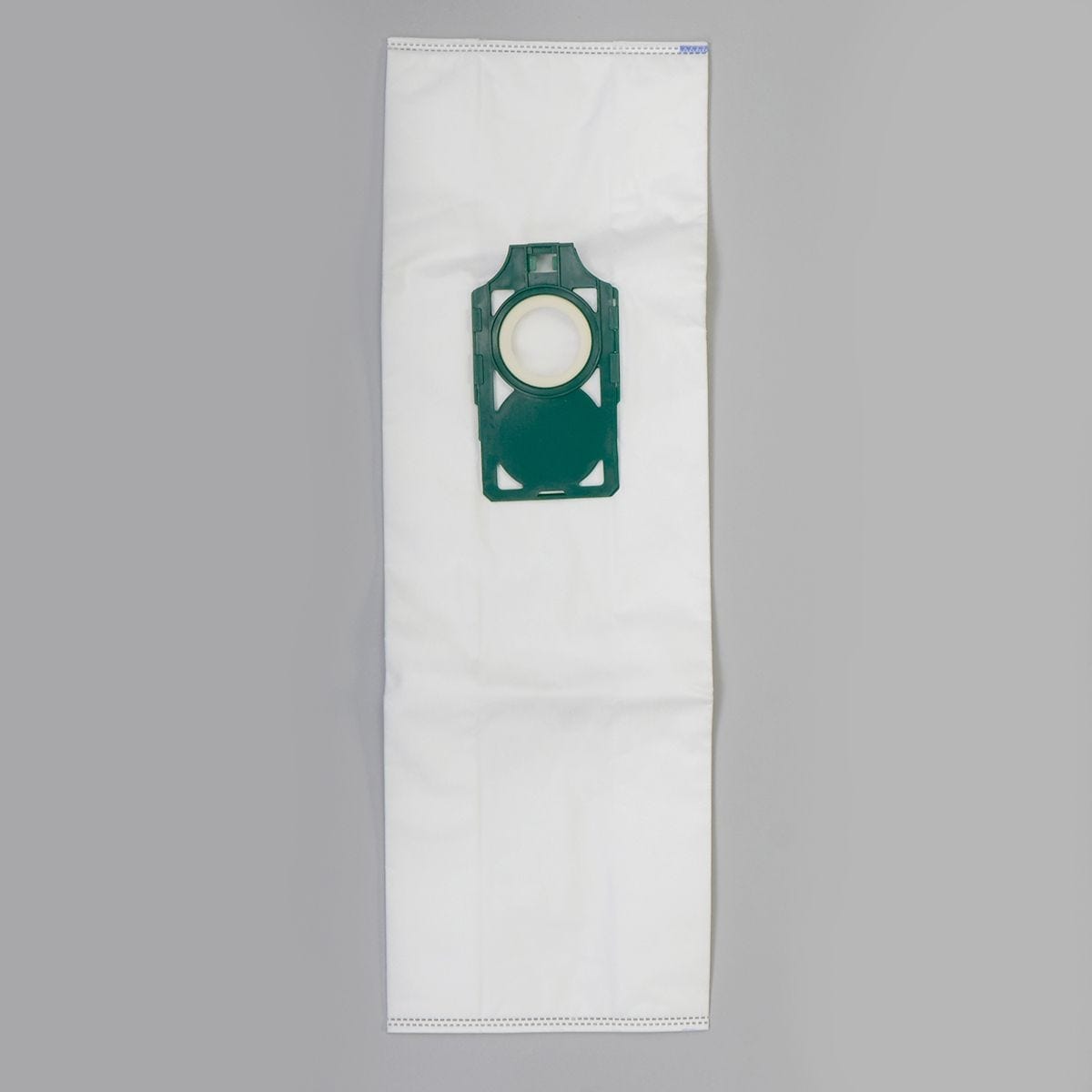

All three fit the same bag mount. B220-5382C is a single Type L HEPA bag, CLH-6 is a six-pack, and B211-8800 is the paper alternative sold singly. HEPA media holds finer dust and keeps airflow longer; paper is the cheaper everyday option.
My handle is loose at the neck. Which part is it?
Almost always the neck couplings — C220-1014 at the front (callout 15) and B220-1114 at the back (callout 13), with the nyloc nut 30358 at callout 14. Check the mouldings around the pivot for cracking and stress-whitening before ordering, since one side usually goes before the other.
Do these handle and body parts fit Riccar and Simplicity ultralights?
Many of them do — this machine is built on the same platform as several Riccar and Simplicity uprights and shares the great majority of its parts. Each product page lists the models confirmed for that part. If your machine is not named there, call us with the model number rather than assuming it does not fit.
