Tornado CK ULW 13/1 replacement parts for Model TV280-W12-U. Can’t find your part? Call us at 763-535-0770.

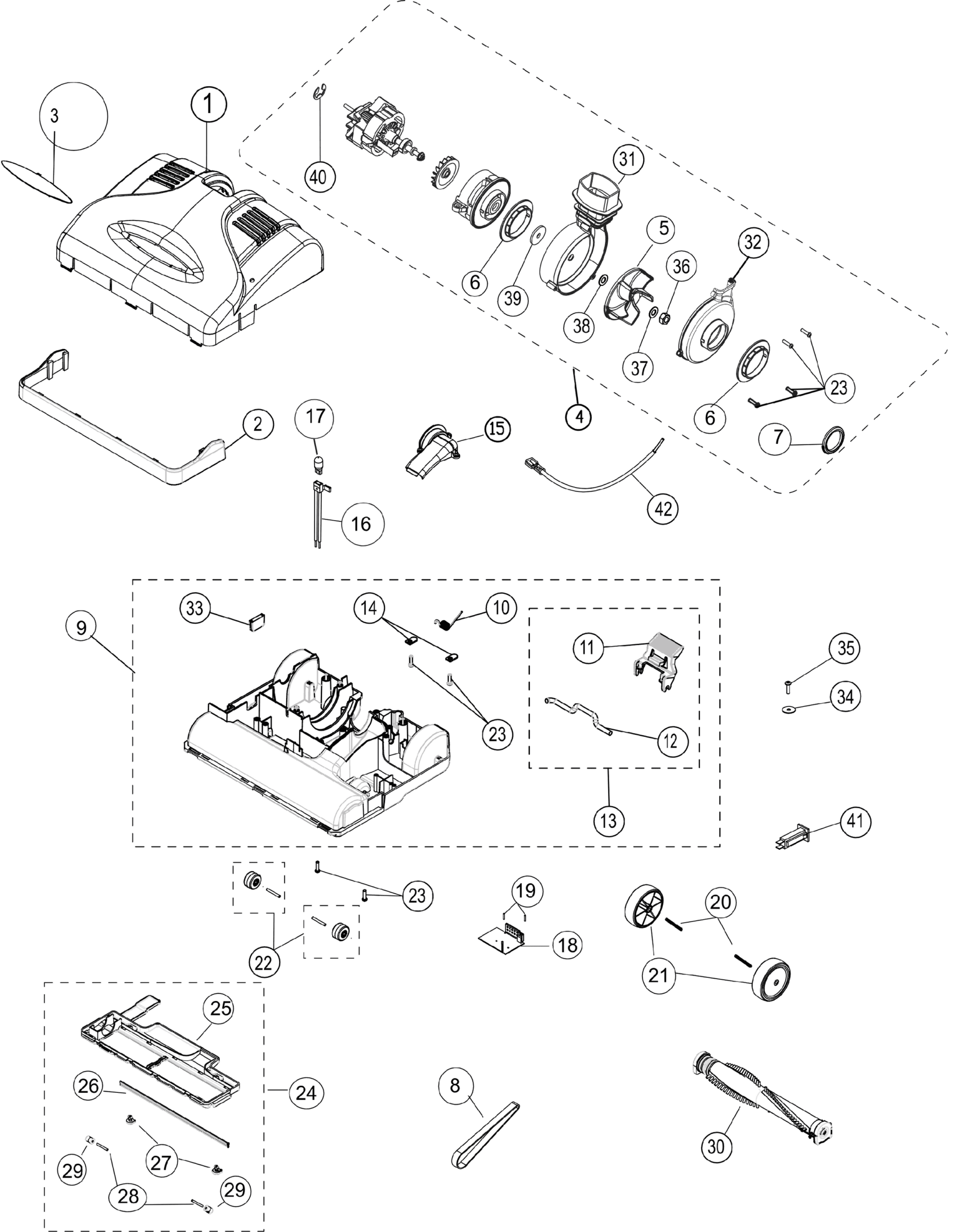

Click on any numbered part in the diagram below to go directly to that part’s product page. For the handle, neck, cord, switch and bag mount, see the Tornado CK ULW 13/1 handle and body parts page.
1. Nozzle Cover – B220-24TU2. Black Furniture Guard – B220-26143. Lens – B018-04154. Motor Assembly – D220-40005. Motor Fan – B220-43146. Pivot Bushing – B220-44146. Pivot Bushing – B220-44147. Motor Inlet Seal – B480-45148. Belt (2 Pack) – CMZM-B29. Basetray Assembly – D220-011410. Spring – B220-090011. Pedal – B220-071412. Pedal Pivot – B220-080013. Upright Stop Pedal Assembly – D220-071414. Axle Clamp – 54.13615. Inlet Duct Cover – B220-021416. Light Socket – A018-090017. Light Bulb Krypton 12 Volt – A350-0000B18. PC Board – B317-0000K19. Screw – A732-730020. Rear Wheel Axle – B010-2800C21. Rear Wheel w/Bushing – C220-0531C22. Front Wheel Assembly – D010-263123. Screw #8 x 7/16″ – A732-841423. Screw #8 x 7/16″ – A732-841423. Screw #8 x 7/16″ – A732-841424. Baseplate Assembly (Standard) – D220-041425. Baseplate Cover (supplied with the Baseplate Assembly) – D220-041426. Squeegee – B015-3000B27. Baseplate Cover Screw – B220-041428. Baseplate Axle – B370-1700B29. Baseplate Wheel – B370-184329. Baseplate Wheel – B370-184330. Wood Agitator w/End Caps – D012-280031. Scroll Housing Right – B220-401432. Scroll Housing Left – B220-411433. Basetray Plug – B016-191434. Nylon Washer – B034-010035. Screw M4 x 12 – A732-250036. Nut – A432-060537. Washer Over Fan – A733-220038. Washer Under Fan – A733-330039. Felt Seal – B220-450040. E Clip – A732-300041. Circuit Breaker 5A – A028-0114B42. Ground Wire – B333-1100BFind genuine Tornado CK ULW 13/1 nozzle assembly replacement parts for Model TV280-W12-U — the baseplate and its wheels, the wooden agitator and belt, the motor and fan, the scroll housings, the headlight and socket, the pedal assembly and the basetray. Most are shared Tacony parts that also fit Riccar, Simplicity and CleanMax ultralight uprights, and each listing names every machine it fits. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
Frequently Asked Questions
Which CK ULW 13/1 nozzle parts wear out first?
The belt and the wooden agitator go first, because they do the work. After those it is the baseplate wheels and the squeegee, then the rear wheels. The motor, the PC board and the scroll housings are long-life parts and are rarely the cause of a machine that has stopped cleaning well.
My machine runs but the brush is not turning. What should I check?
The belt, first and always. Tip the machine and look at the agitator: if it turns freely by hand with the machine off and does not turn under power, the belt has snapped or stretched off its pulley. If the belt is intact, check that the agitator end caps are seated in their bearings and that nothing is wound tightly around the brush shaft.
Why are there two belts and two baseplates listed under one number?
The factory sheet offers alternatives at those callouts. The belt is sold either singly or as a two-pack — same belt, different quantity. The baseplate comes as the standard assembly or as the optional soft-carpet version, which is a genuinely different plate for delicate soft-surface carpet. Both options are listed as their own rows so you can pick the one you want.
Do these nozzle parts fit Riccar, Simplicity or CleanMax ultralights too?
Most of them do. The CK ULW 13/1 is Tornado’s badge on the Tacony ultralight platform, so the belt, baseplate, agitator, wheels and most of the hardware are shared with Riccar R10-series, Simplicity and CleanMax ultralight uprights. Each listing names every machine it fits. A few parts, such as the nozzle cover, are specific to this model.
Tornado CK ULW 13/1 parts, or call 763-535-0770 and we will identify the part from the diagram with you. See the full Tornado CK ULW 13/1 parts hub.
