The piece parts and vacuum motor for the Tornado CV 38/2 (15″, Model 91415) and Tornado CV 48/2 (19″, Model 91419) commercial upright vacuums. Both machines take the same parts on these two assemblies, so Tornado publishes one drawing for each and we list them together.

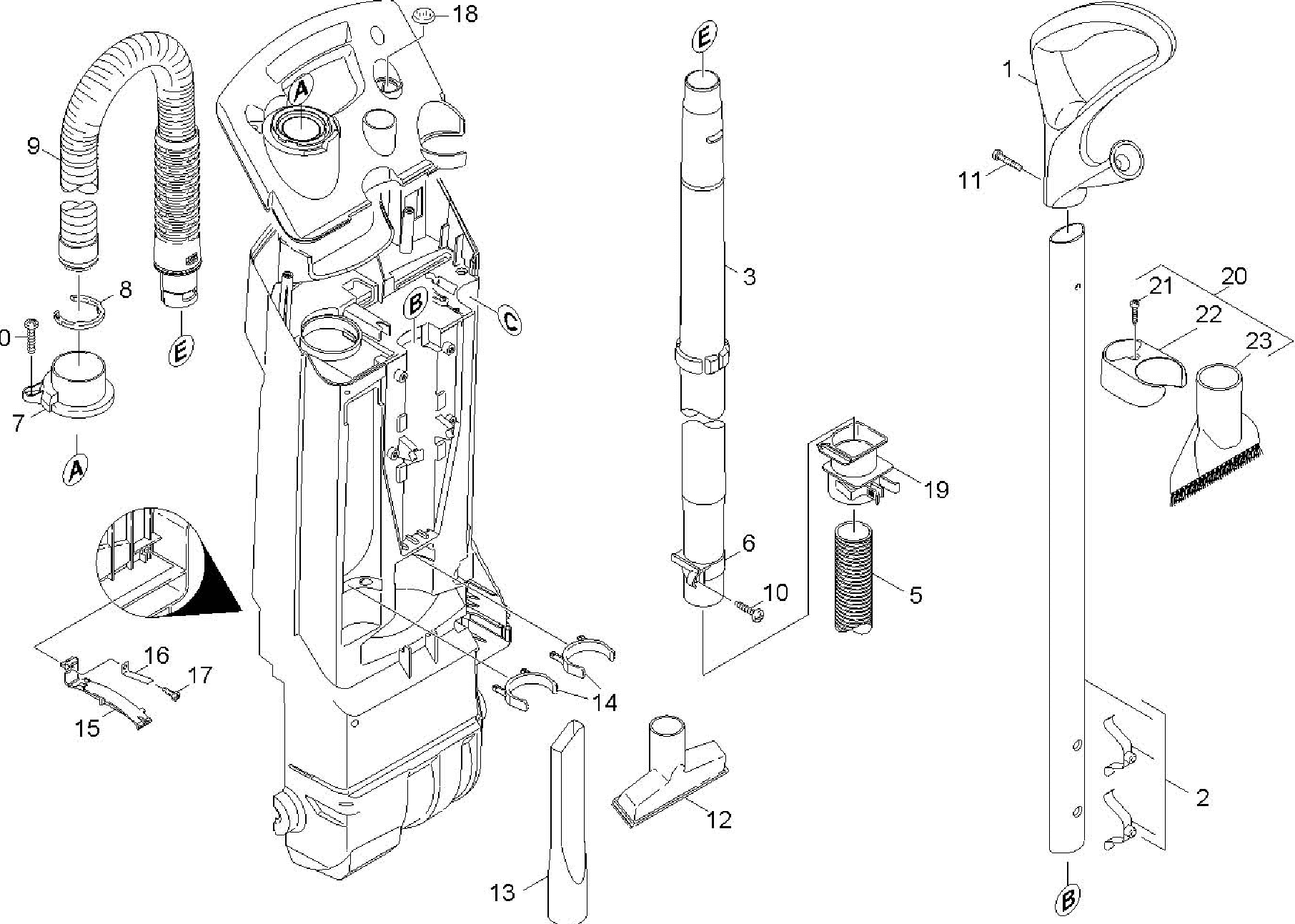

Find your part on a diagram, note the number beside it, and match that number to the first column of the table underneath it. Hover any dot to see what it is. Every dotted part opens in a new tab. Can’t find your part? Call us at 763-535-0770.
Tornado CV 38/2 & CV 48/2 Piece Parts
1. Tornado CV Handle – K5321713010. Screw M5 x 20 – K7303108010. Screw M5 x 20 – K7303108011. Screw M5 x 40 – K7303118012. Upholstery Nozzle – K6905998013. Crevice Tool – K6906240014. Accessory Clip – K5041111015. Filter Holder – K5042836016. Spring – K5332339017. Screw M4 x 12 – K7303106018. Indicator Lens – K5031521019. Wand Sleeve – K540711502. Handle Assembly Complete – K4128001020. Tornado Accessories Kit (Clamp, Screw, Brush) – K426201503. Wand – K512904605. Suction Hose DN 32 – K639111506. Suction Tube Ring – K557007507. Hose Connection Piece – K503254008. Locking Ring – K503101109. Suction Hose, CV Models After 2010 – K63919340These are the parts the operator touches. The handle grip, the wand and its sleeve, both suction hoses, the upholstery nozzle and crevice tool, and the clips that hold the tools on the machine. They break for ordinary reasons — a machine pulled up a stair by the grip, a wand dropped on a hard floor, a hose that has been stood on — and every one of them is available separately rather than as part of a larger assembly.
Tornado CV 38/2 & CV 48/2 Vacuum Motor
1. Tornado CV 38/2 & 48/2 Complete Vacuum Motor – K406081402. Tornado CV 38/2 & 48/2 Vacuum Motor Cable – K664976003. Screw M4 x 12 – K730310604. Terminal – K66435510Four items make up the motor breakdown: the complete suction motor, the cable that feeds it, the screws that hold it and the terminal on the end of the cable. The motor is the expensive one and the one with a service life — carbon brushes wear, and on a machine running daily that is a scheduled replacement rather than a failure. If suction has dropped and new filters have not brought it back, the motor is the next thing to check.
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Tornado CV 38/2 & 48/2 Complete Vacuum Motor K40608140 | K40608140 | 1 | $259.99 | View part |
| 2 | | Tornado CV 38/2 & 48/2 Vacuum Motor Cable K66497600 | K66497600 | 2 | Call for price | View part |
| 3 |  | Screw M4 x 12 K73031060 | K73031060 | 4 | $1.99 | View part |
| 4 | | Terminal K66435510 | K66435510 | 1 | $5.99 | View part |
Notes on these diagrams
Positions 21, 22 and 23 appear on the piece parts drawing but not in the table. They are the contents of the position 20 accessories kit — clamp, screw and dusting brush — which Tornado supplies as one part number. Position 4 is not used on this breakdown.
Two suction hoses are listed. Position 5 is the DN 32 hose; position 9 is the hose Tornado fits to CV models built after 2010. Check which is on your machine before ordering.
The screw at position 17 on the piece parts drawing and position 3 on the motor drawing is the same part number (K73031060), drawn twice because it is used in both places. One part number, two positions — the quantity column tells you how many each assembly takes.
